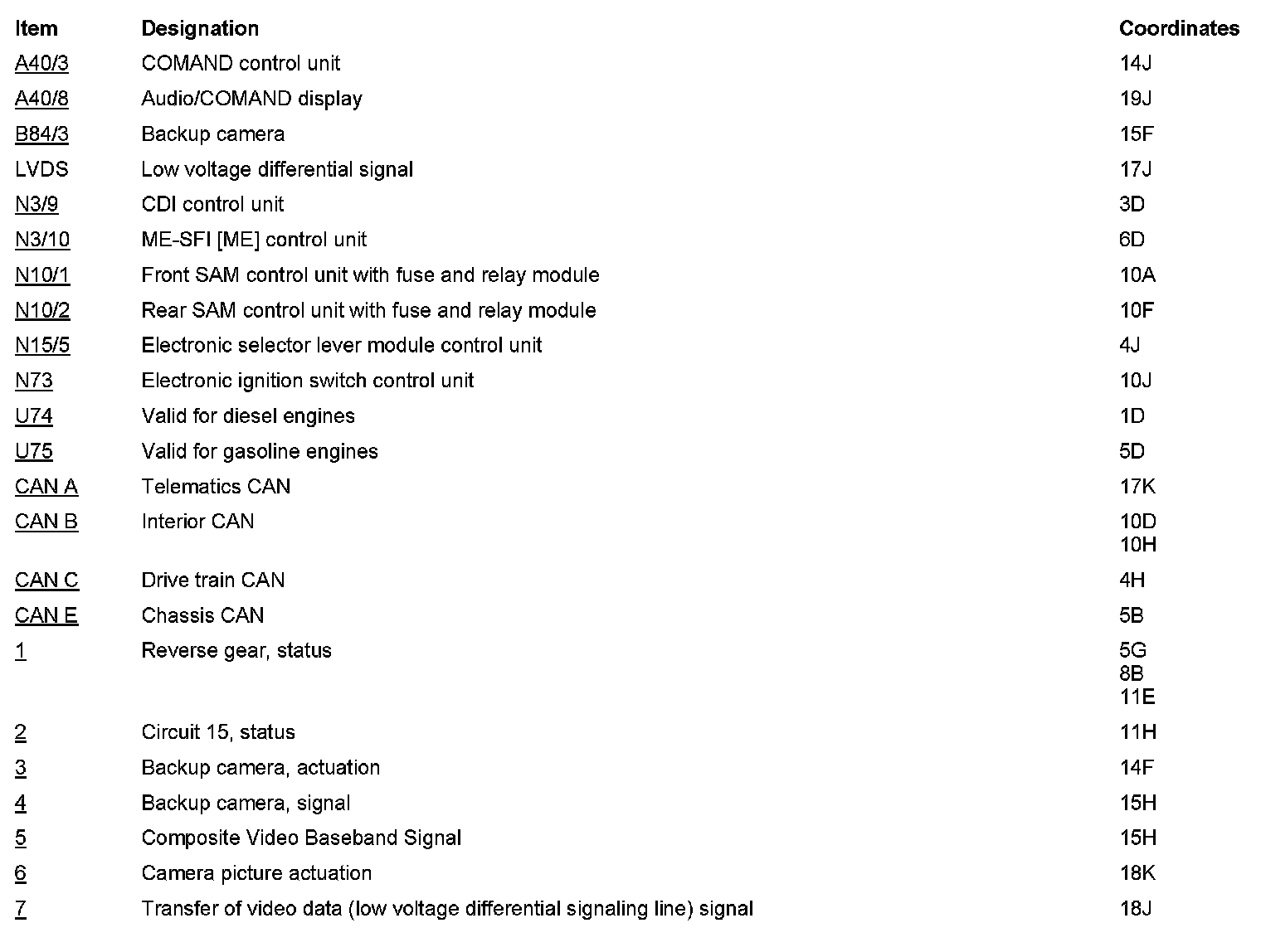

PE54.65-P-2051FAC Electrical Function Schematic, Reversing Camera

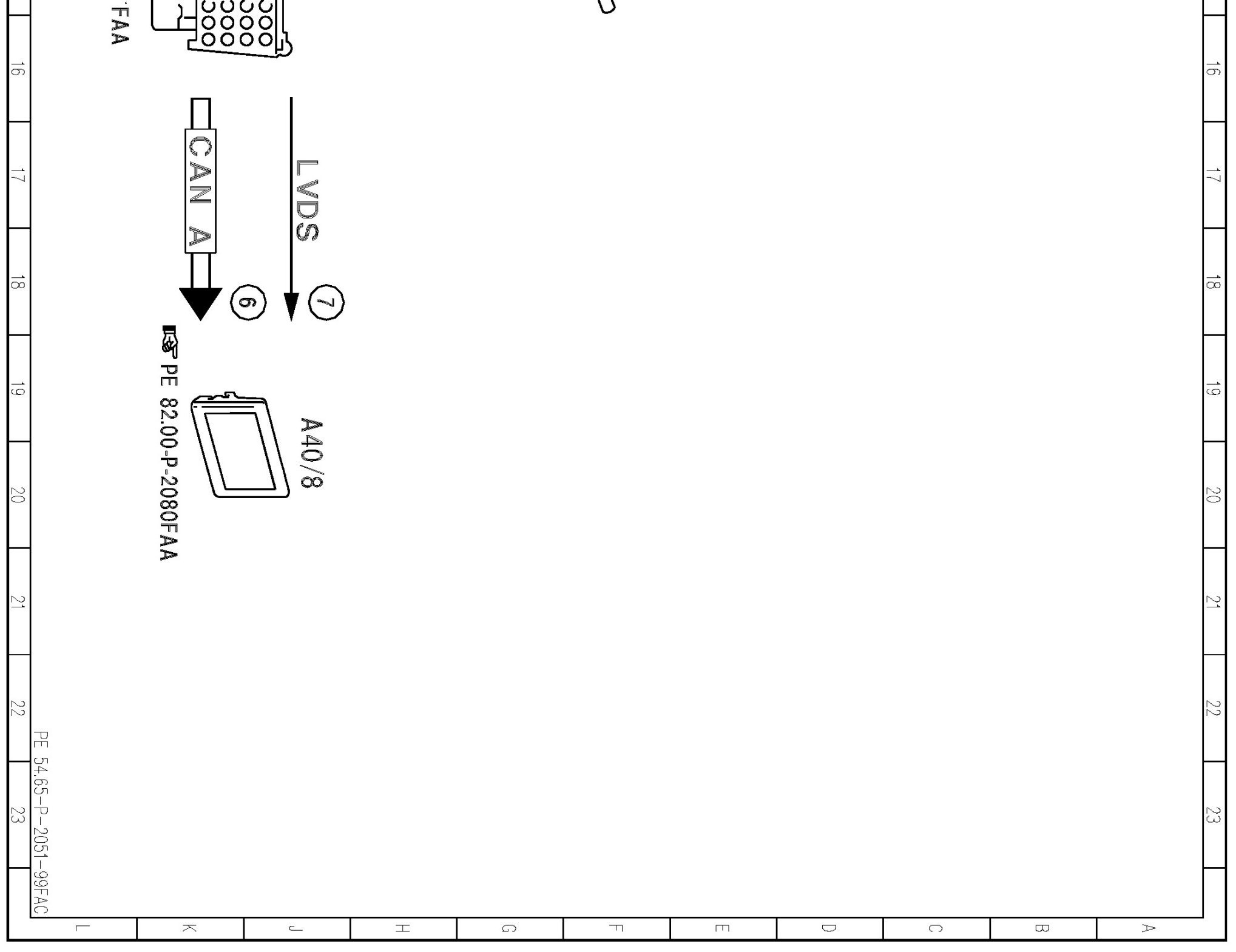

PE54.65-P-2051FAC Electrical Function Schematic, Reversing Camera

MODEL 204.0 /2
- with CODE (218) Backup camera
- as of model year 2012 /YoM 11 model refinement package

MODEL 204.9
- with CODE (218) Backup camera
- except CODE (498) Japan version
- as of Model Year 2011 /YoM 10

MODEL 204.3
- with CODE (218) Backup camera
- as of model year 2012

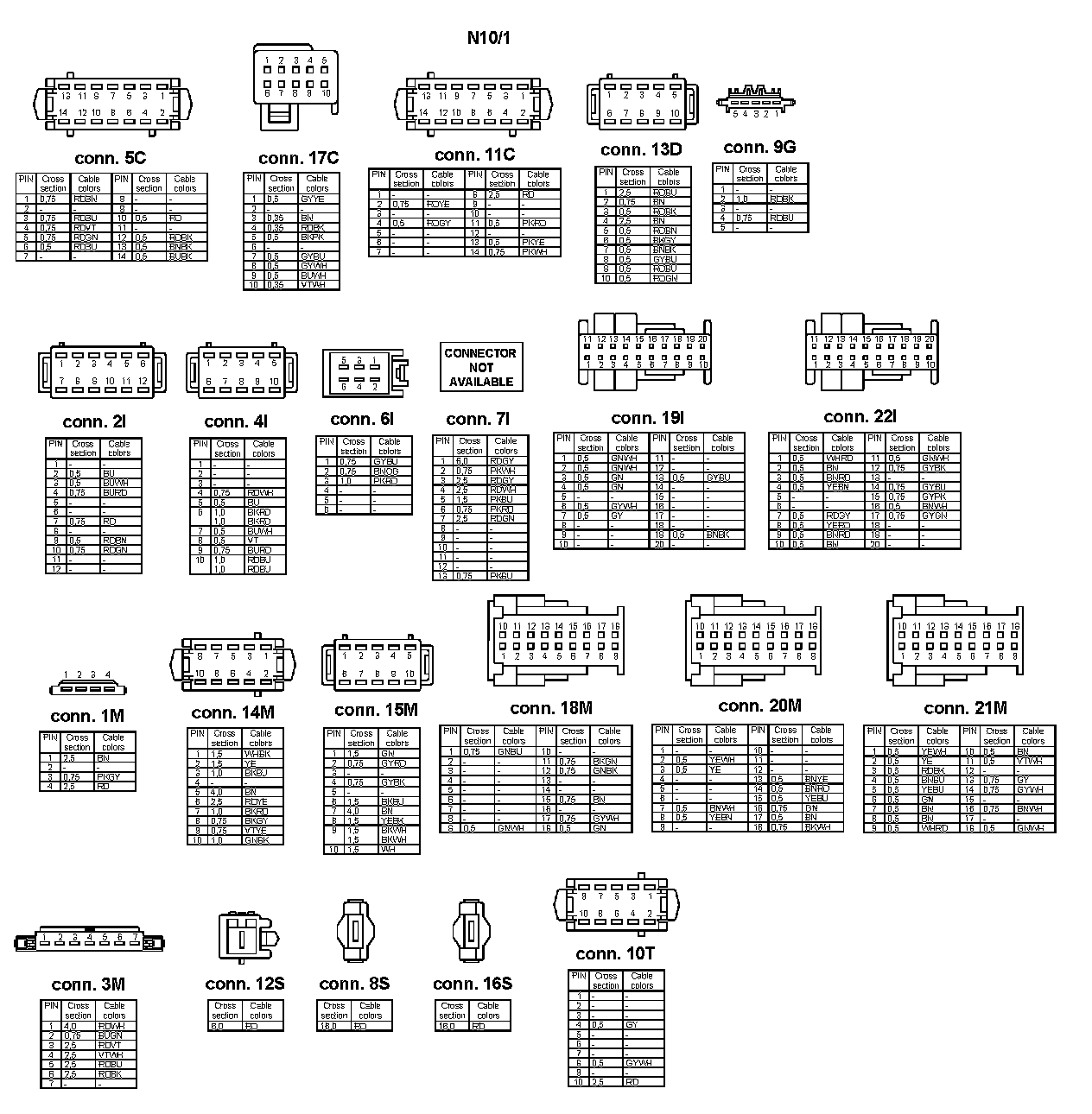

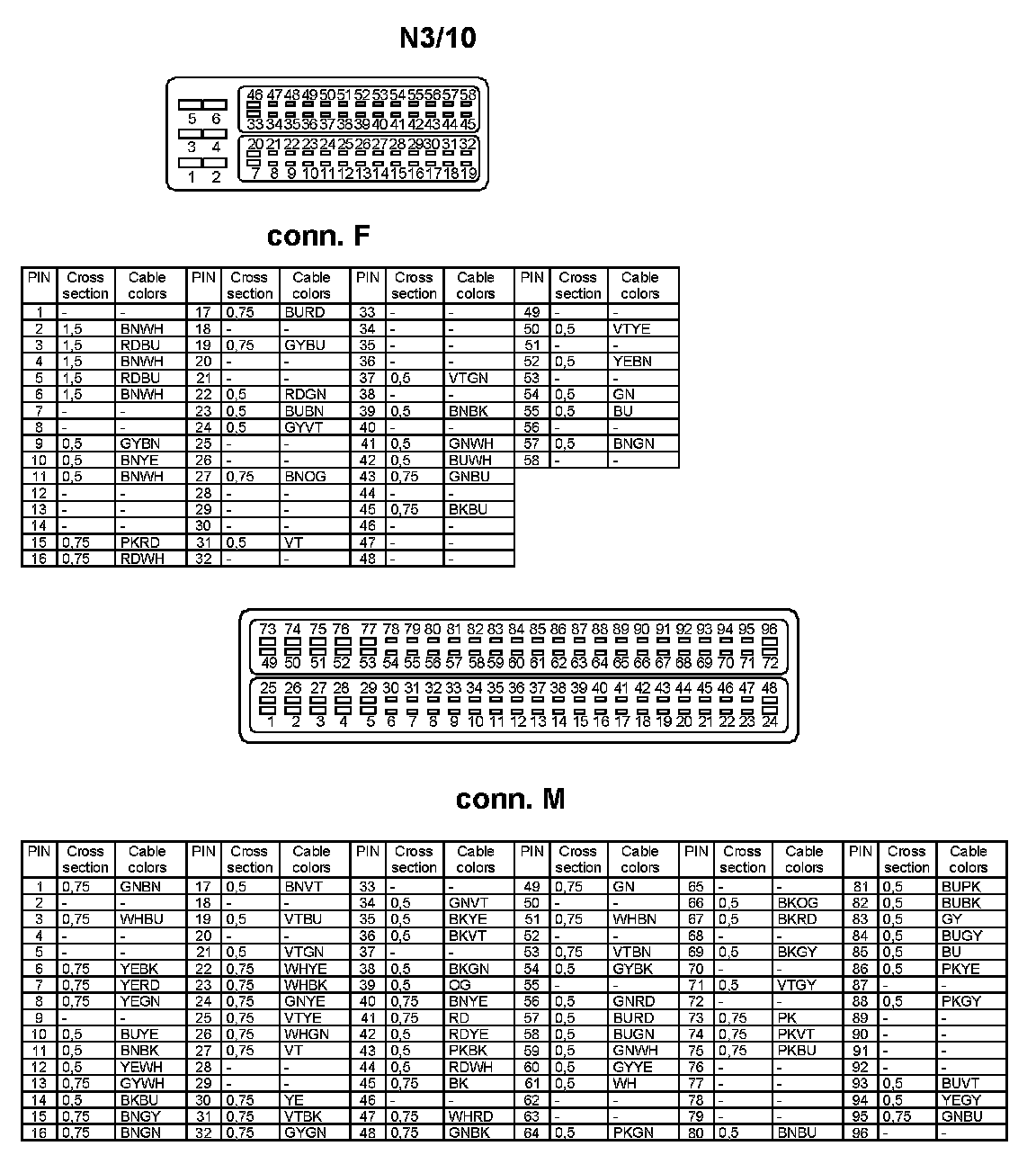

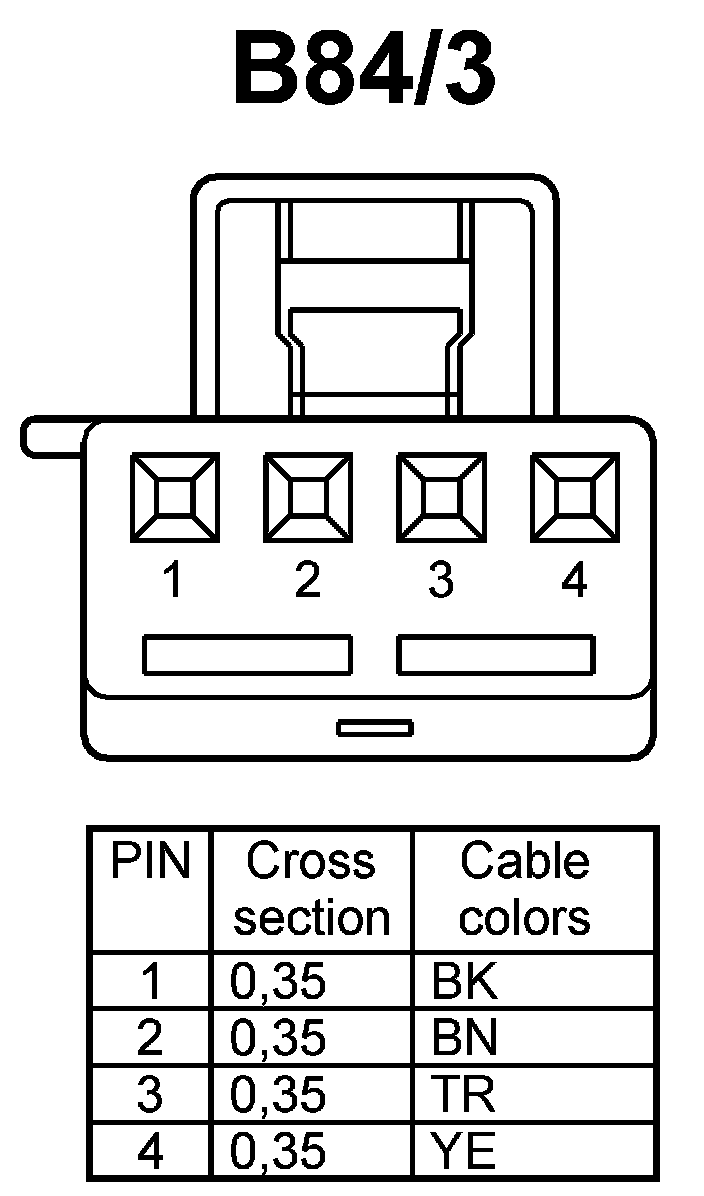

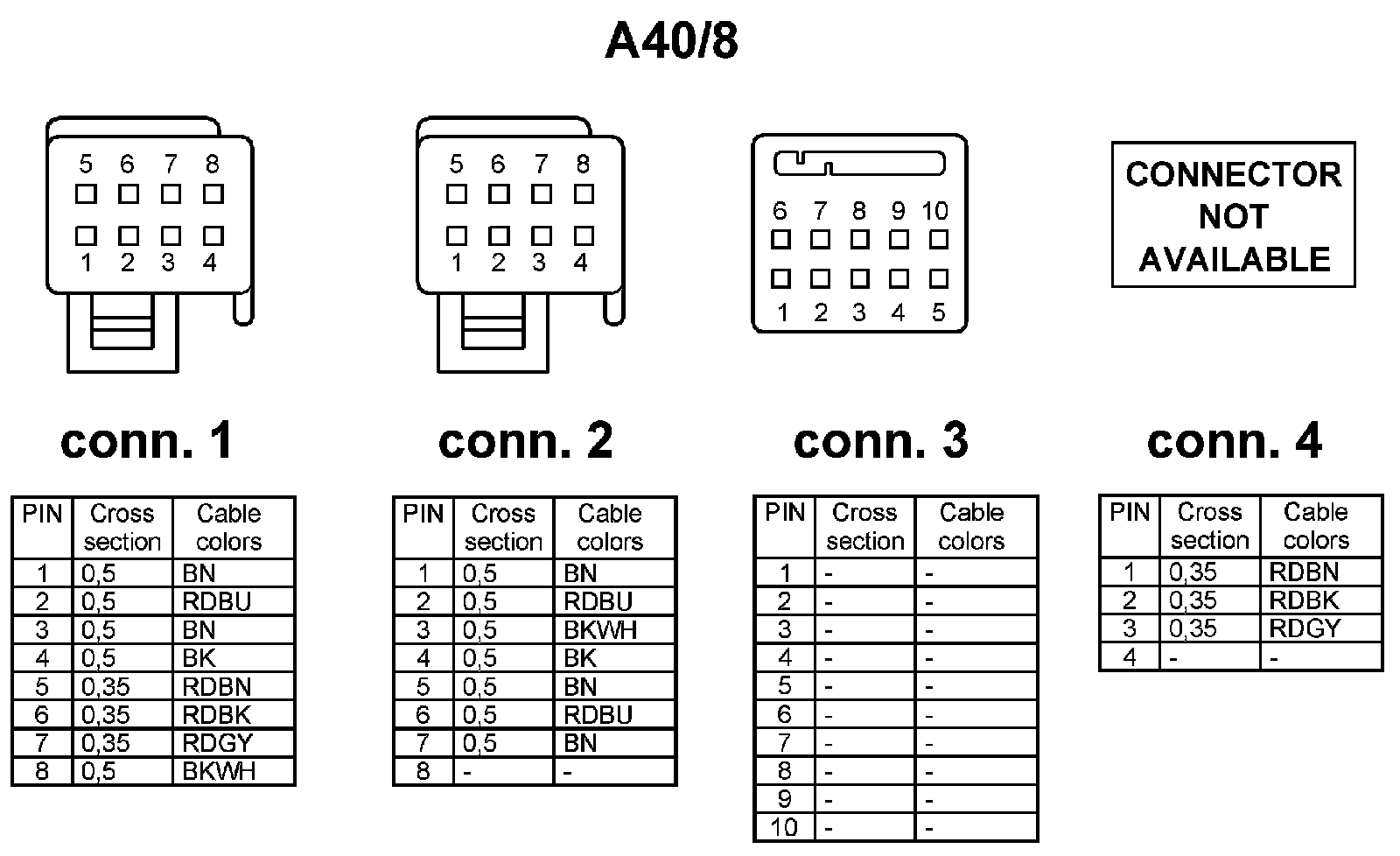

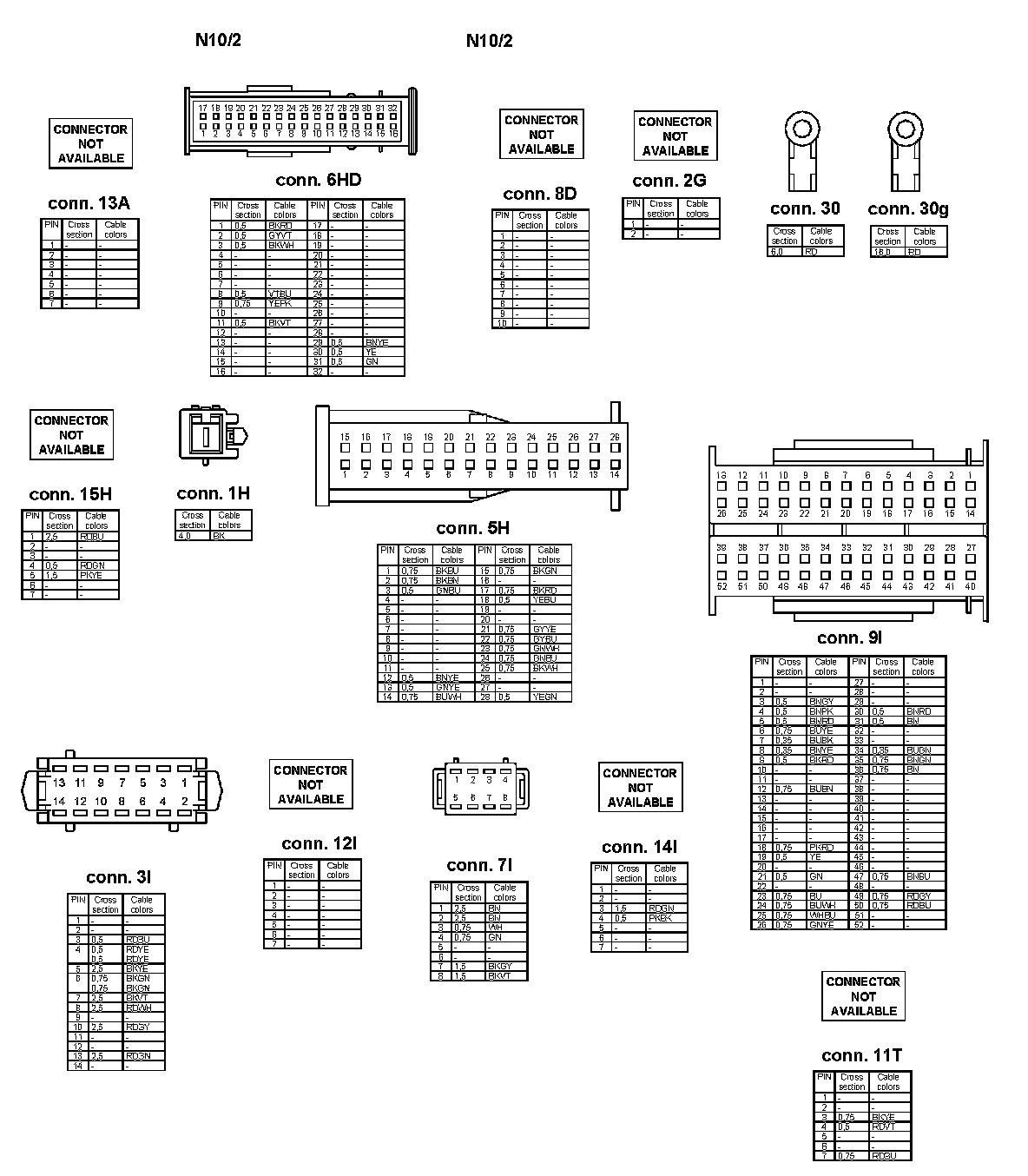

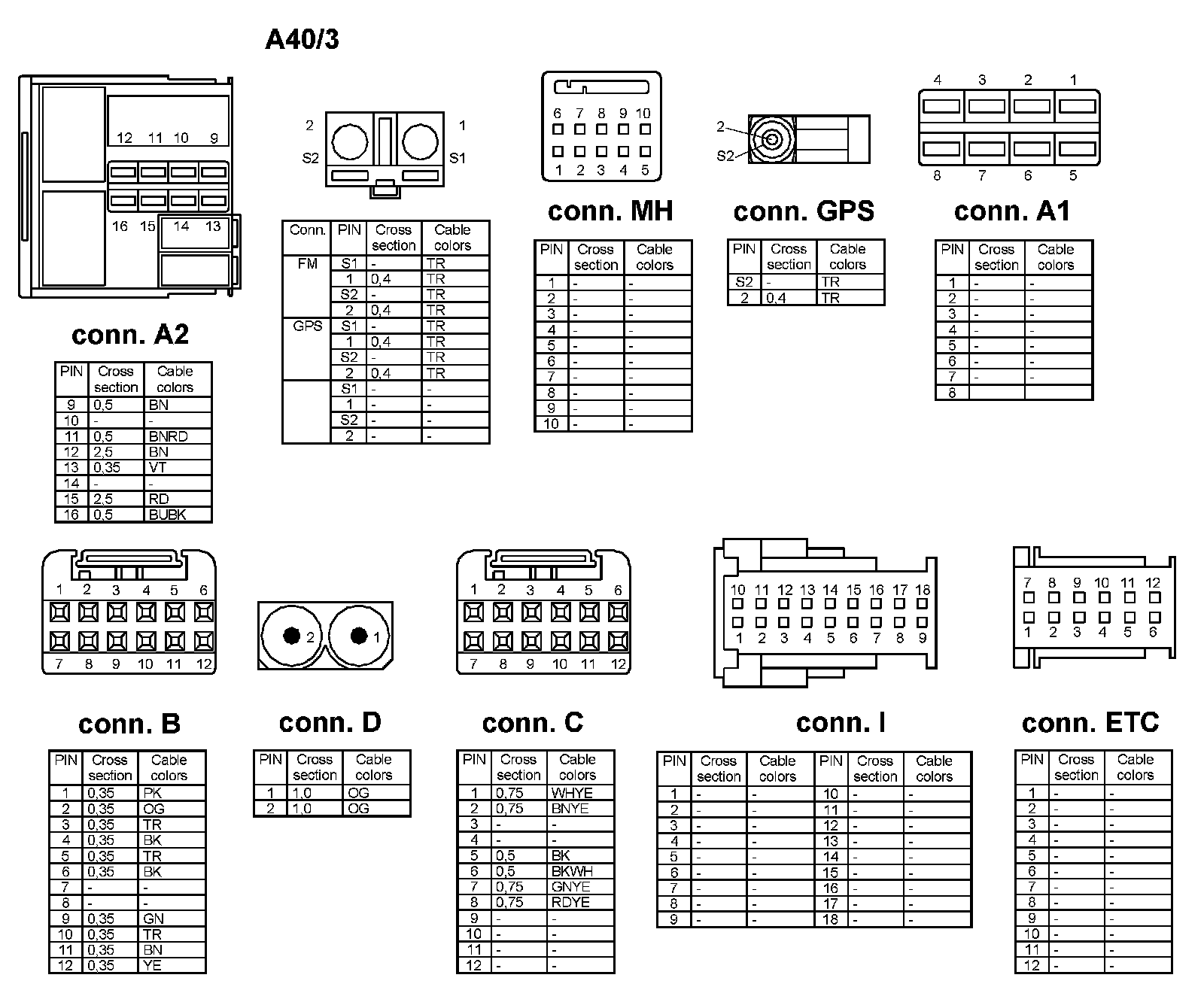

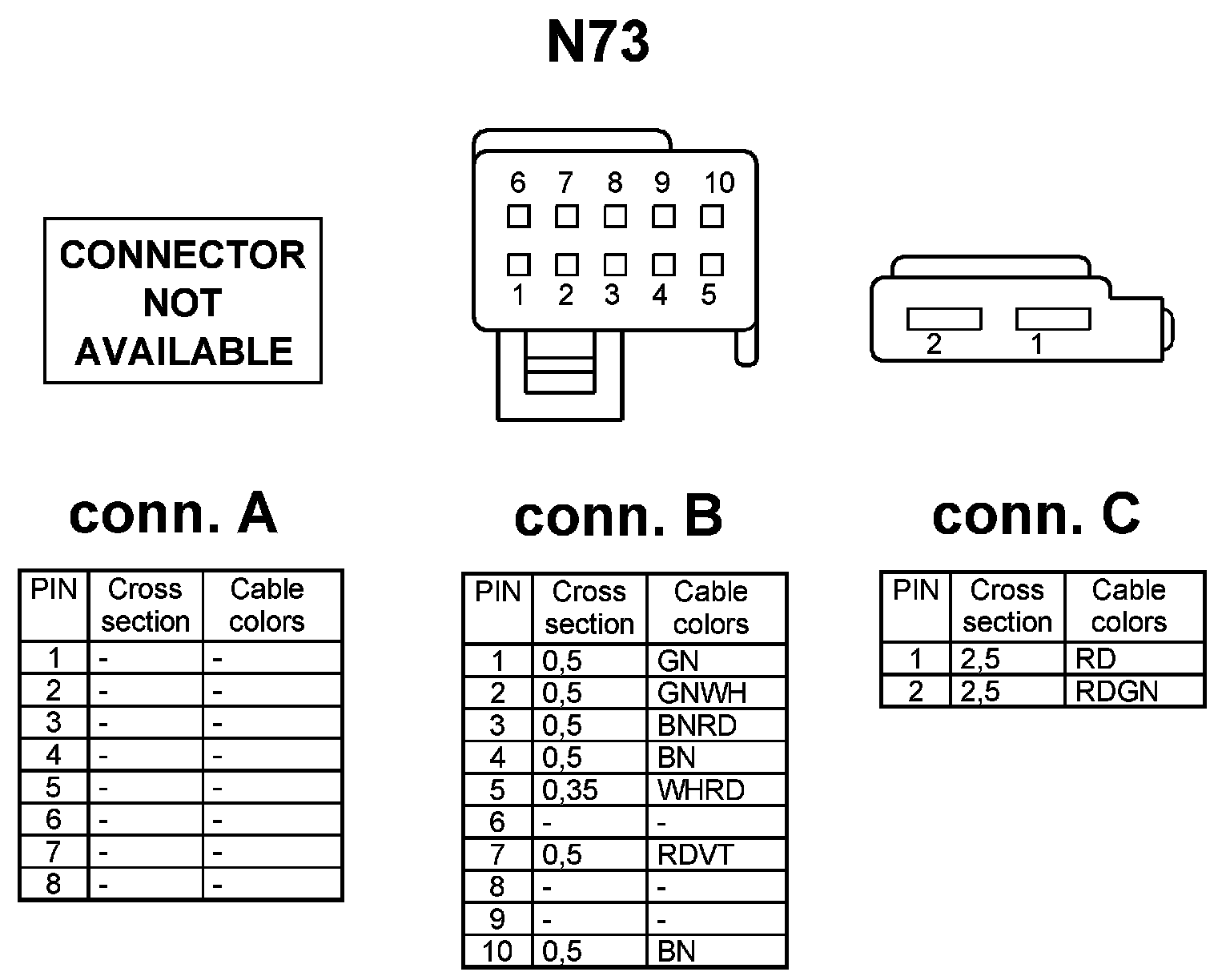

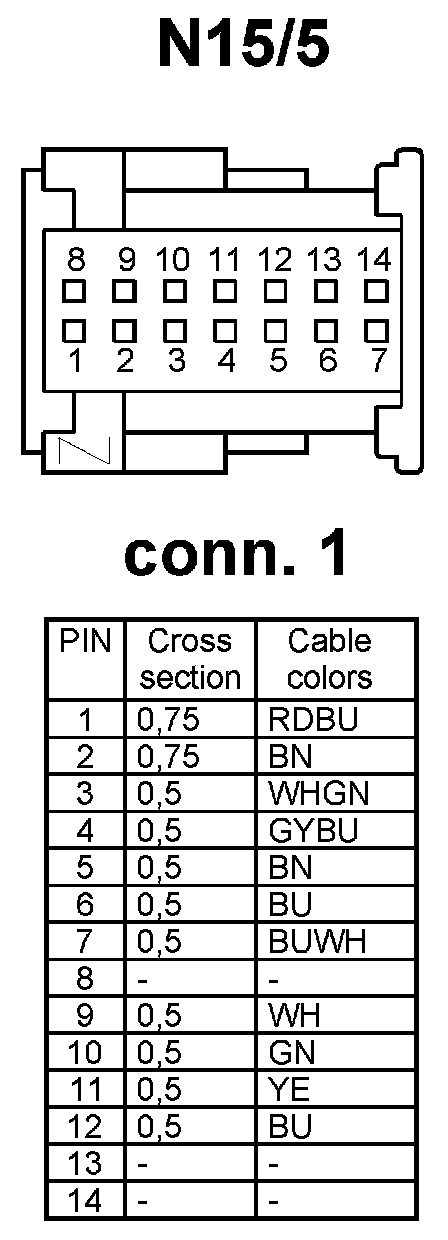

Component Locations: Component Location photographs can be found via their component names at the vehicle level. Component Locations
