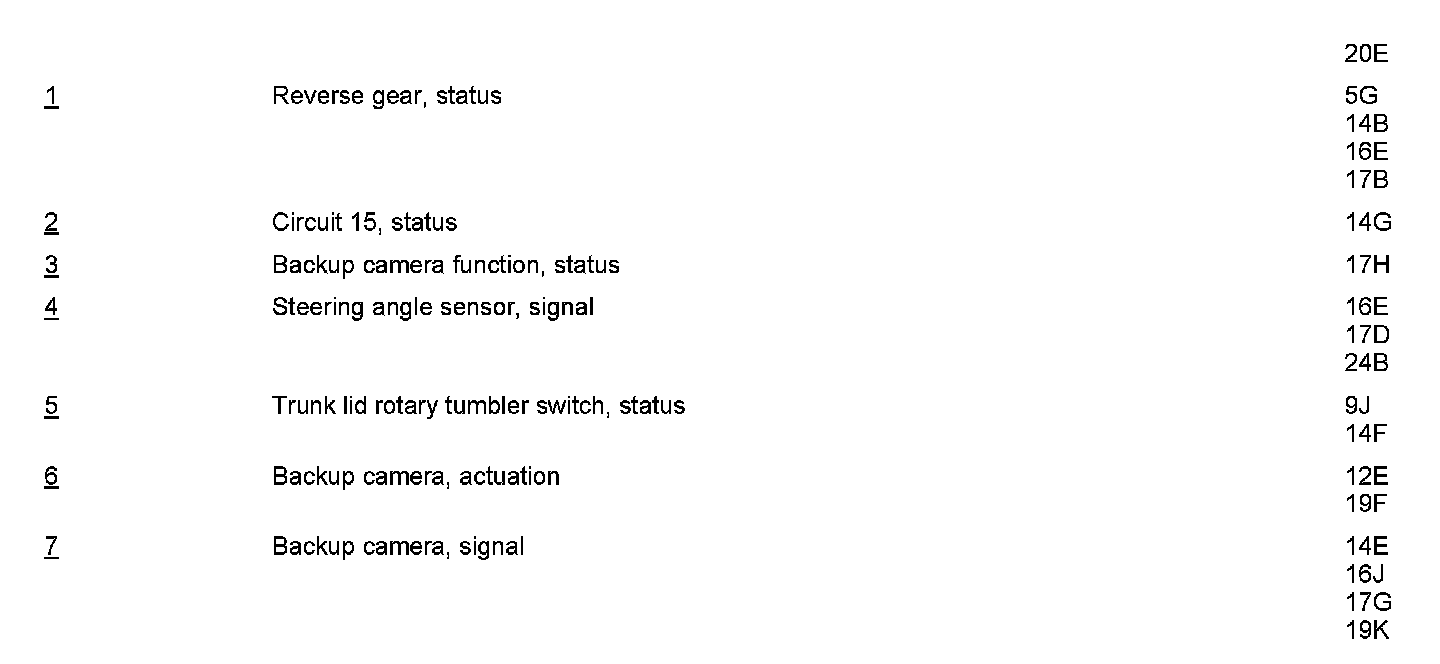

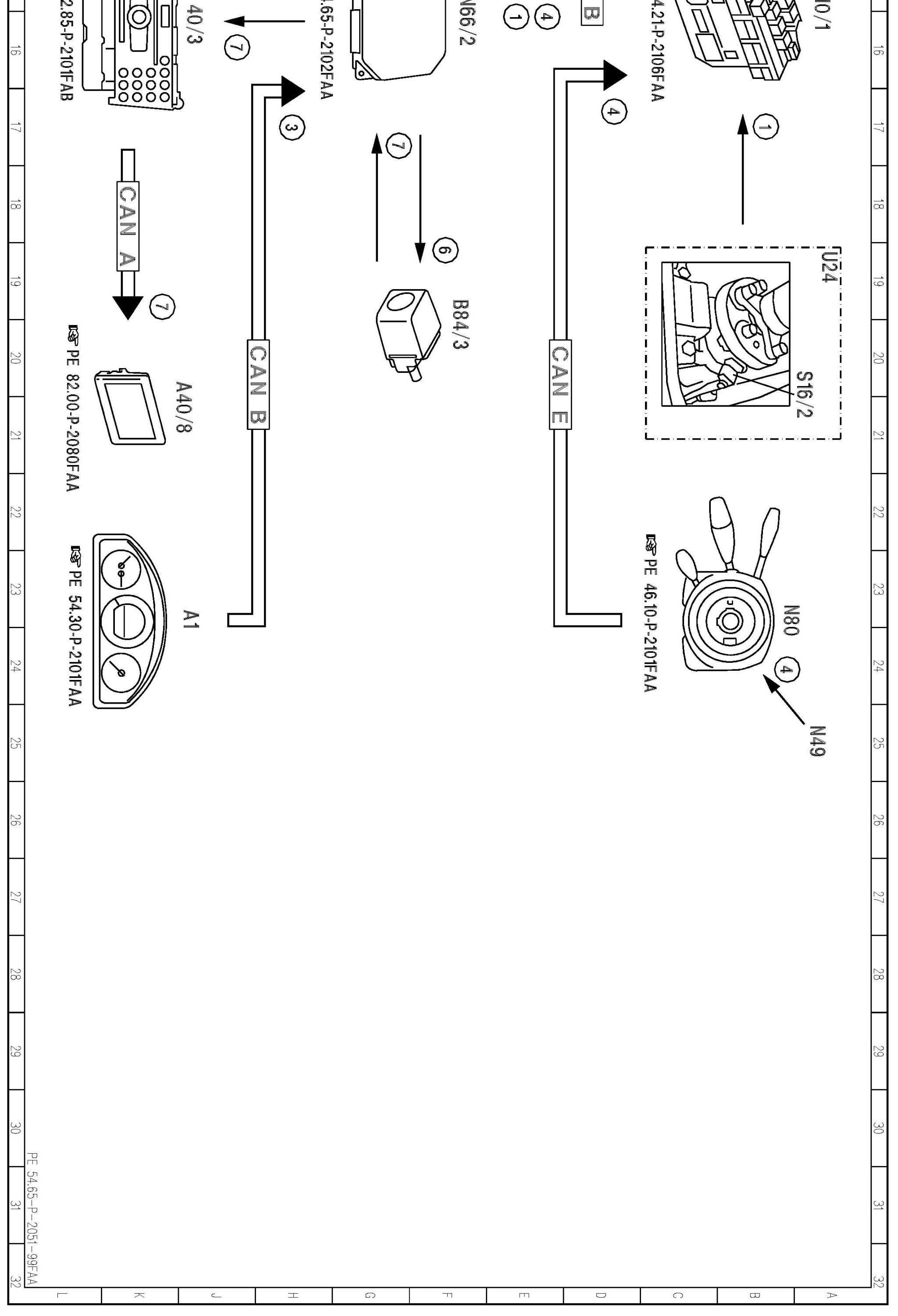

PE54.65-P-2051FAA Electrical Function Schematic, Reversing Camera

PE54.65-P-2051FAA Electrical Function Schematic, Reversing Camera

MODEL 204.0 /2
- with CODE (218) Backup camera
- with CODE (498) Japan version
- as of Model Year 2009 /YoM 08

MODEL 204.3 /9
- with CODE (218) Backup camera
- with CODE (498) Japan version

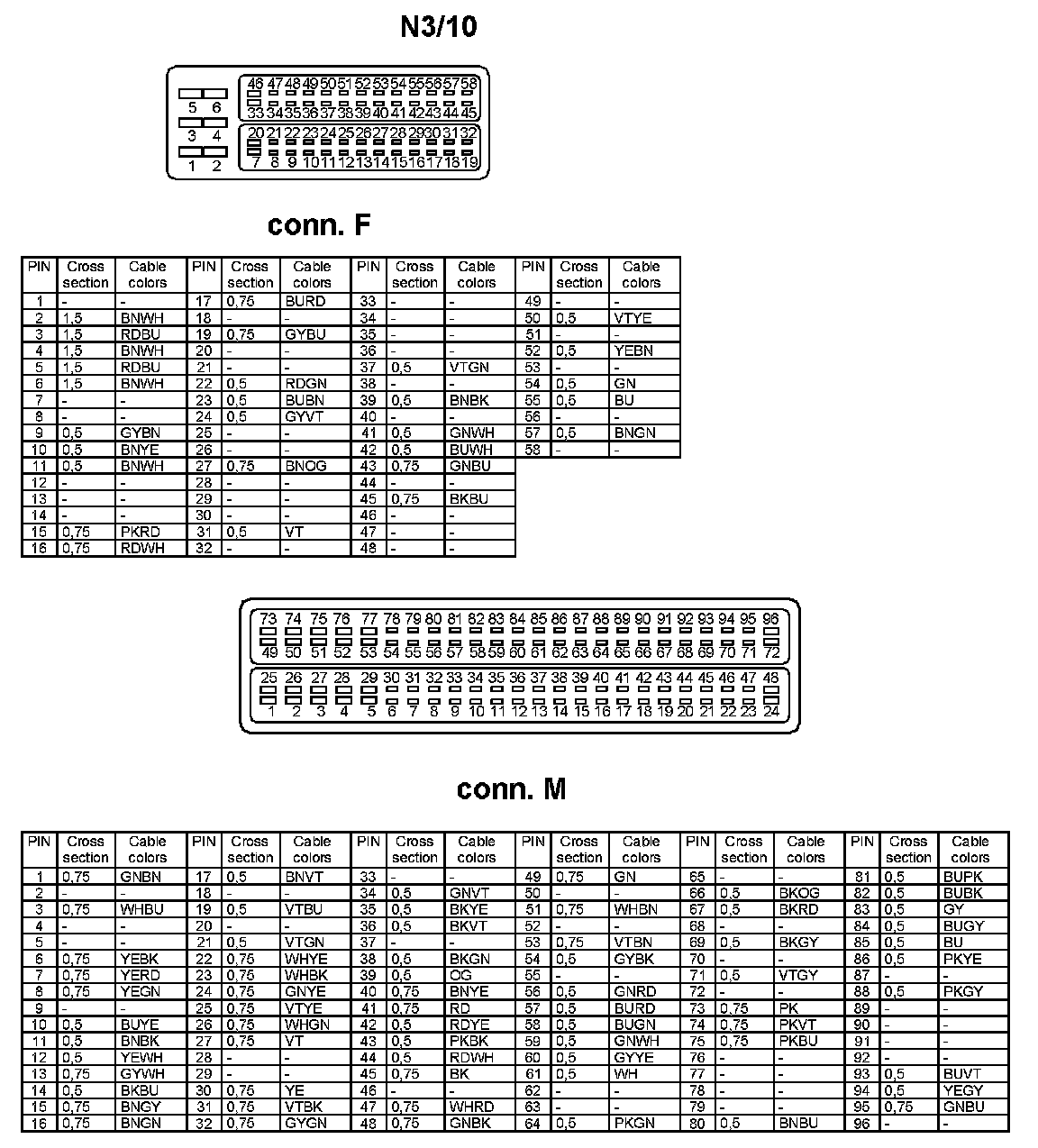

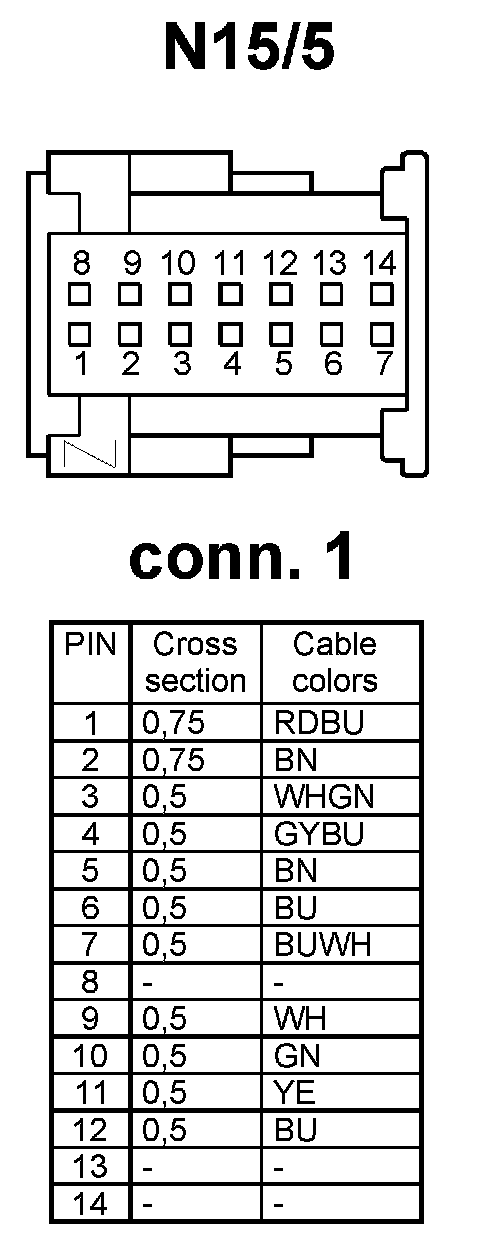

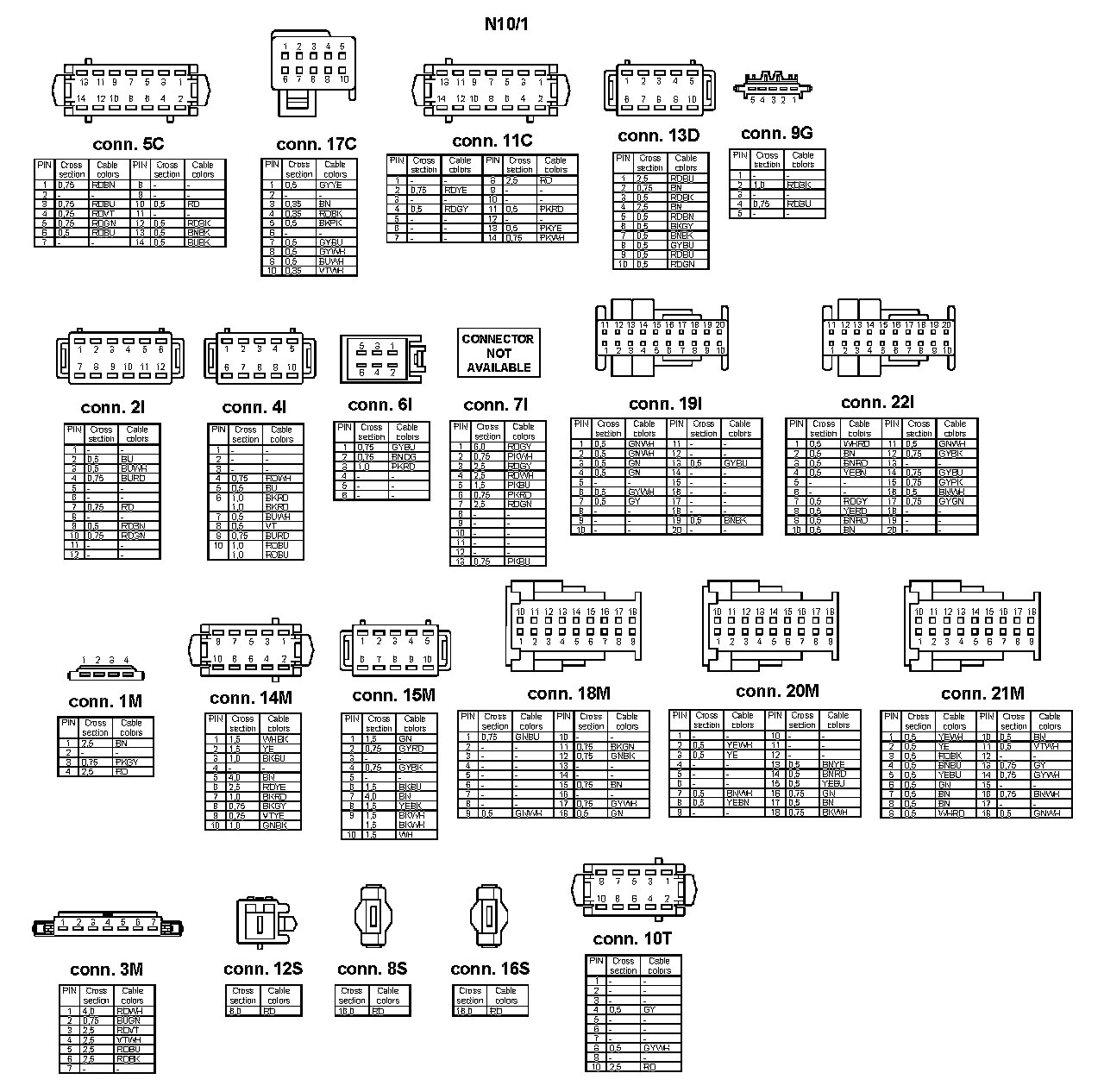

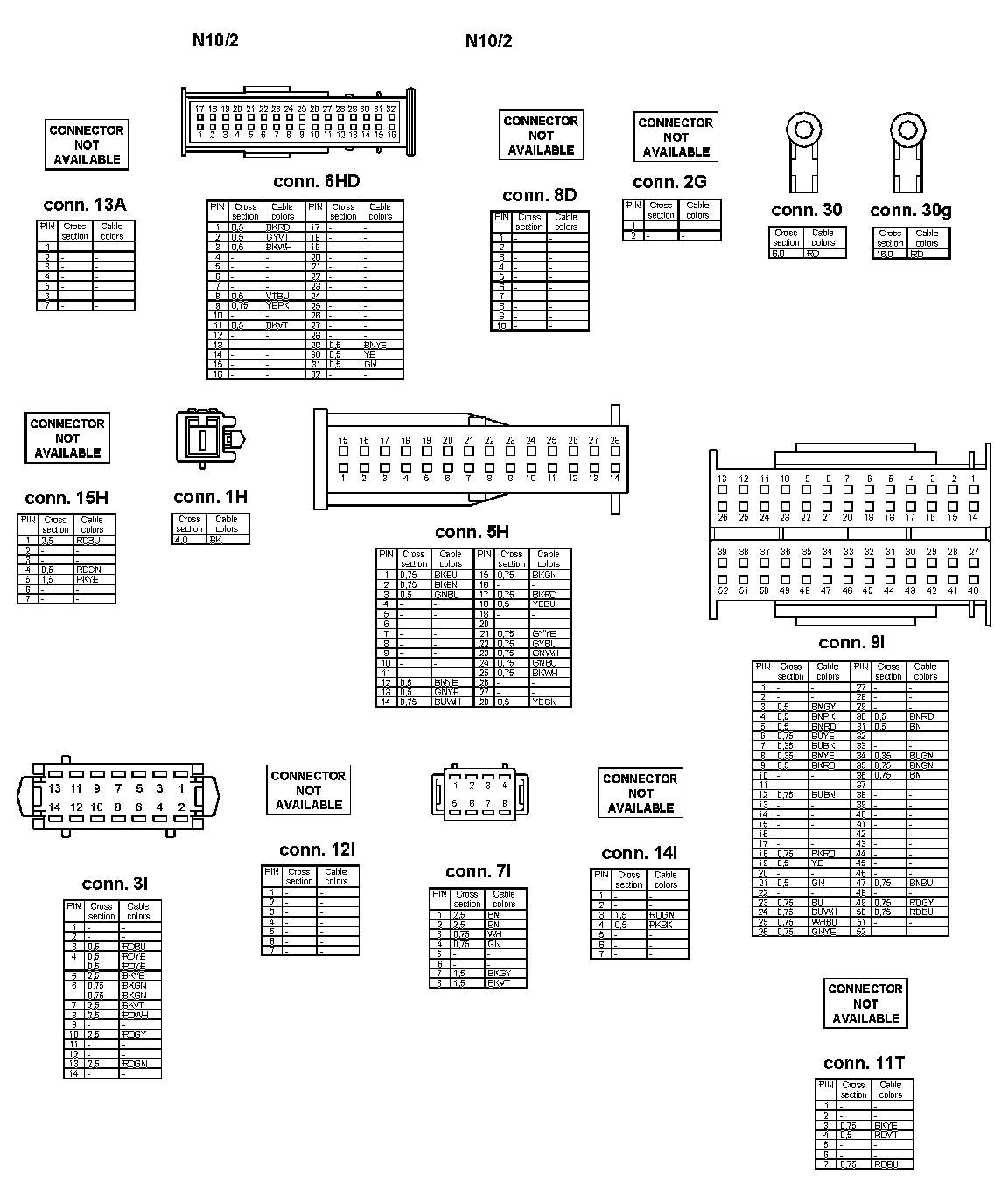

Component Locations: Component Location photographs can be found via their component names at the vehicle level. Component Locations
