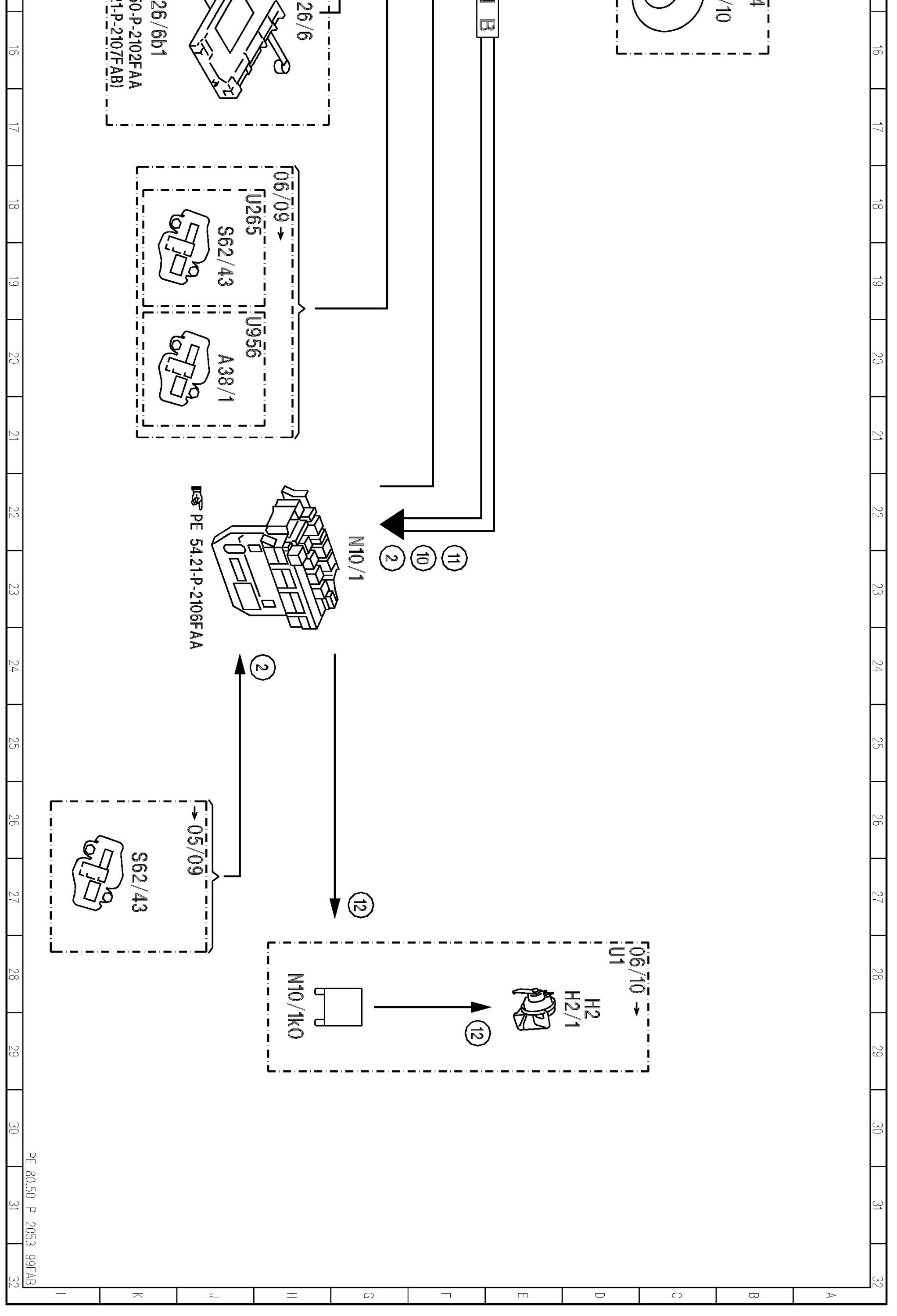

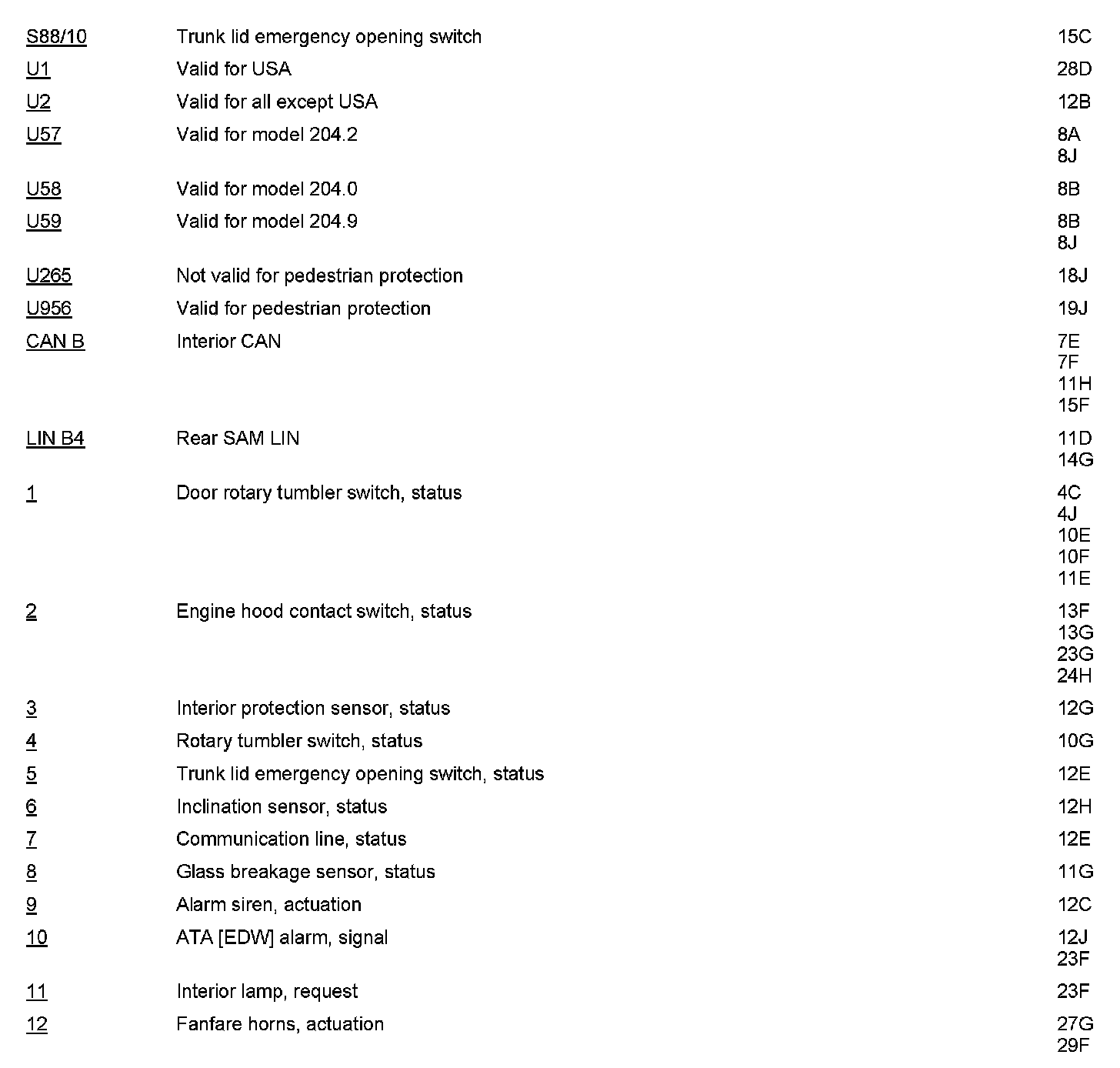

PE80.50-P-2053FAB Electrical Function Schematic For Anti-Theft Alarm System, Alarm Actuation

PE80.50-P-2053FAB Electrical Function Schematic For Anti-Theft Alarm System, Alarm Actuation

MODEL 204.0 /2
- with CODE (551) Anti-theft alarm system (ATA [EDW])
- as of model year 2009 /YoM 08

MODEL 204.3
- with CODE (551) Antitheft alarm system (ATA [EDW])

MODEL 204.9
- with CODE (551) Antitheft alarm system (ATA [EDW])

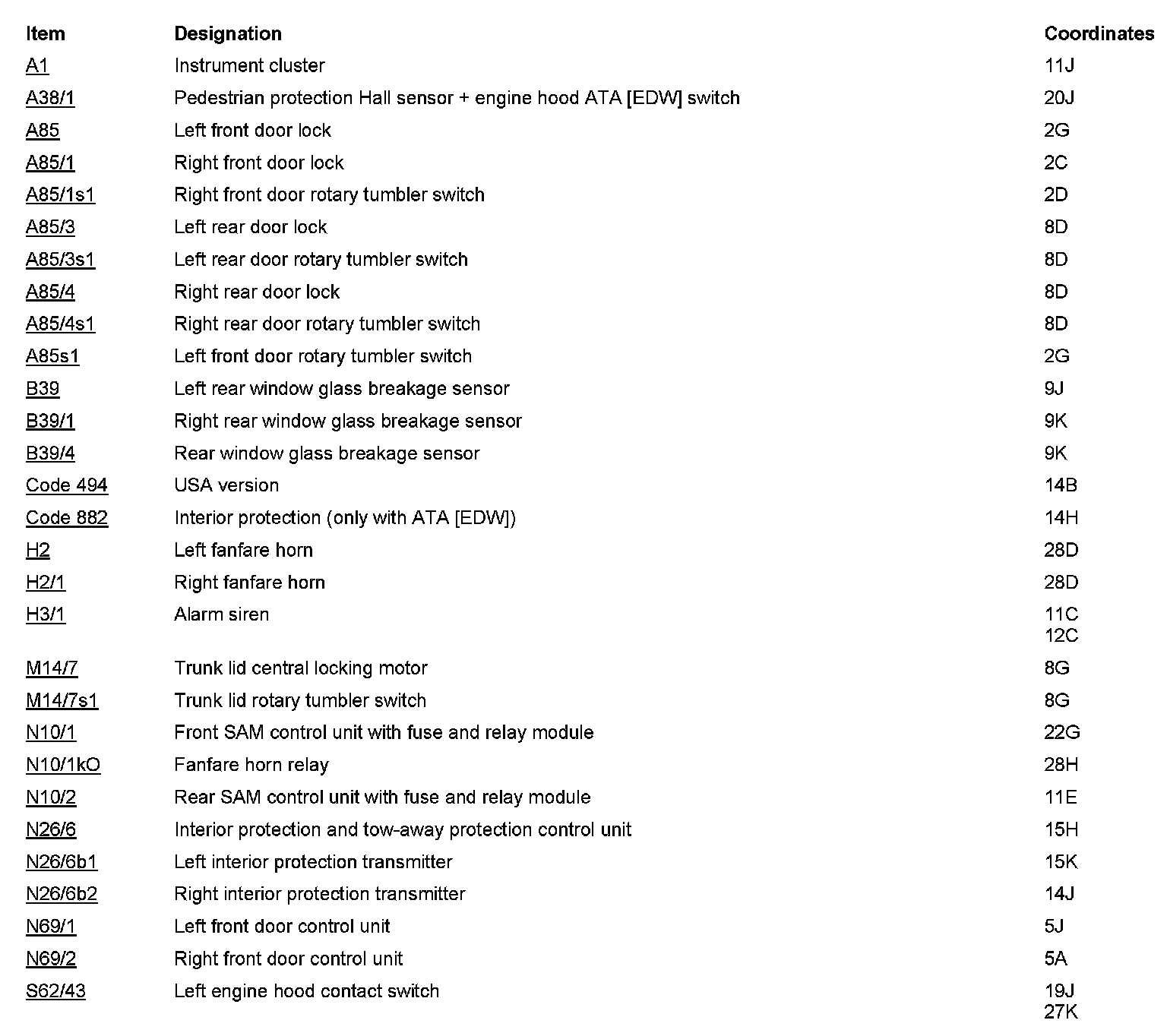

Component Locations: Component Location photographs can be found via their component names at the vehicle level. Component Locations
