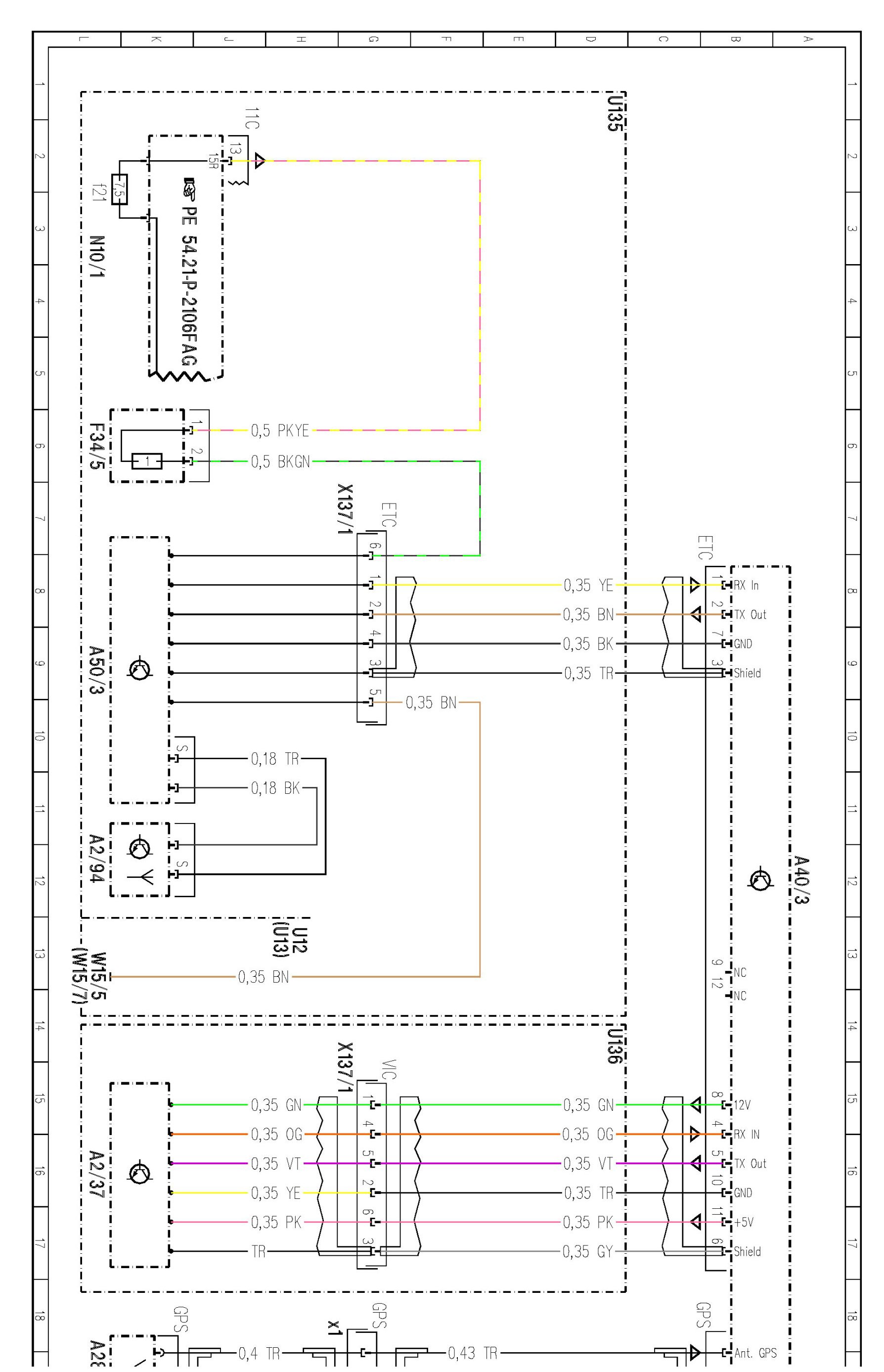

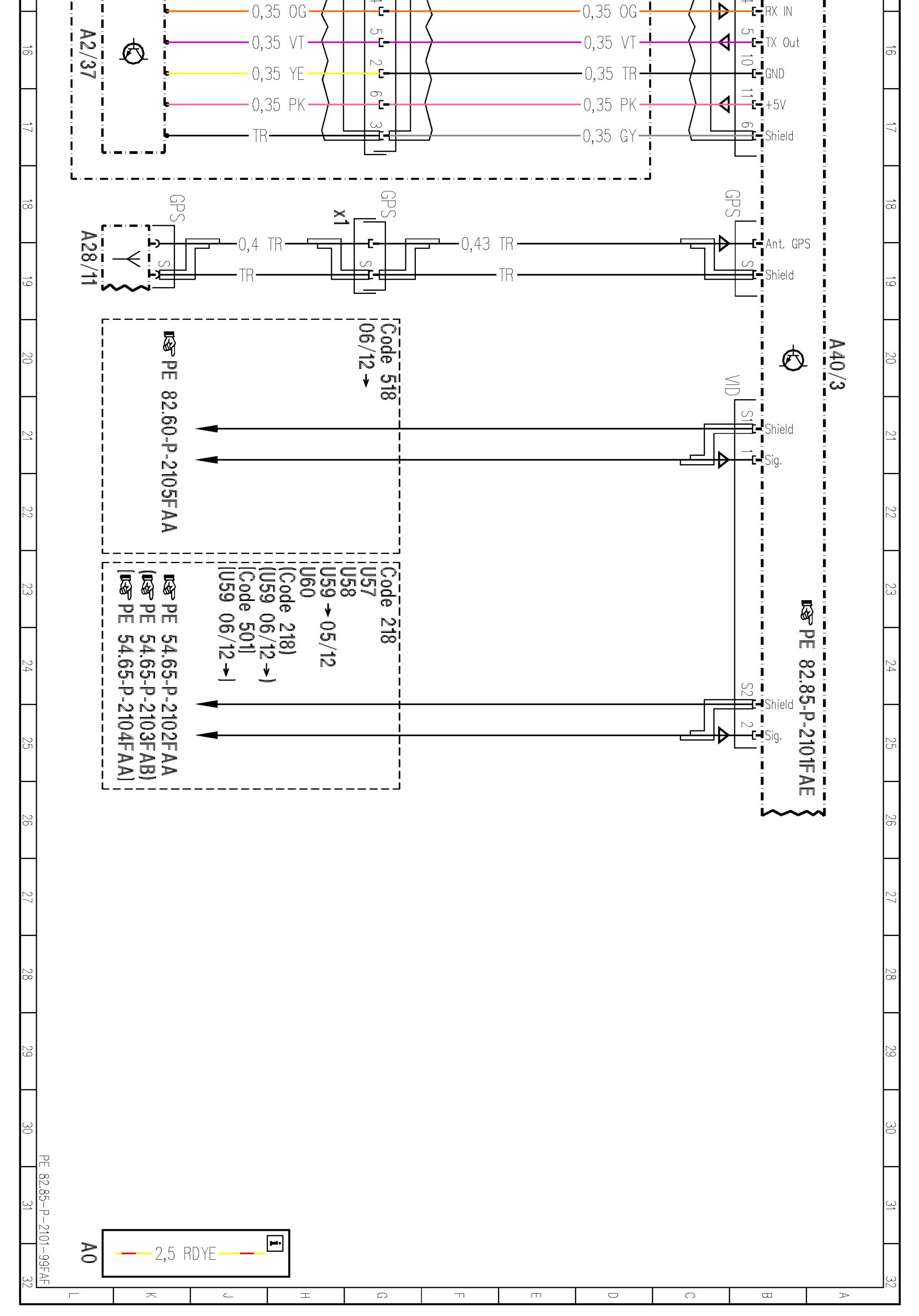

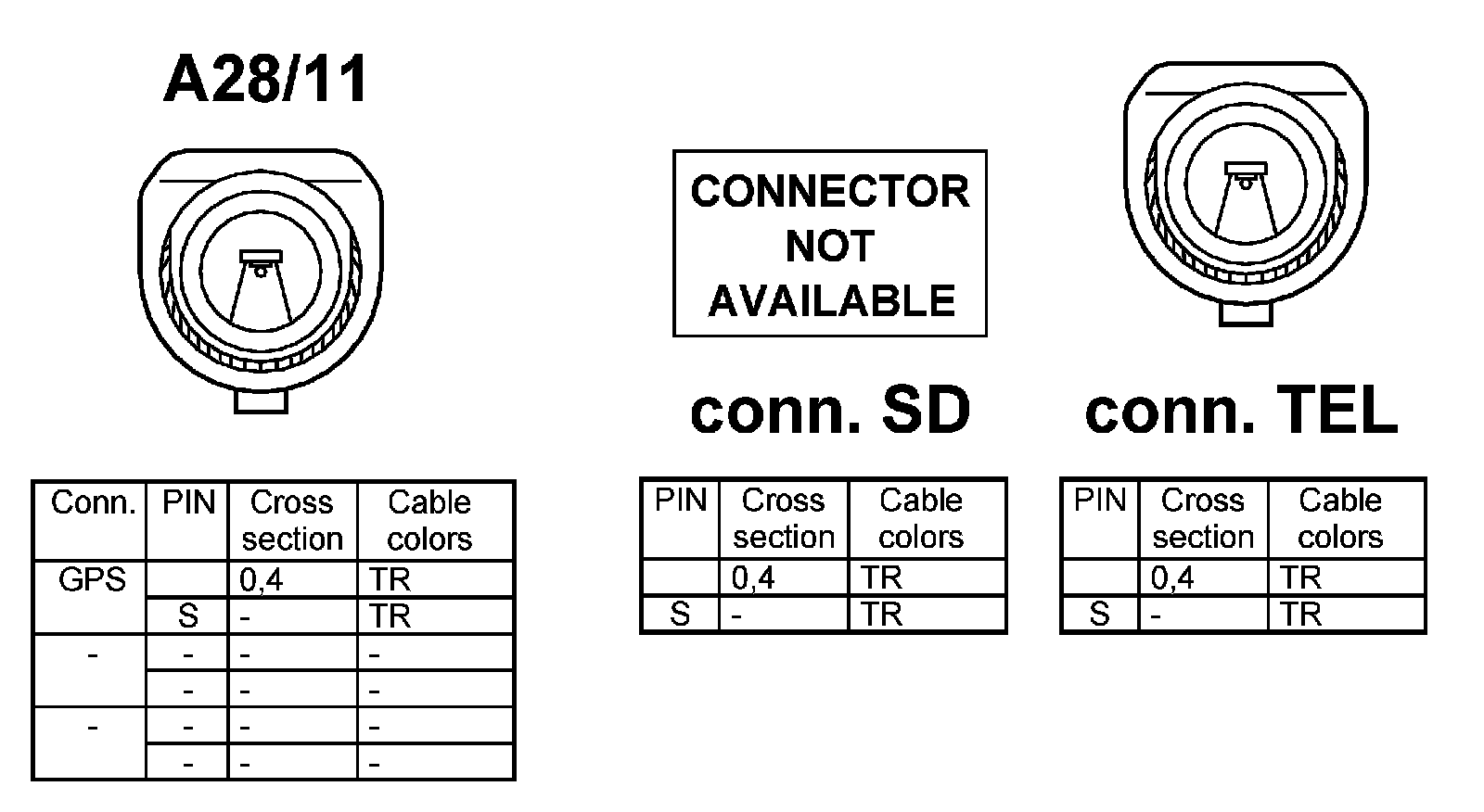

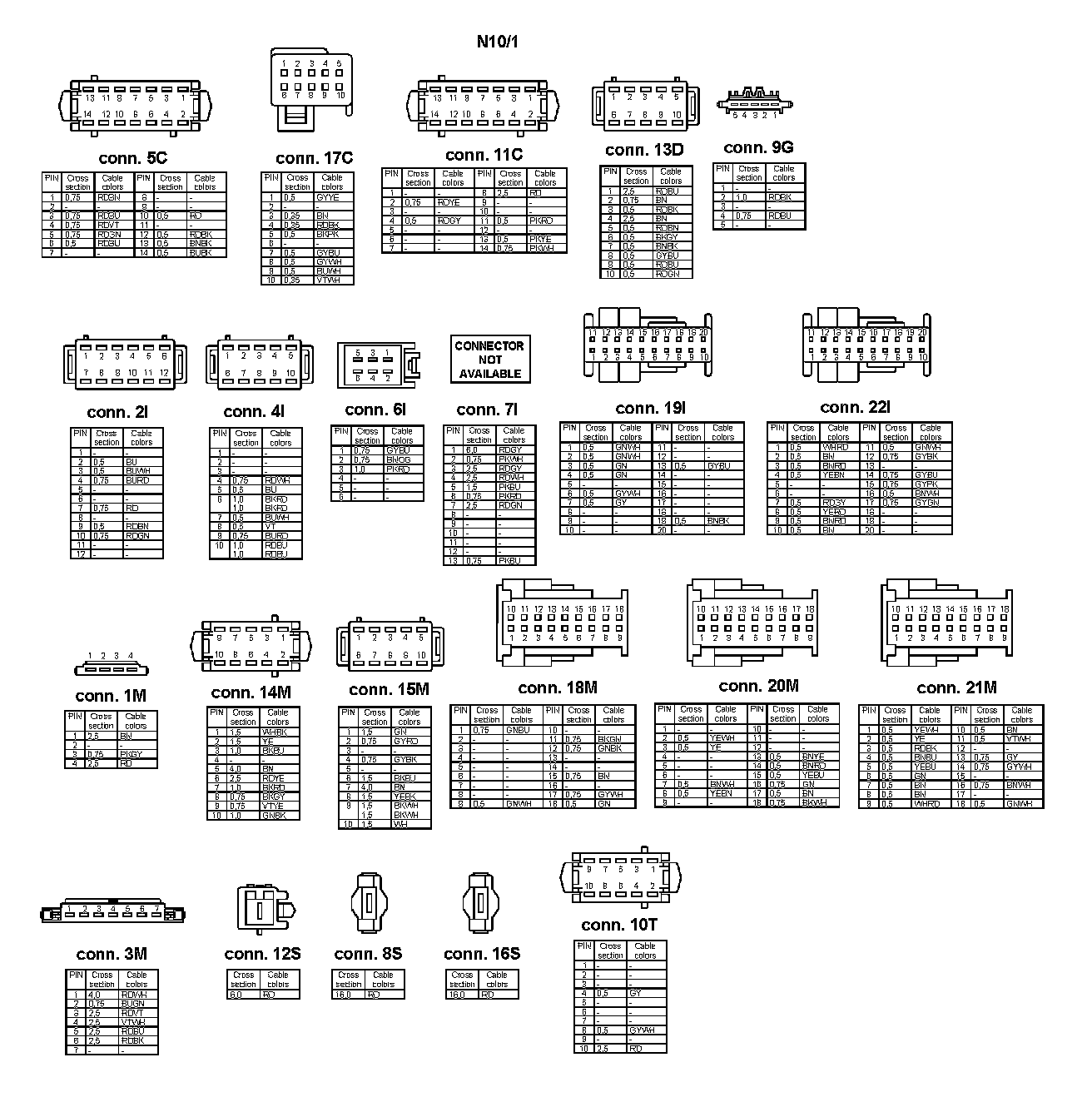

PE82.85-P-2101FAF Cockpit Management and Data System (COMAND) Control Unit Wiring Diagram

PE82.85-P-2101FAF Cockpit Management And Data System (COMAND) Control Unit Wiring Diagram

MODEL 204.0 /2
- with CODE (498) Japan version
- with CODE (527) COMAND APS with single DVD drive (with navigation)
- as of model year 2012 /YoM 11 model refinement package,

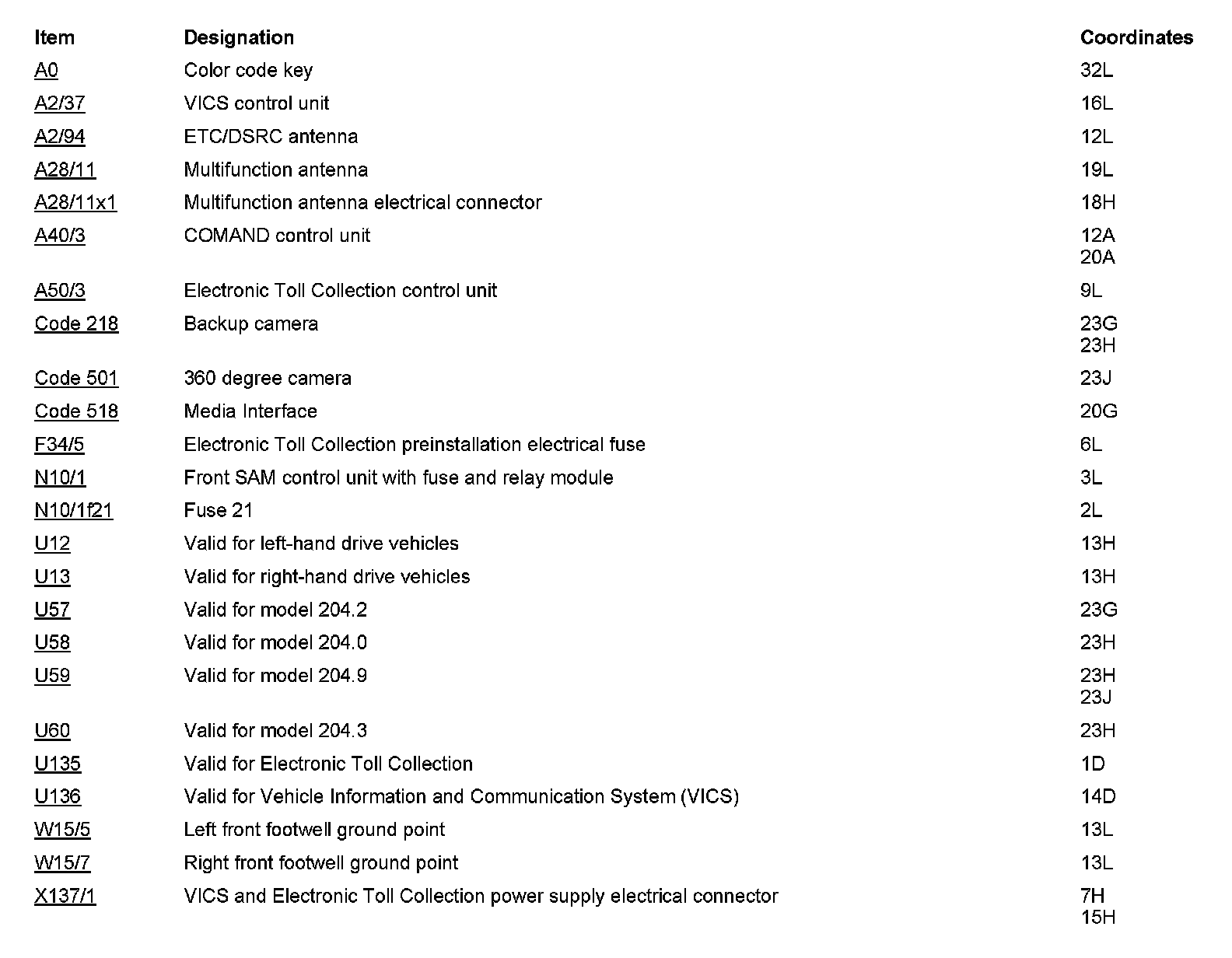

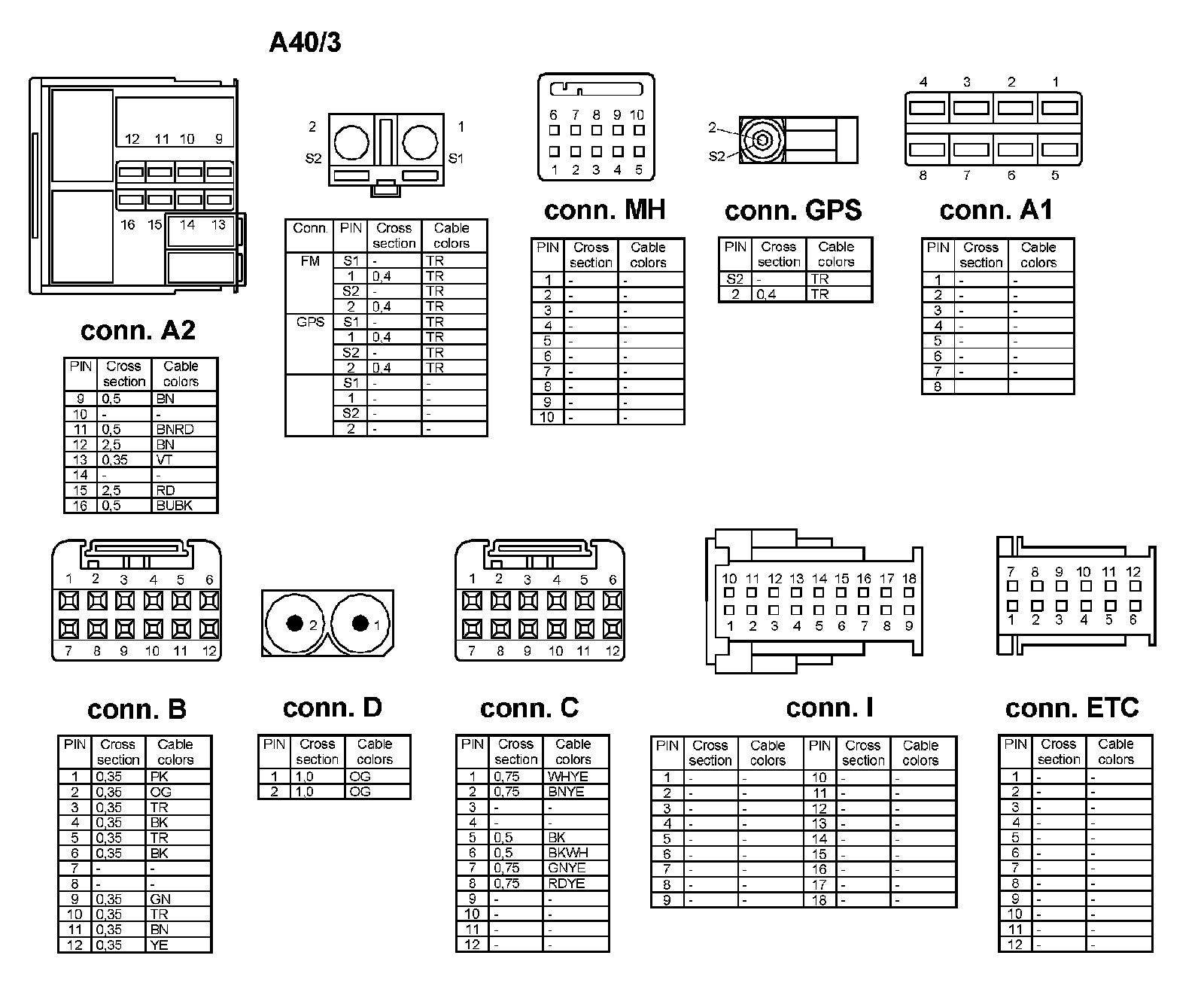

- control unit A40/3, sheet 2

MODEL 204.3
- with CODE (498) Japan version
- with CODE (527) COMAND APS with single DVD drive (with navigation)
- control unit A40/3, Sheet 2



























Component Locations: Component Location photographs can be found via their component names at the vehicle level. Component Locations
