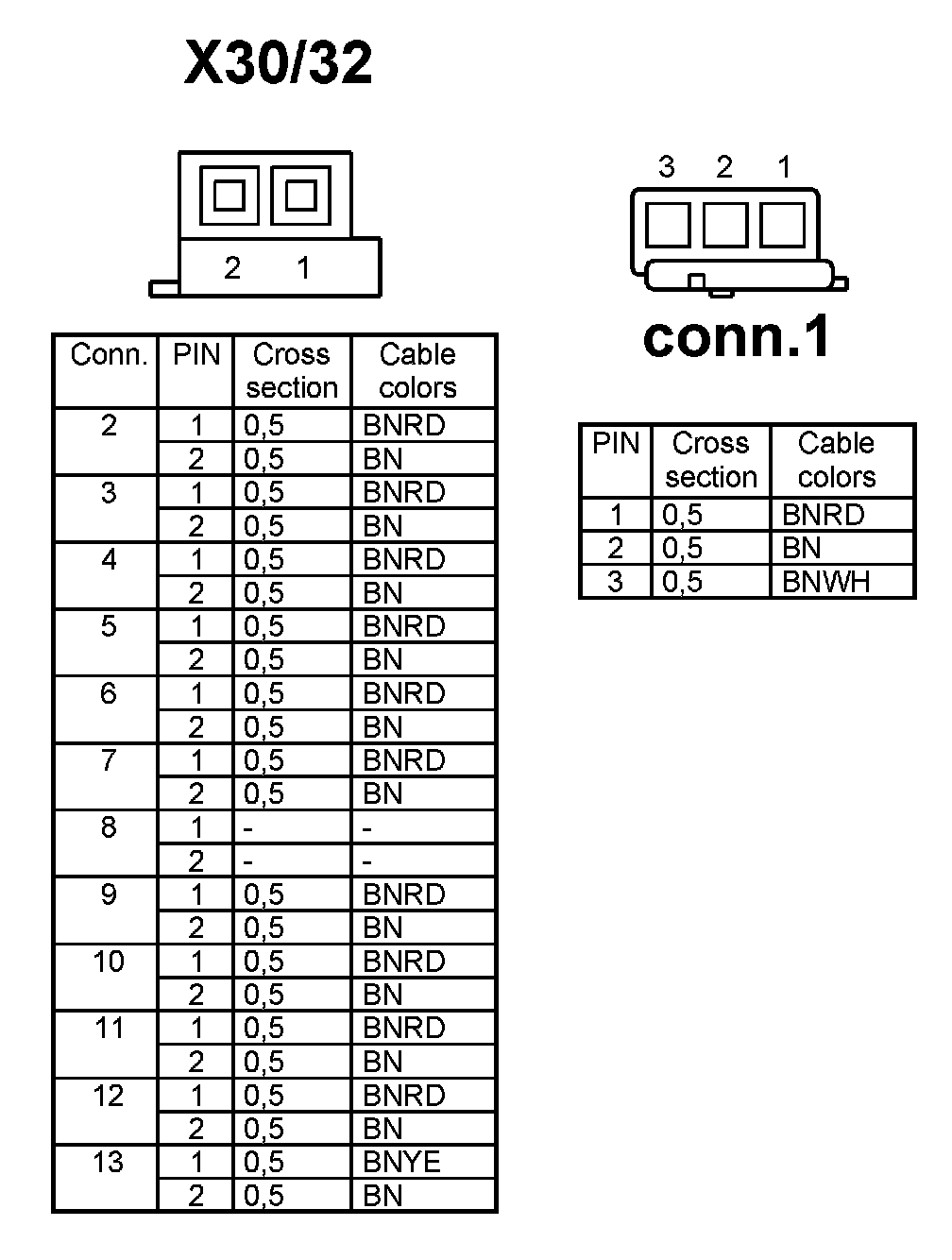

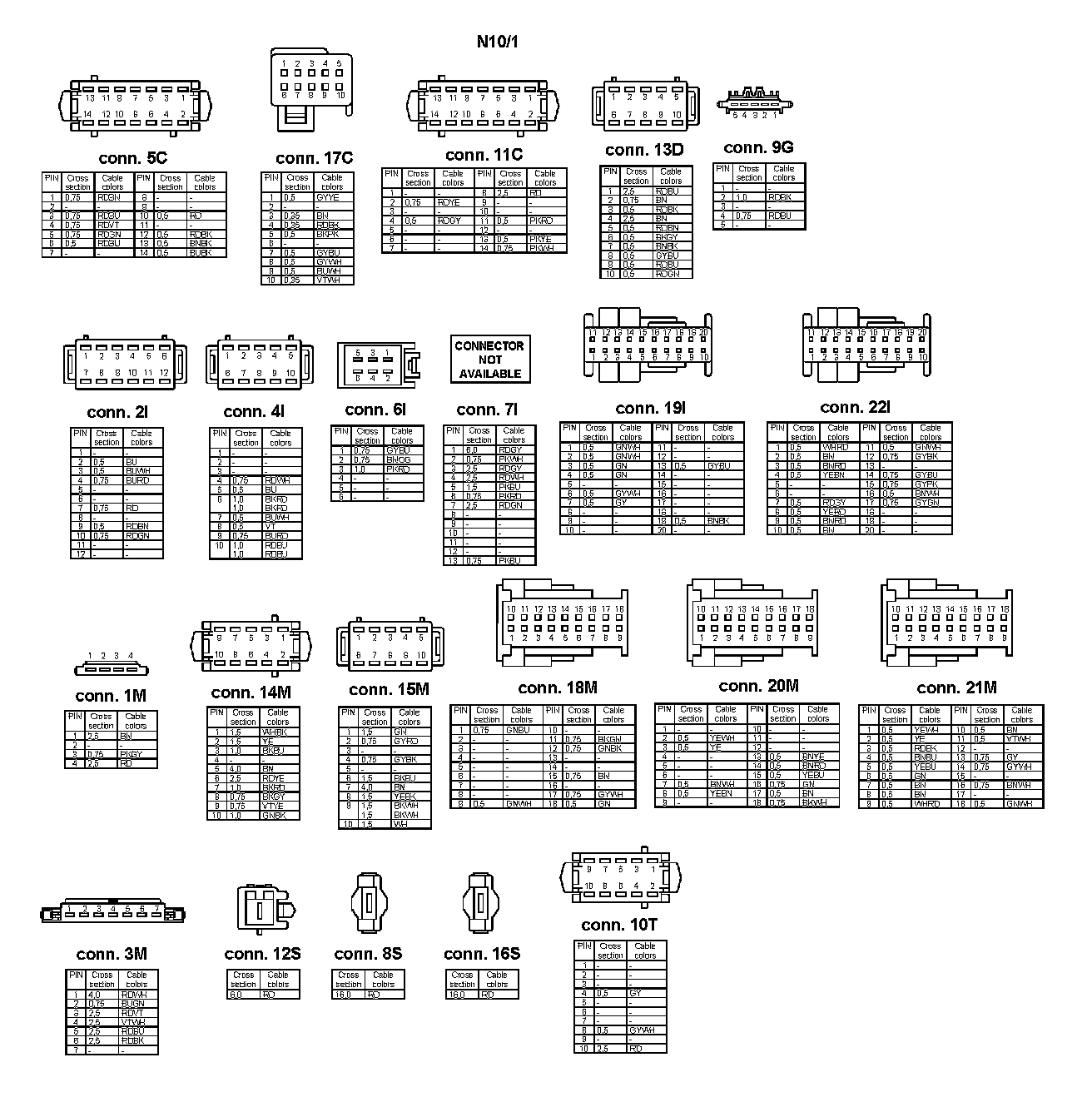

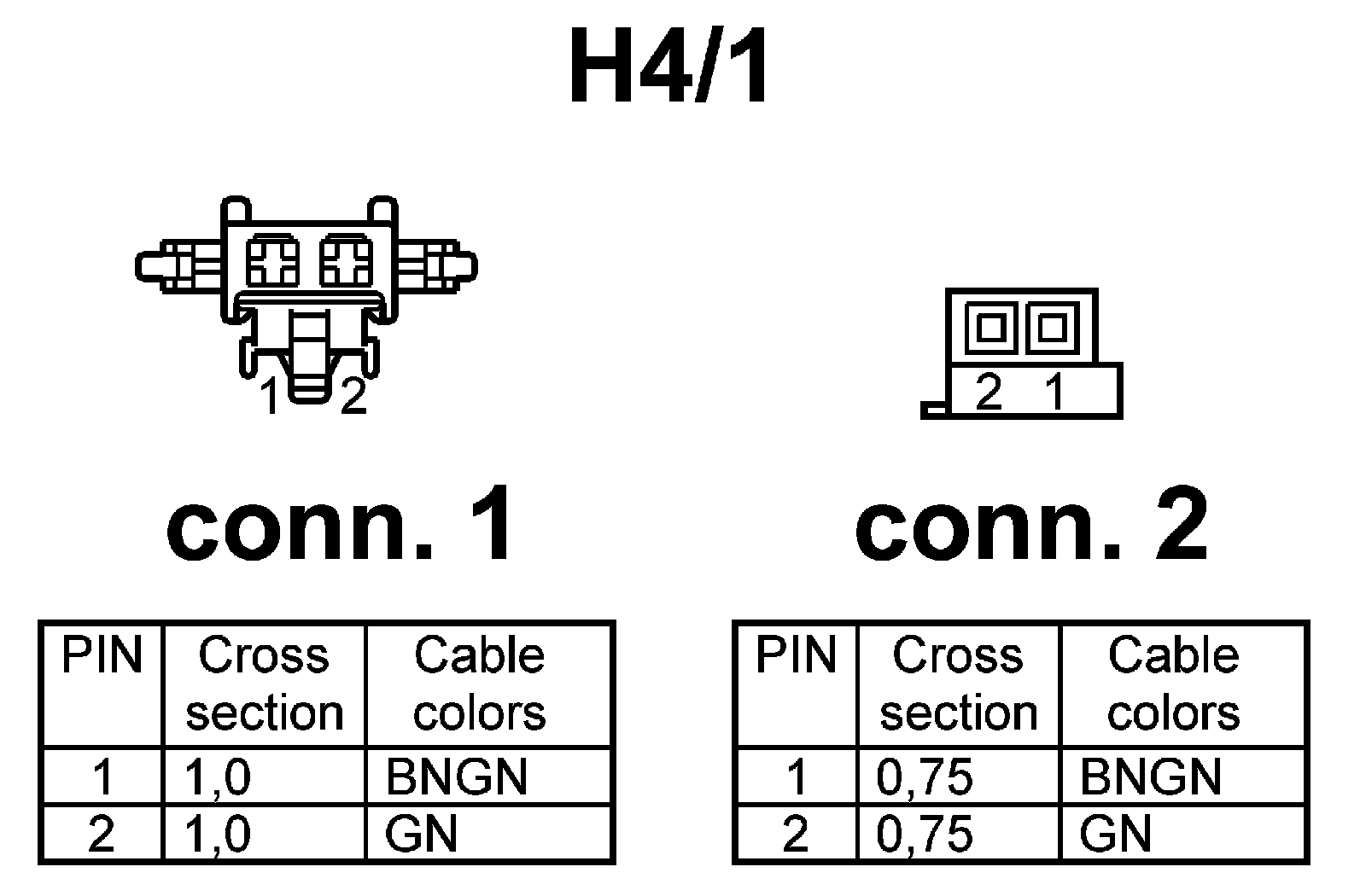

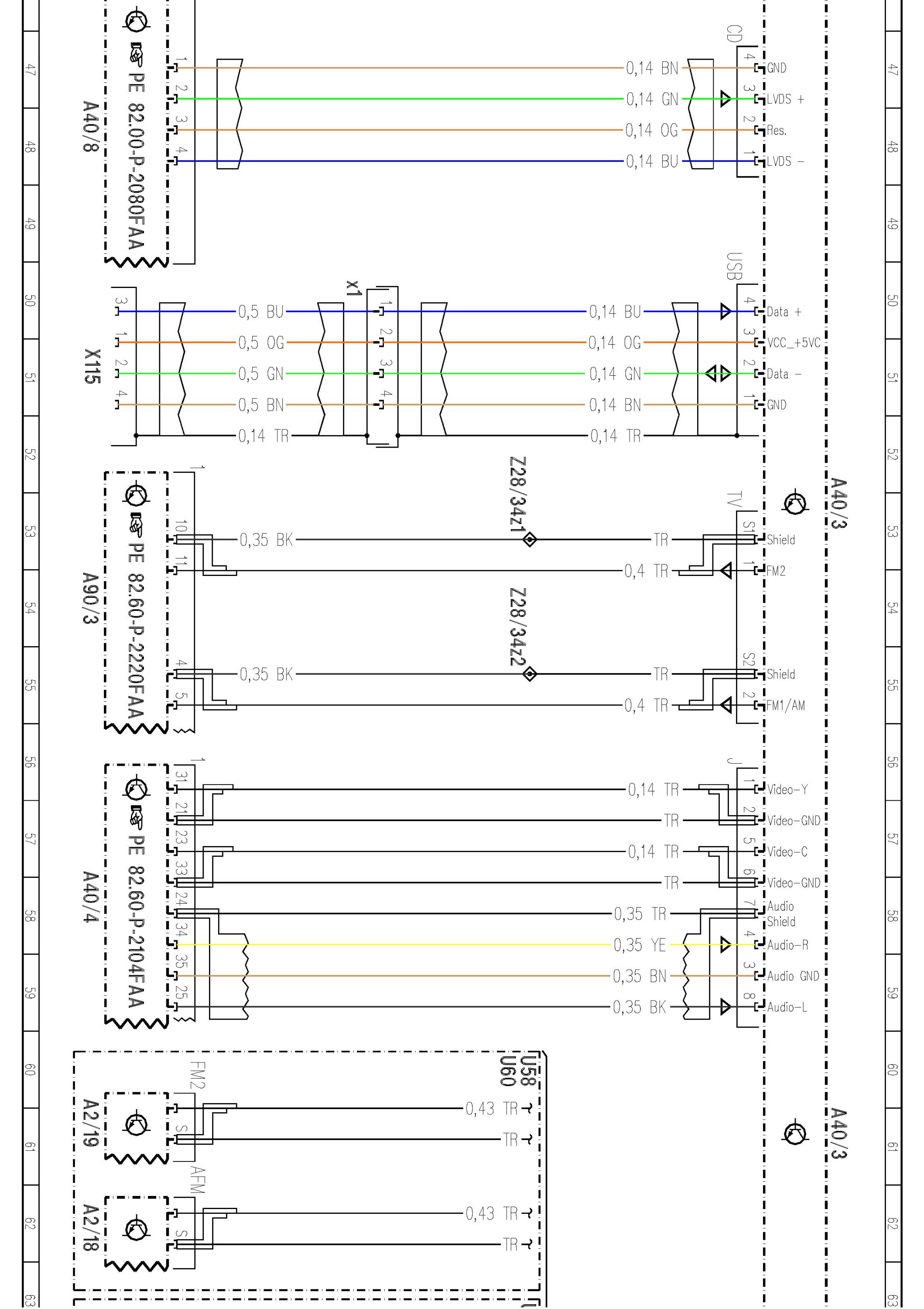

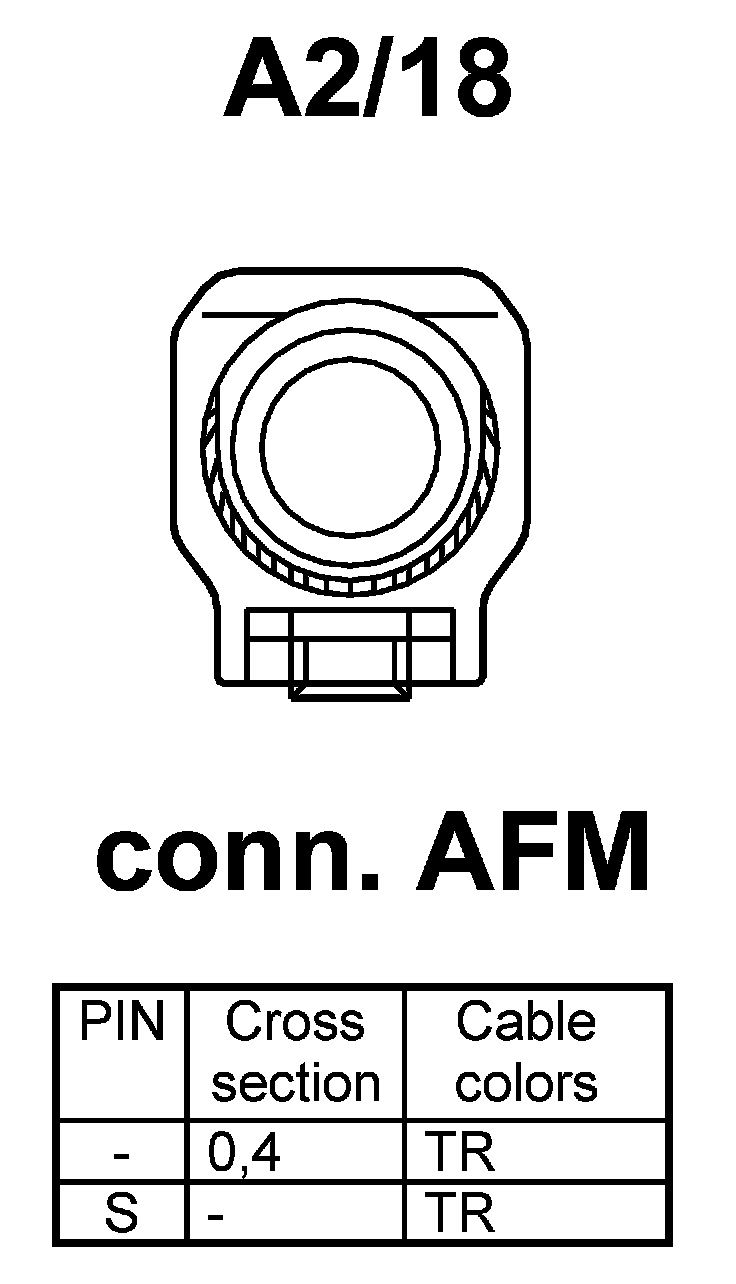

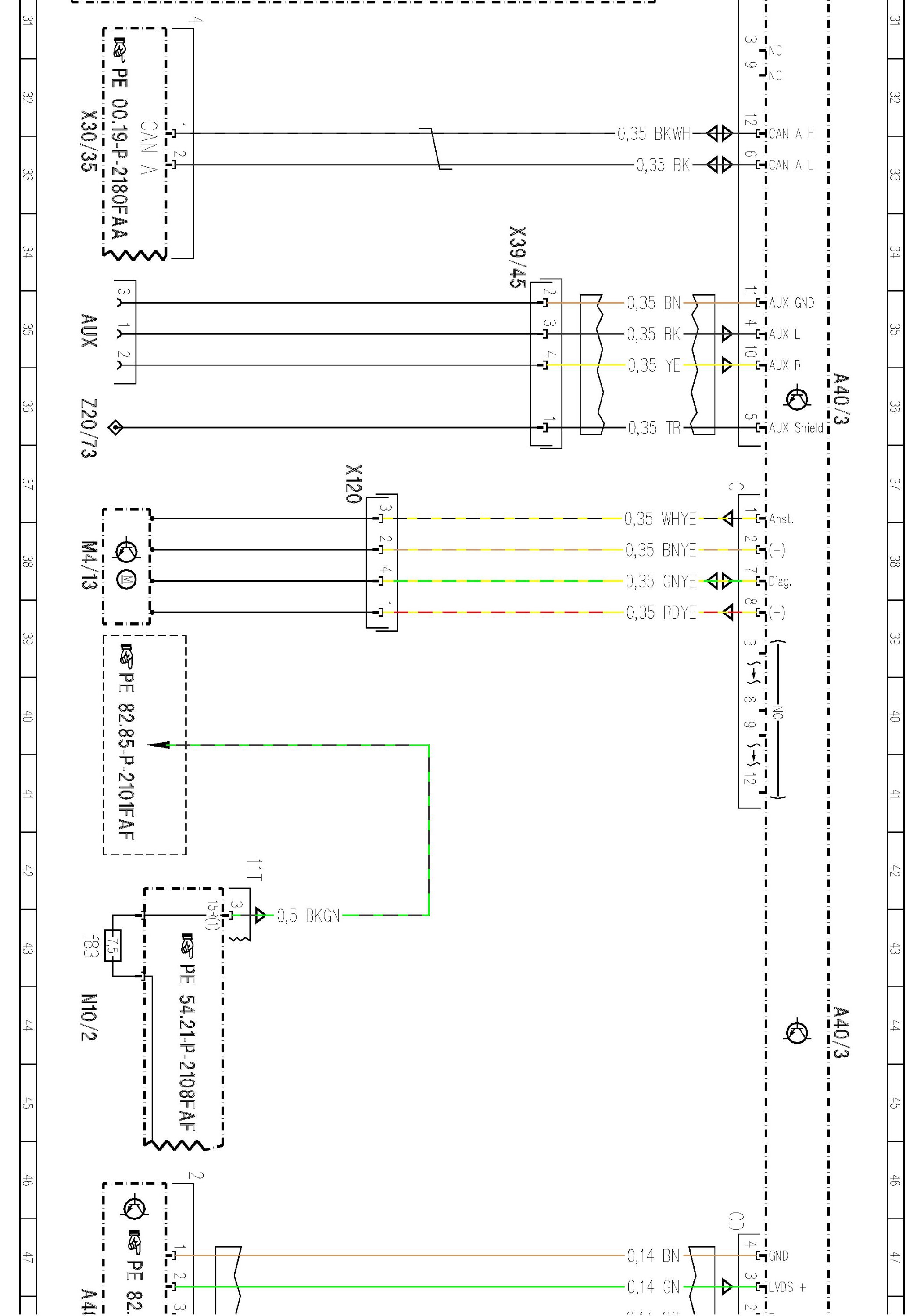

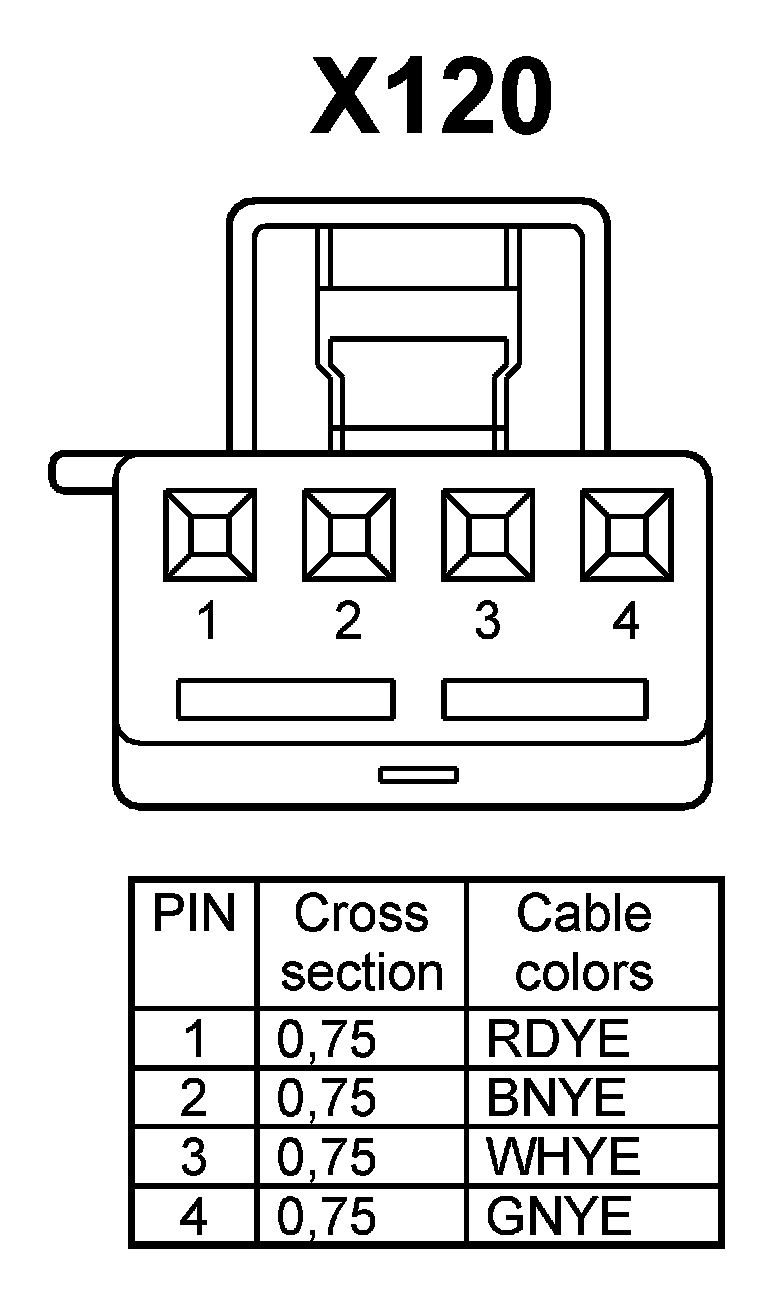

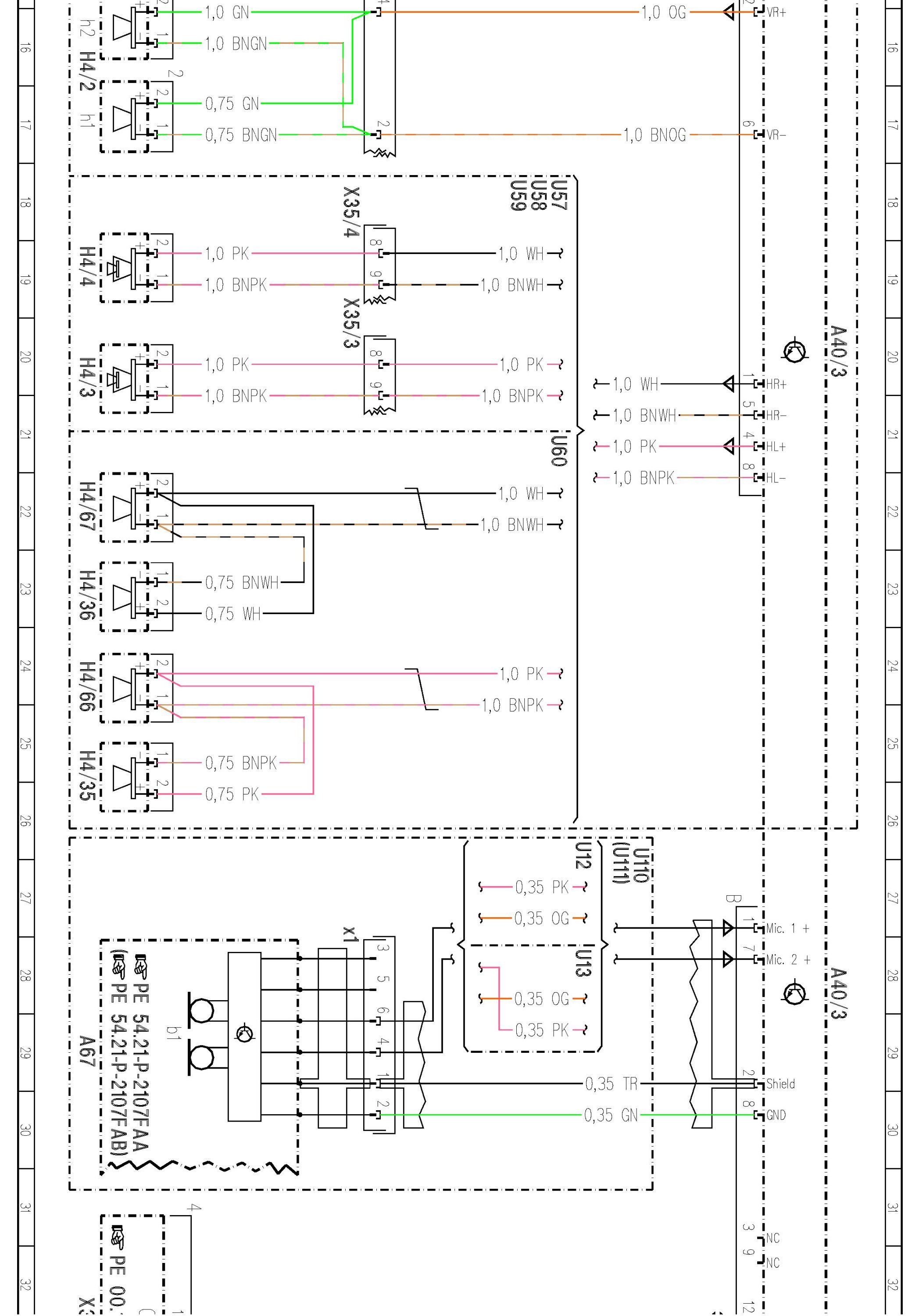

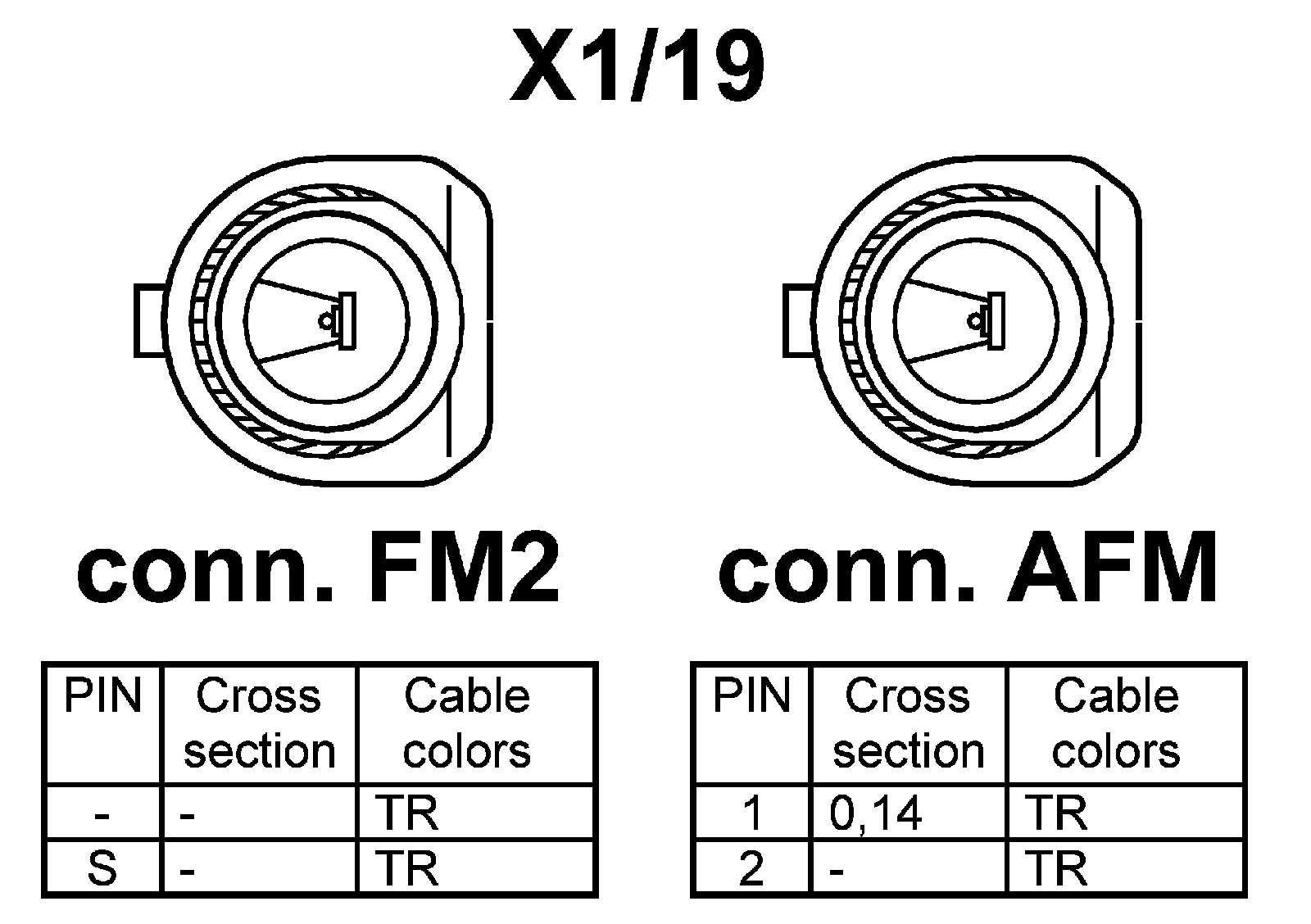

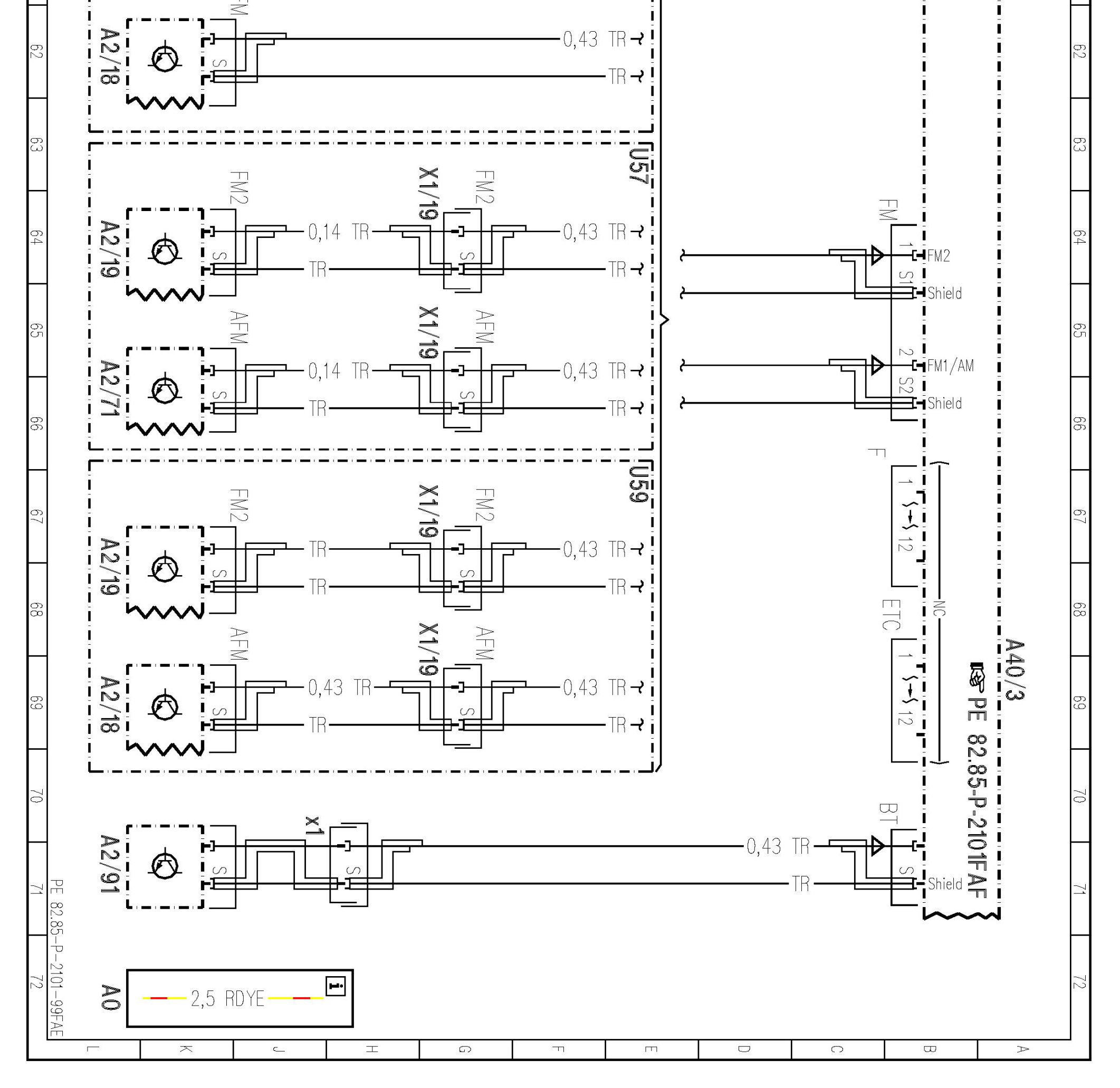

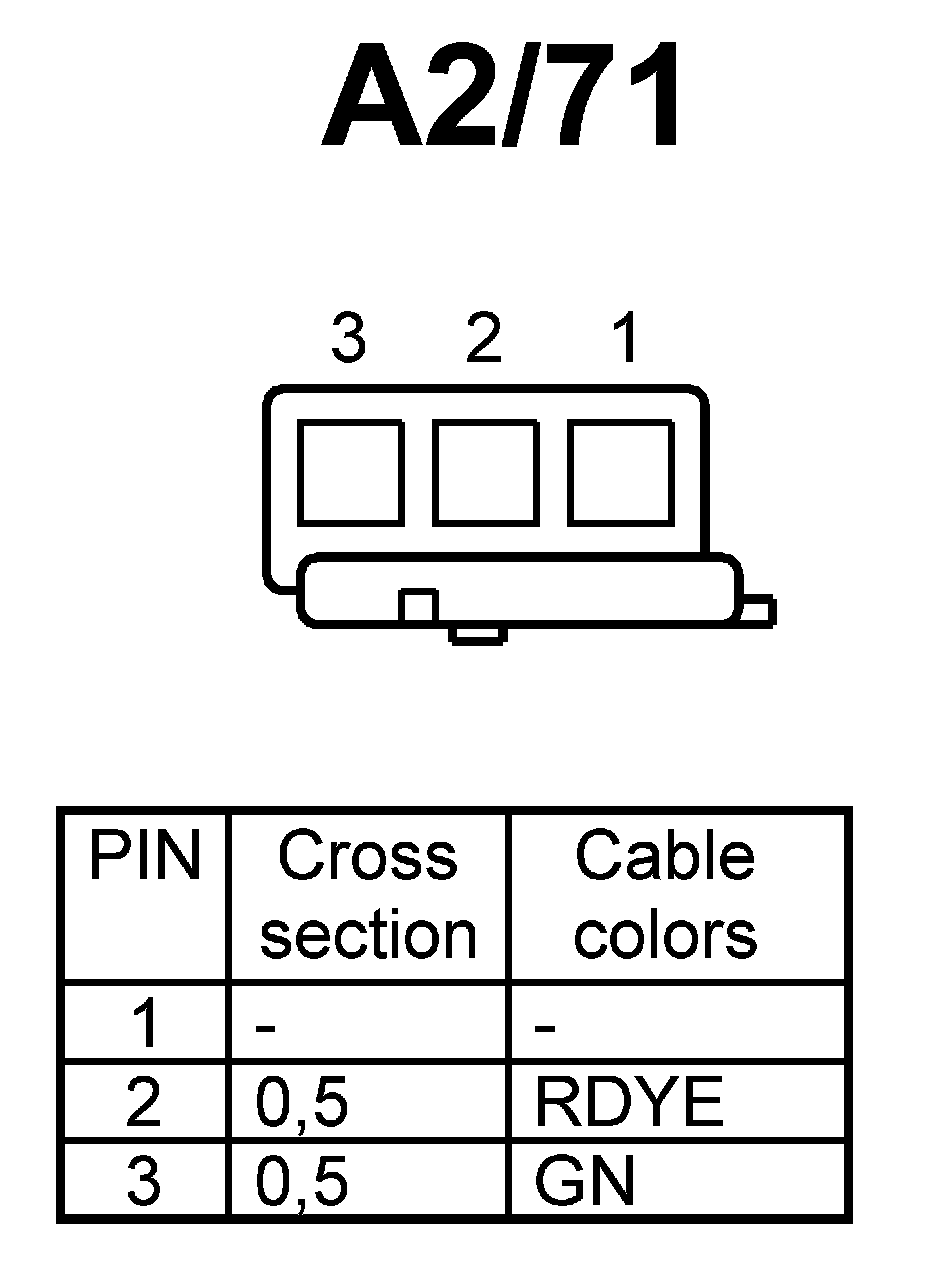

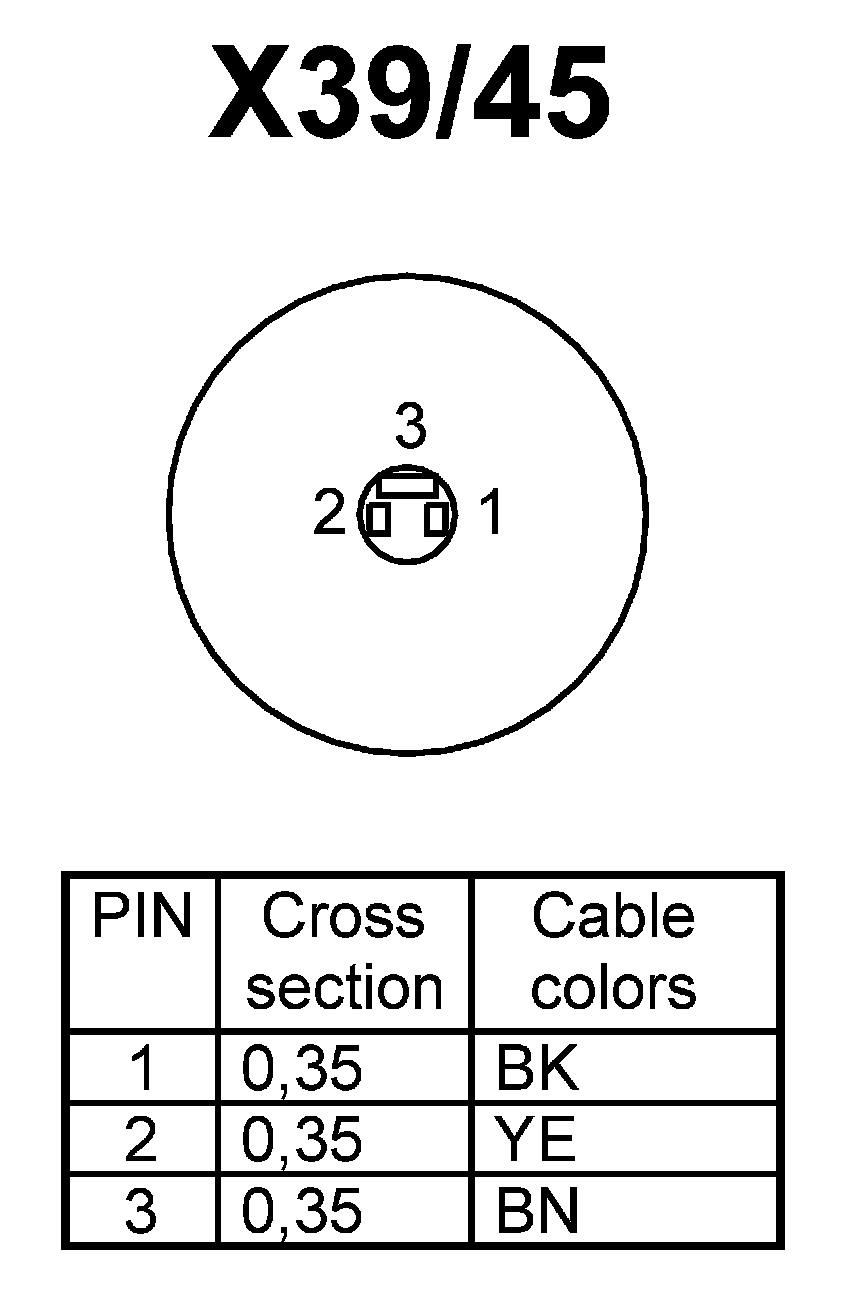

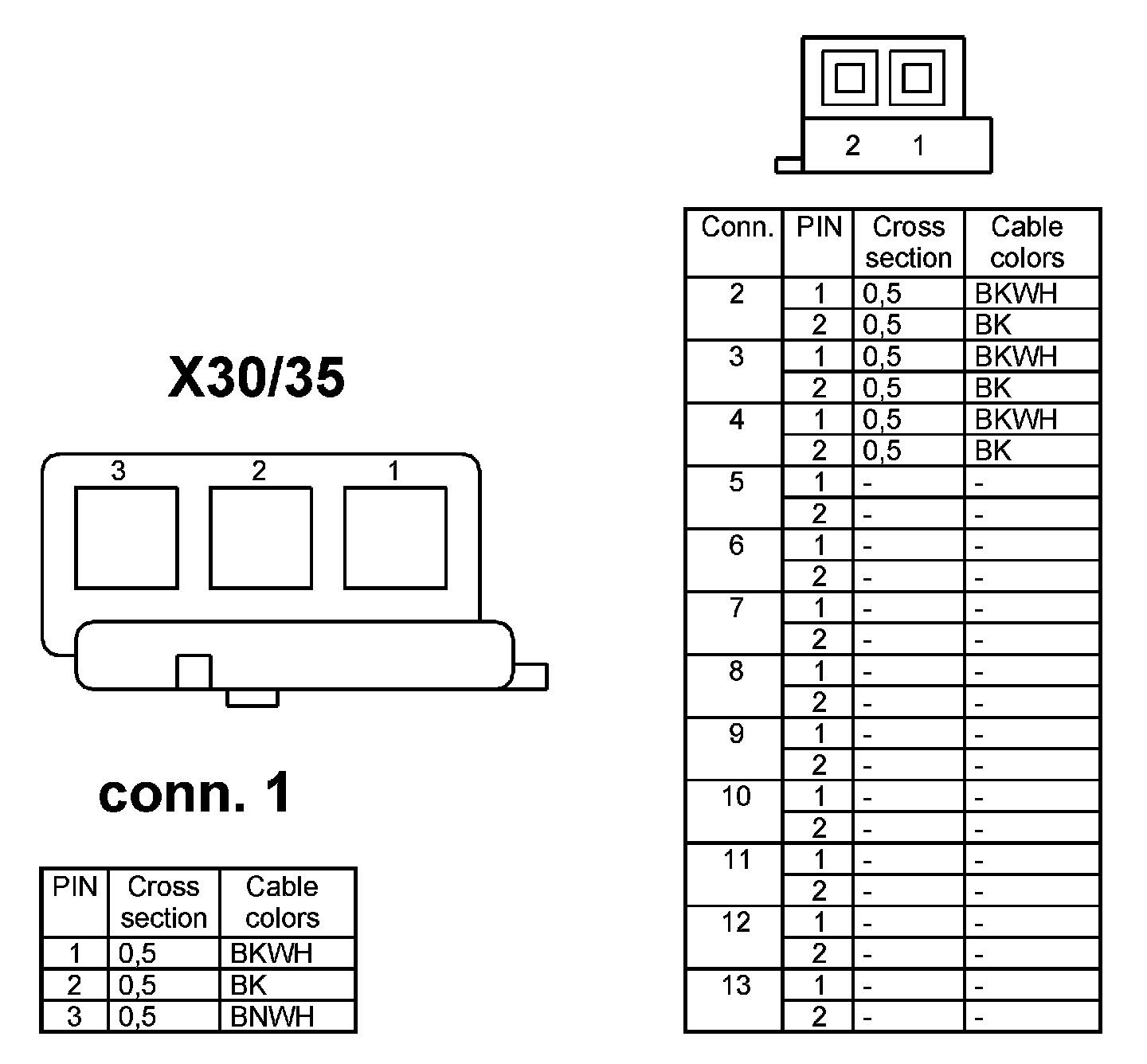

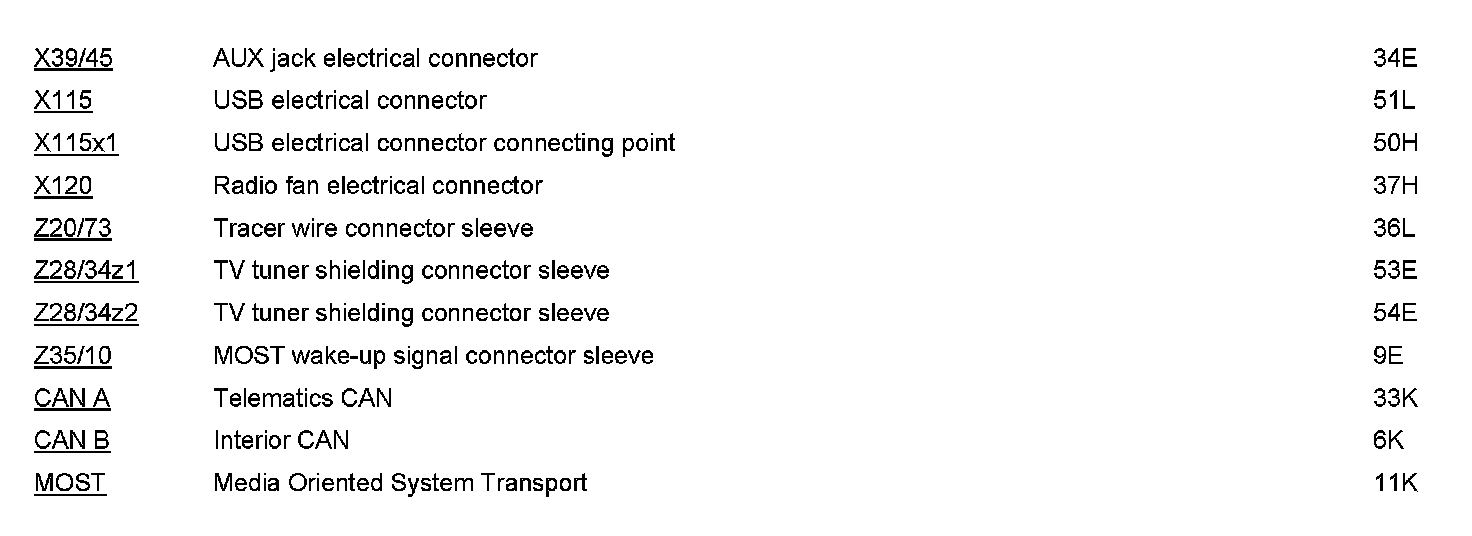

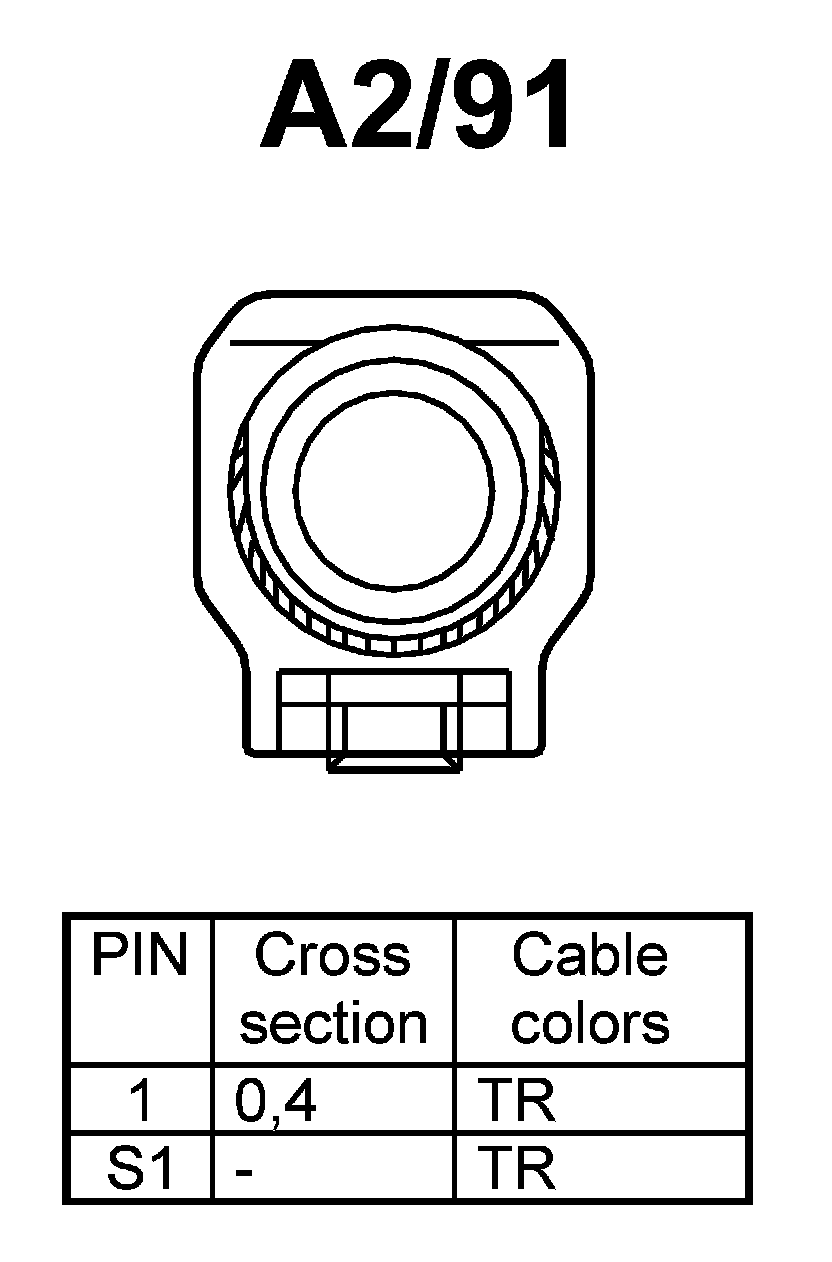

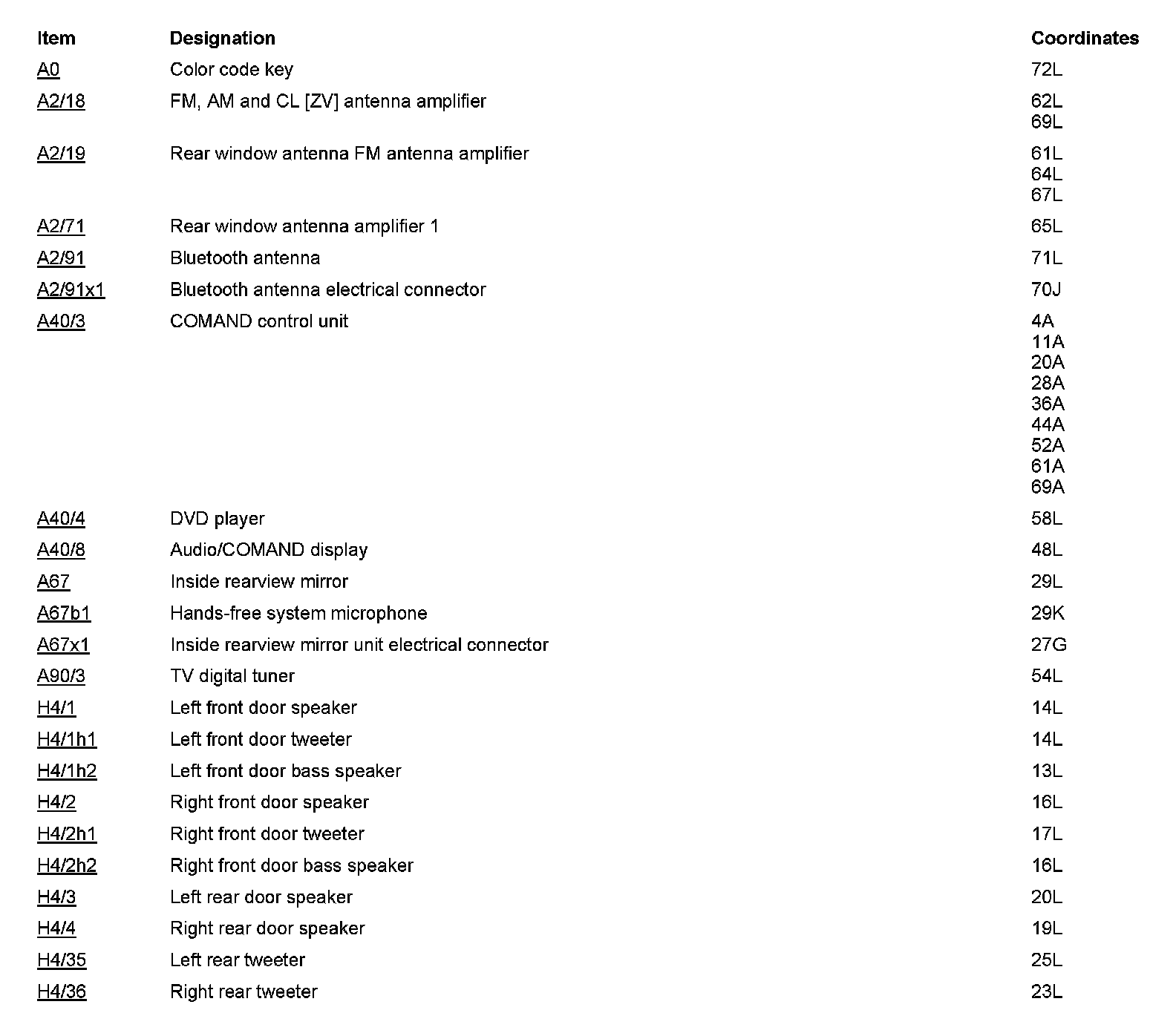

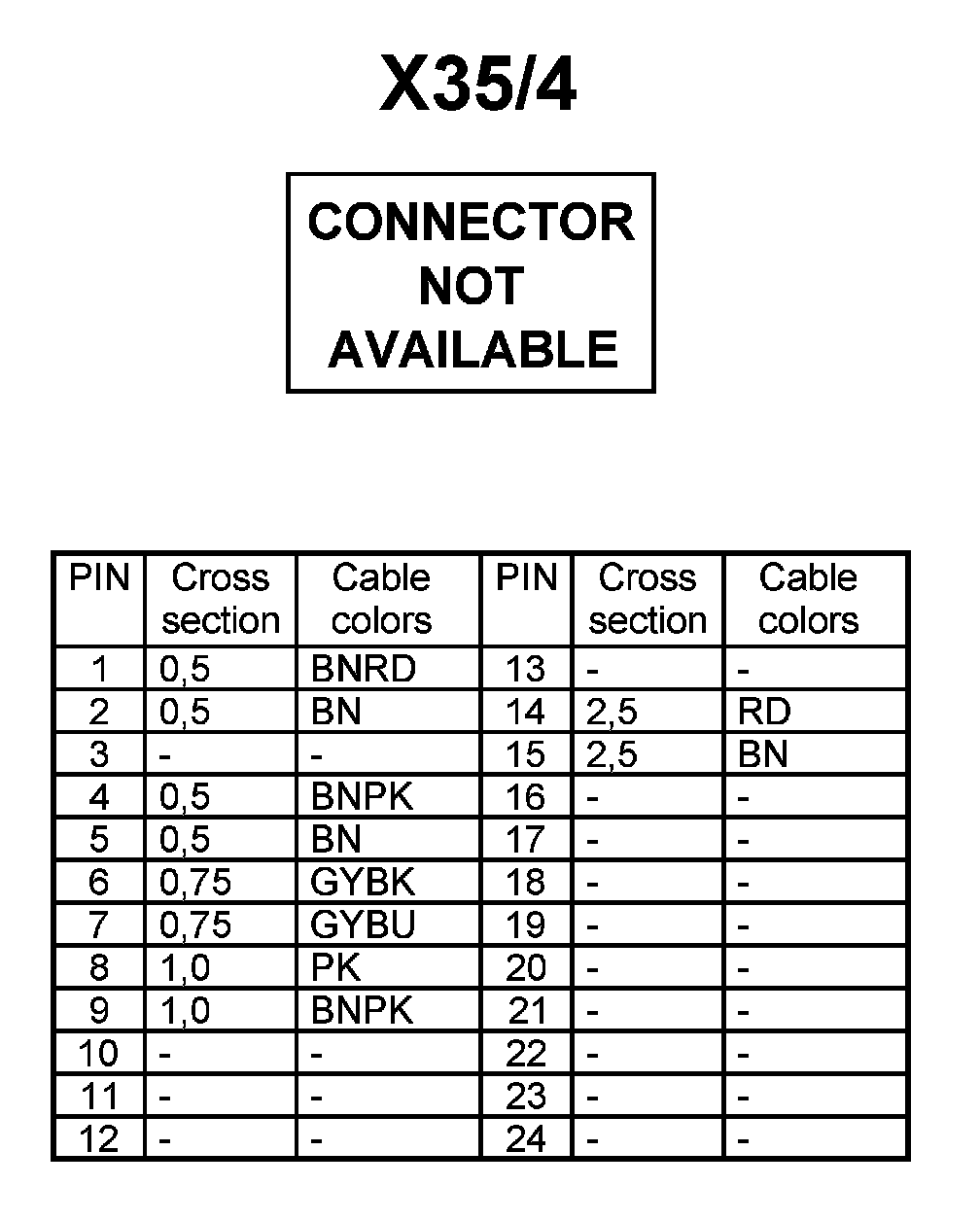

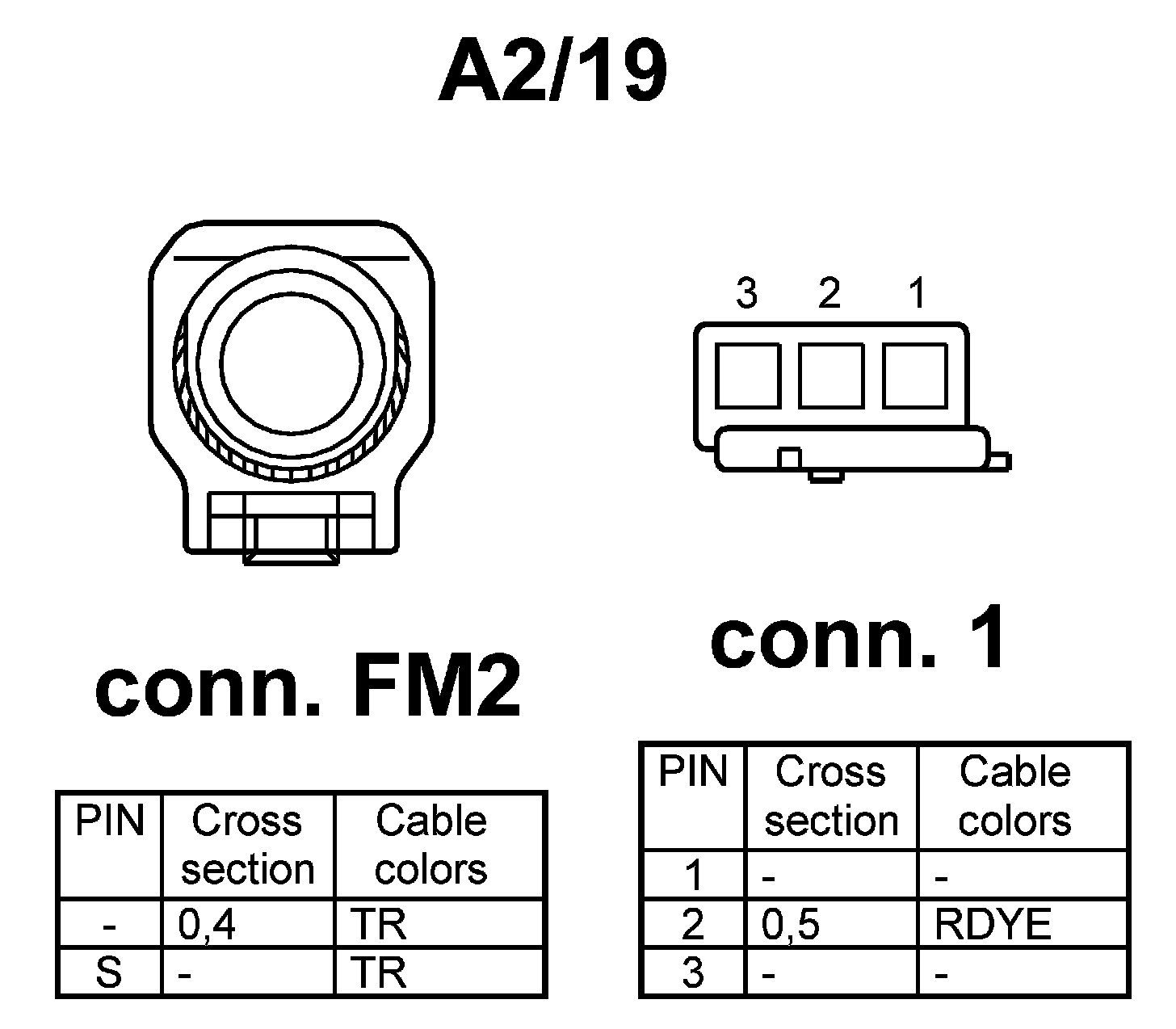

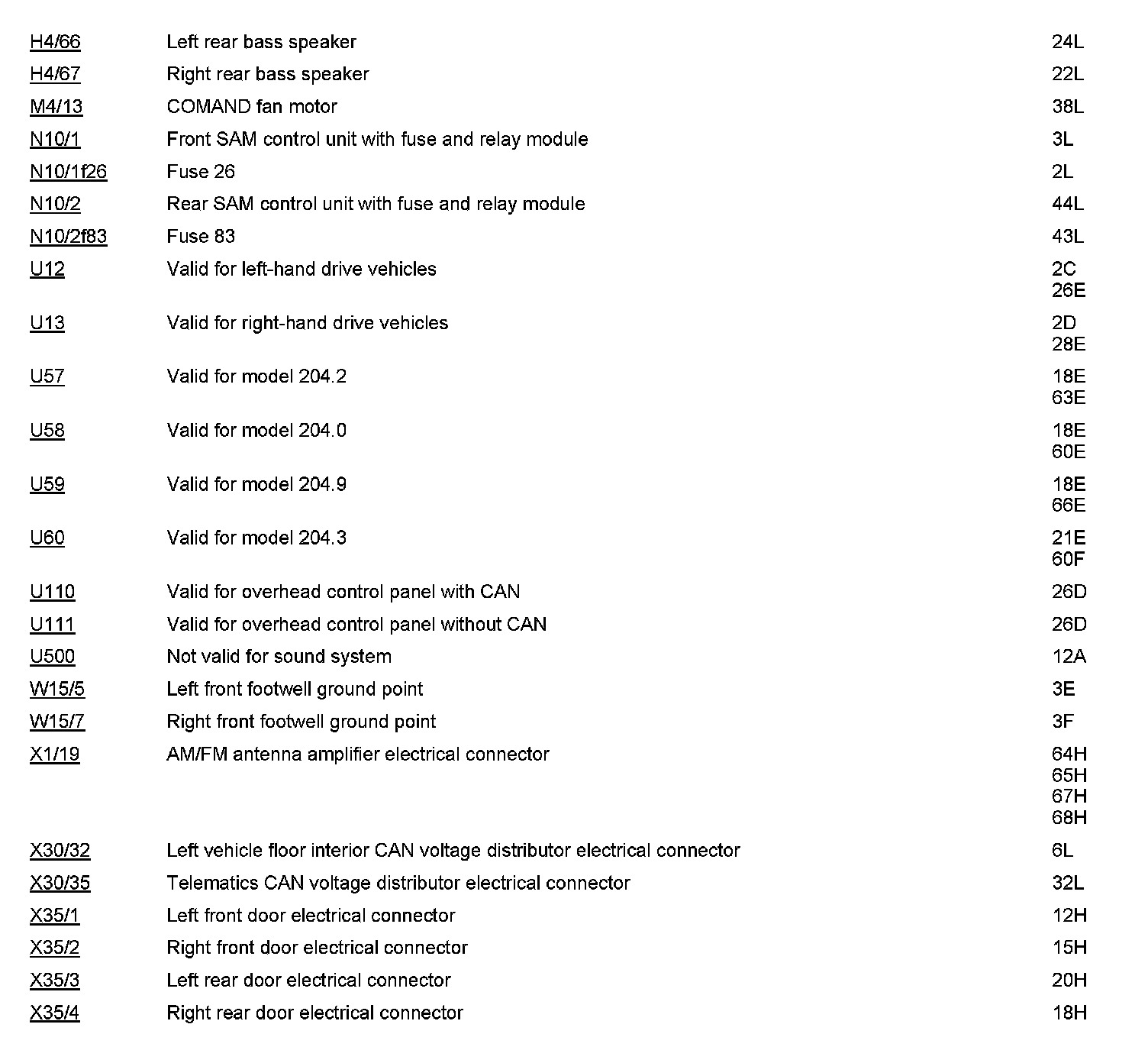

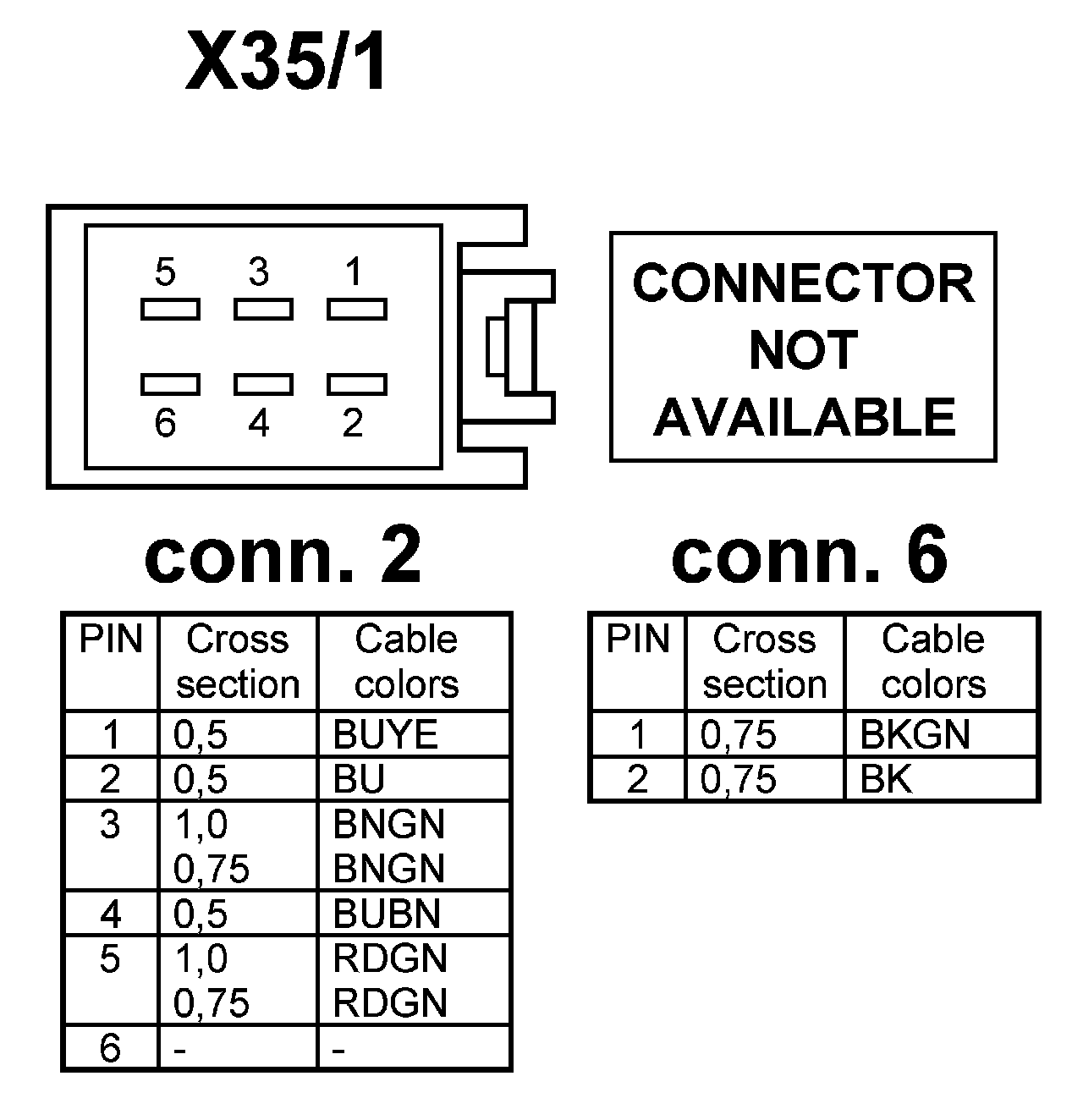

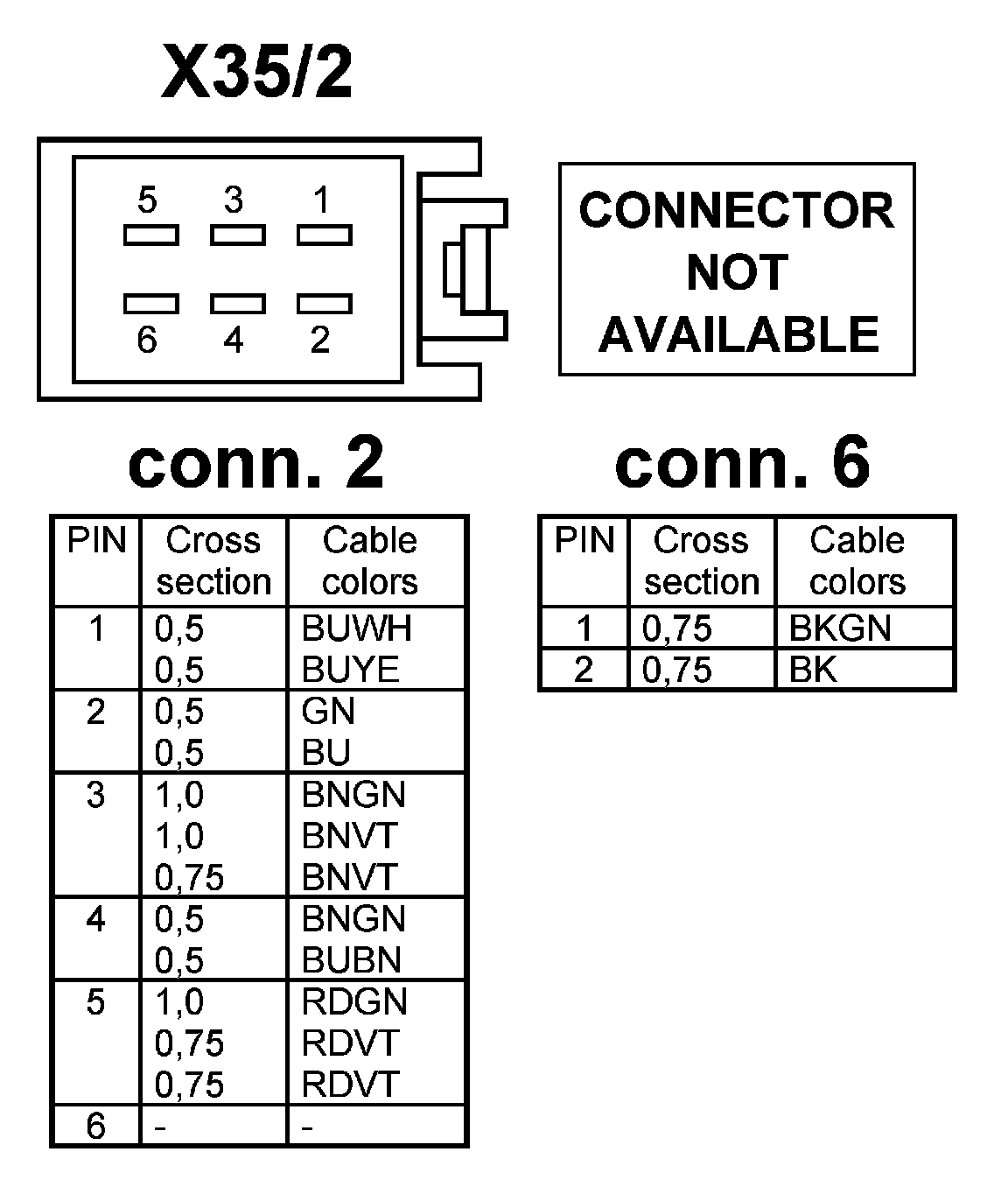

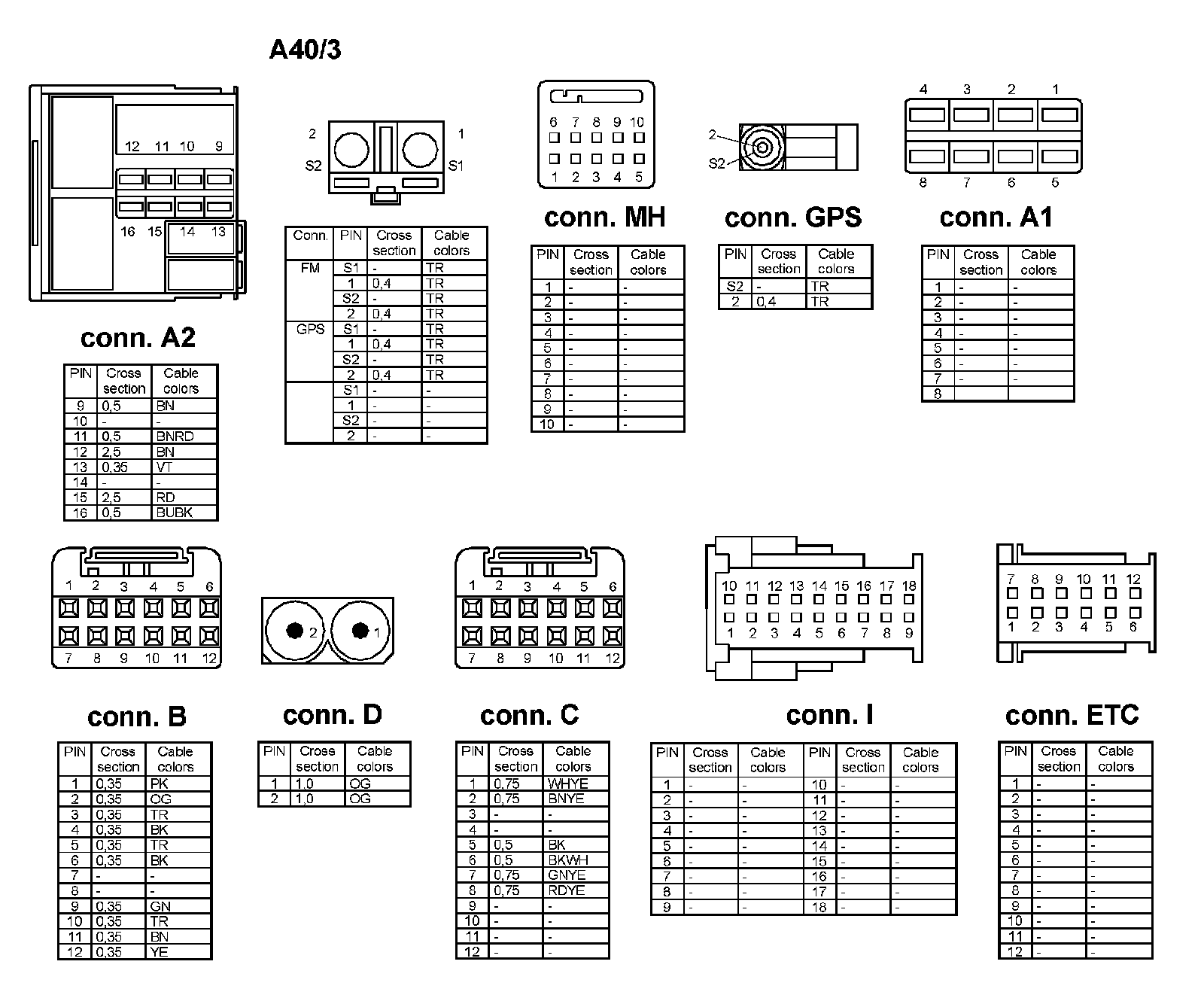

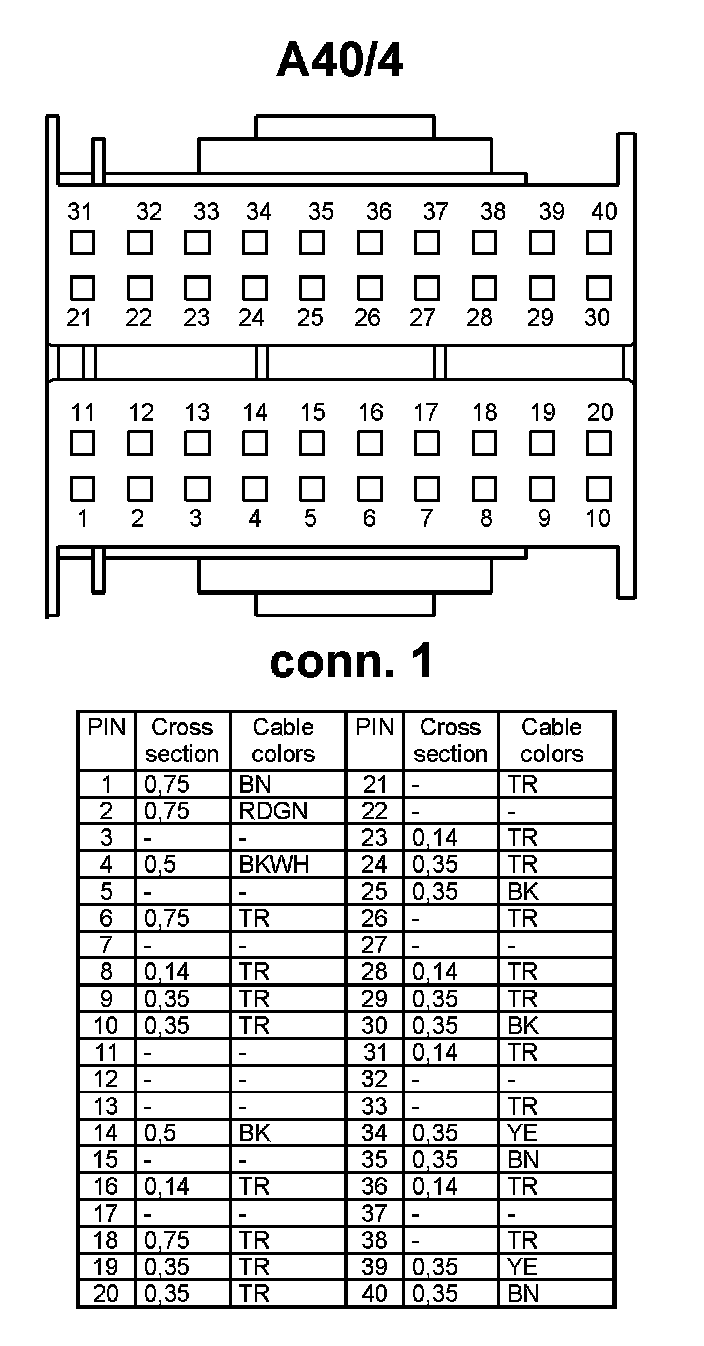

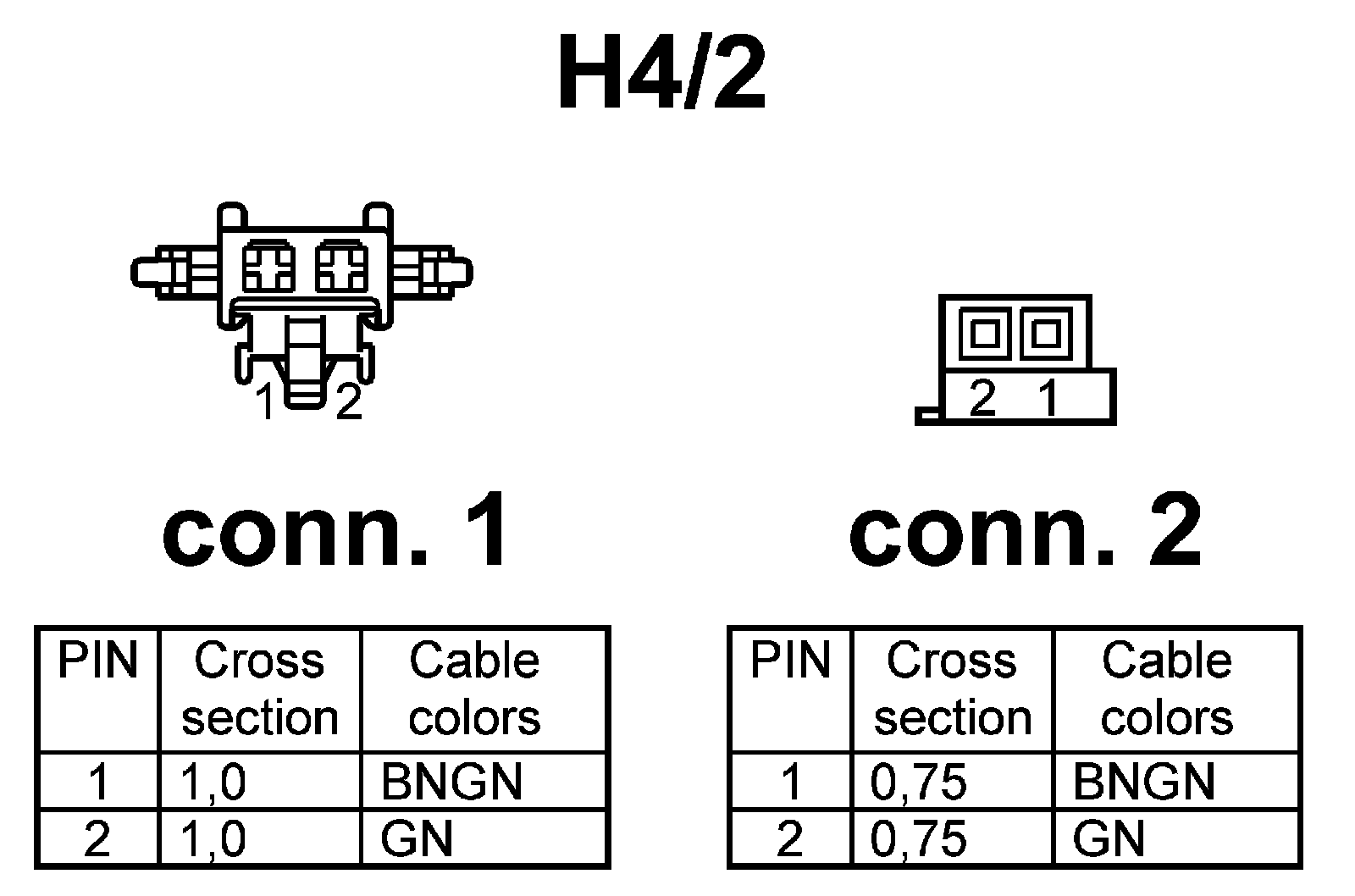

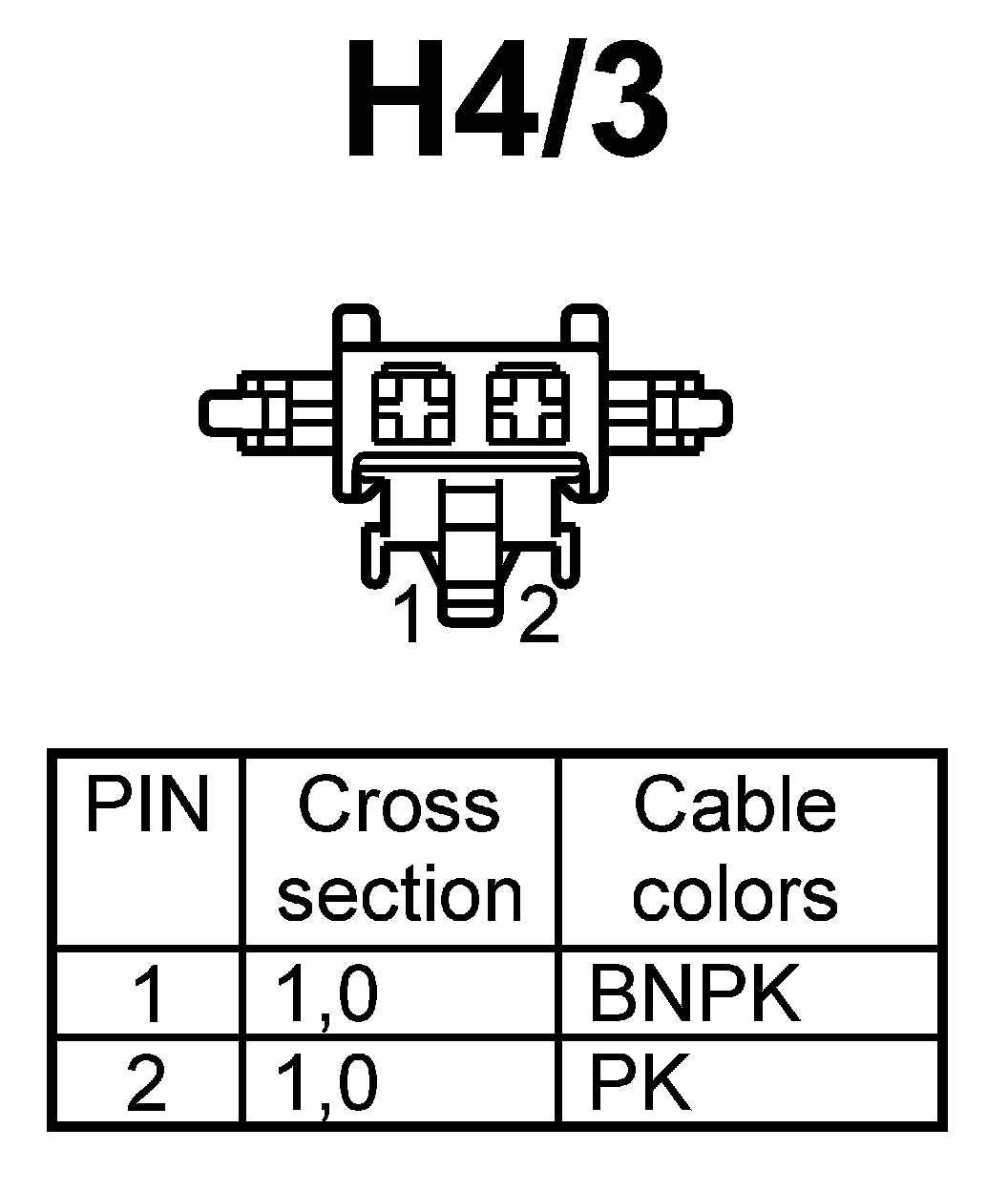

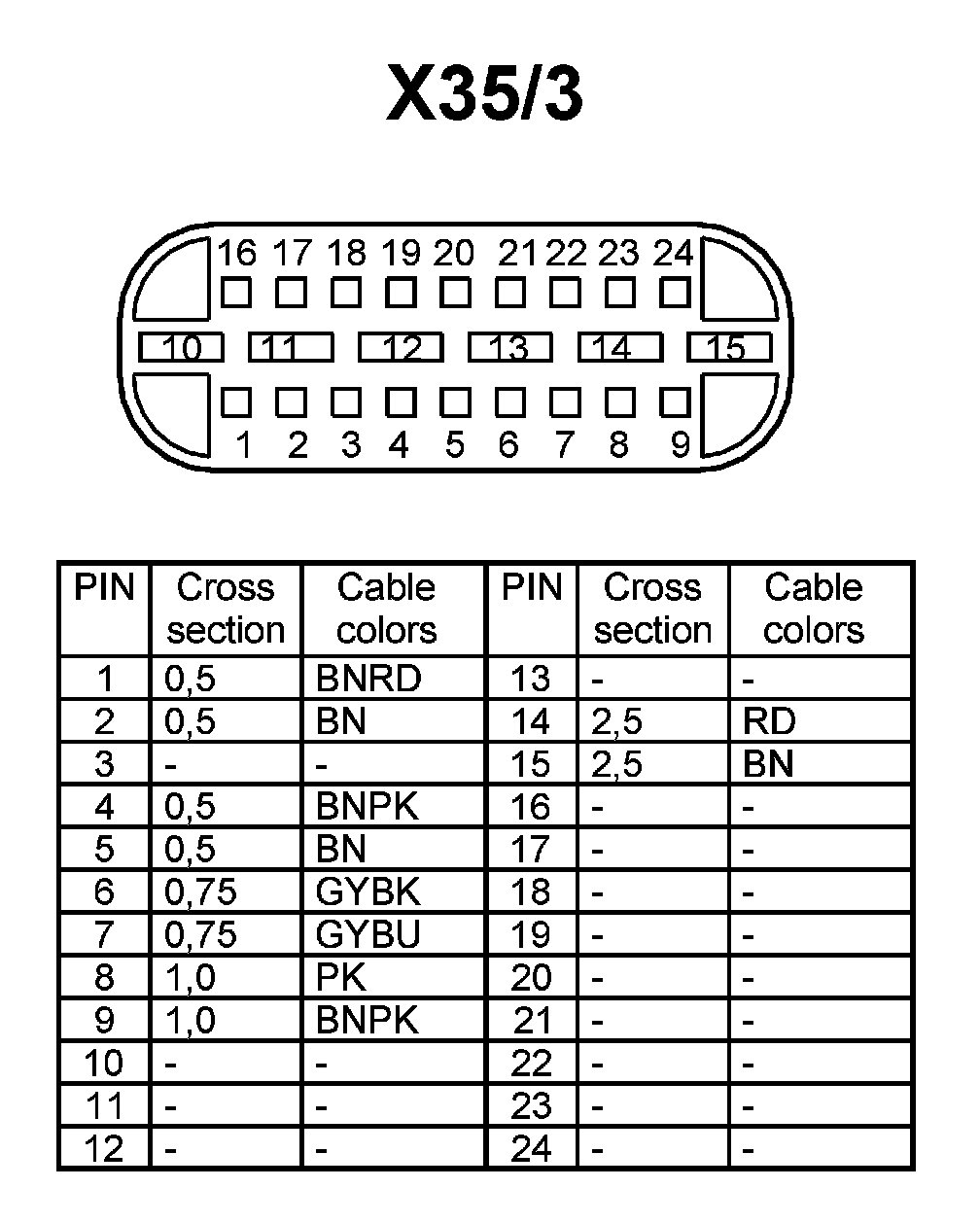

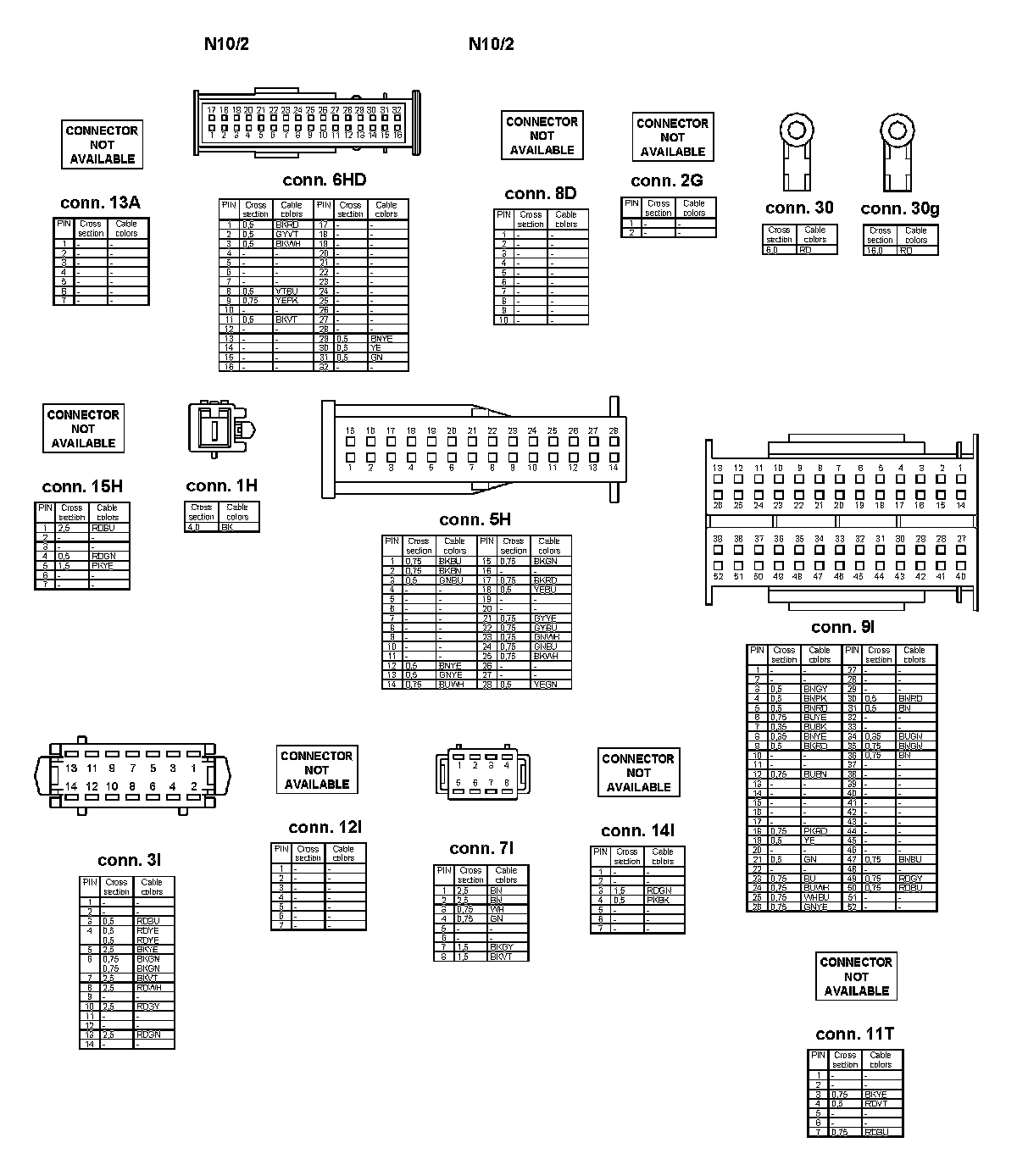

PE82.85-P-2101FAE Cockpit Management and Data System (COMAND) Control Unit Wiring Diagram

PE82.85-P-2101FAE Cockpit Management And Data System (COMAND) Control Unit Wiring Diagram

MODEL 204.0 /2
- with CODE (498) Japan version
- with CODE (527) COMAND APS with single DVD drive (with navigation)
- as of model year 2012

MODEL 204.3
- with CODE (498) Japan version
- with CODE (527) COMAND APS with single DVD drive (with navigation)

MODEL 204.9
- with CODE (498) Japan version
- with CODE (527) COMAND APS with single DVD drive (with navigation)
- as of model year 2013























































































































Component Locations: Component Location photographs can be found via their component names at the vehicle level. Component Locations
