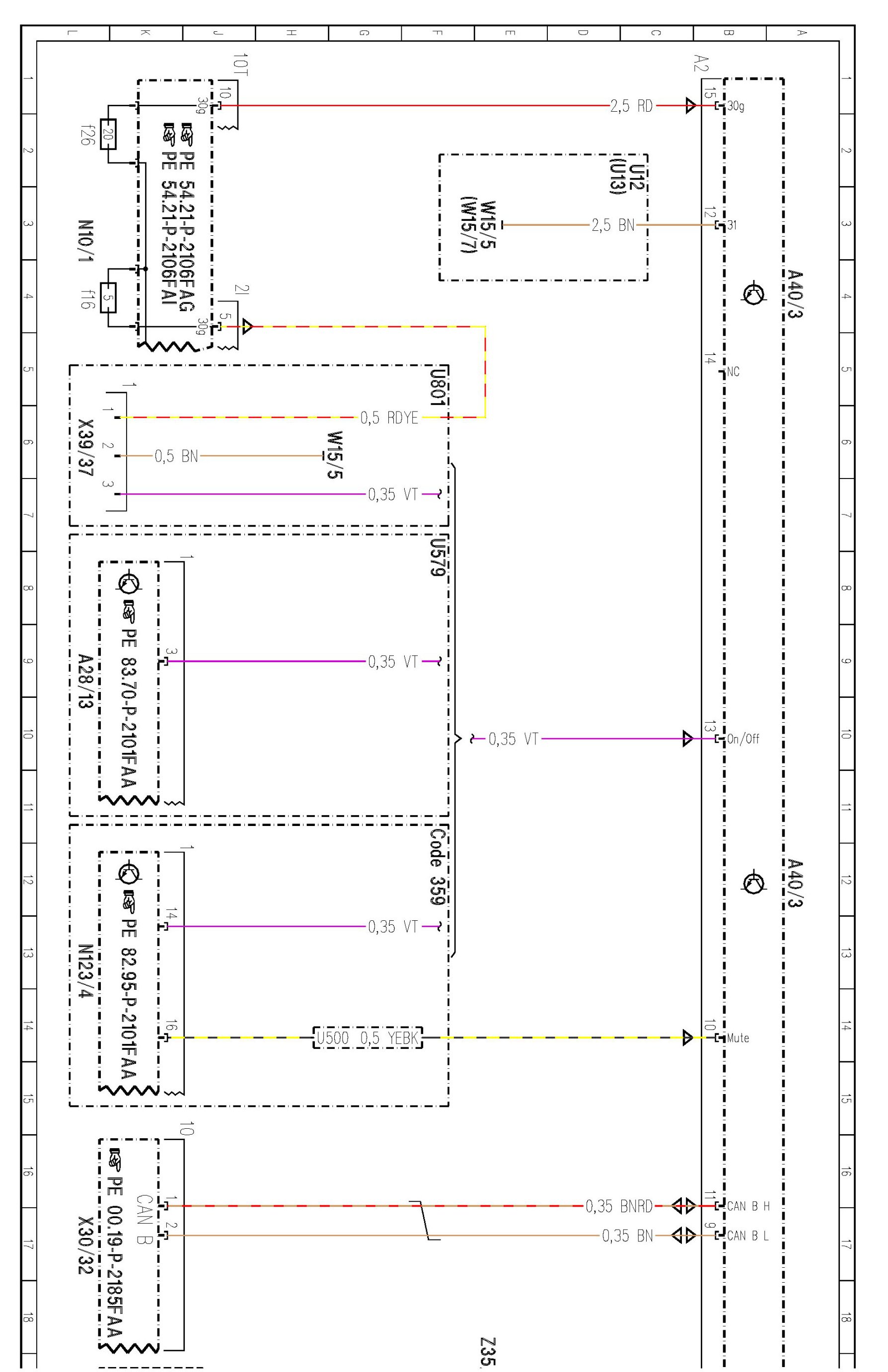

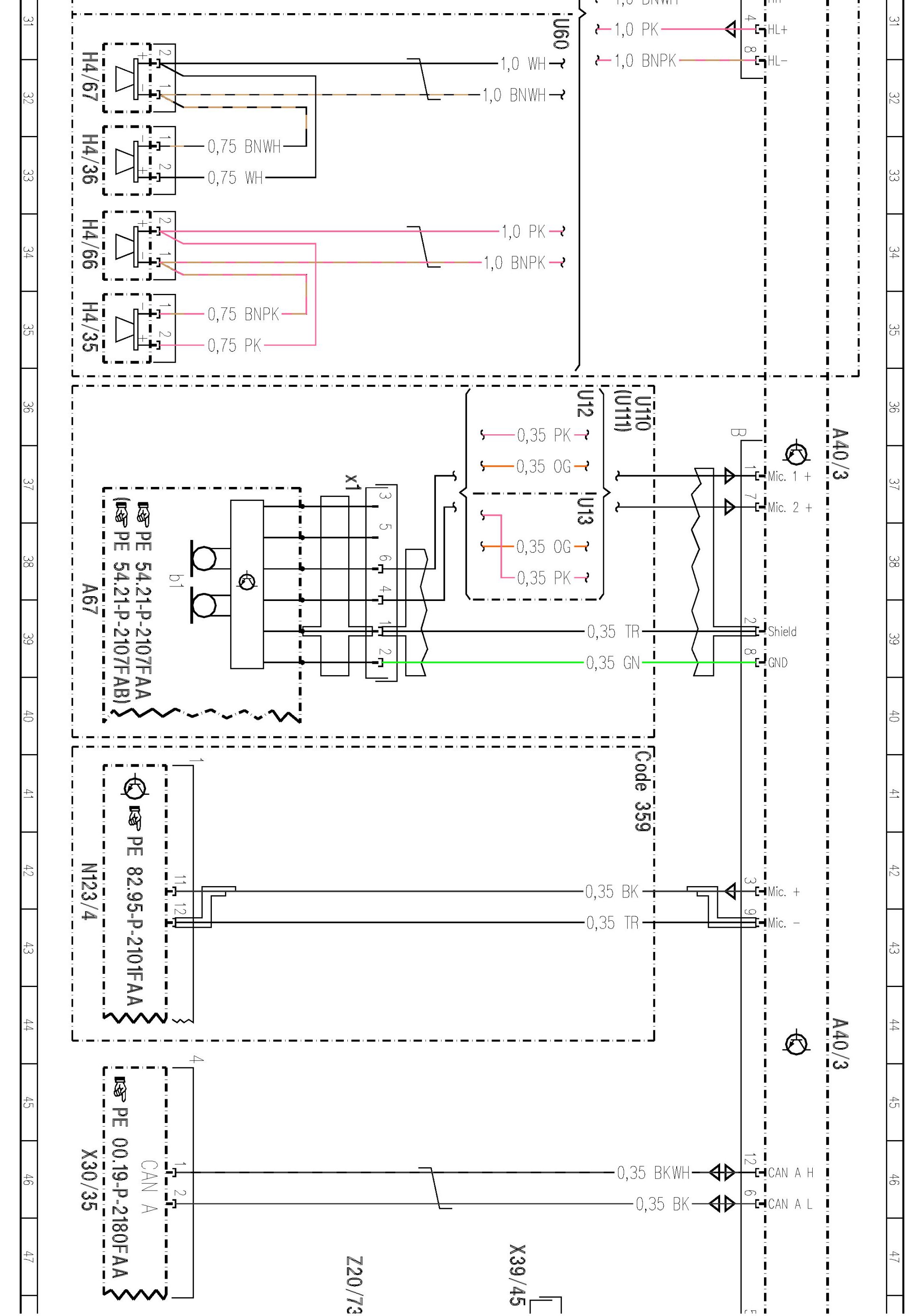

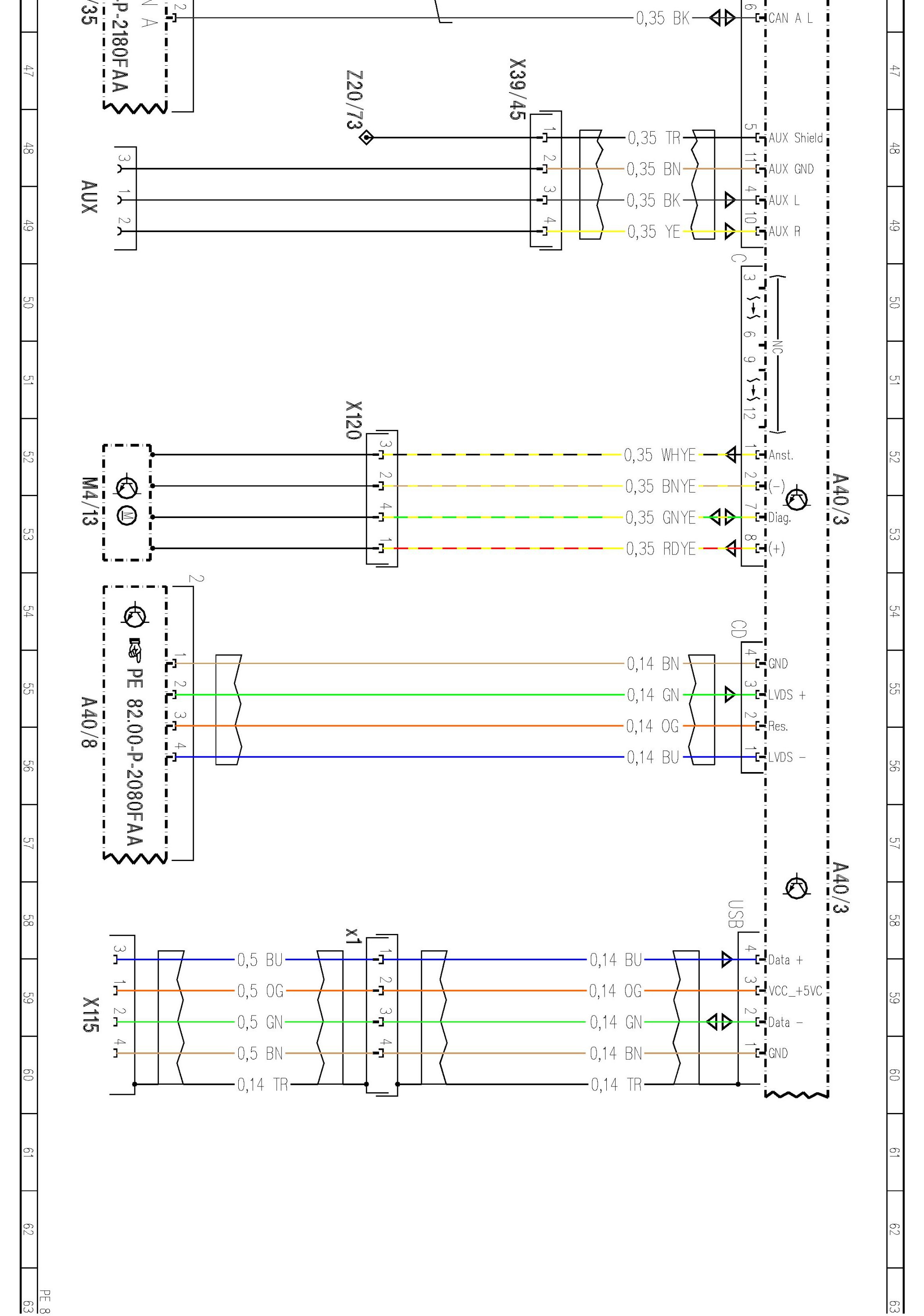

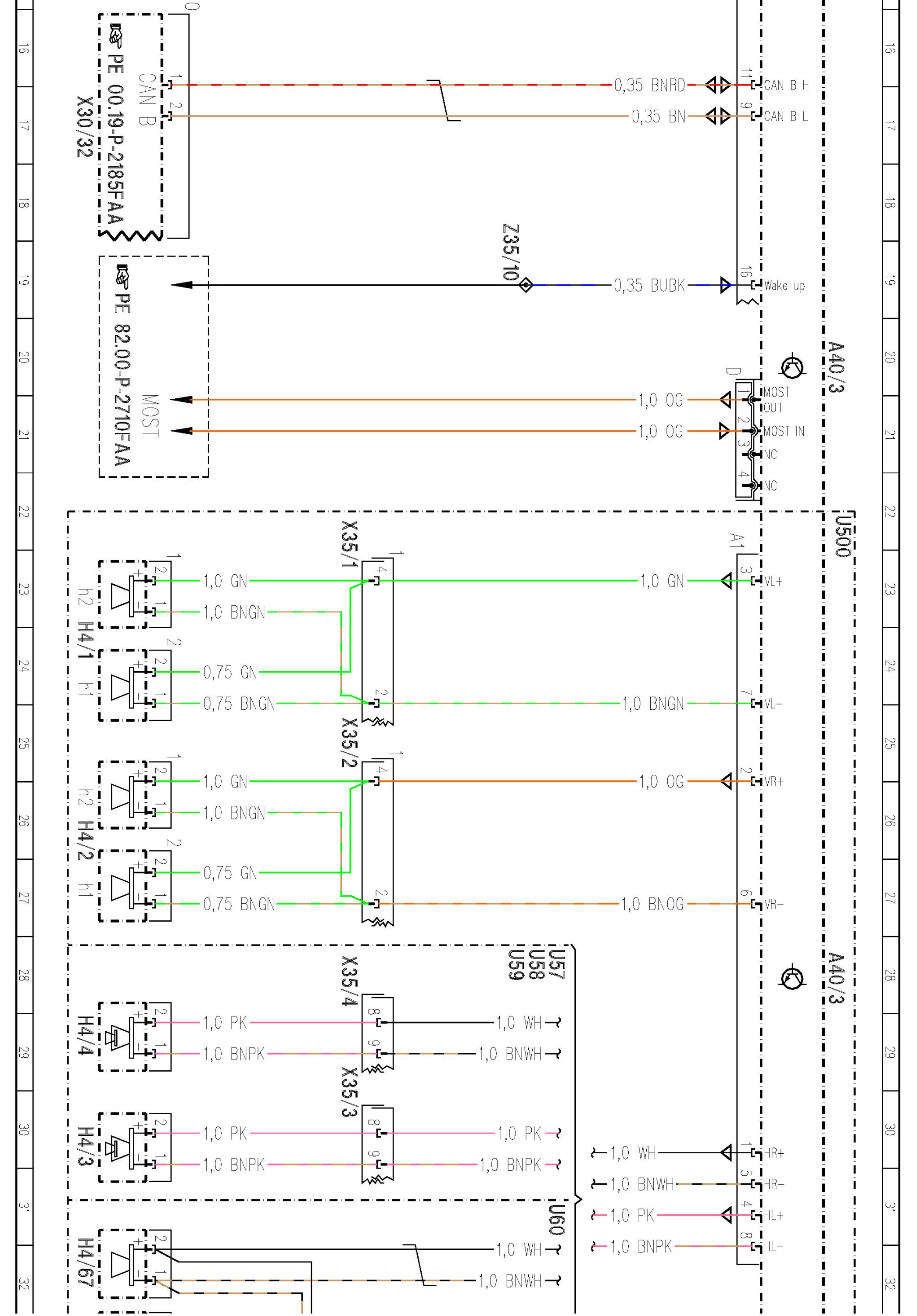

PE82.85-P-2101FAD Cockpit Management and Data System (COMAND) Control Unit Wiring Diagram

PE82.85-P-2101FAD Cockpit Management And Data System (COMAND) Control Unit Wiring Diagram

MODEL 204.0 /2
- except CODE (498) Japan version
- with CODE (527) COMAND APS with single DVD drive (with navigation)
- with CODE (512) COMAND APS with DVD changer
- with CODE (528) COMAND incl. DVD changer
- as of model year 2012 /YoM 11 model refinement package,

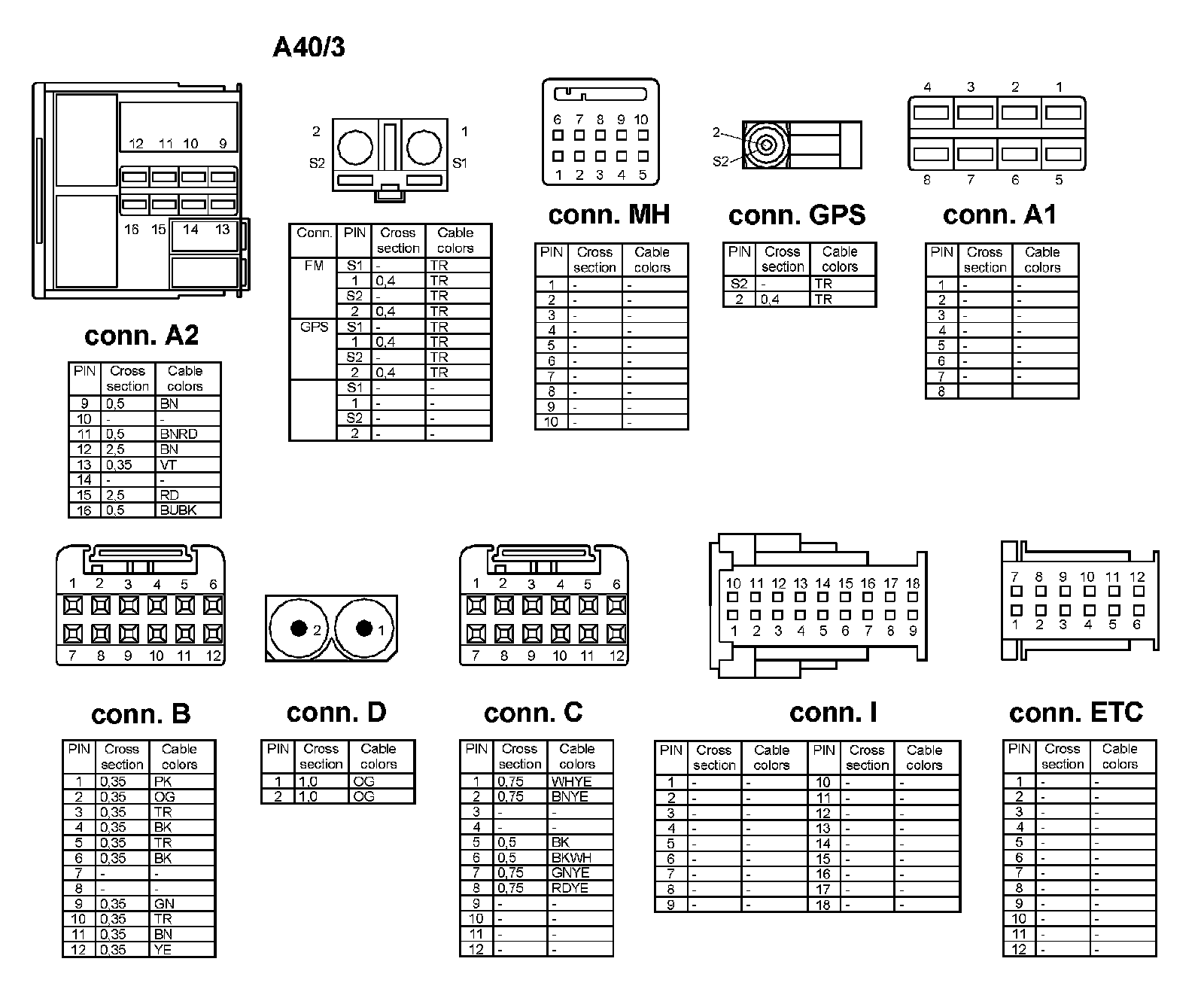

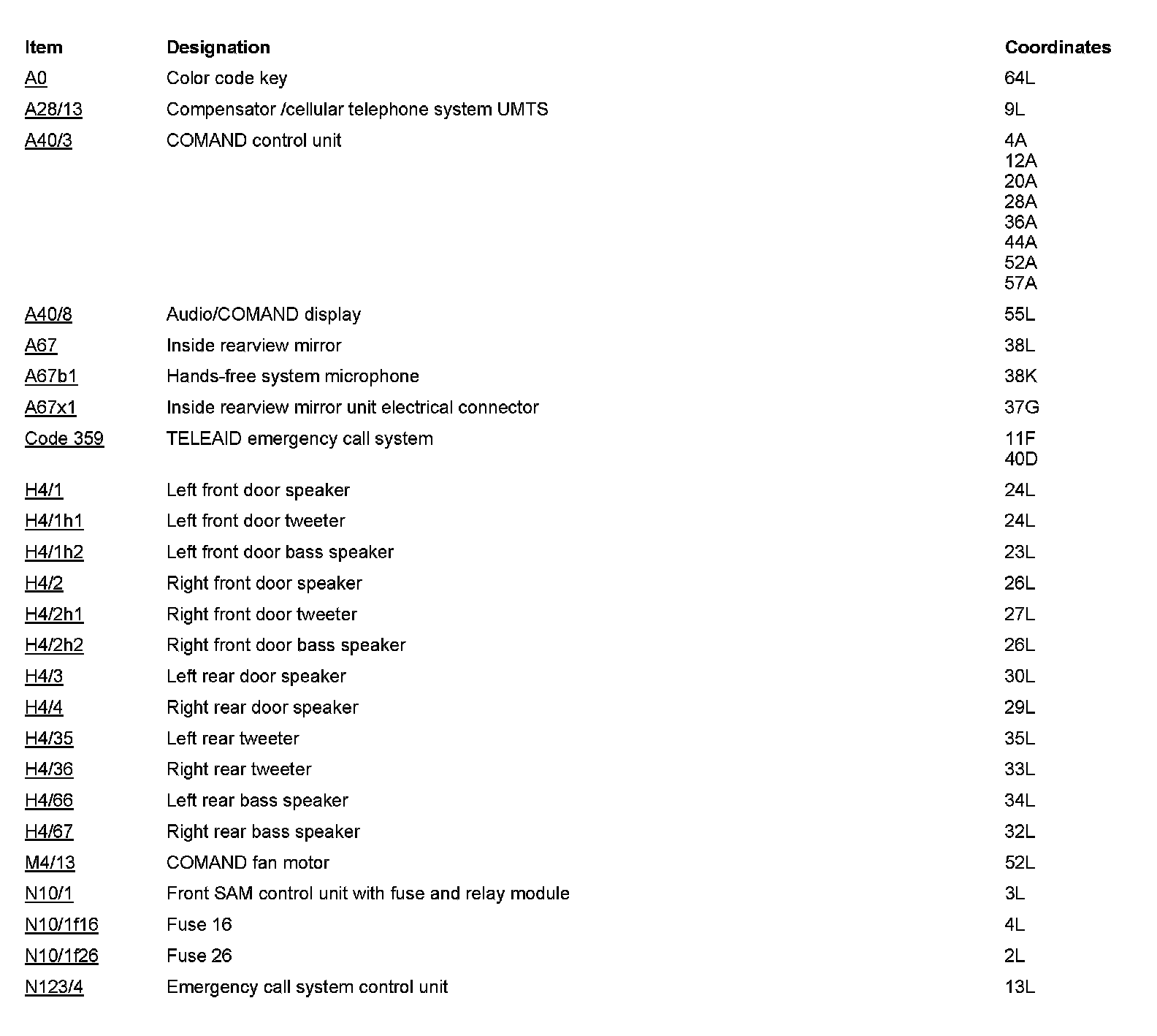

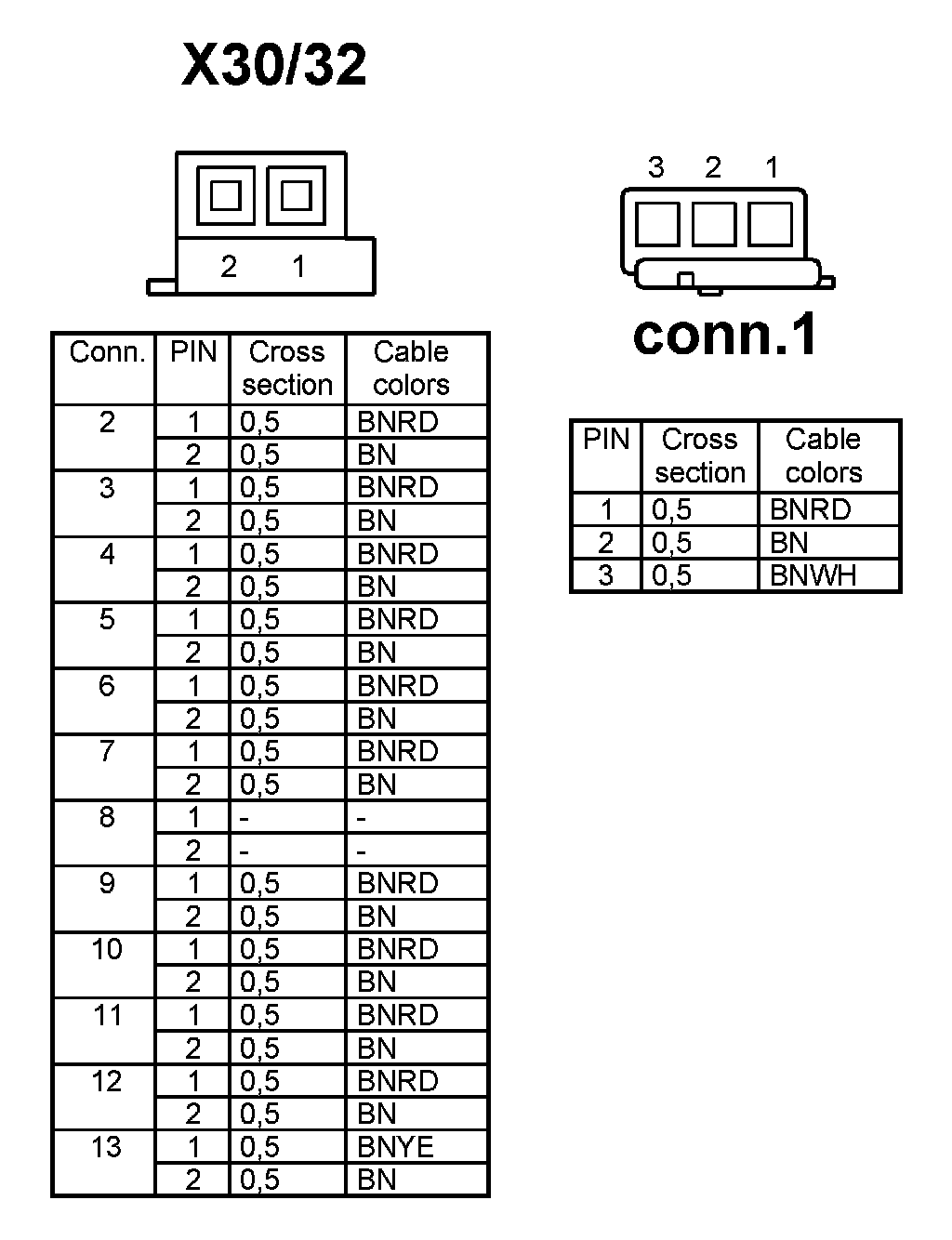

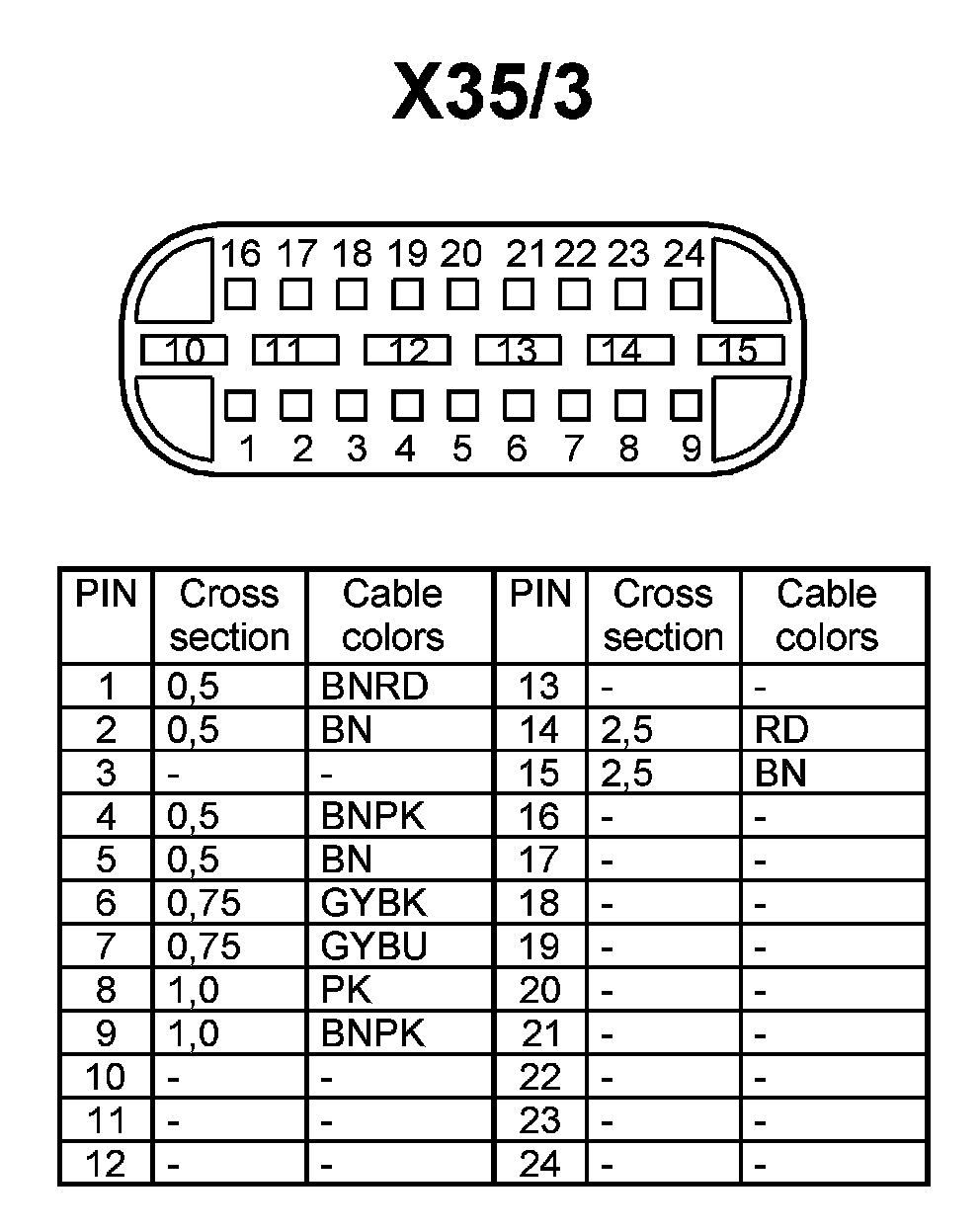

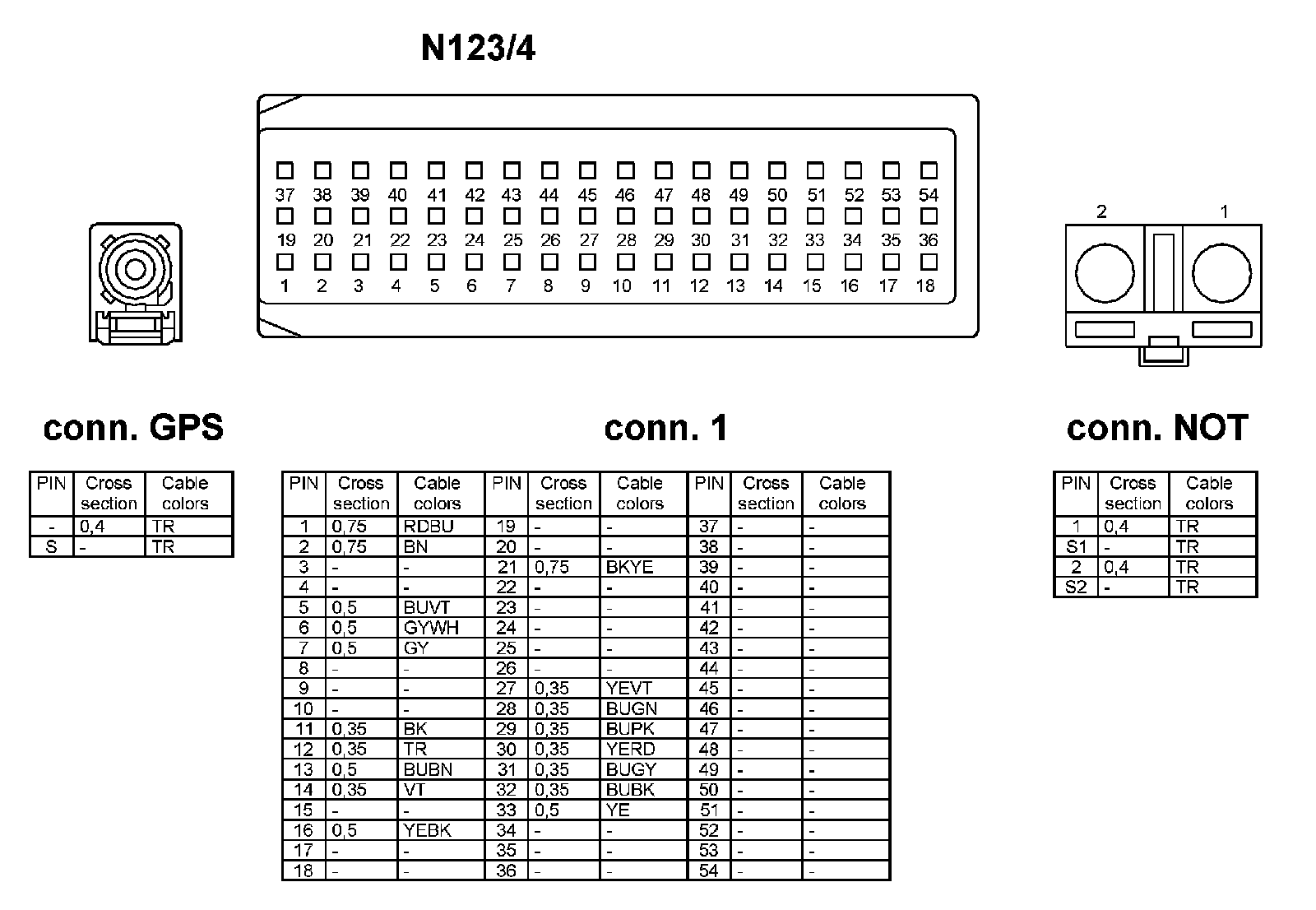

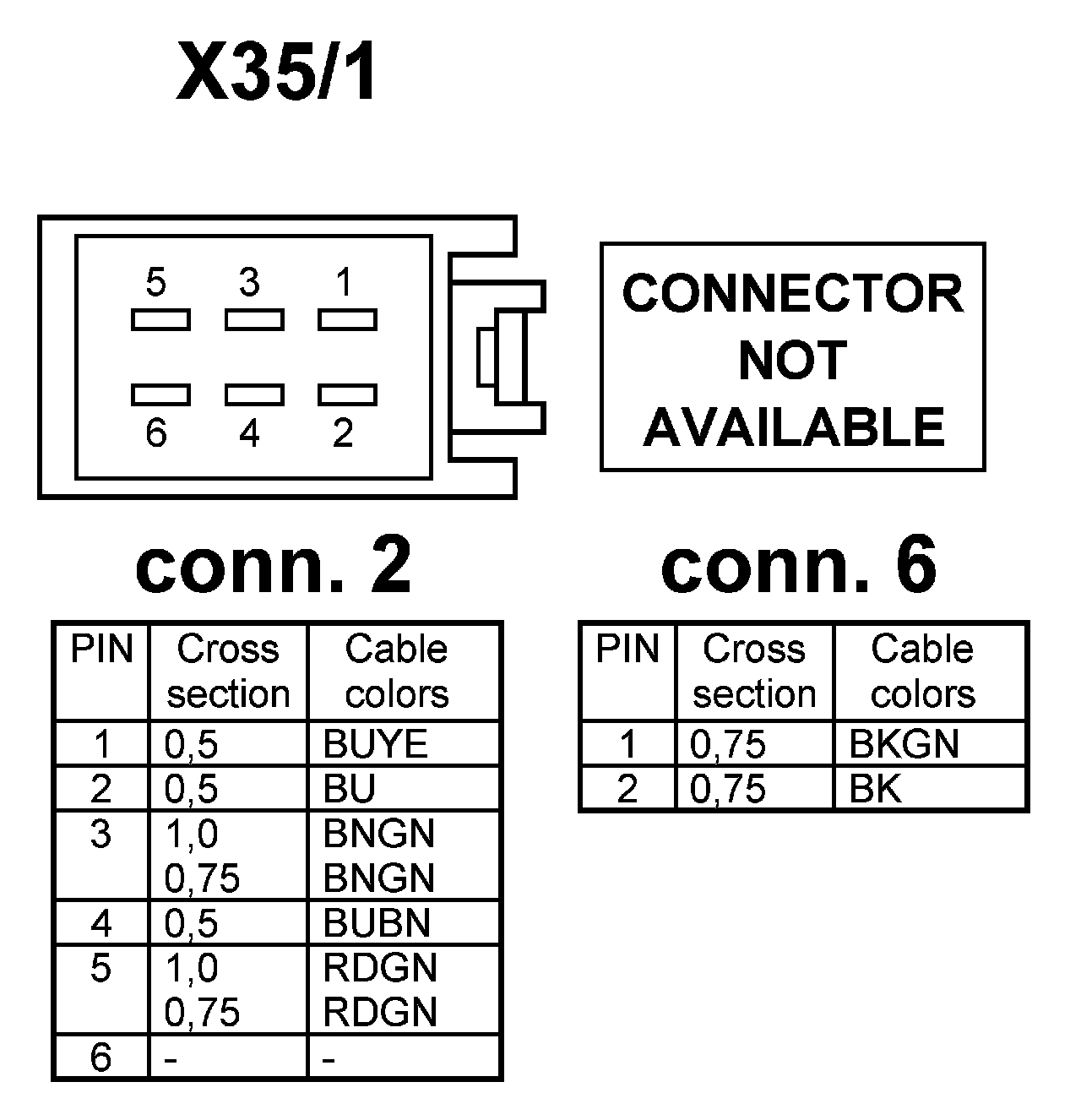

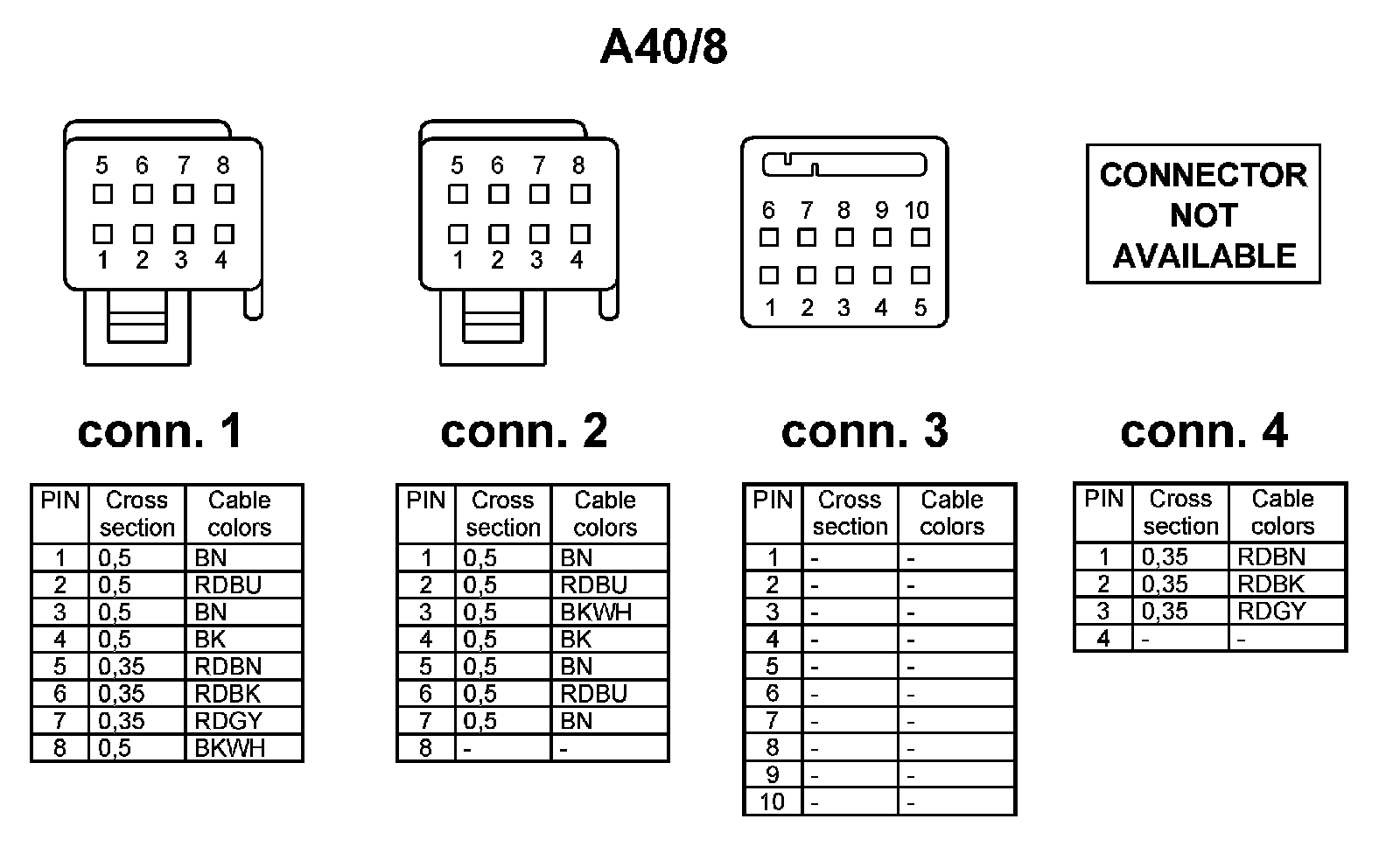

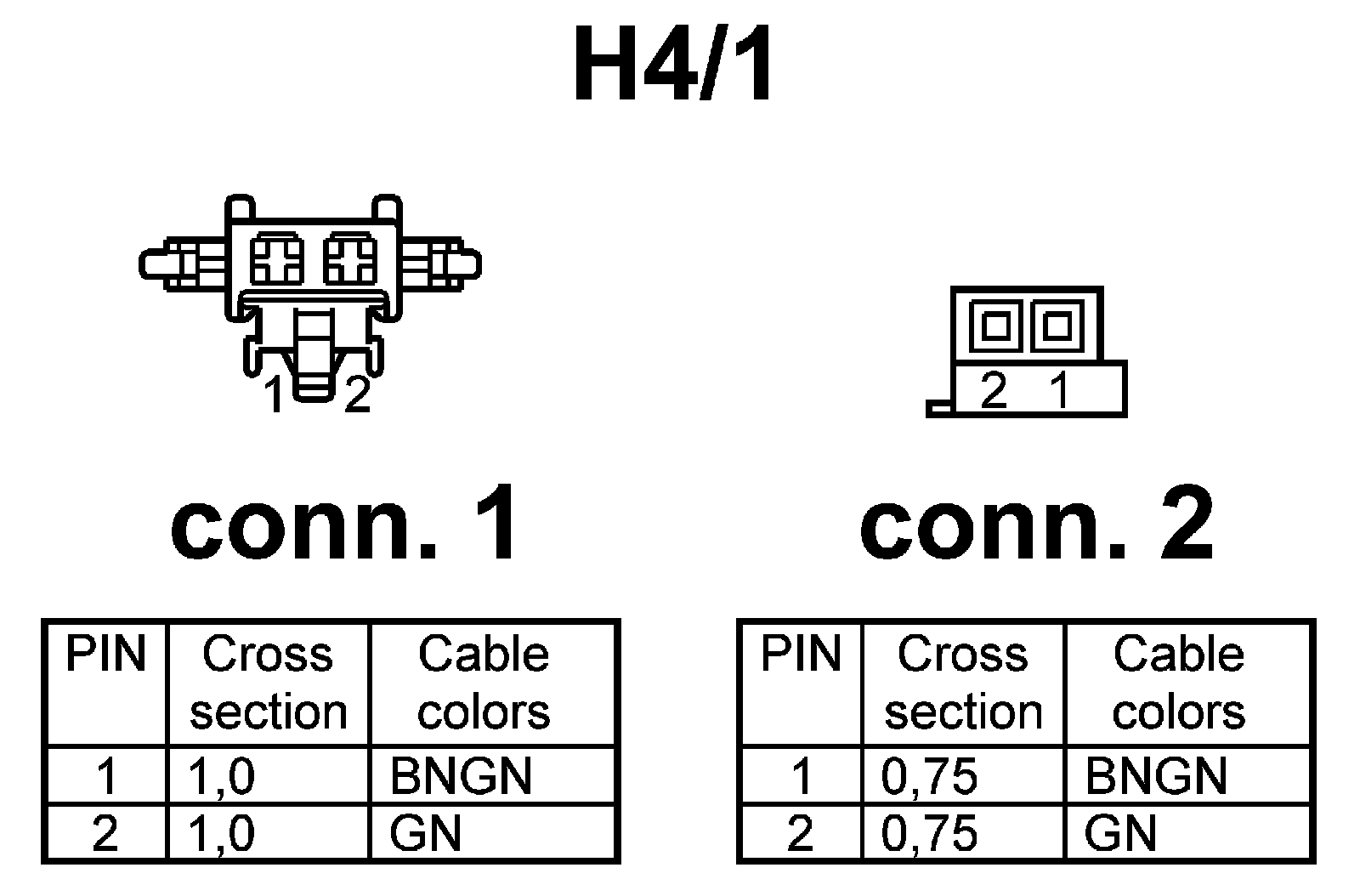

- control unit A40/3, sheet 1

MODEL 204.3
- except CODE (498) Japan version
- with CODE (527) COMAND APS with single DVD drive (with navigation)
- with CODE (512) COMAND APS with DVD changer
- with CODE (528) COMAND incl. DVD changer
- Control unit A40/3, sheet 1

MODEL 204.9
- except CODE (498) Japan version
- with CODE (527) COMAND APS with single DVD drive (with navigation)
- with CODE (512) COMAND APS with DVD changer
- with CODE (528) COMAND incl. DVD changer
- as of model year 2013 /YoM 12 model refinement package,
- control unit A40/3, sheet 1



























































































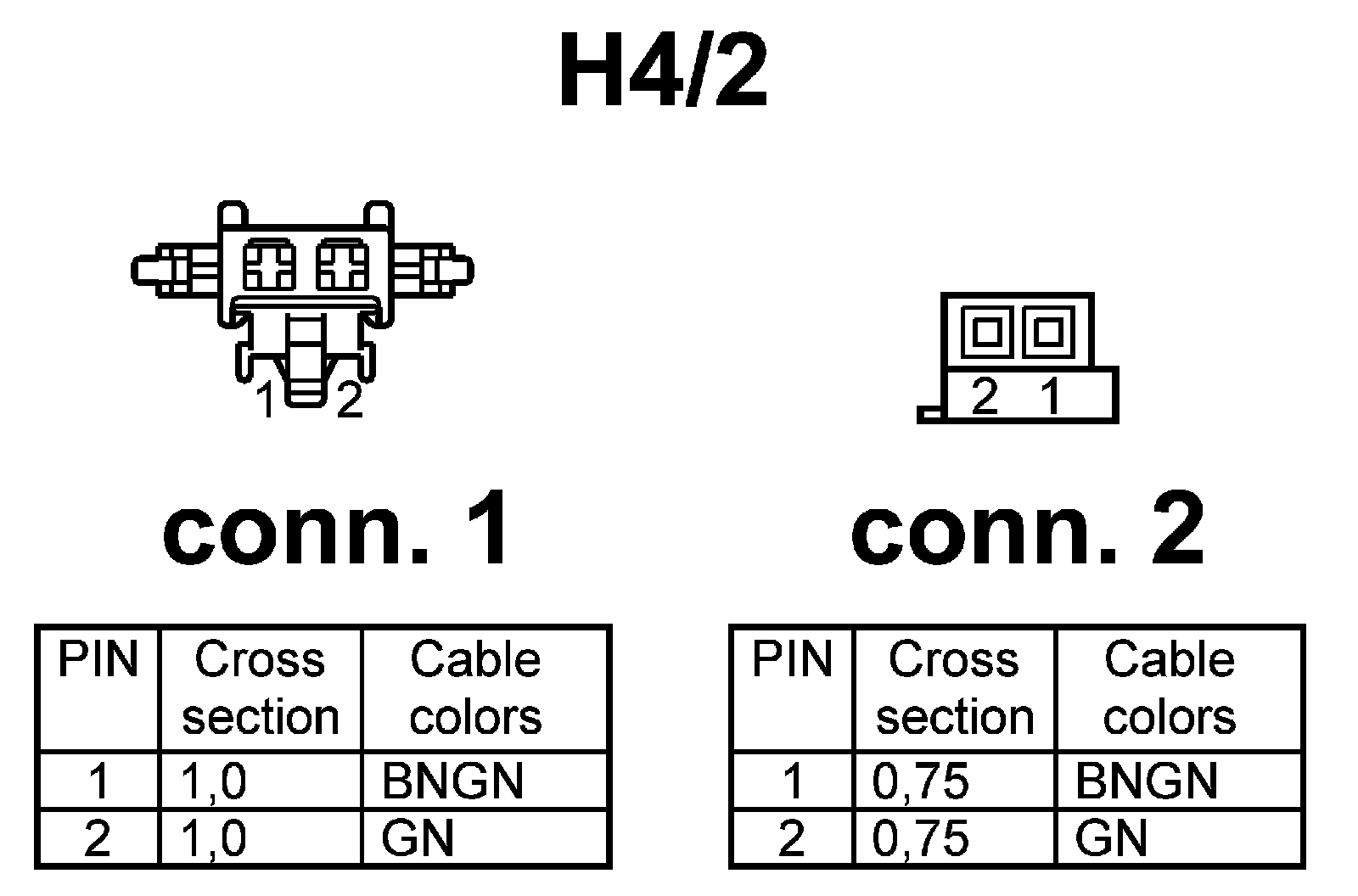

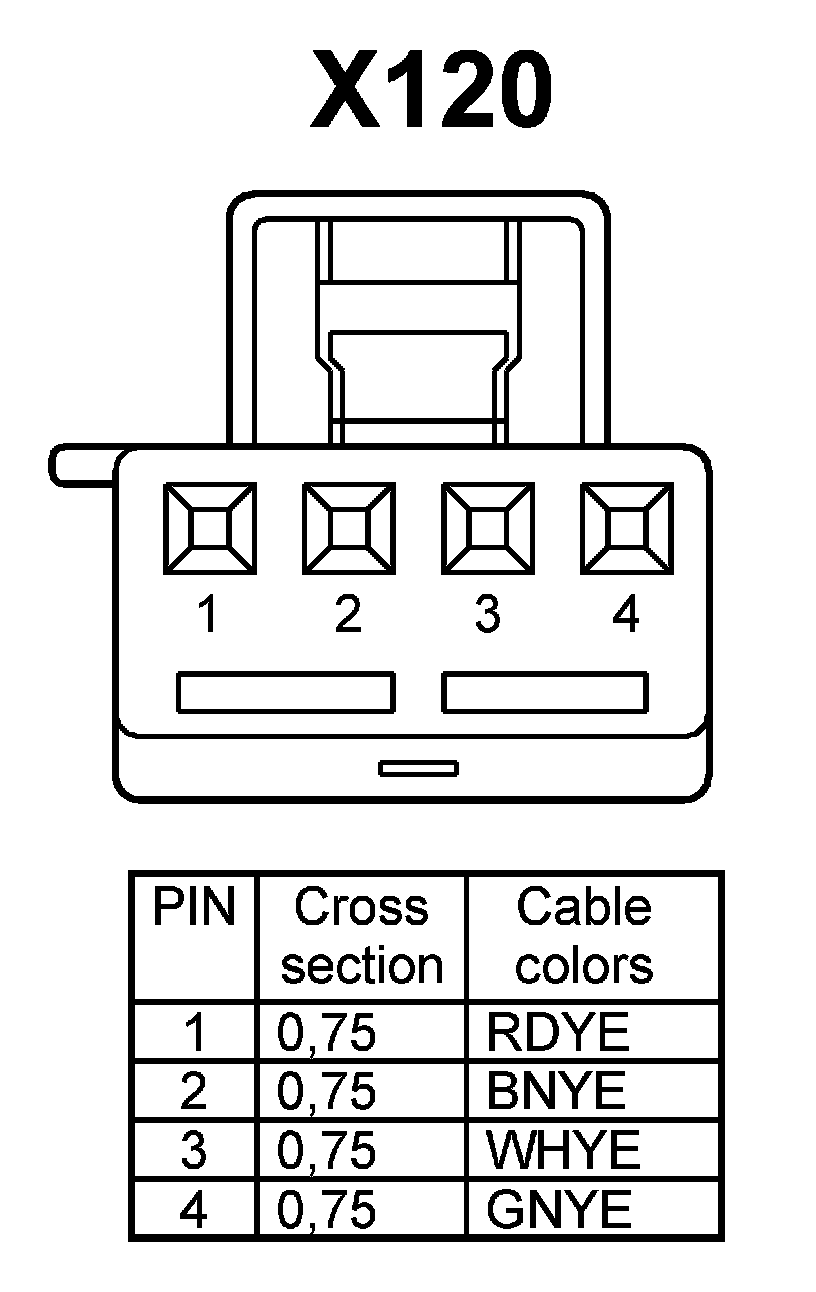

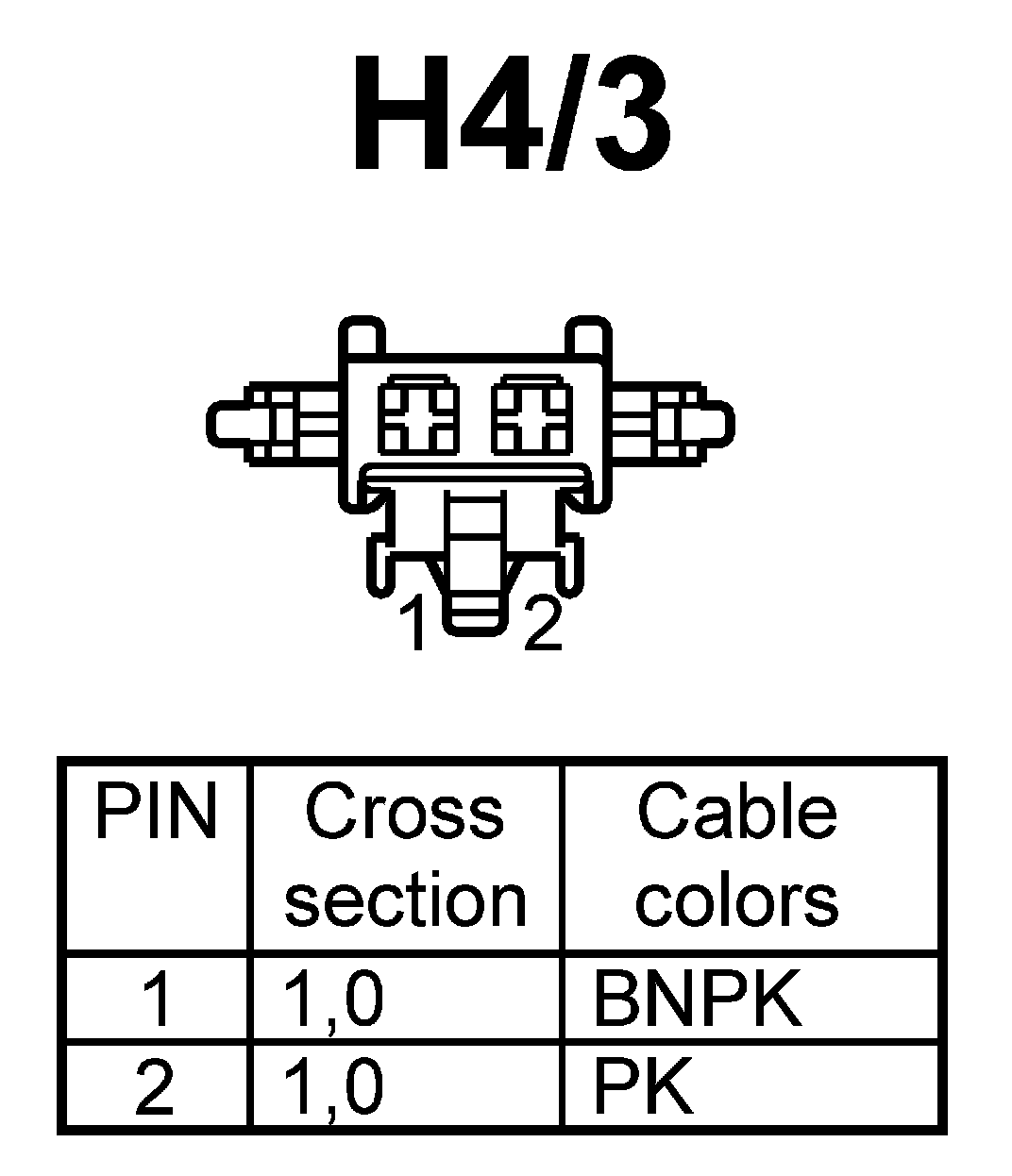

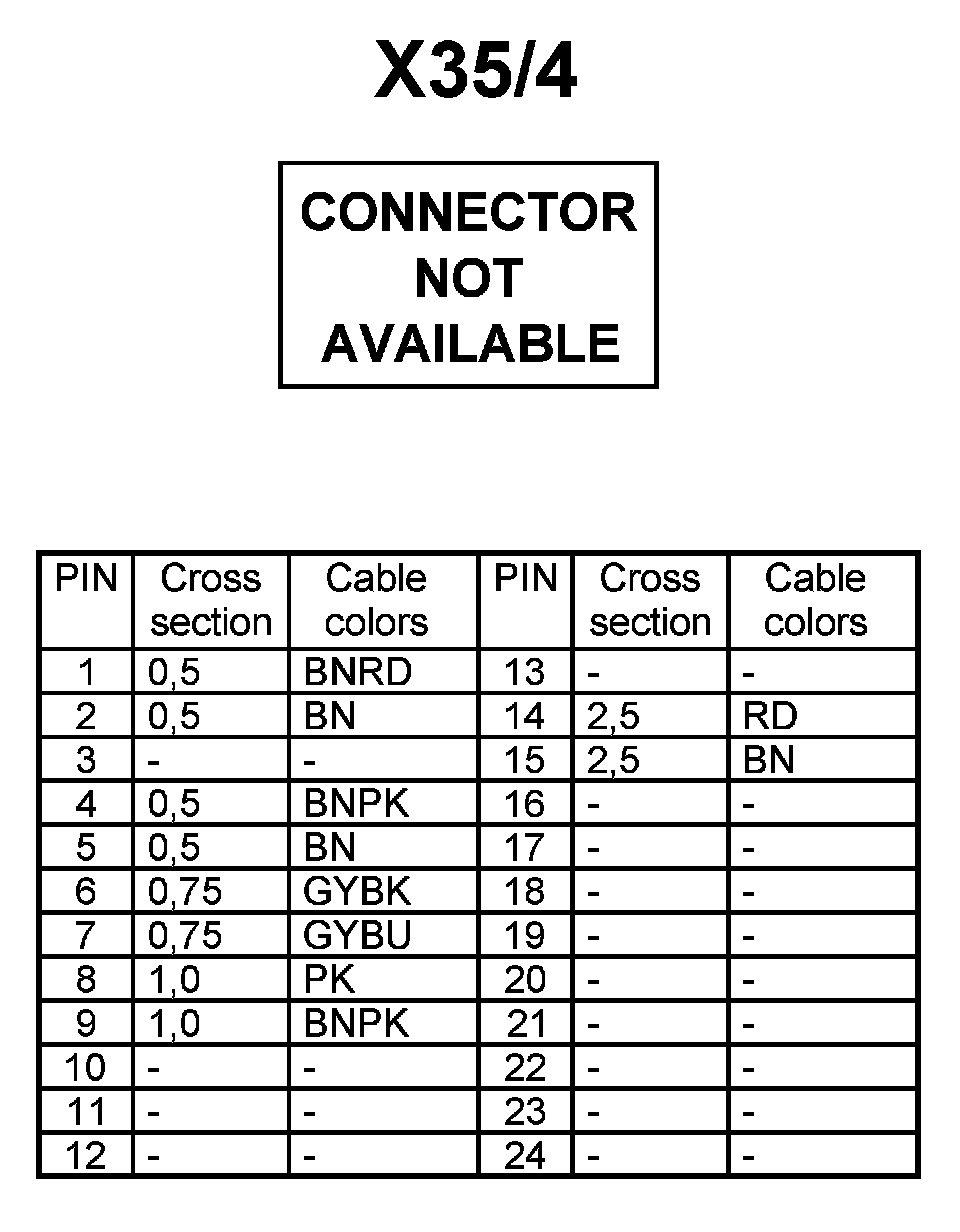

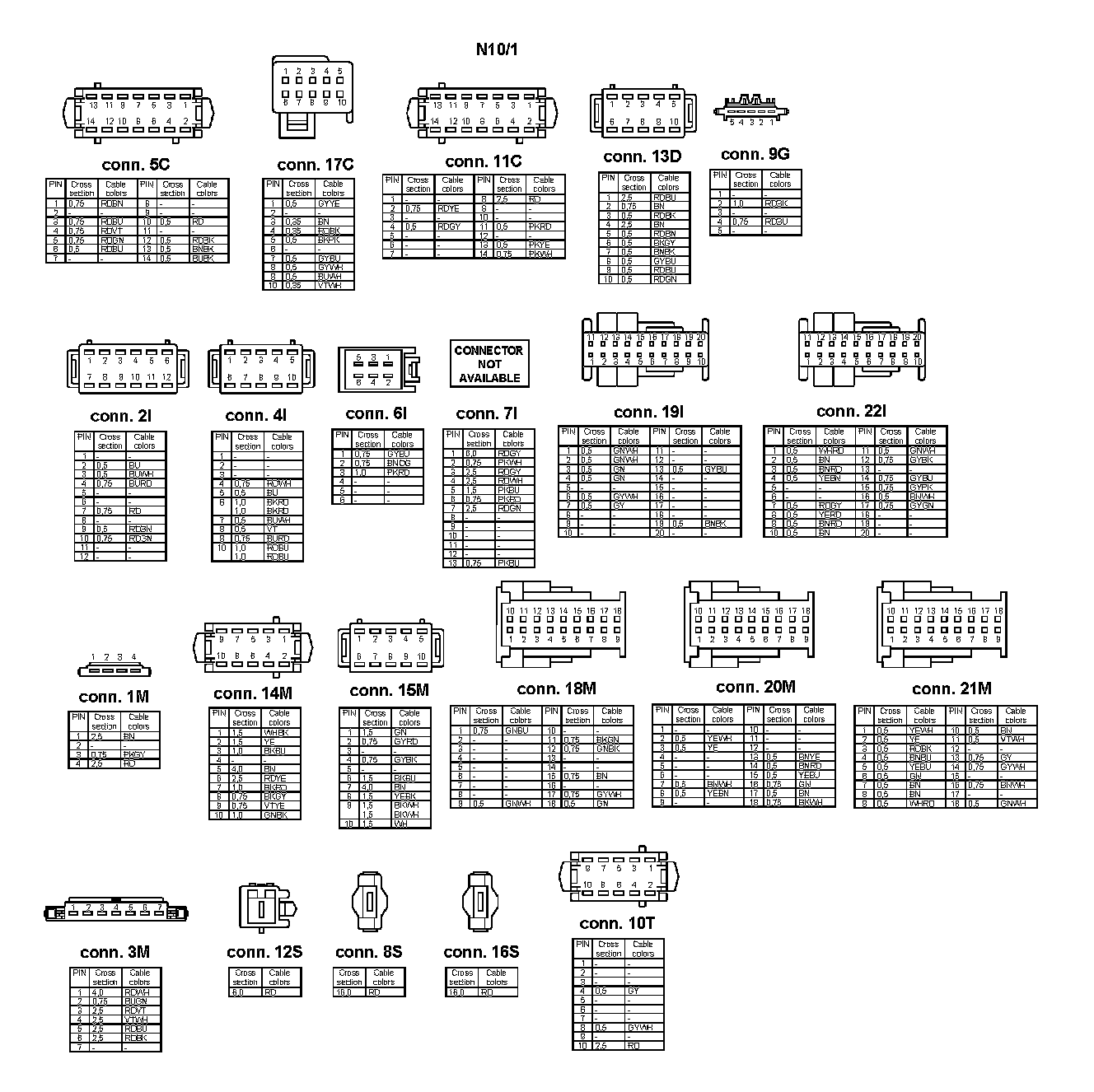

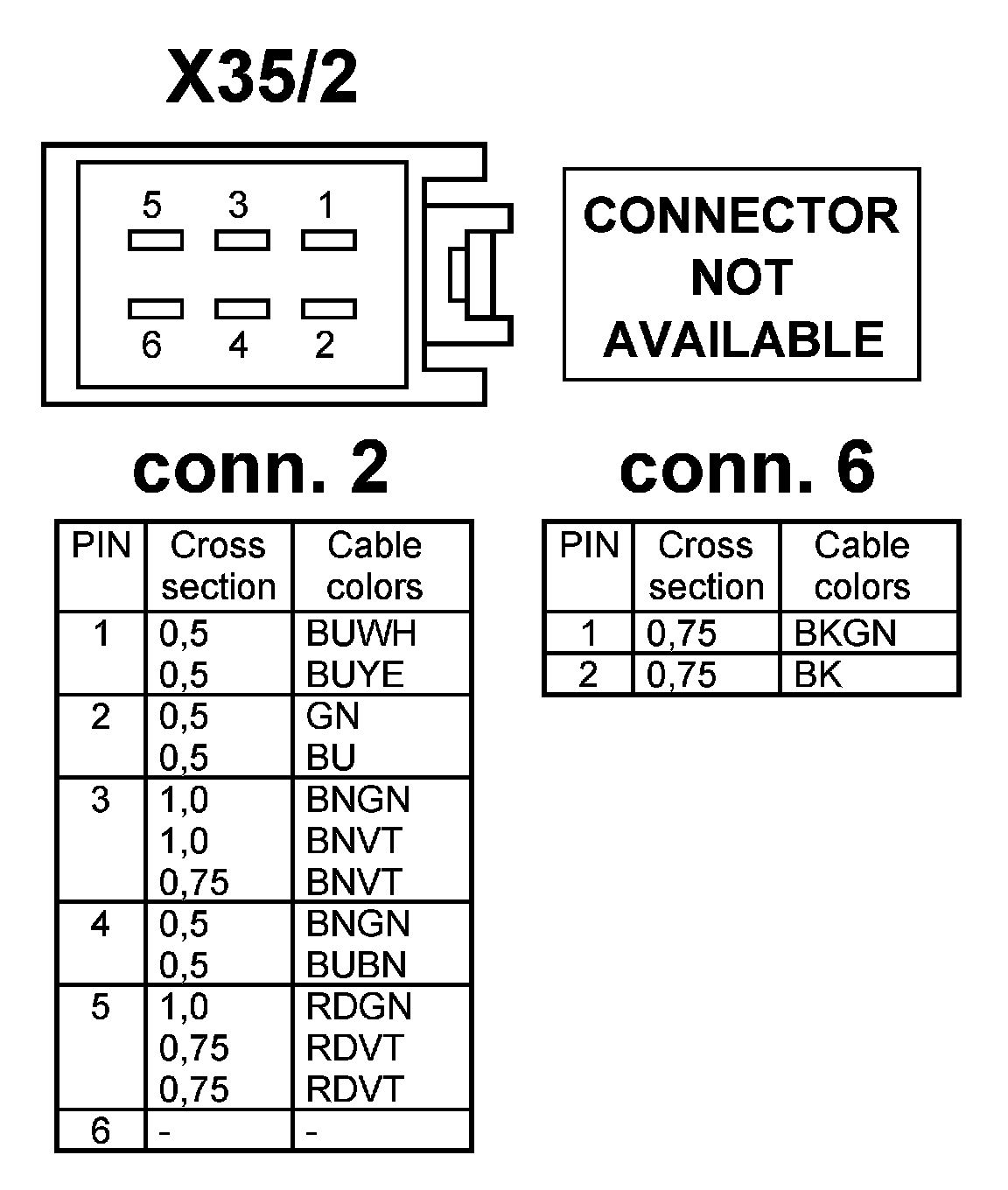

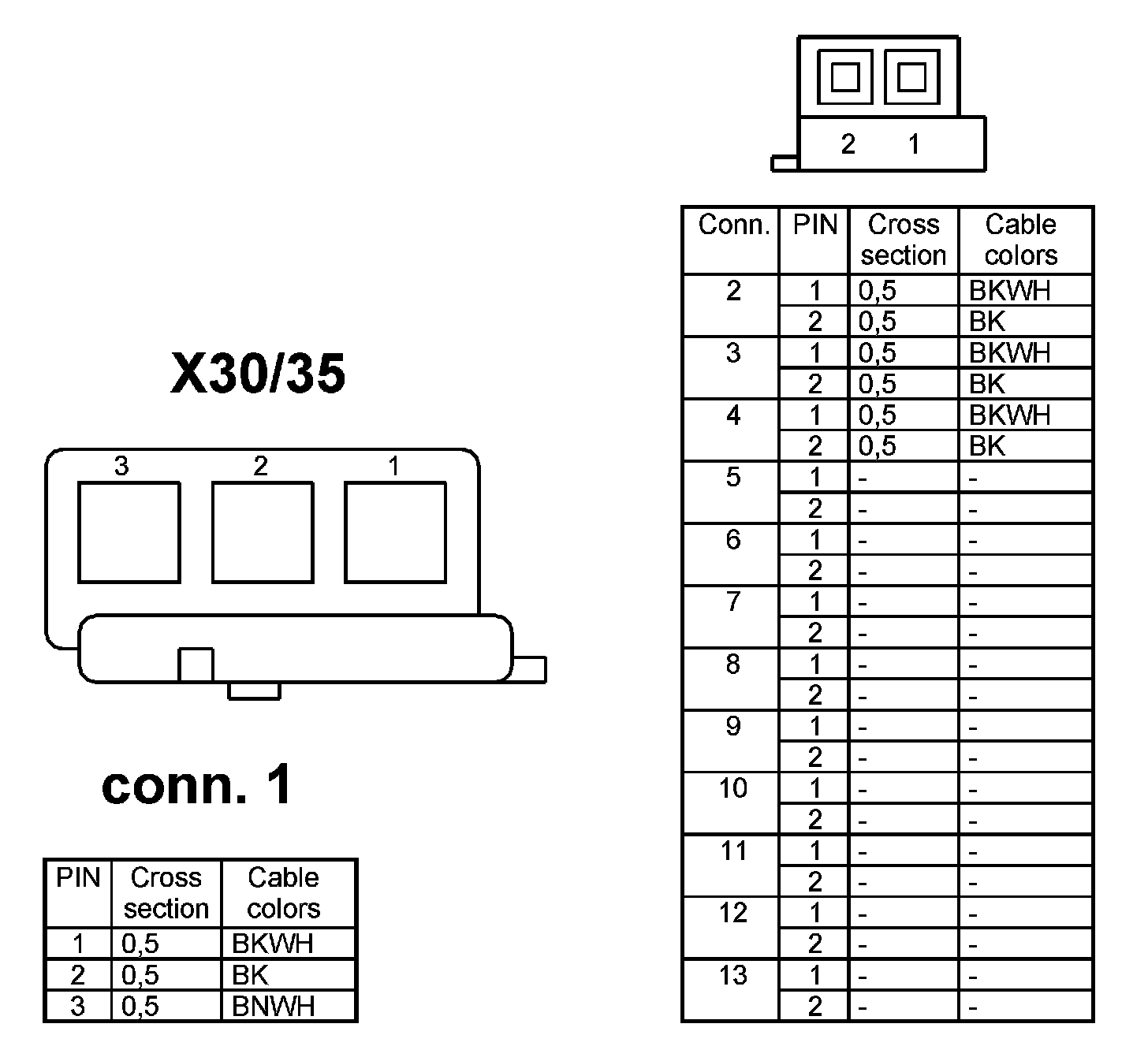

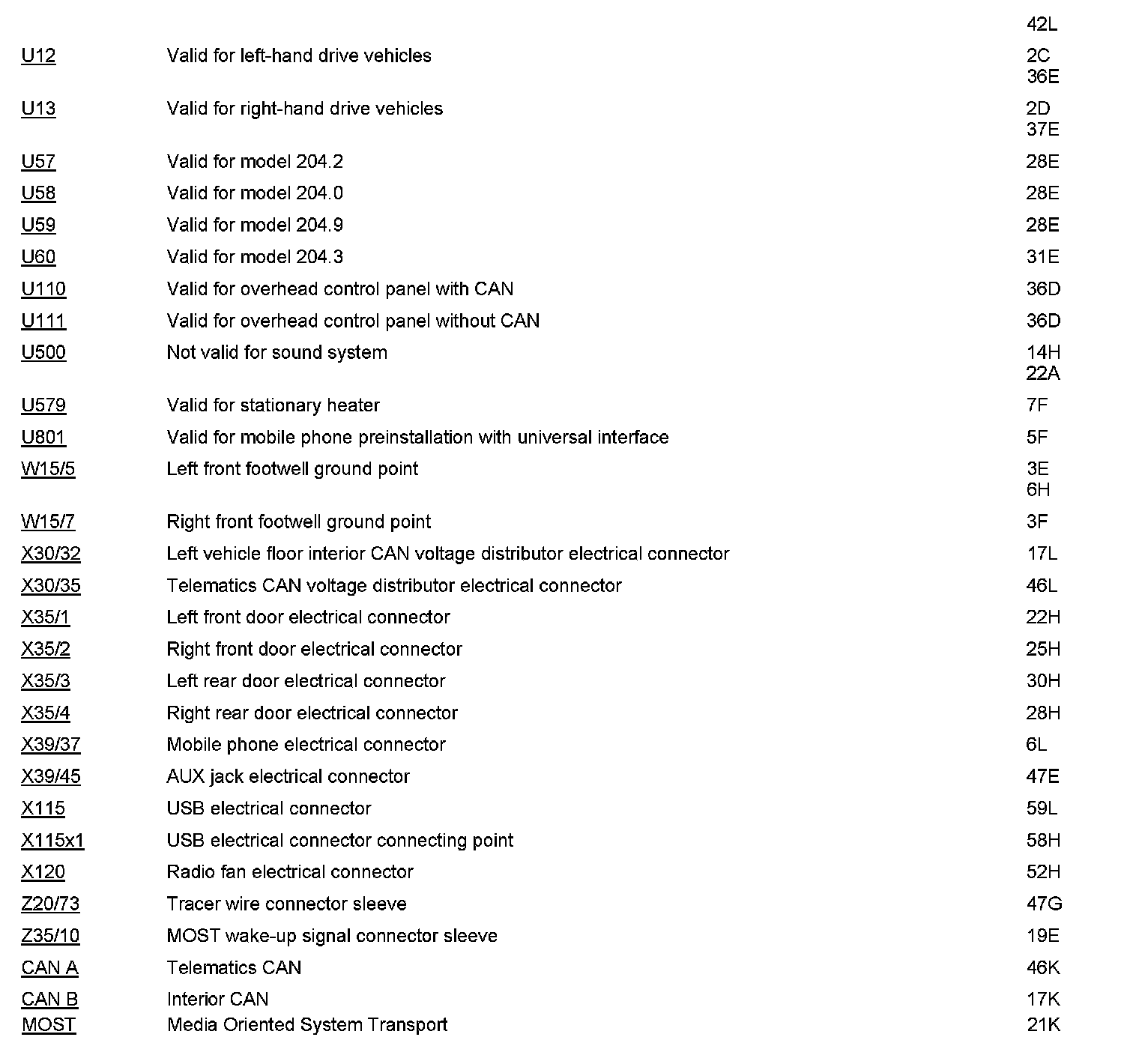

Component Locations: Component Location photographs can be found via their component names at the vehicle level. Component Locations
