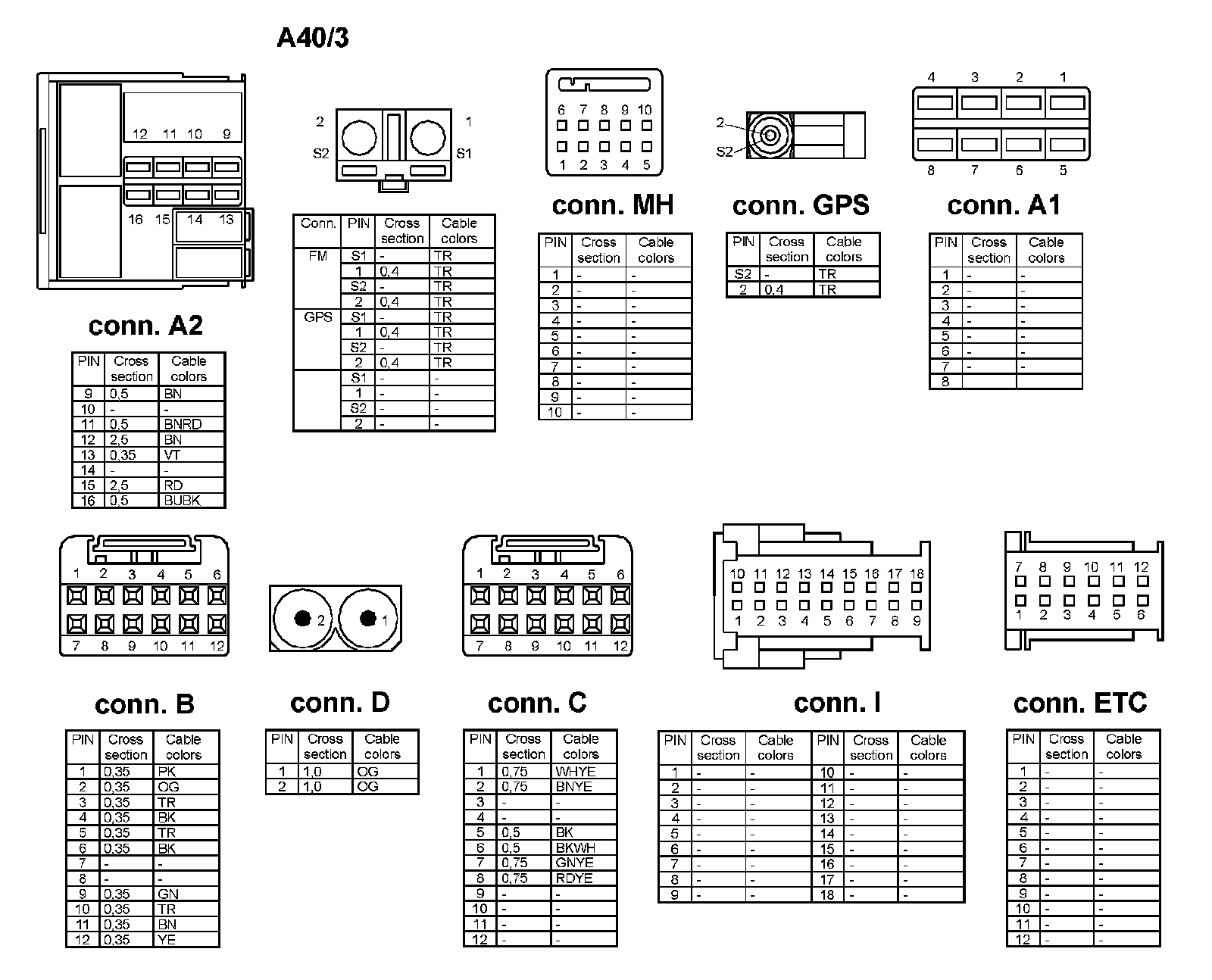

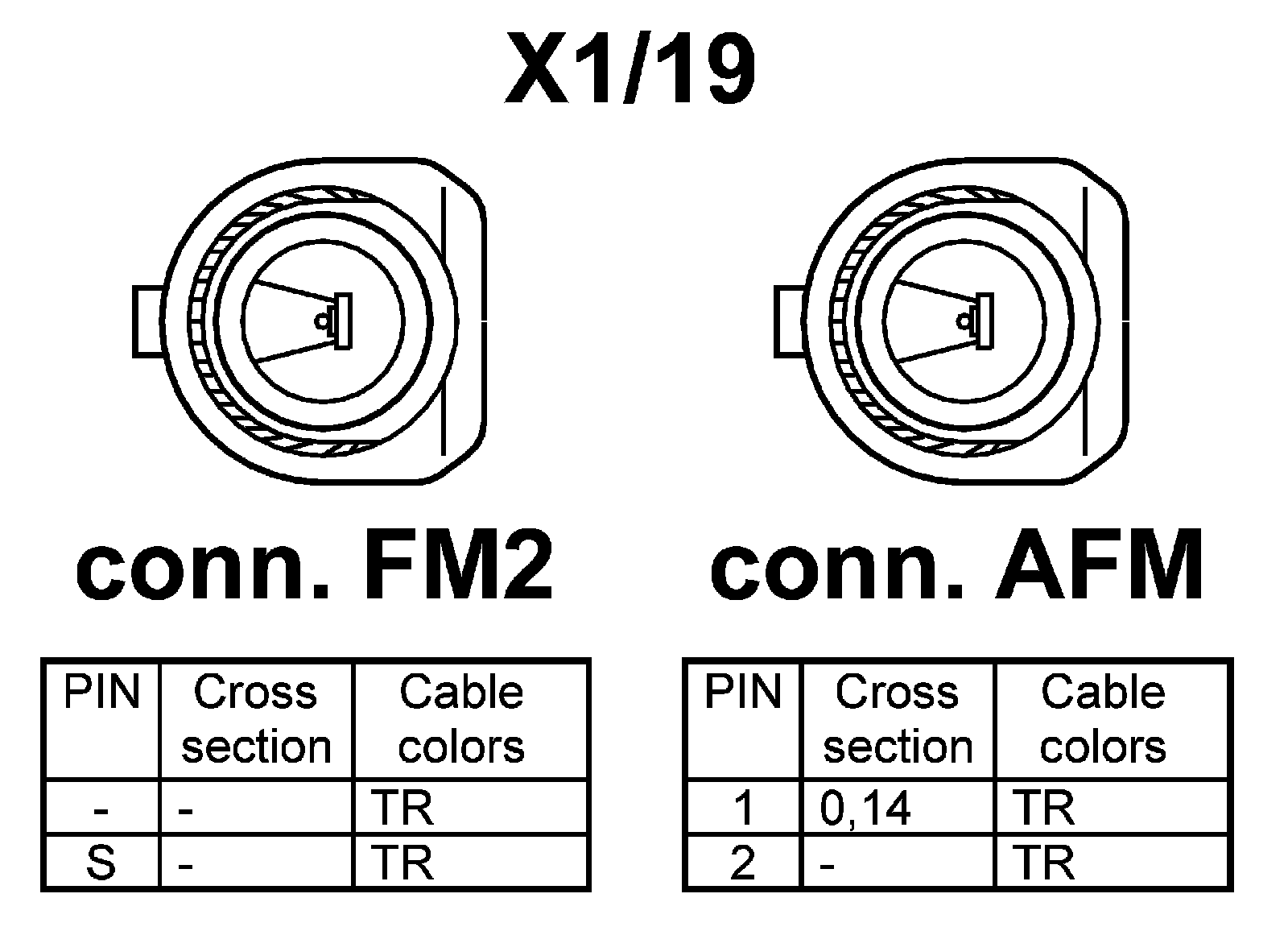

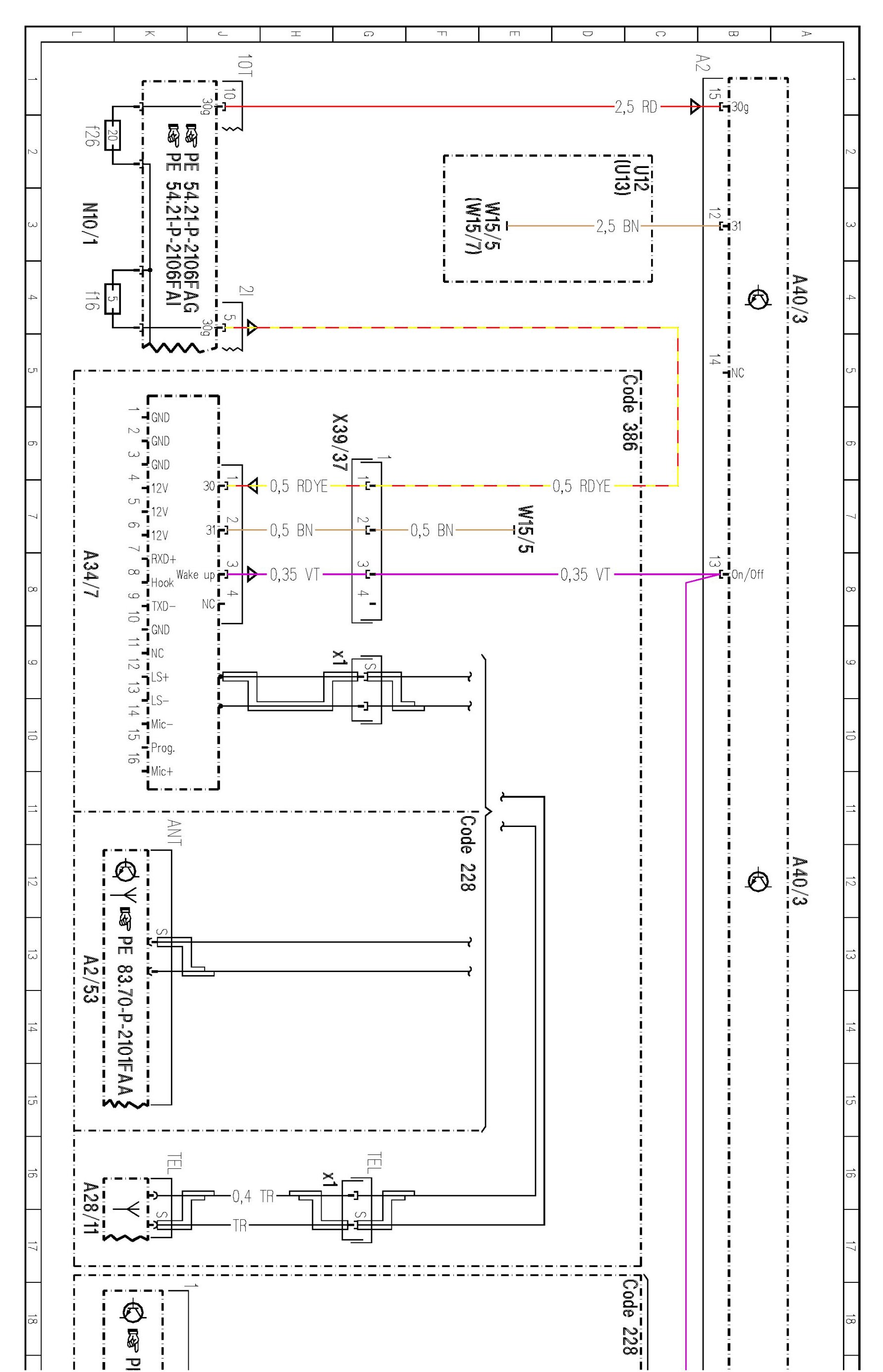

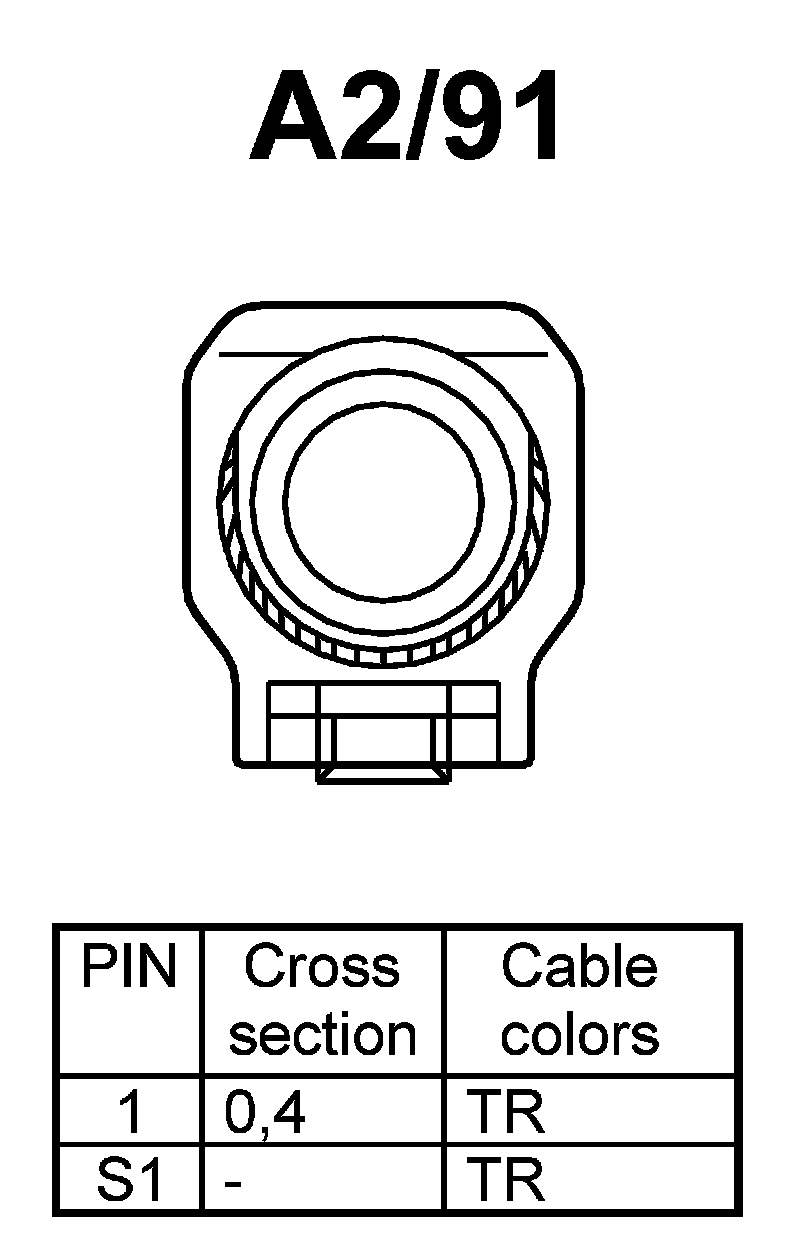

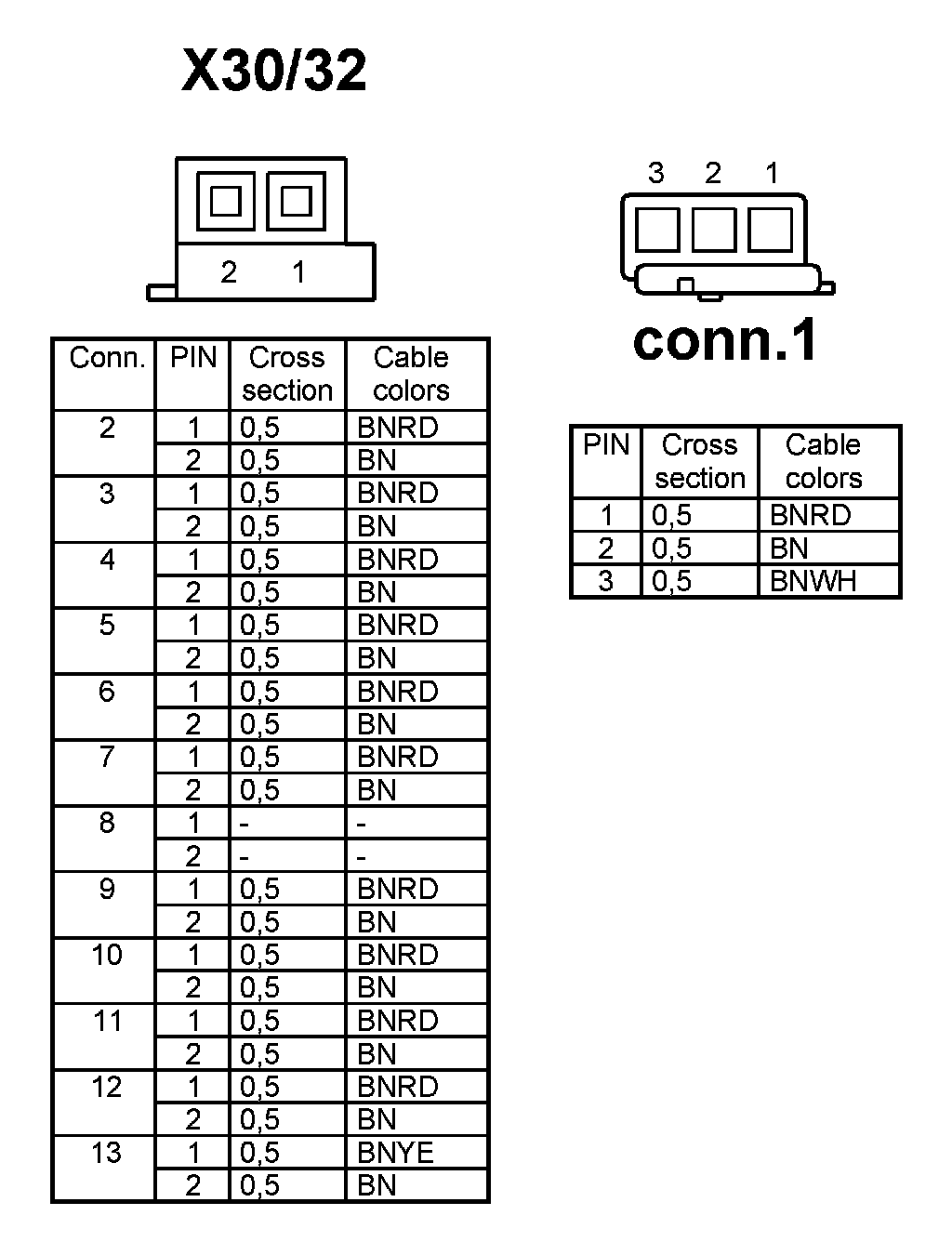

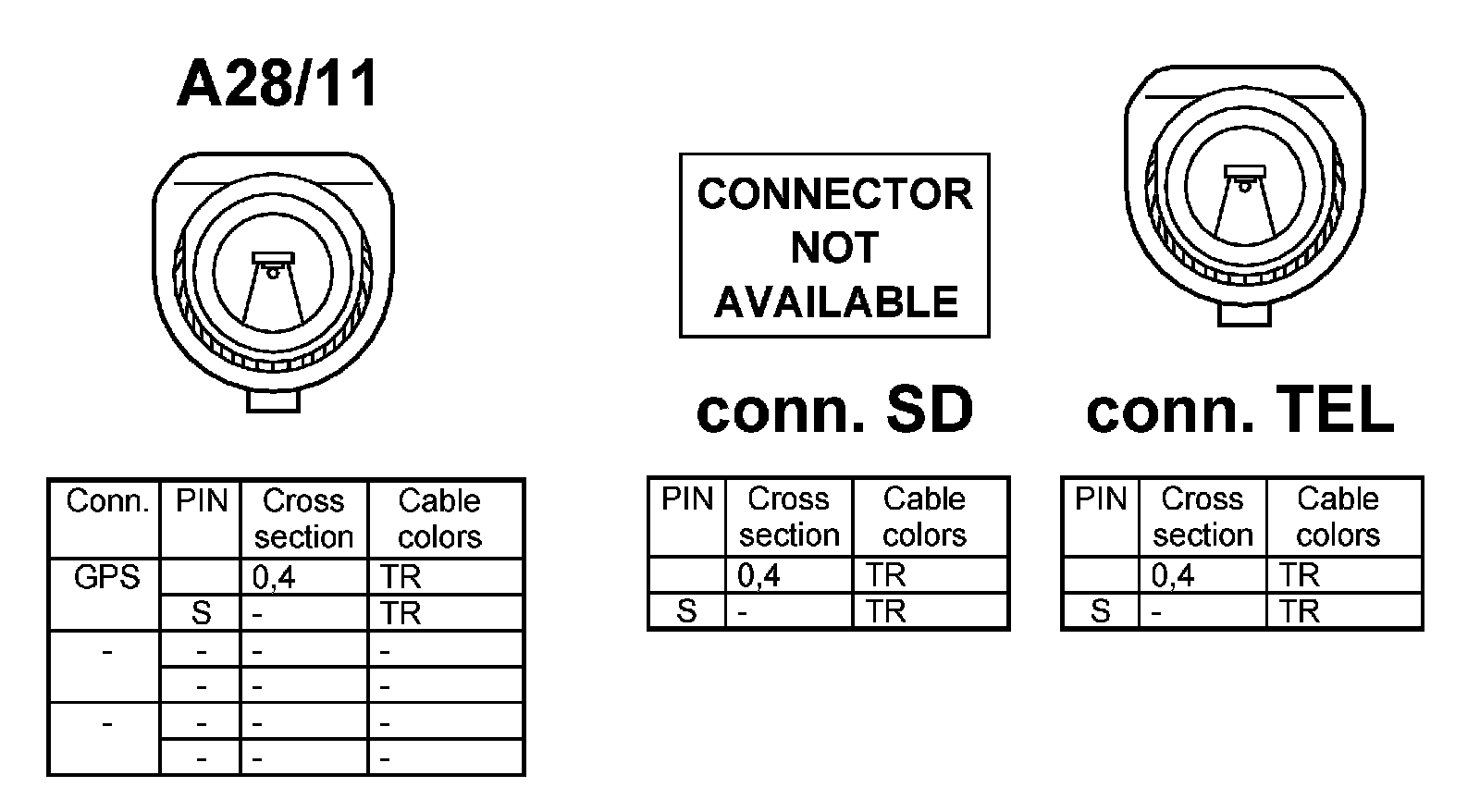

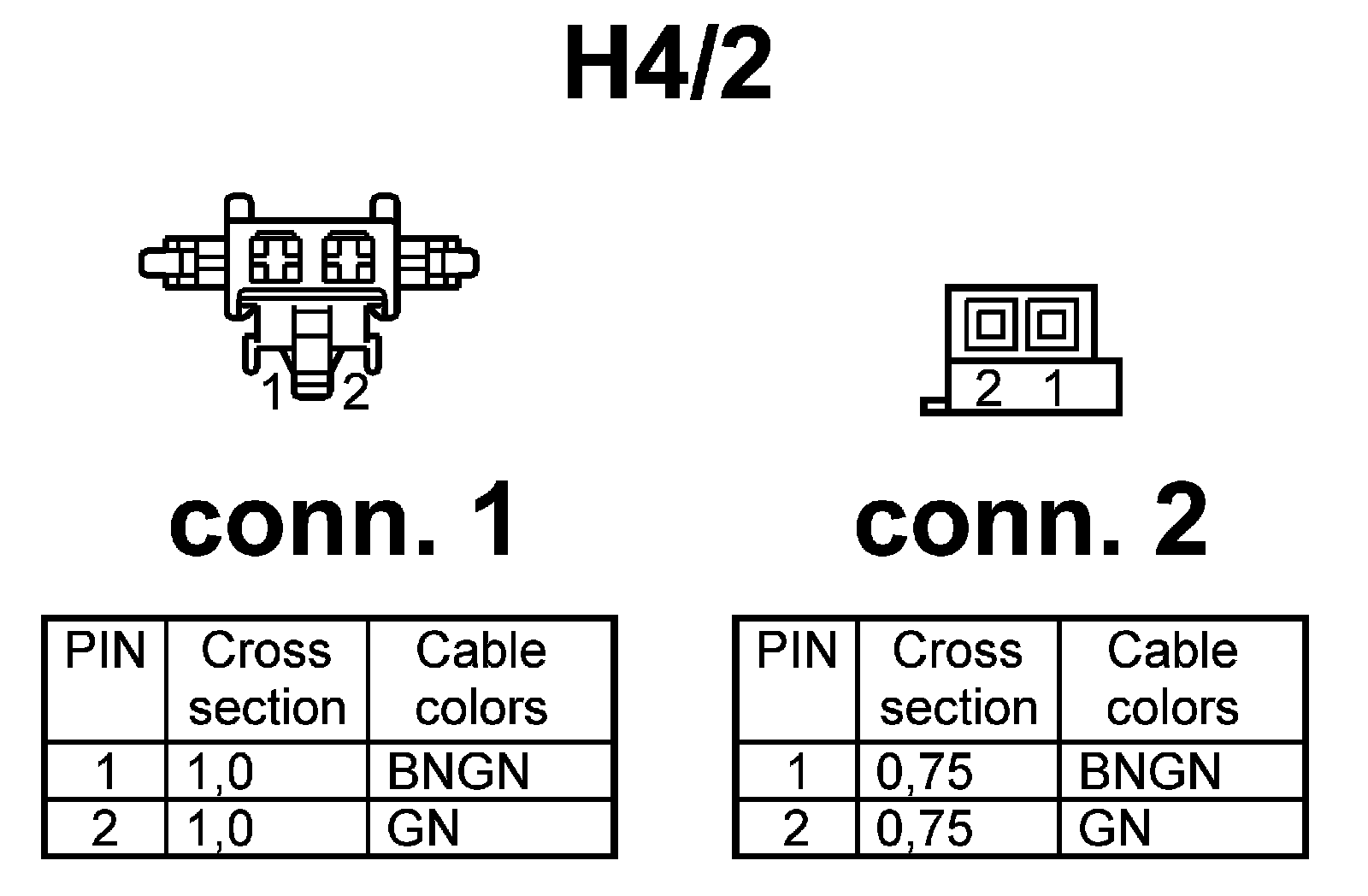

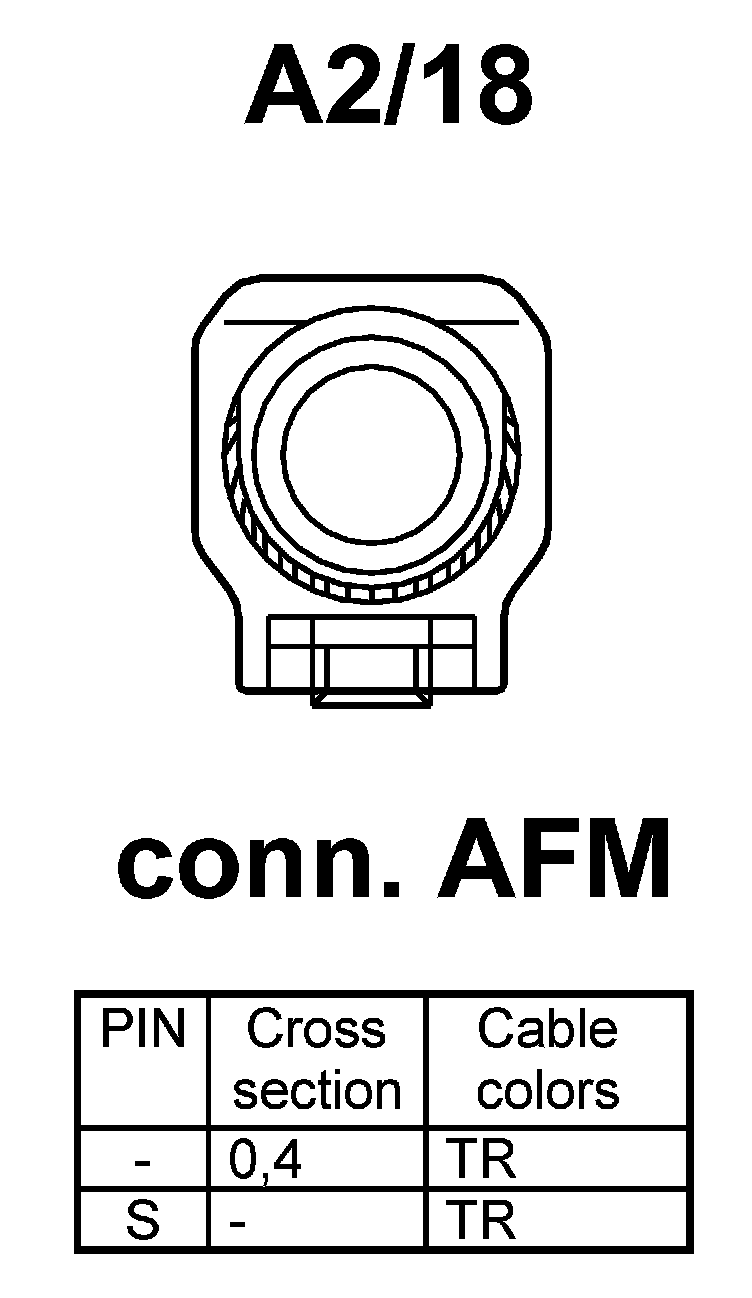

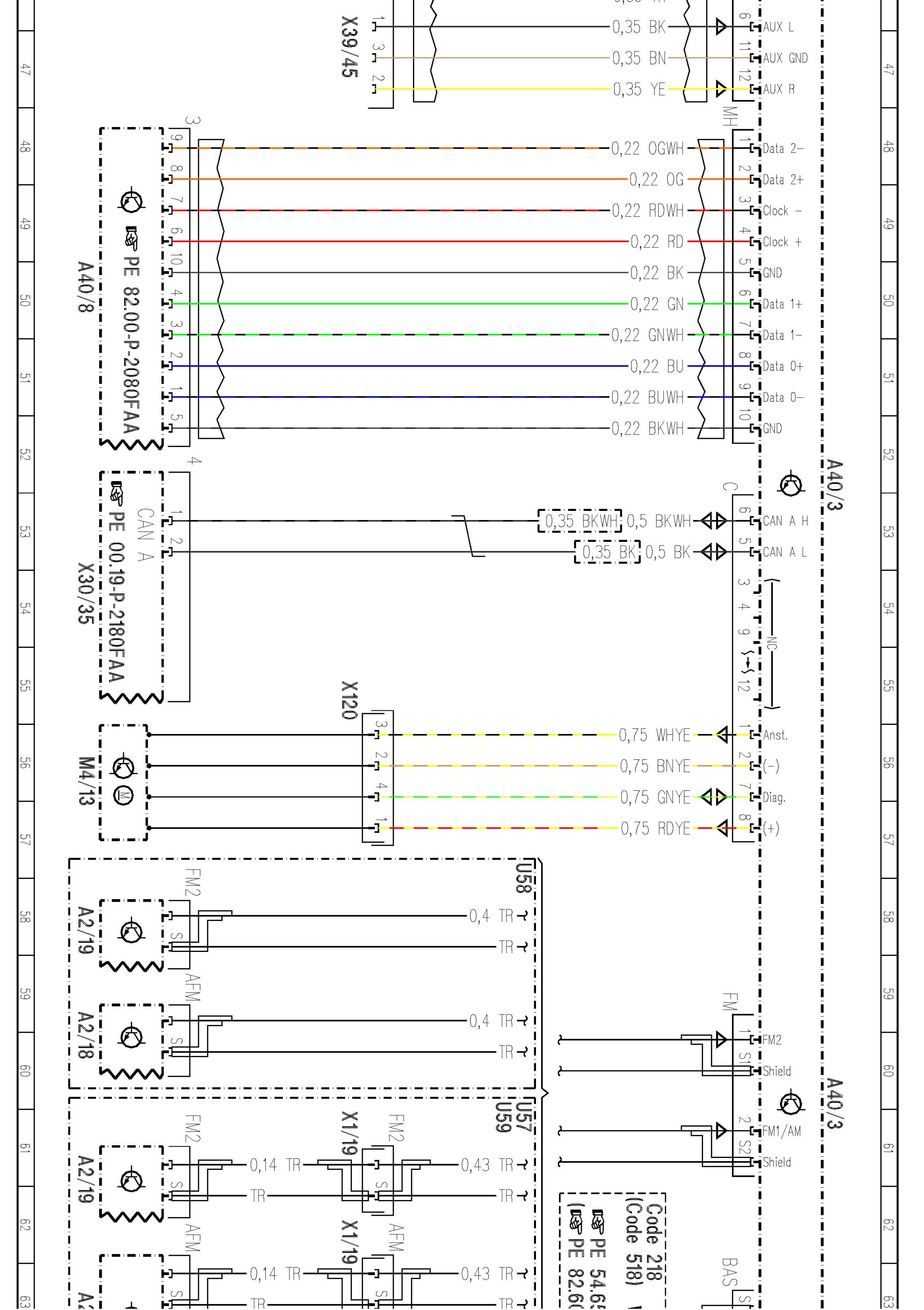

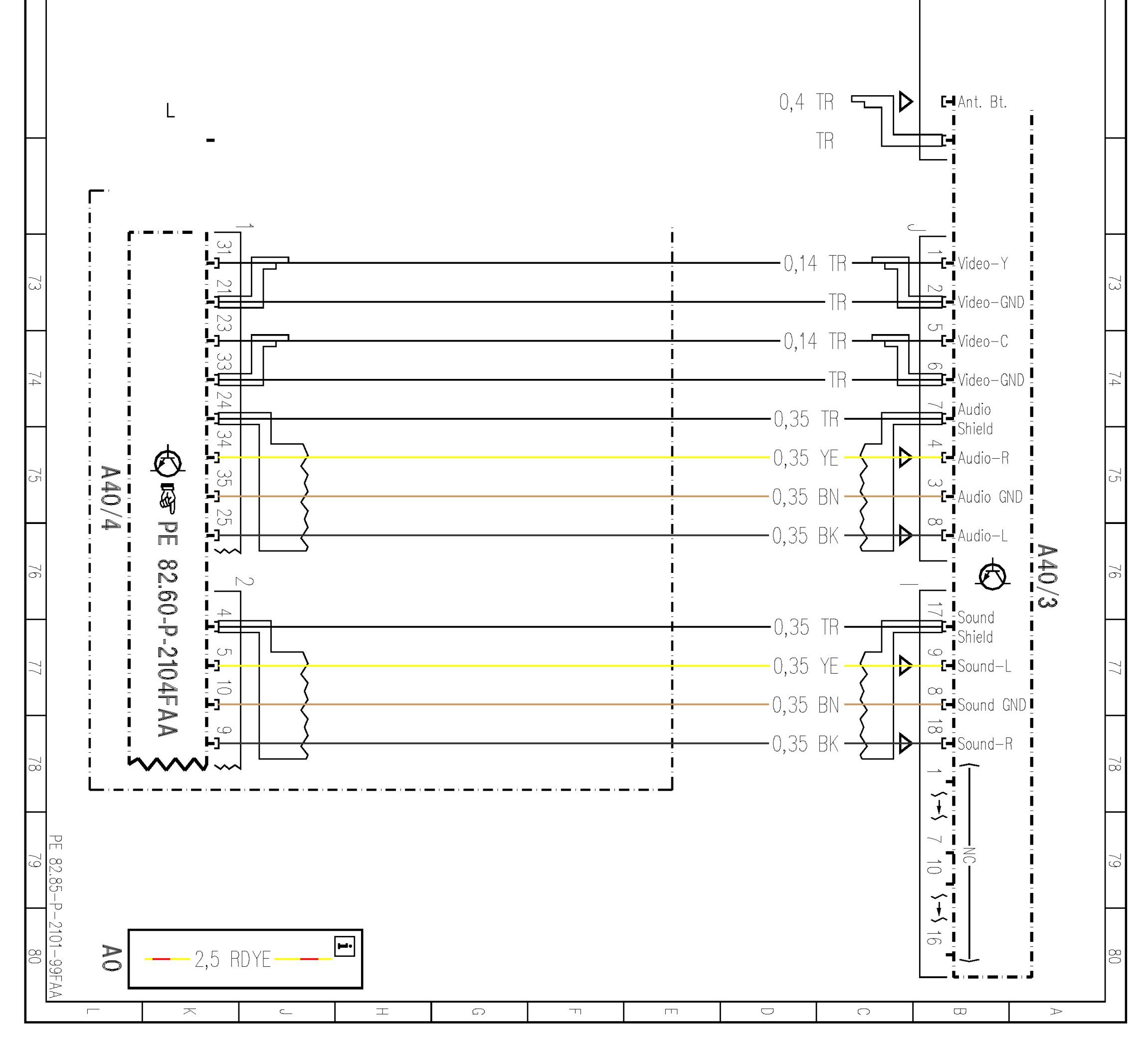

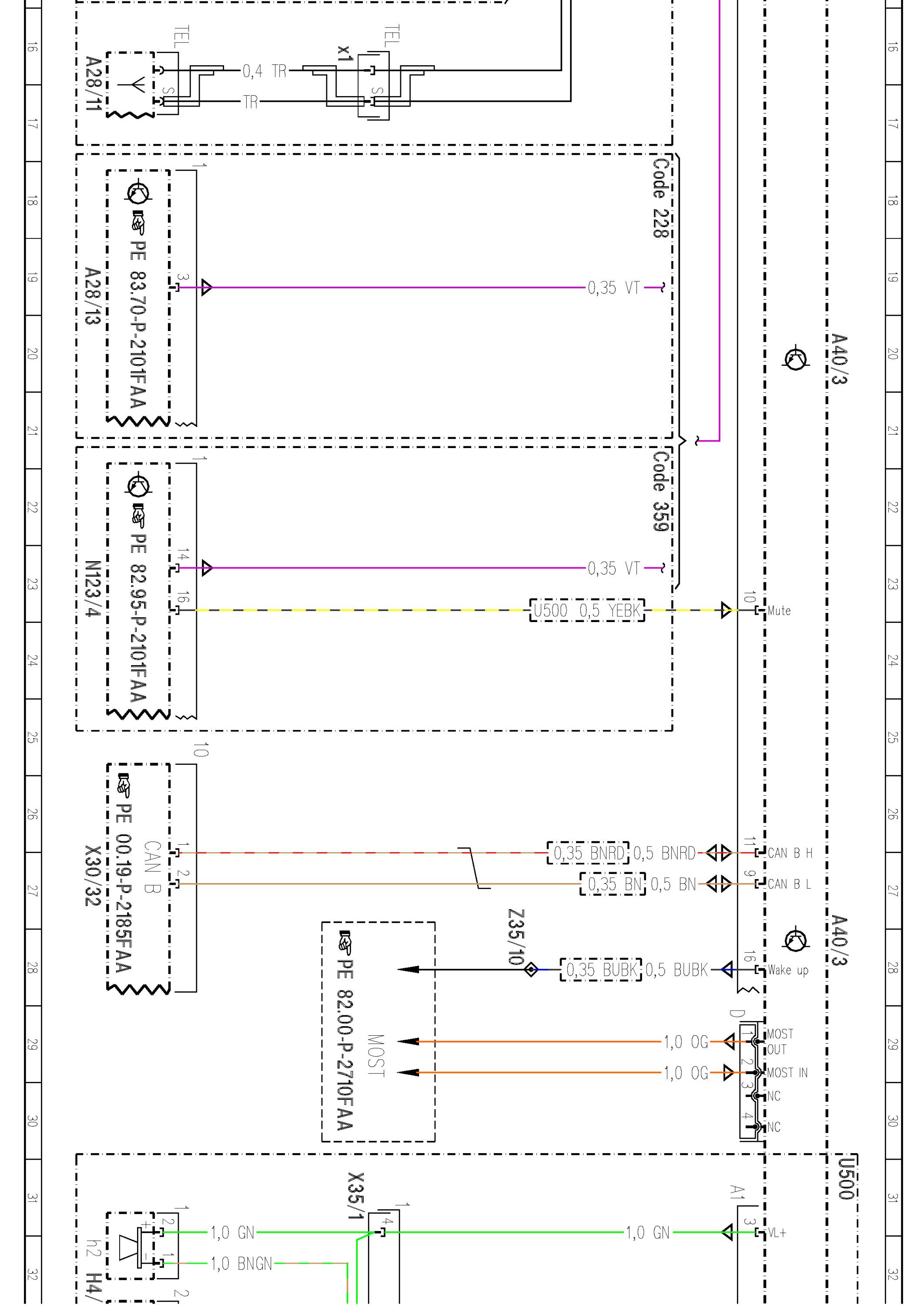

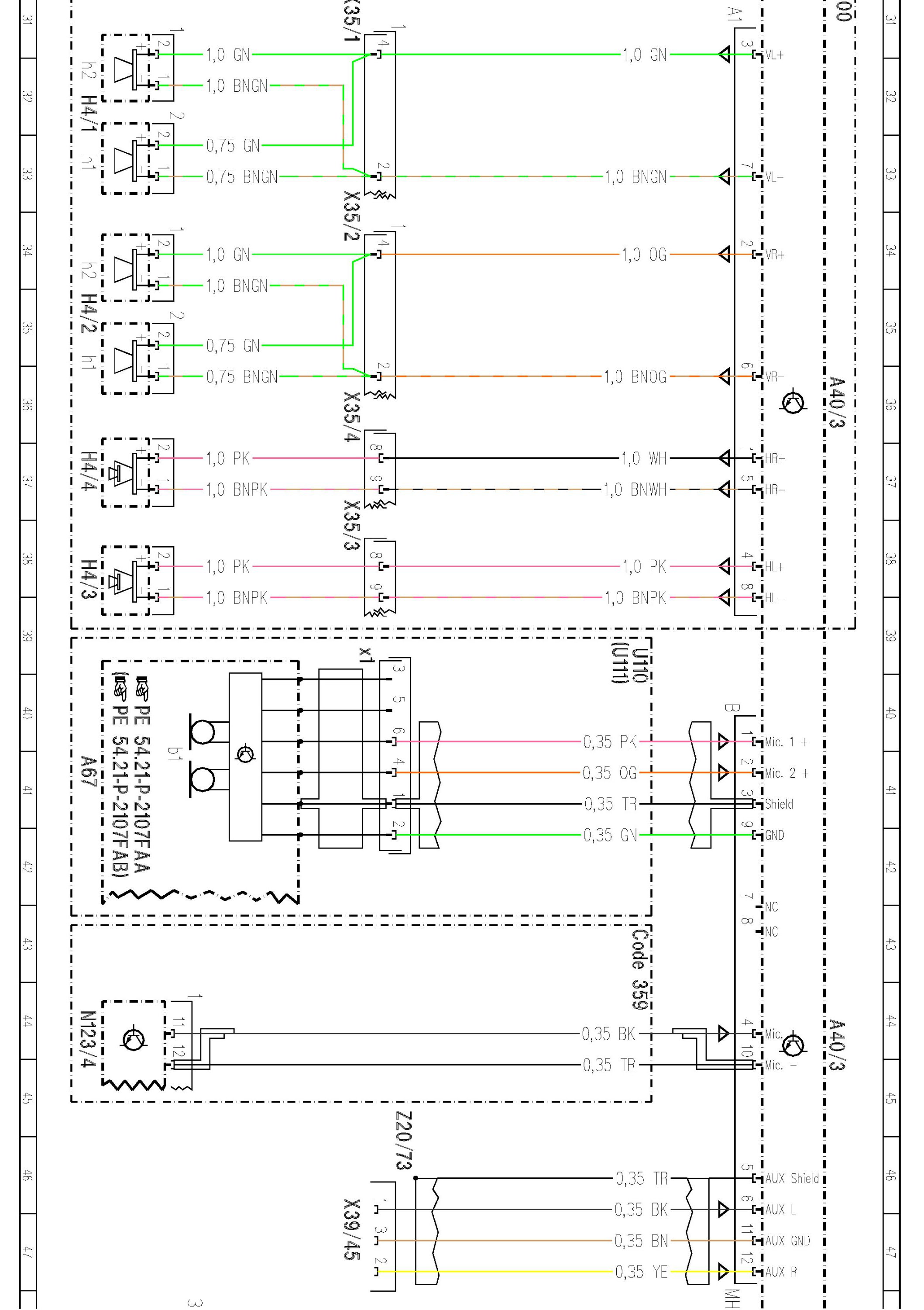

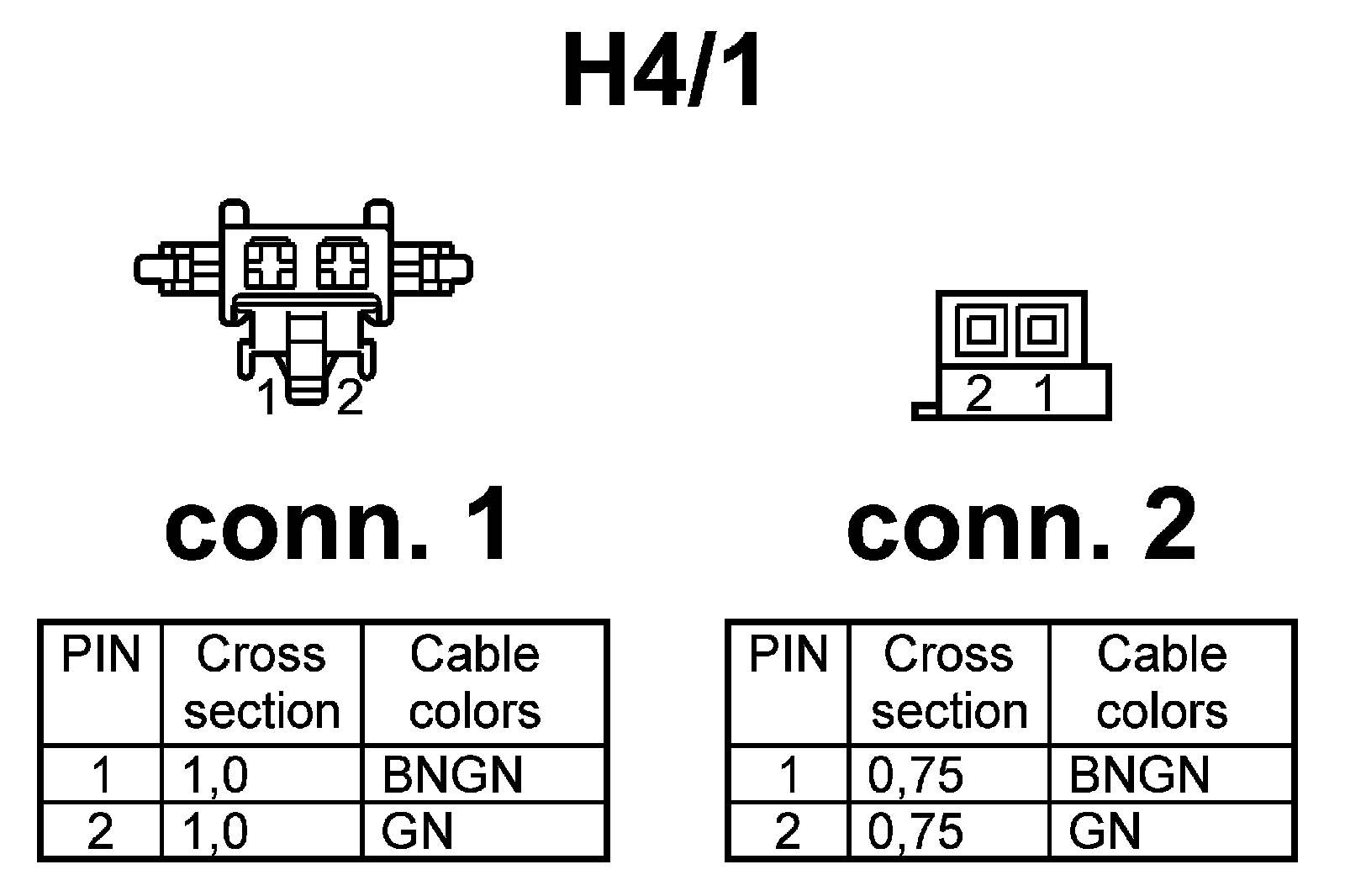

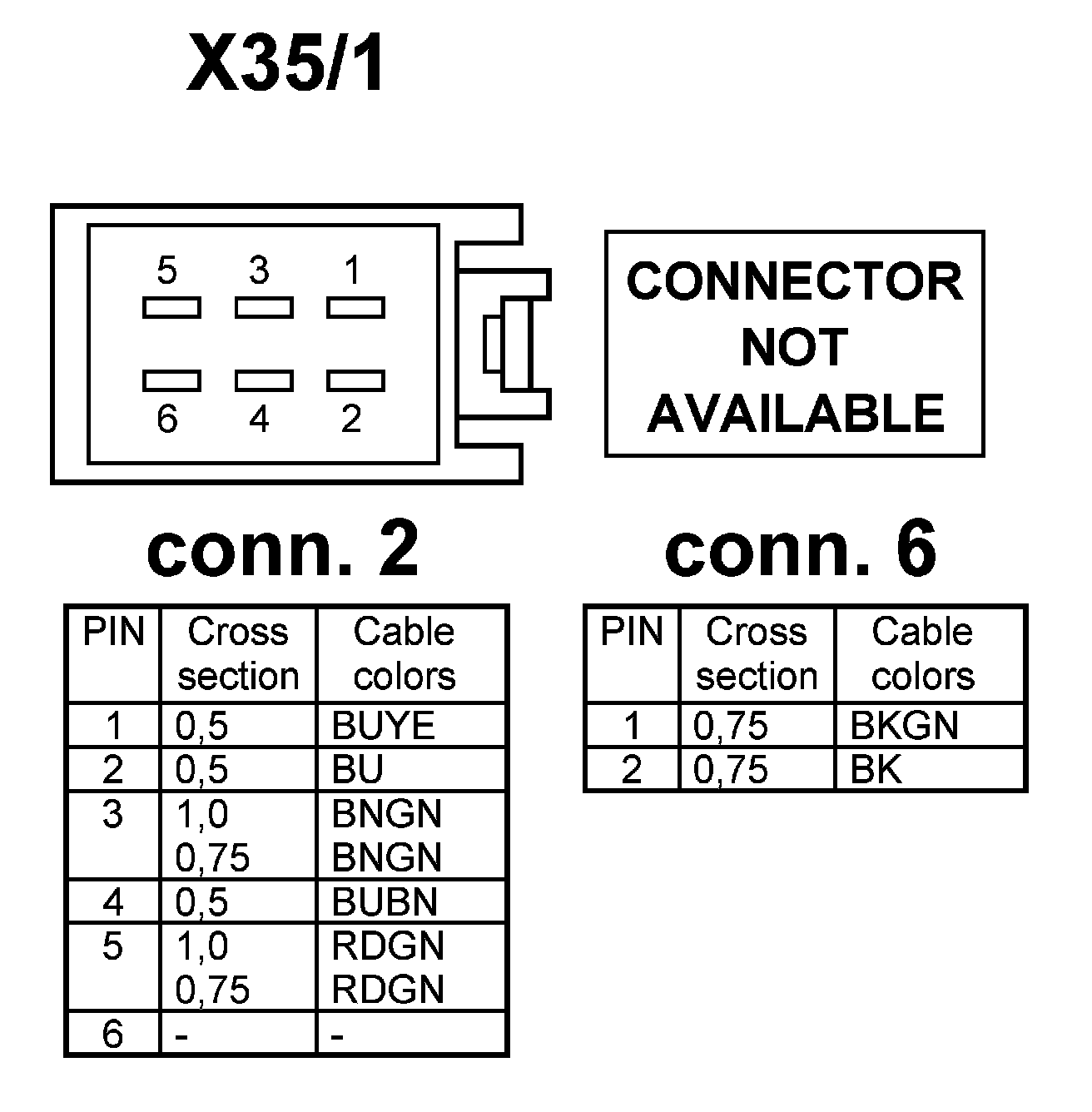

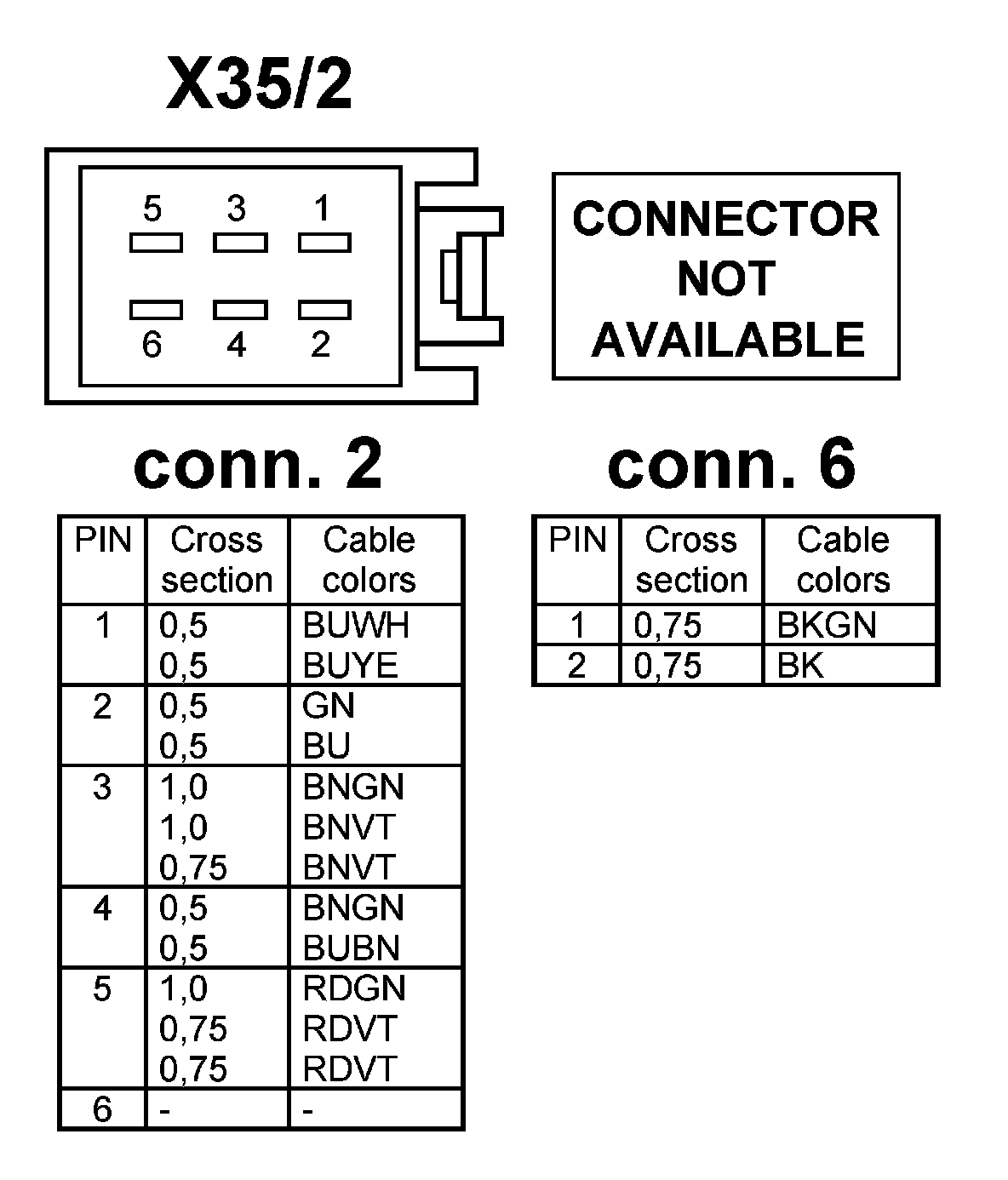

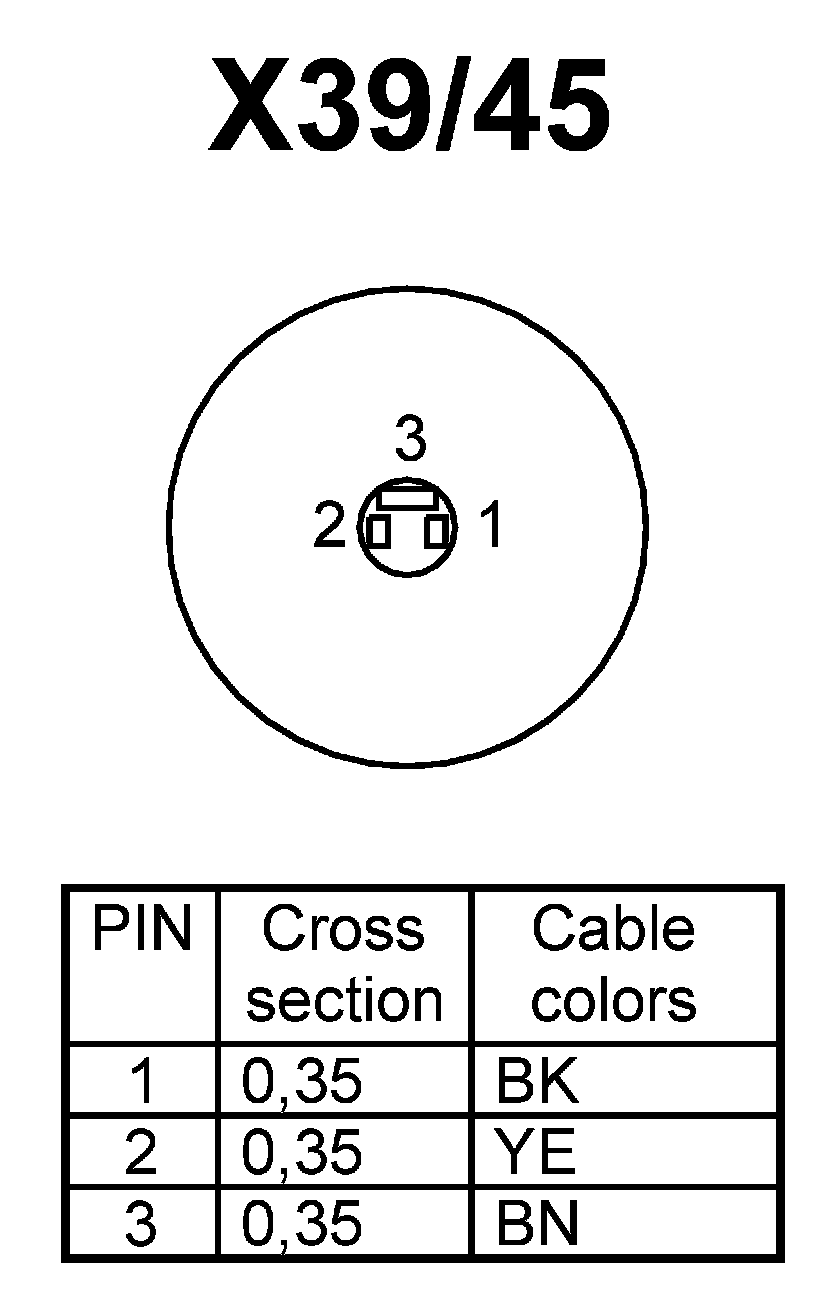

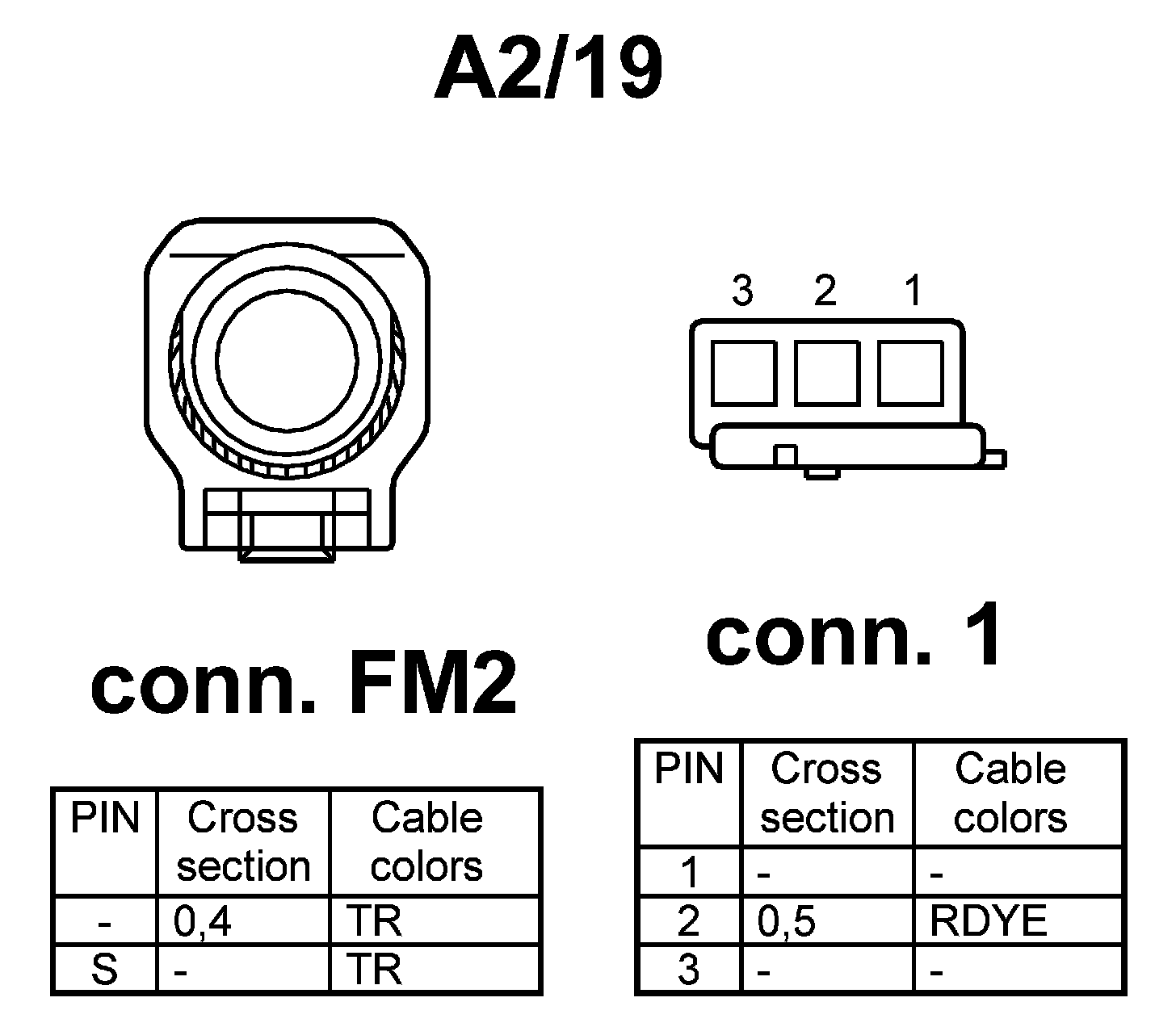

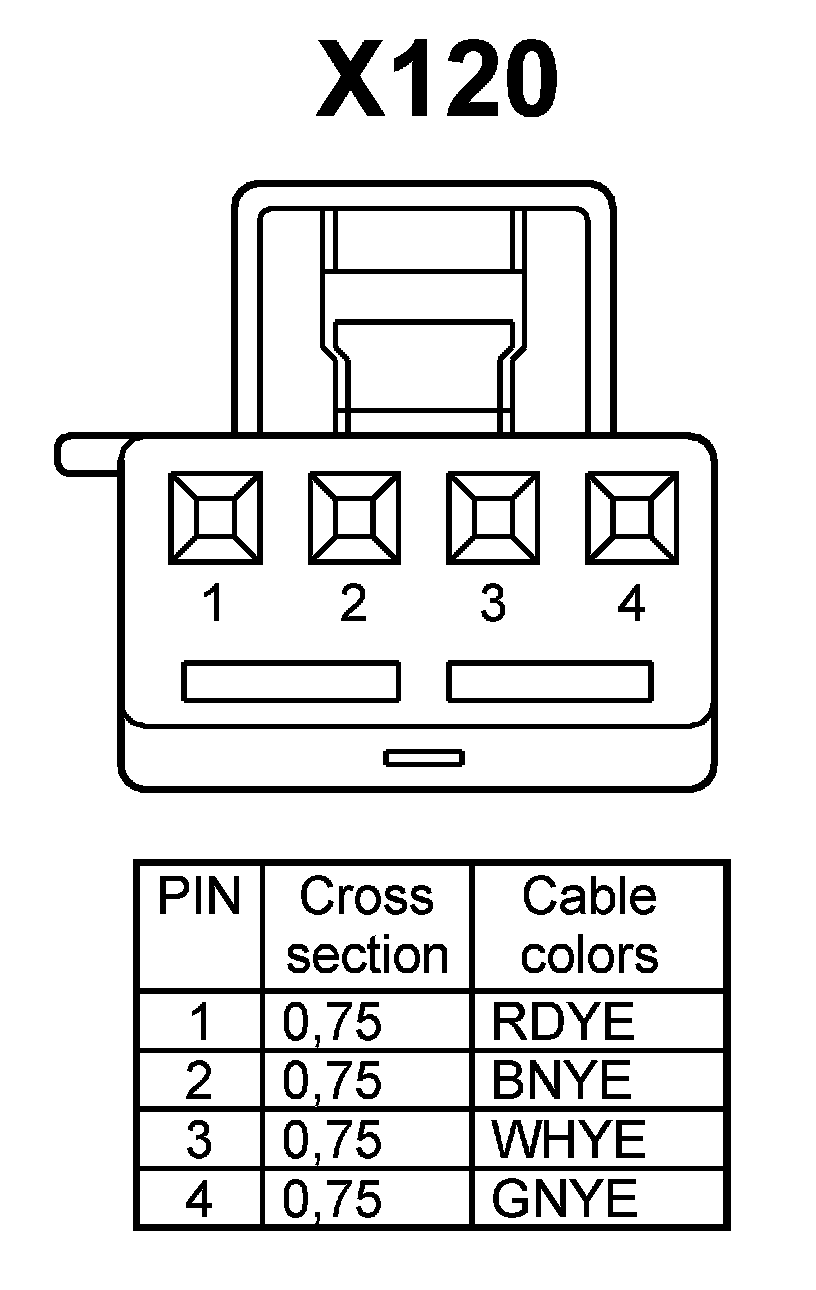

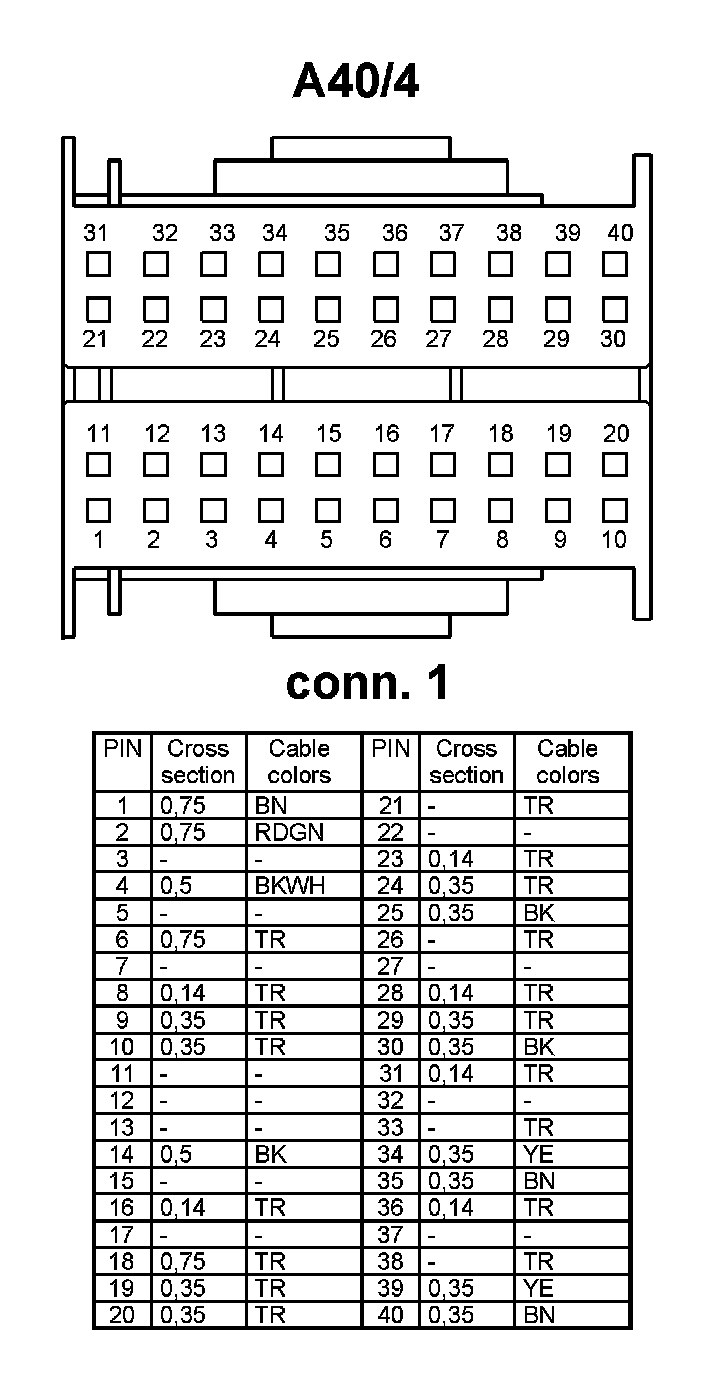

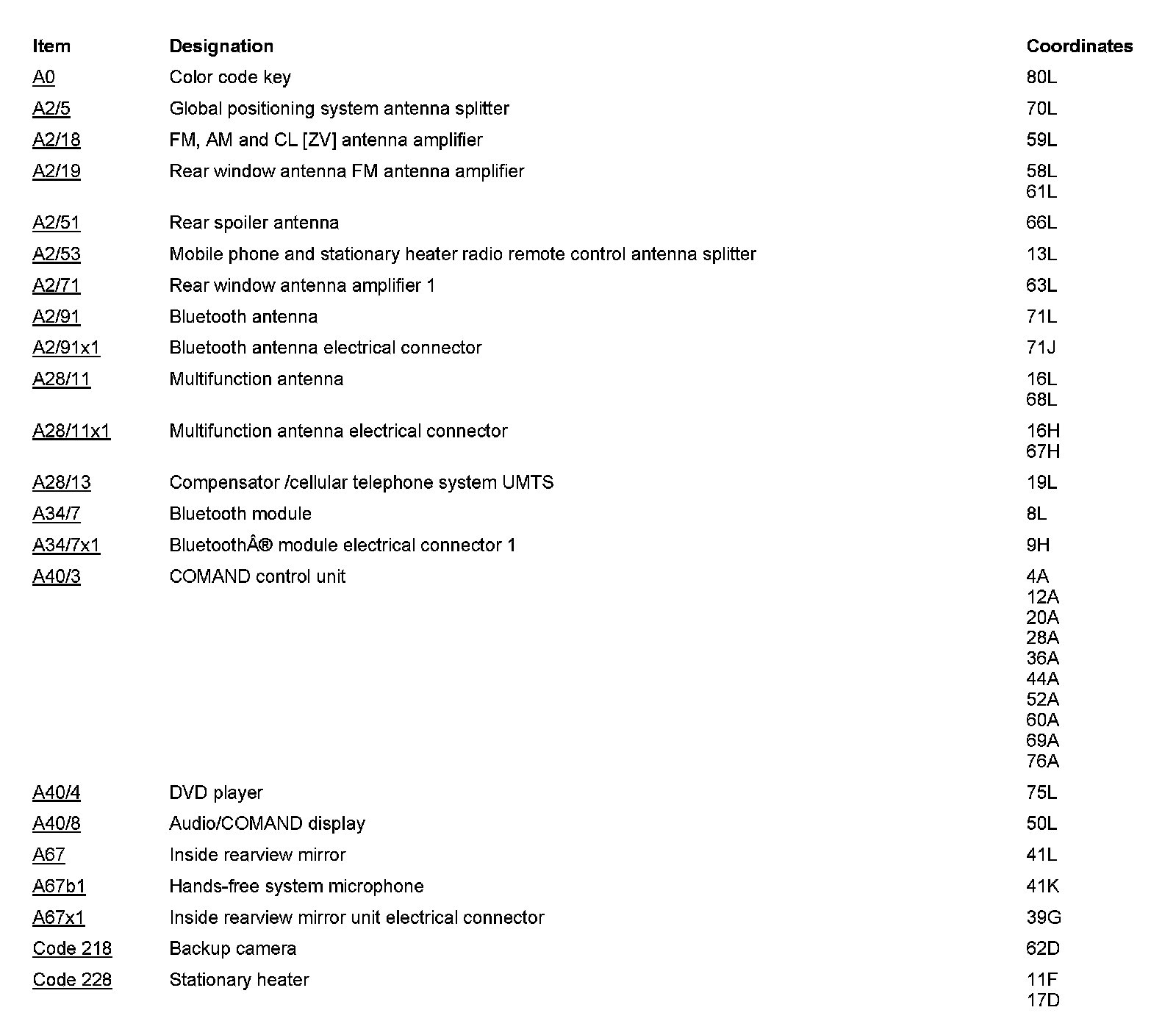

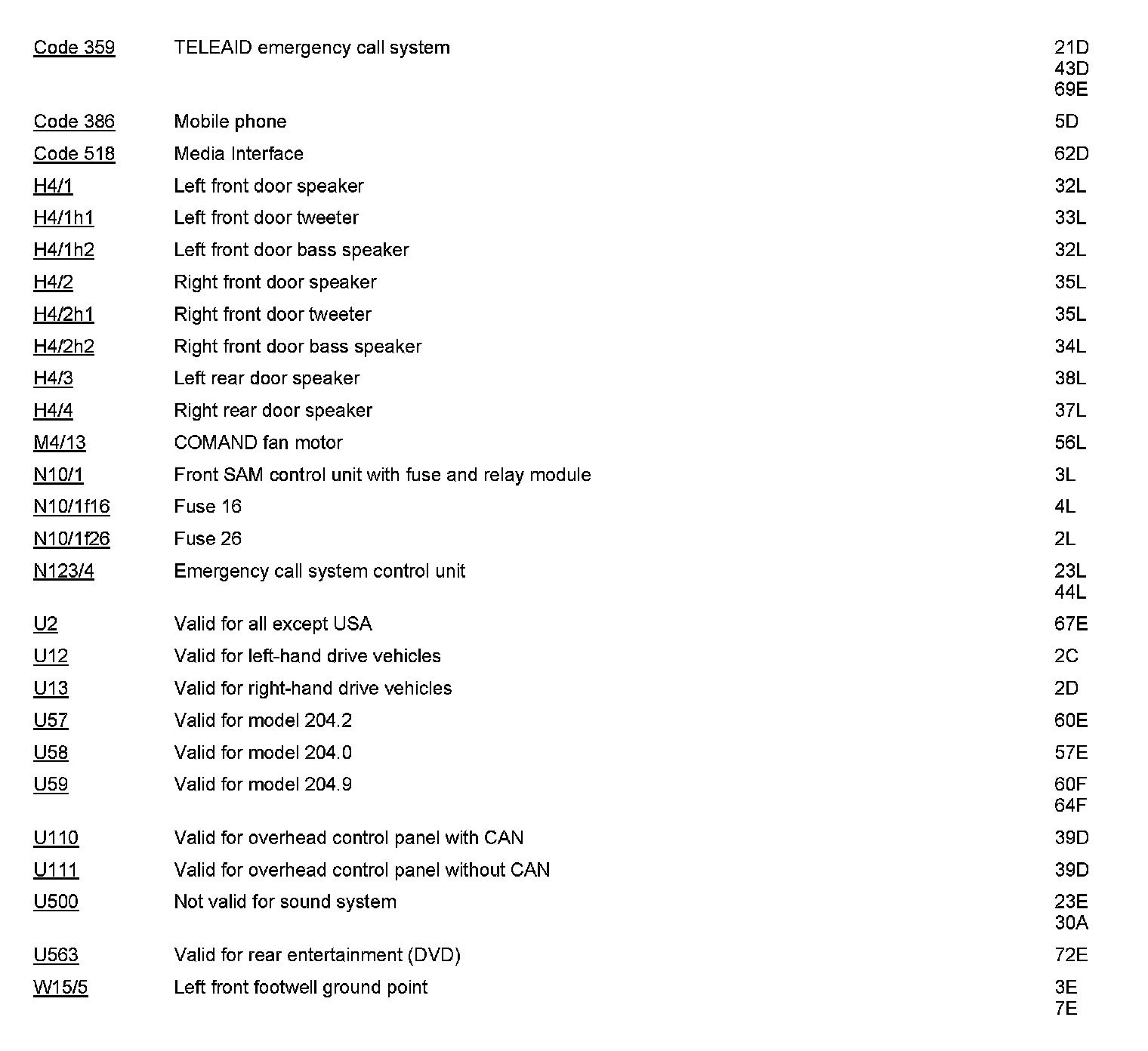

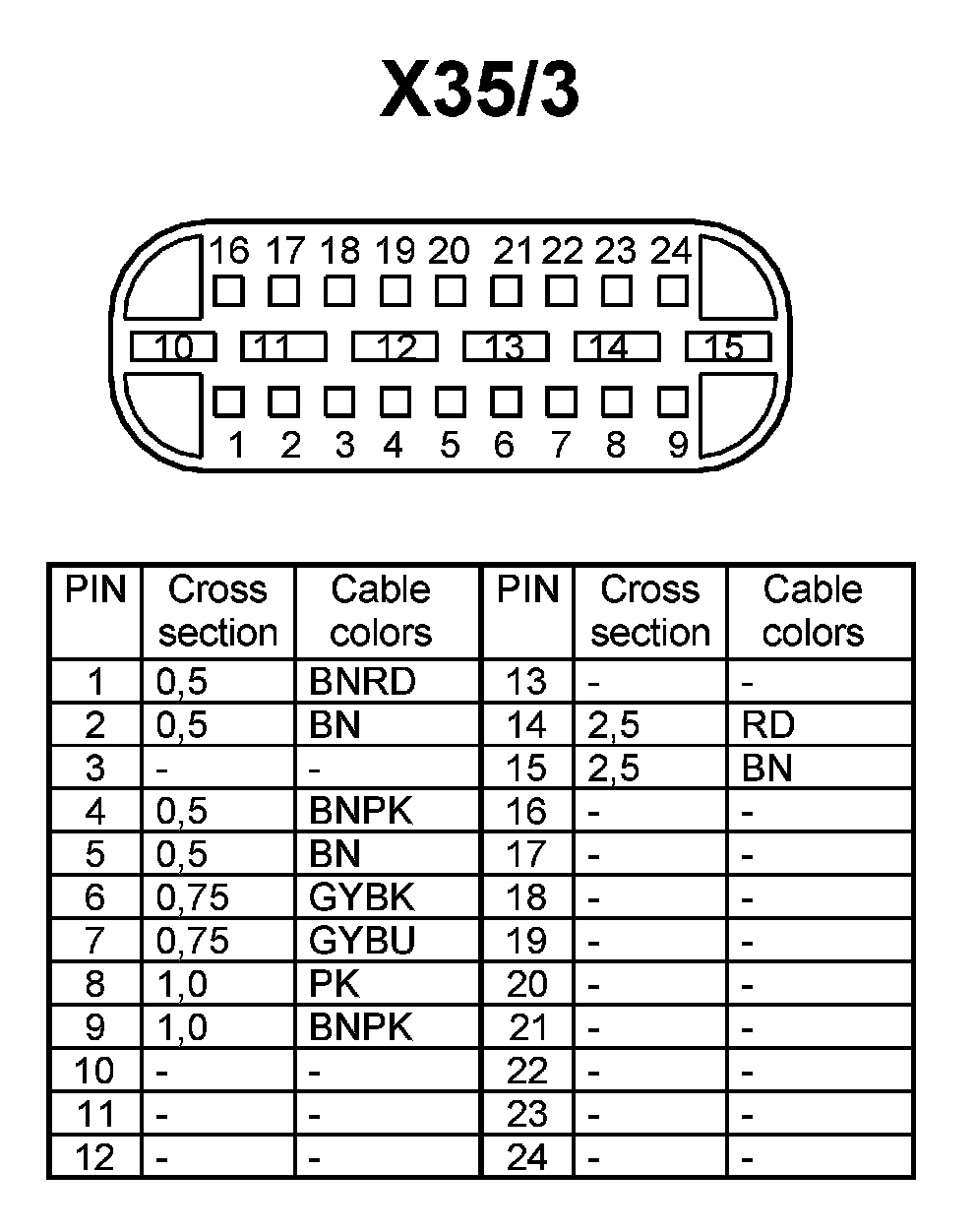

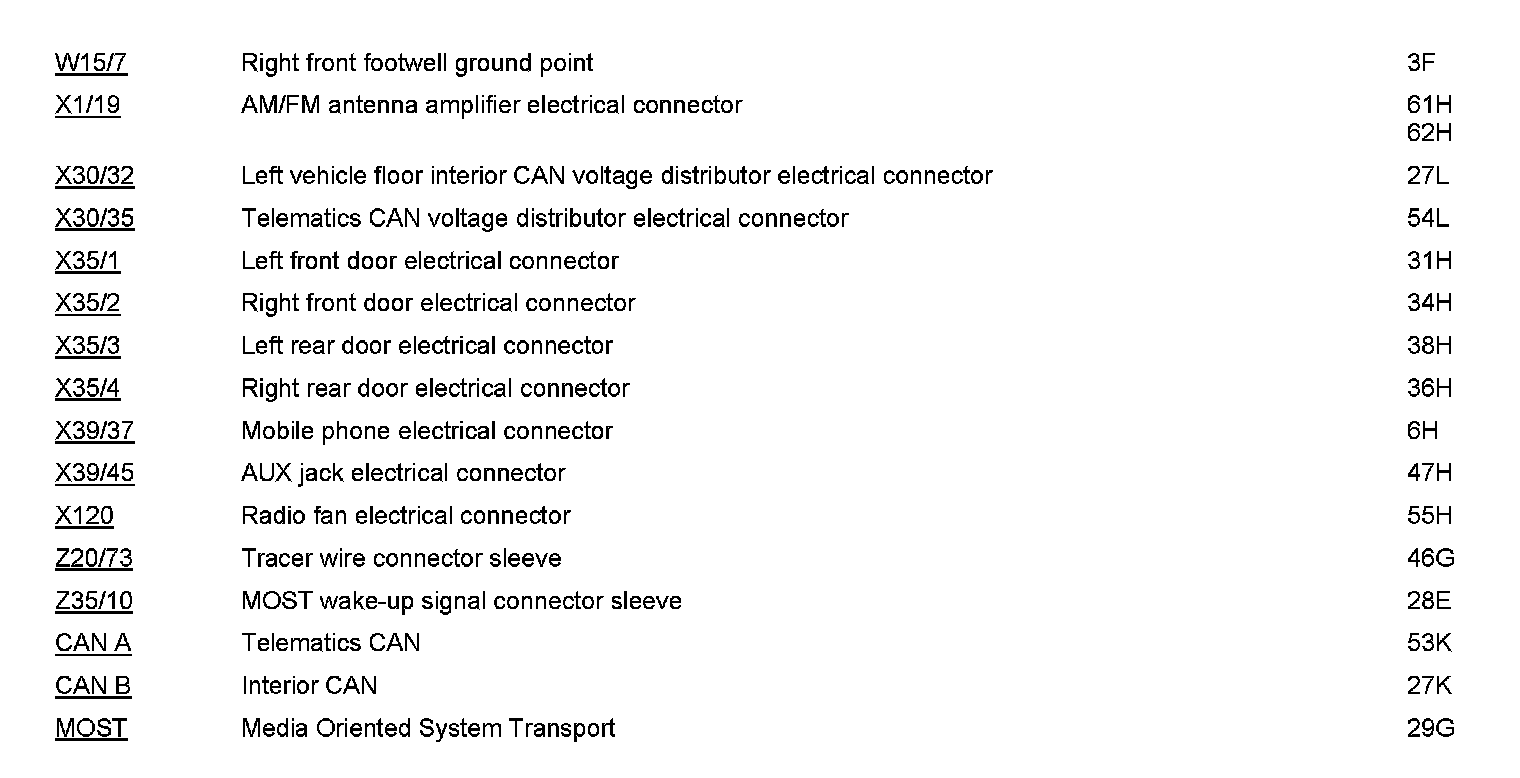

PE82.85-P-2101FAA Cockpit Management And Data System (COMAND) Control Unit Wiring Diagram

PE82.85-P-2101FAA Cockpit Management And Data System (COMAND) Control Unit Wiring Diagram

MODEL 204.0 /2
- except CODE (498) Japan version
- with CODE (527) COMAND APS with single DVD drive (with navigation)
- with CODE (512) COMAND APS incl. DVD changer
- with CODE (528) COMAND incl. DVD changer
- up to model year 2012 /AEJ11 facelift,
- control unit A40/3

MODEL 204.9
- except CODE (498) Japan version
- with CODE (527) COMAND APS with single DVD drive (with navigation)
- with CODE (512) COMAND APS incl. DVD changer
- with CODE (528) COMAND incl. DVD changer
- control unit A40/3

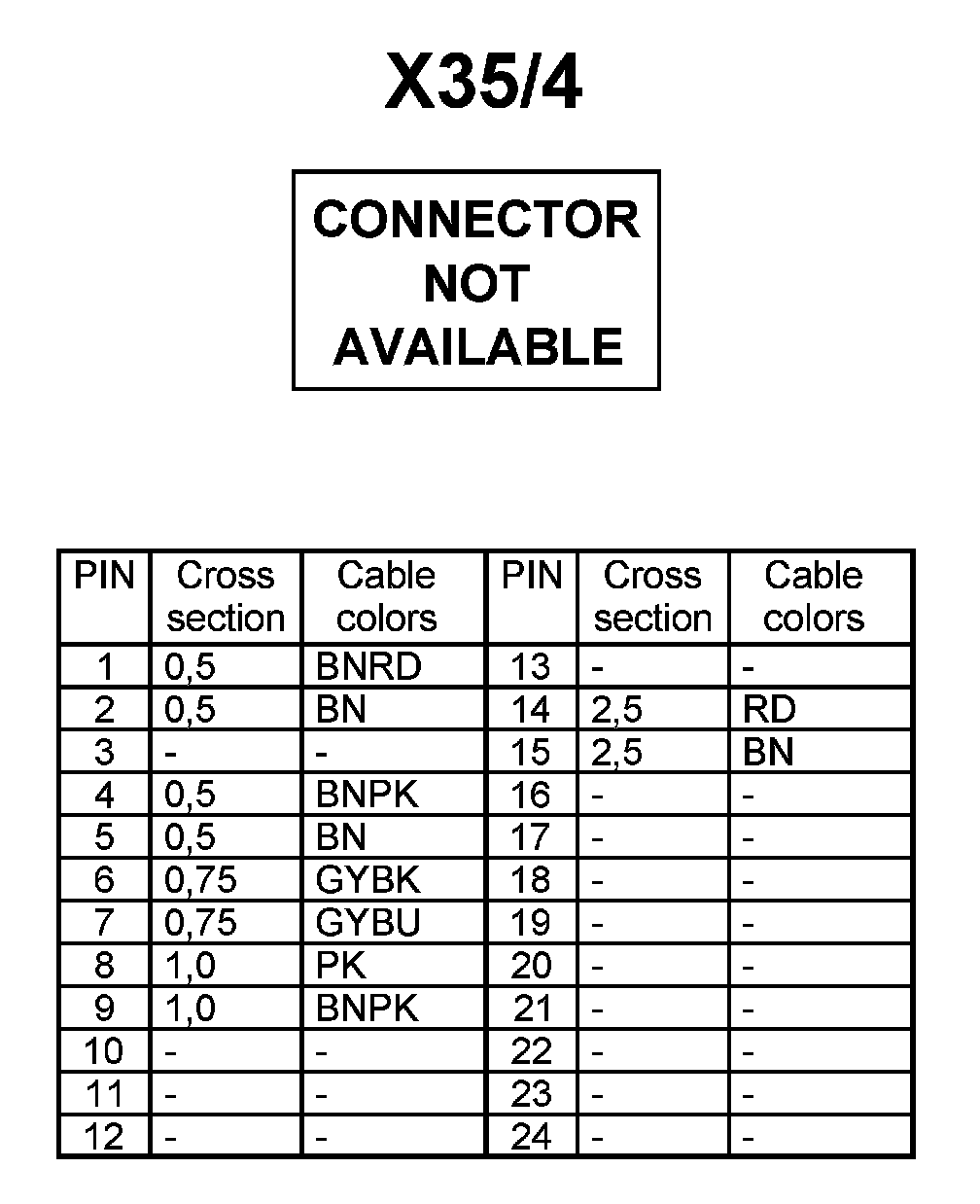

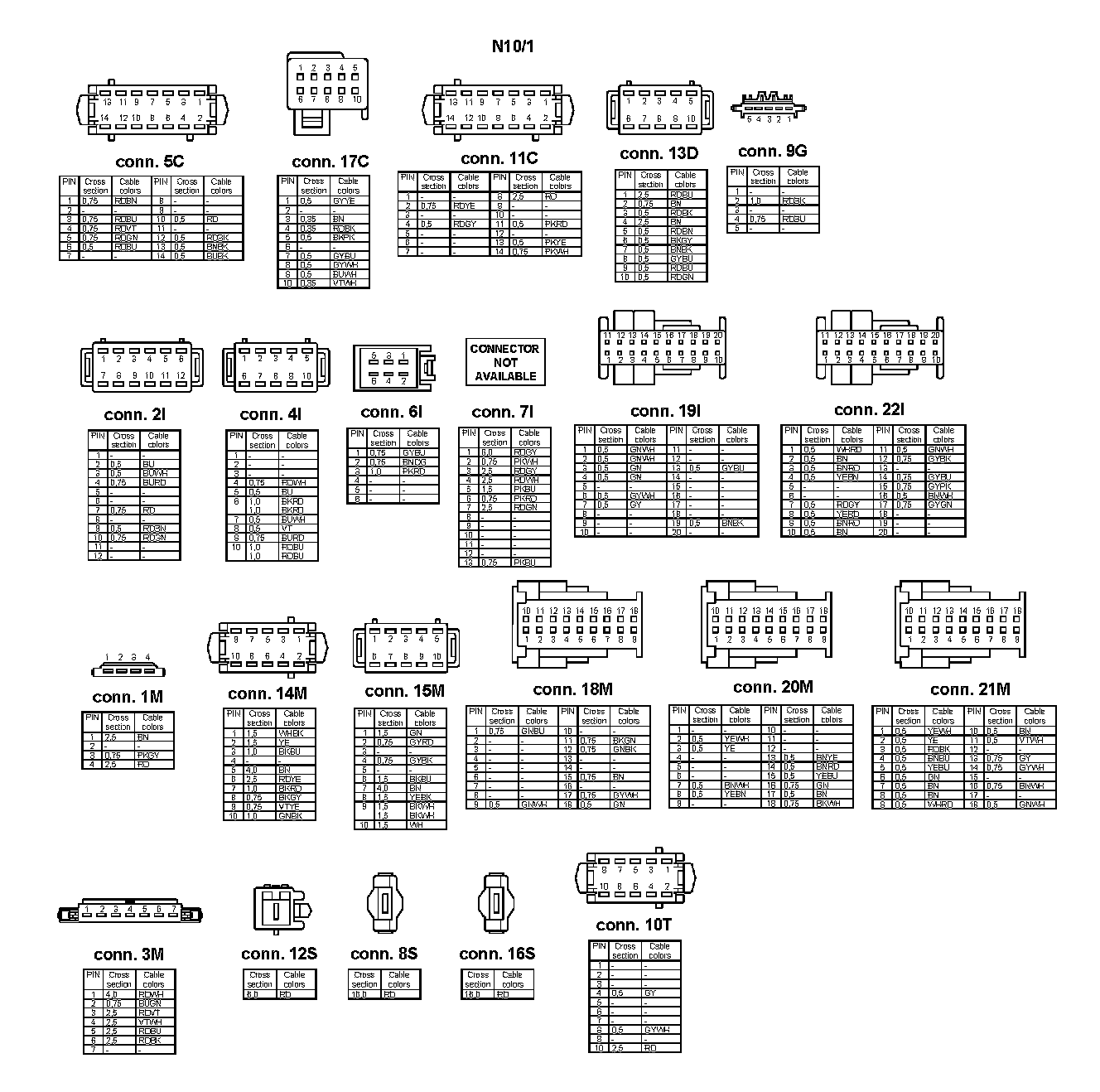

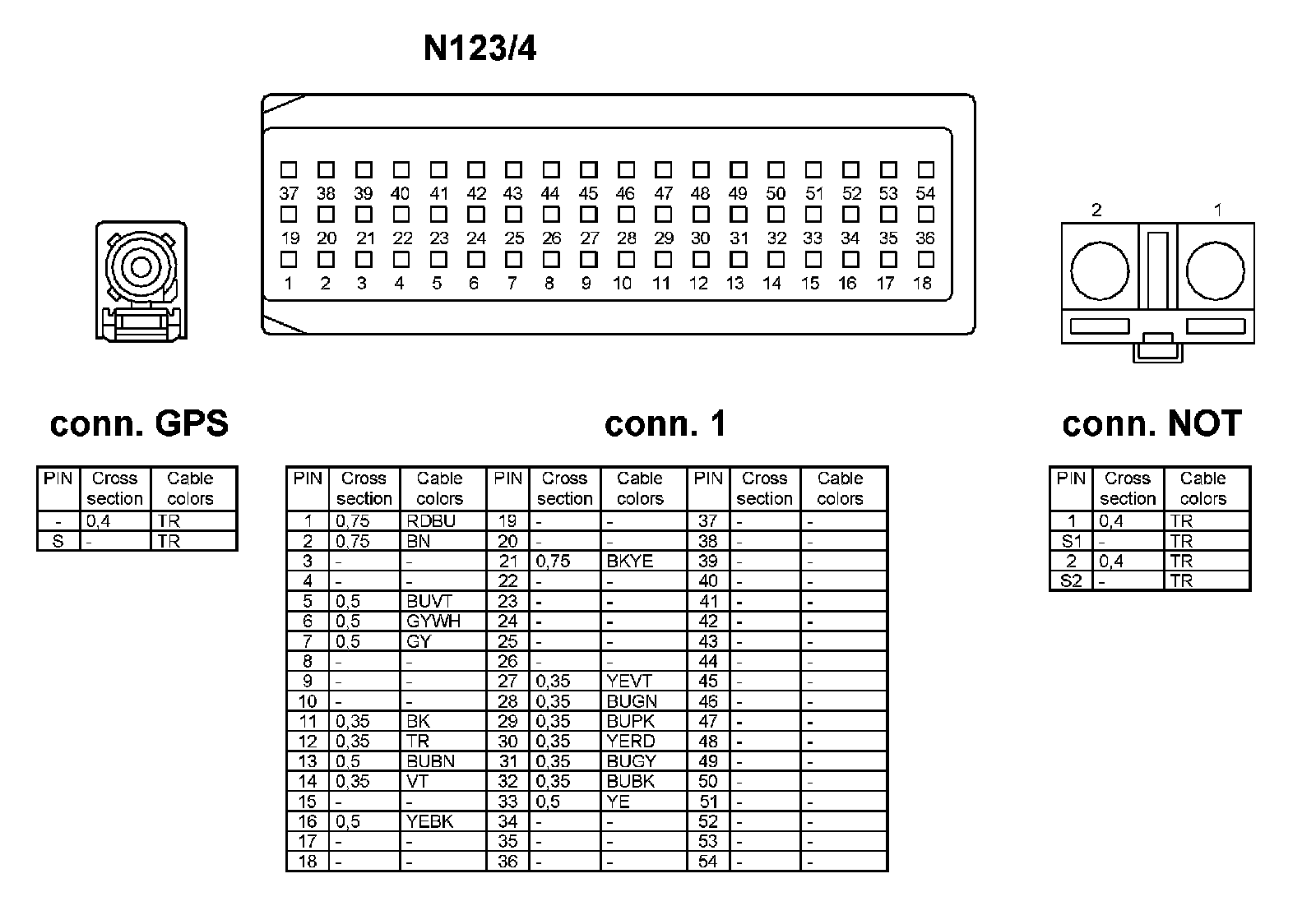

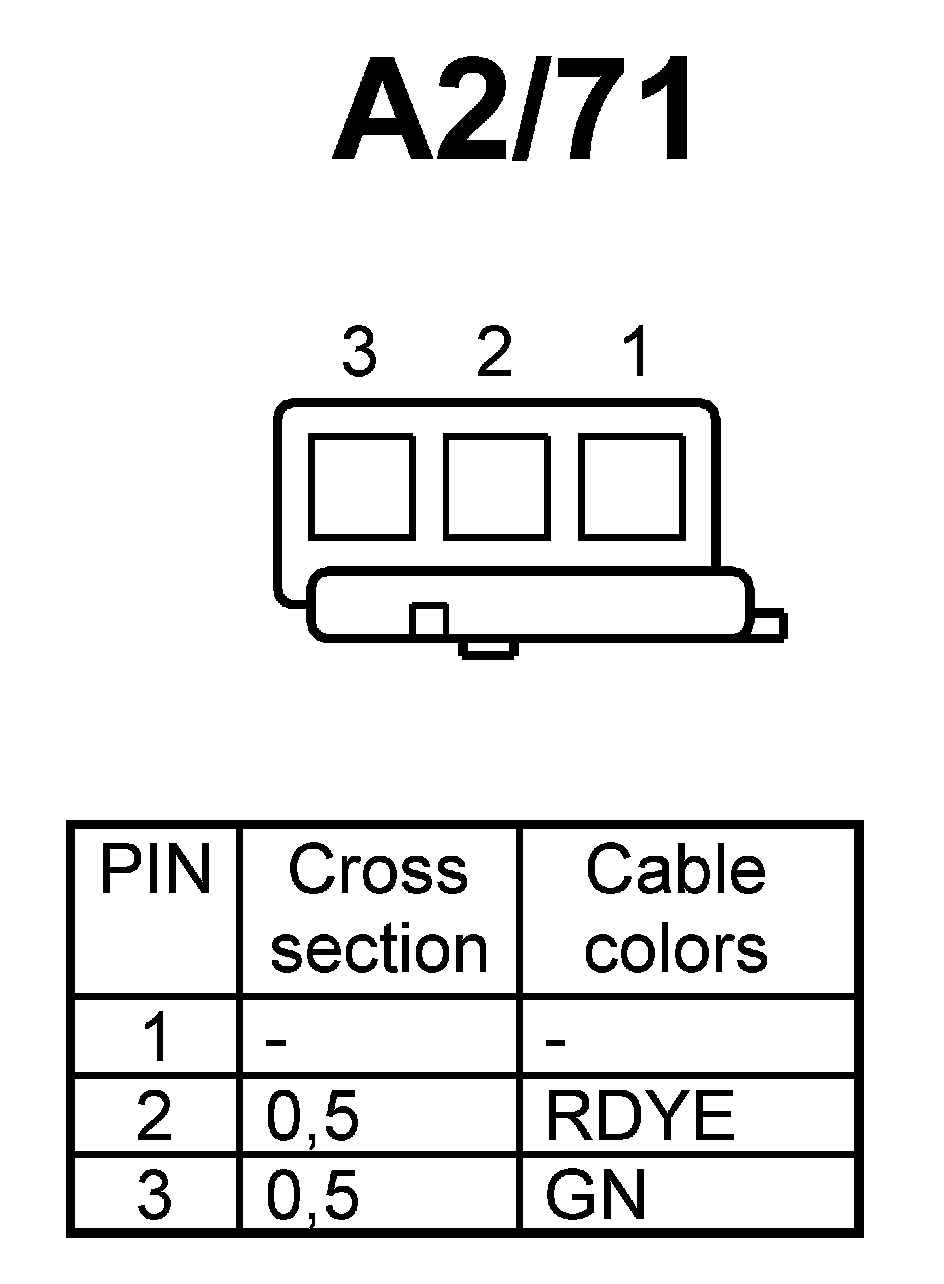

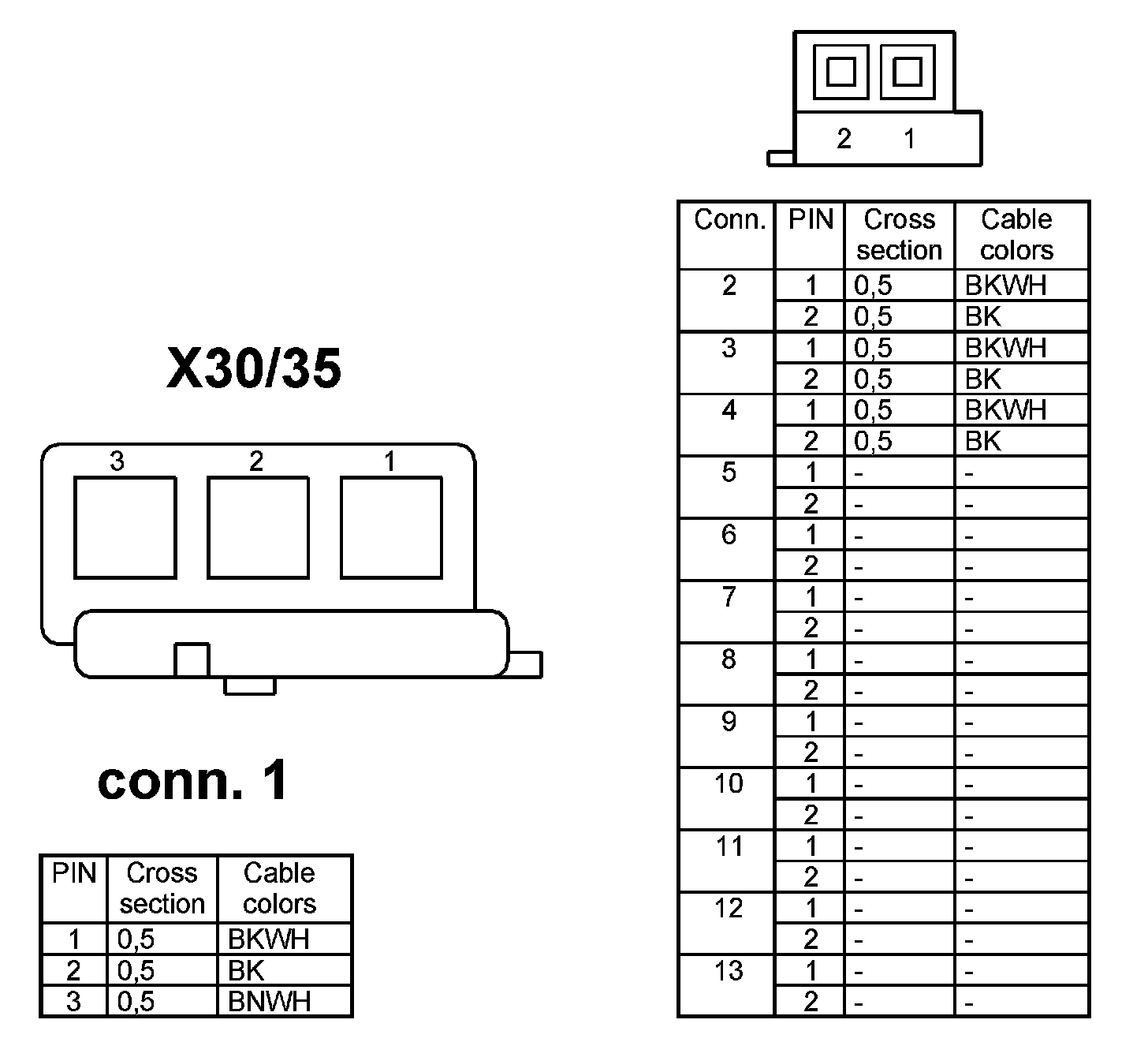

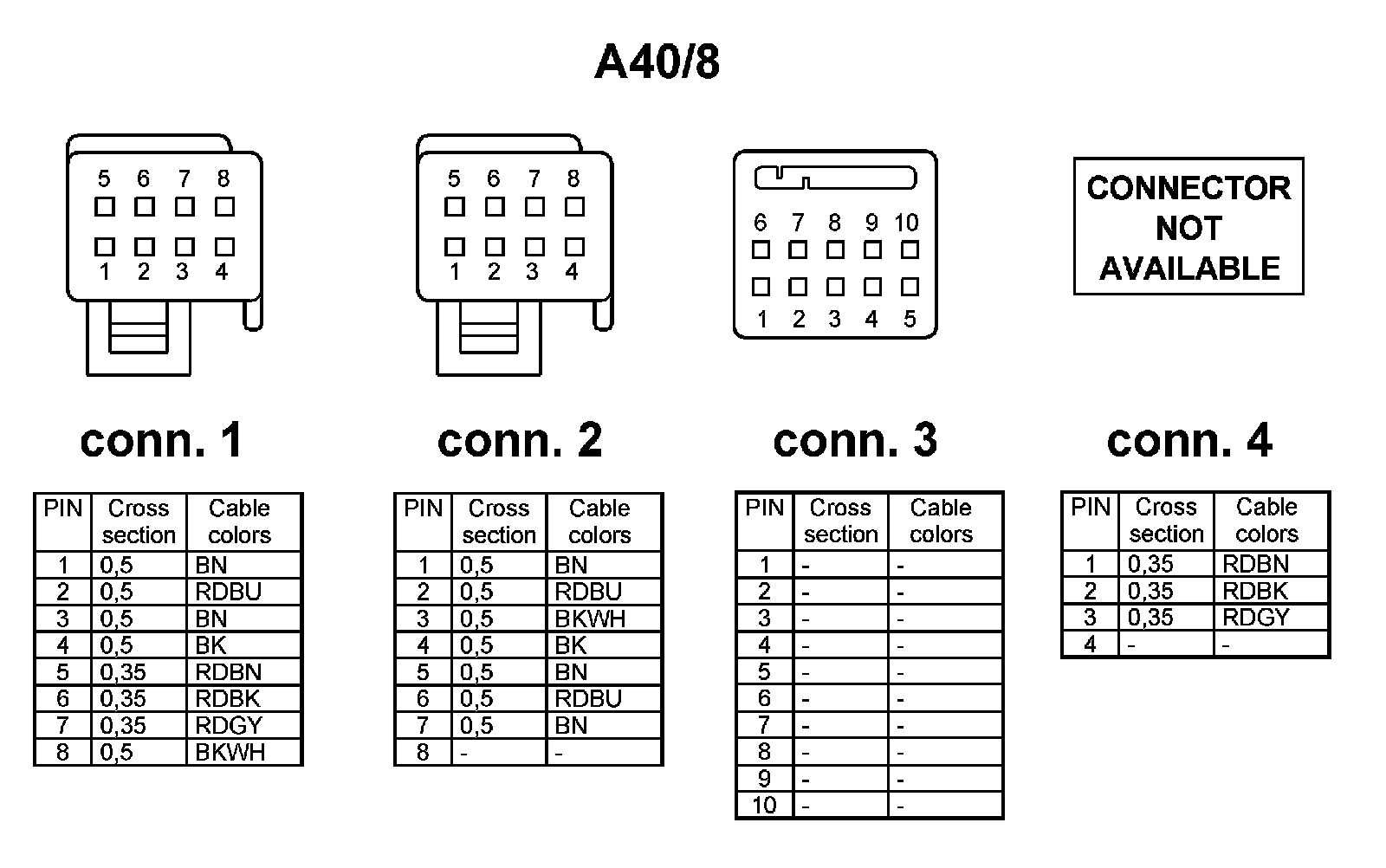

Component Locations: Component Location photographs can be found via their component names at the vehicle level. Component Locations
