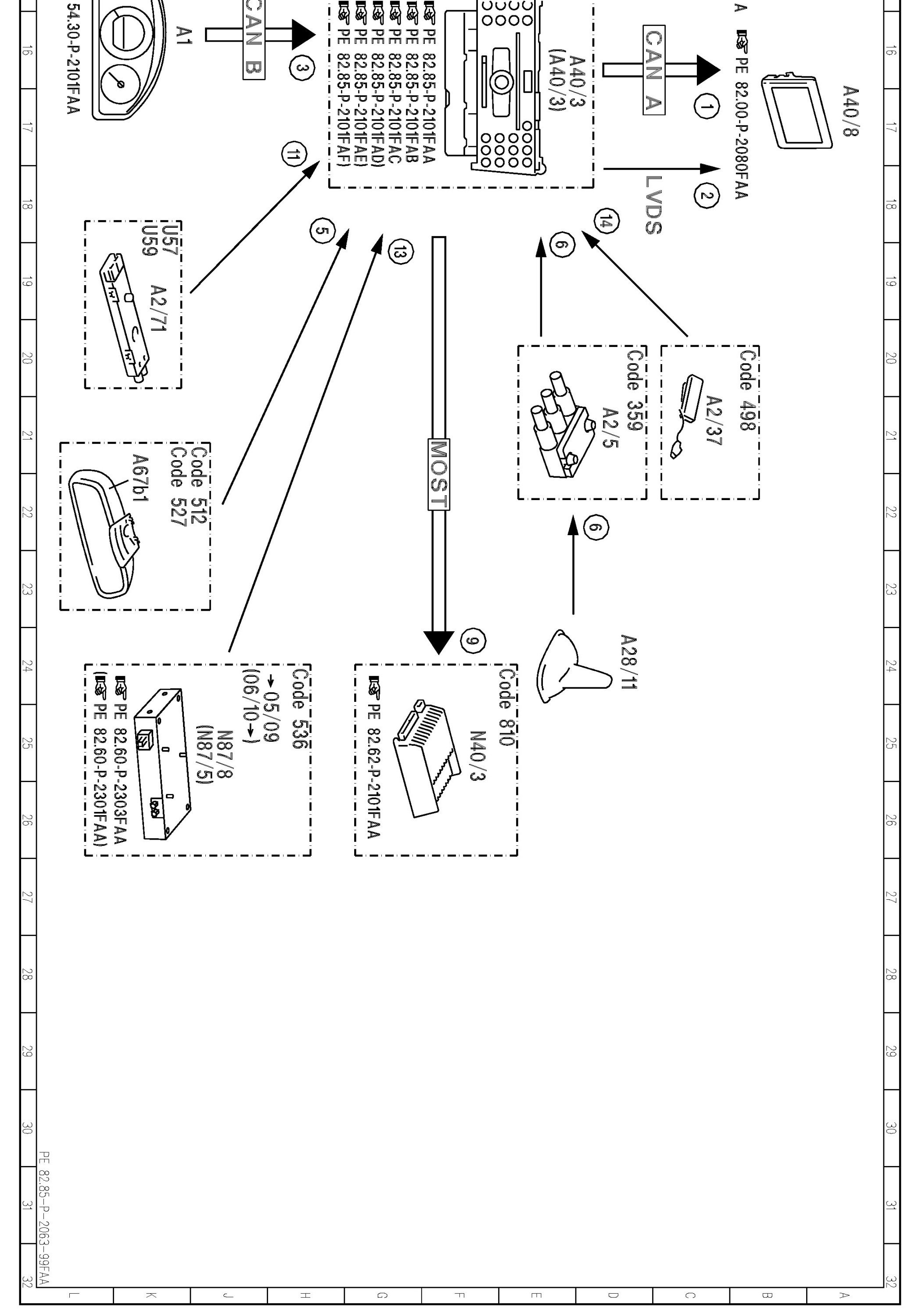

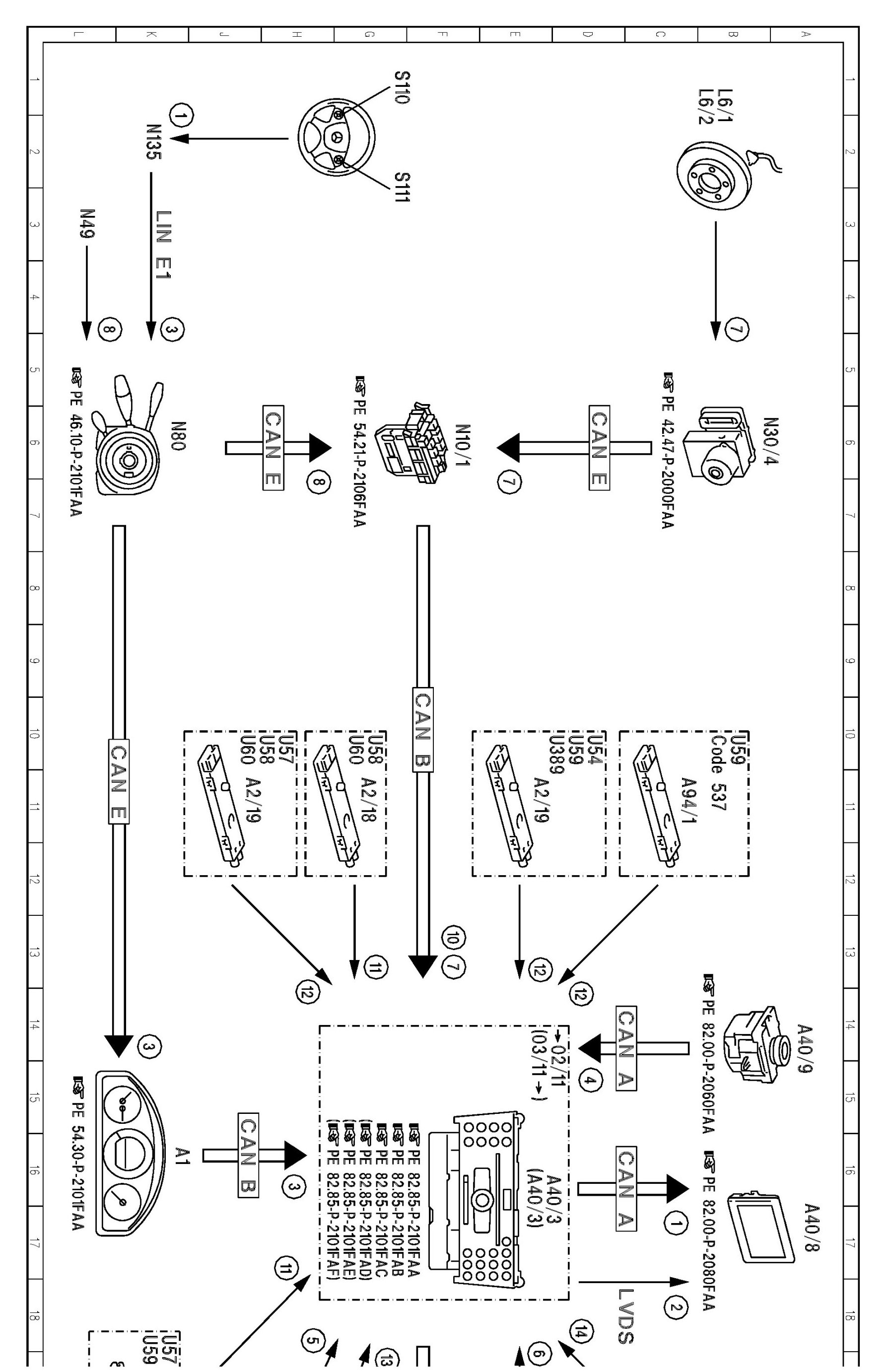

PE82.85-P-2063FAA Electrical Function Diagram For Navigation Mode (COMAND), Function

PE82.85-P-2063FAA Electrical Function Diagram For Navigation Mode (COMAND), Function

MODEL 204.0 /2
- with CODE (527) COMAND APS with single DVD drive (with navigation)
- with CODE (512) COMAND APS with DVD changer
- as of model year 2009 /YoM 08

MODEL 204.3 /9
- with CODE (527) COMAND APS with single DVD drive (with navigation system)
- with CODE (512) COMAND APS with DVD changer















































































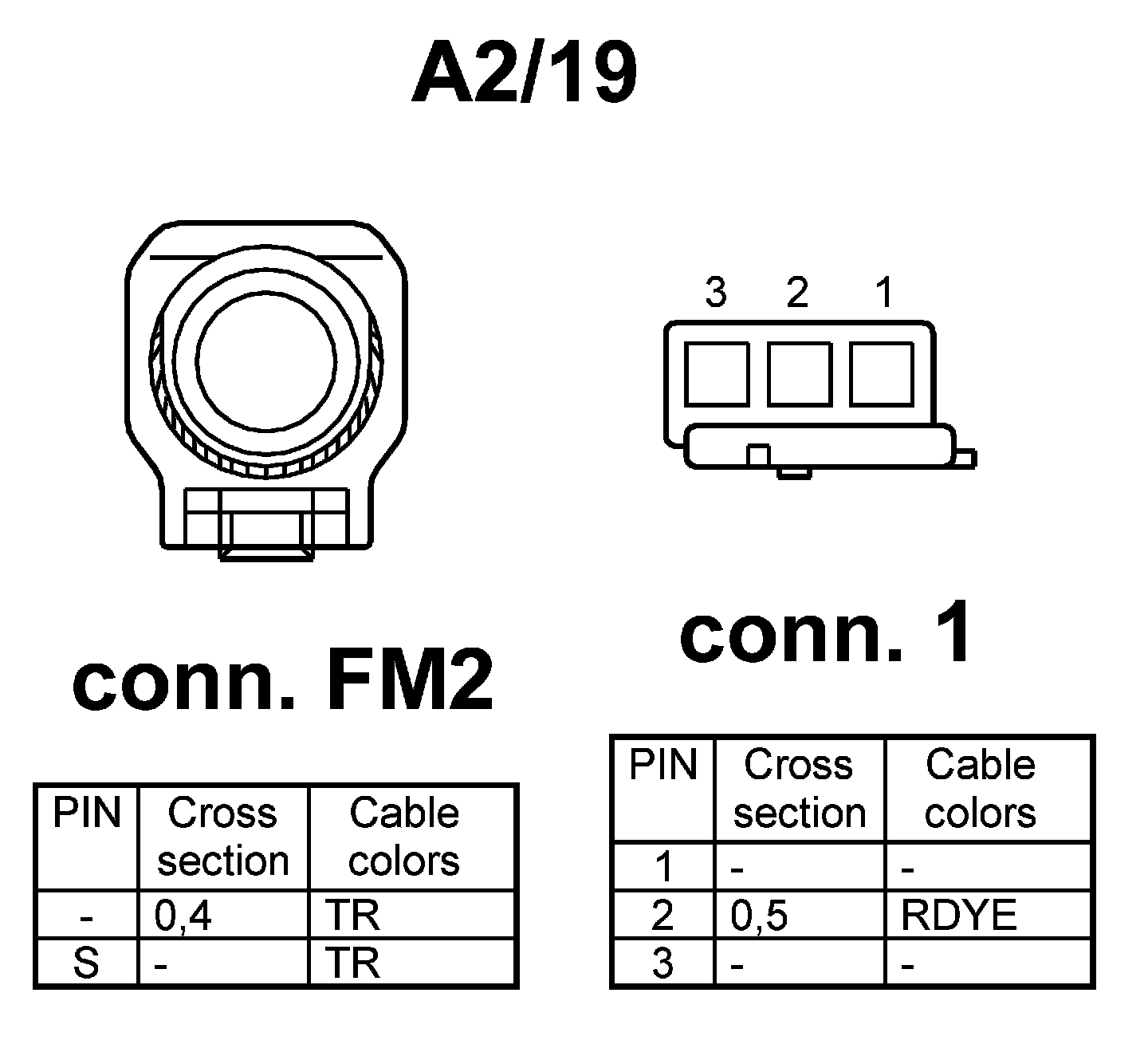

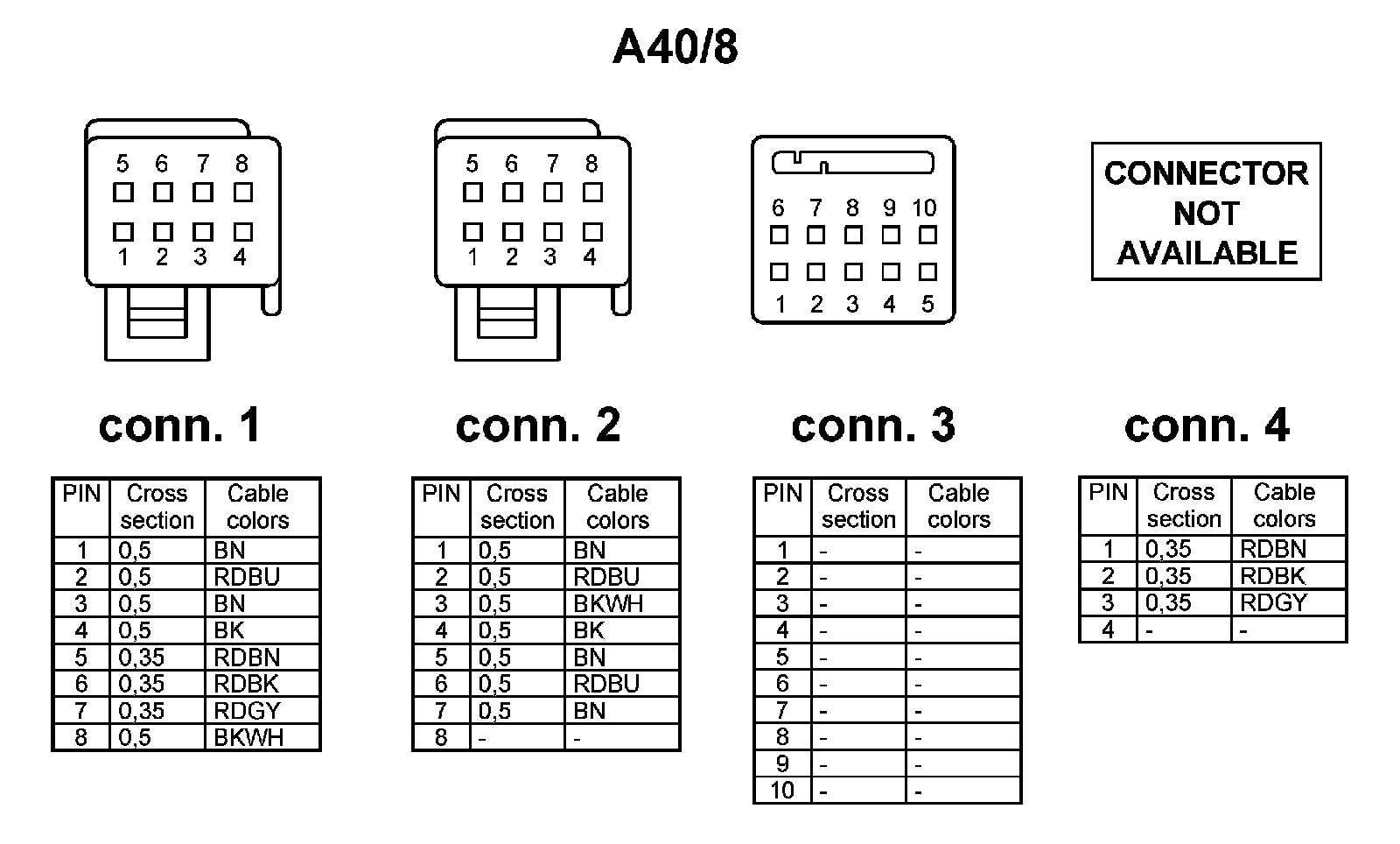

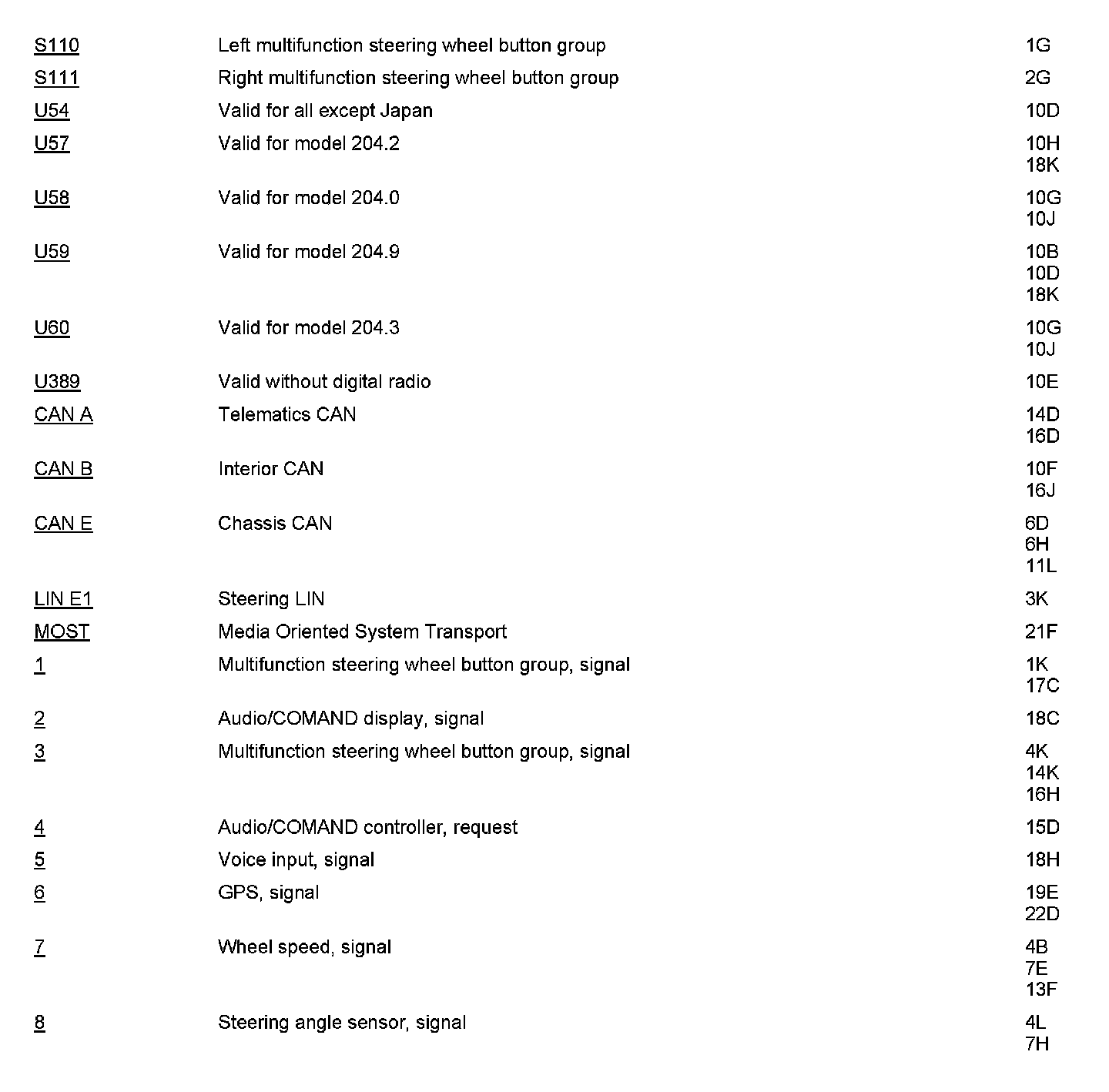

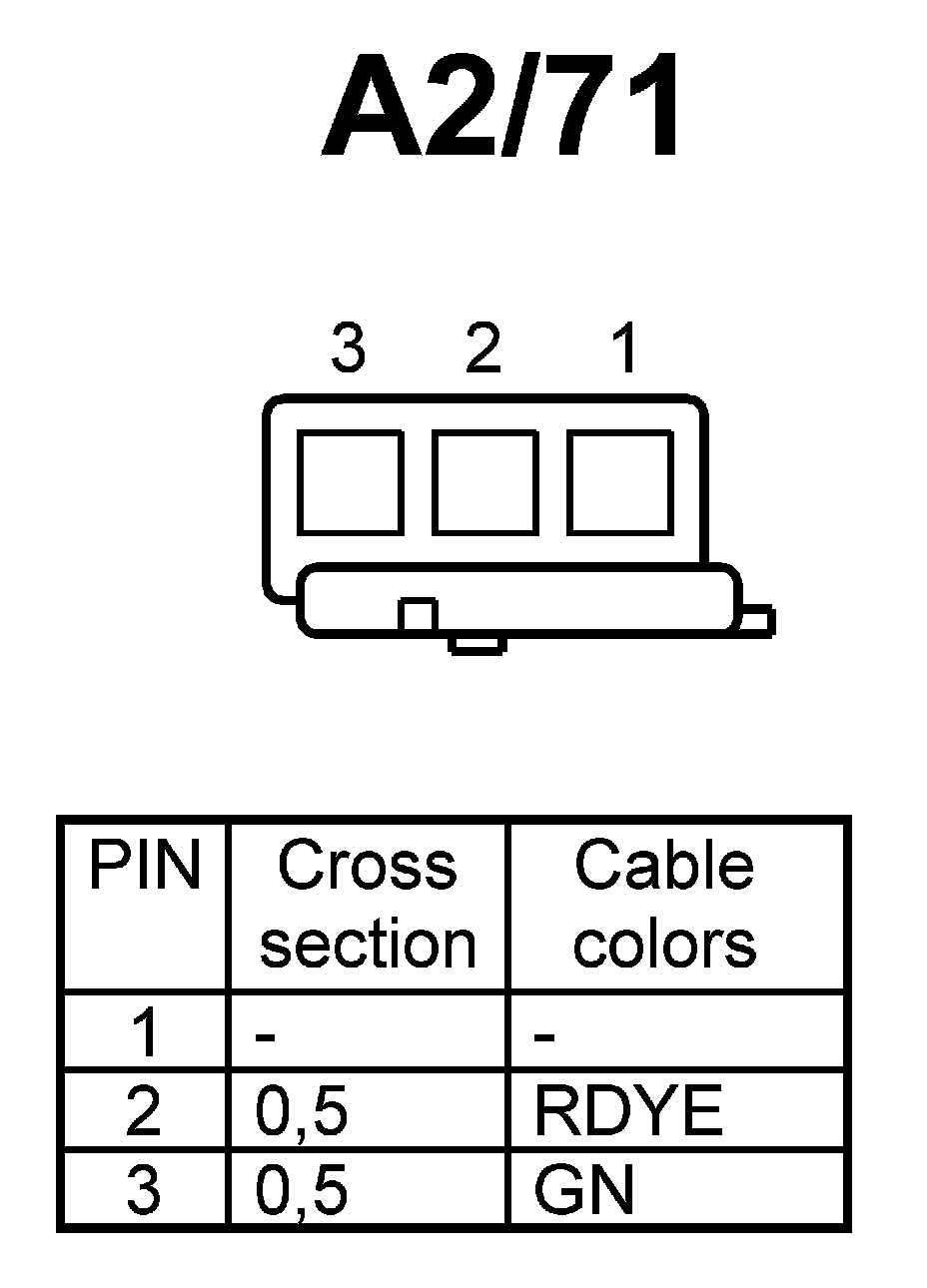

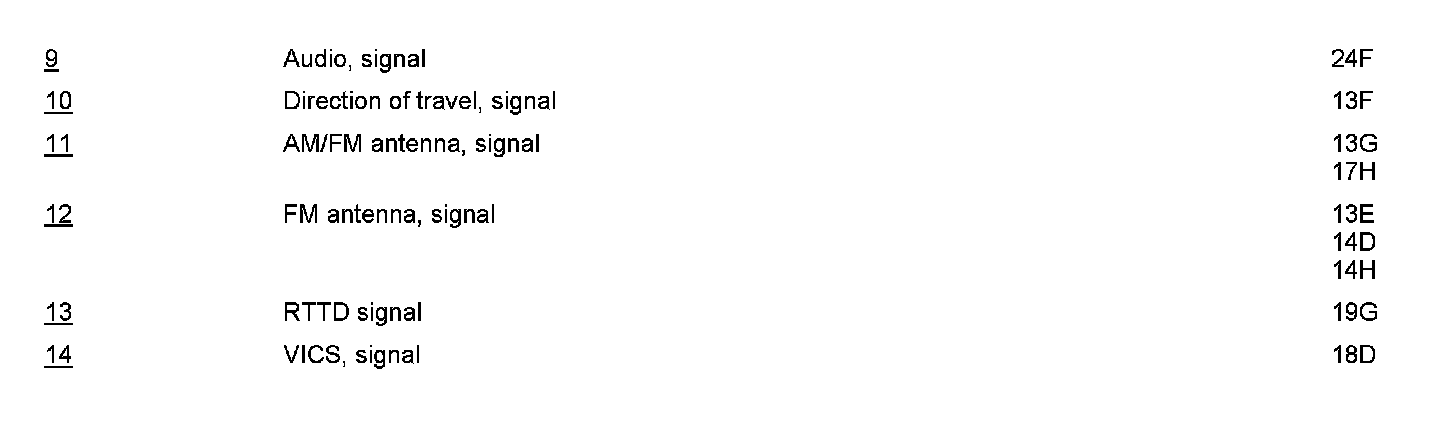

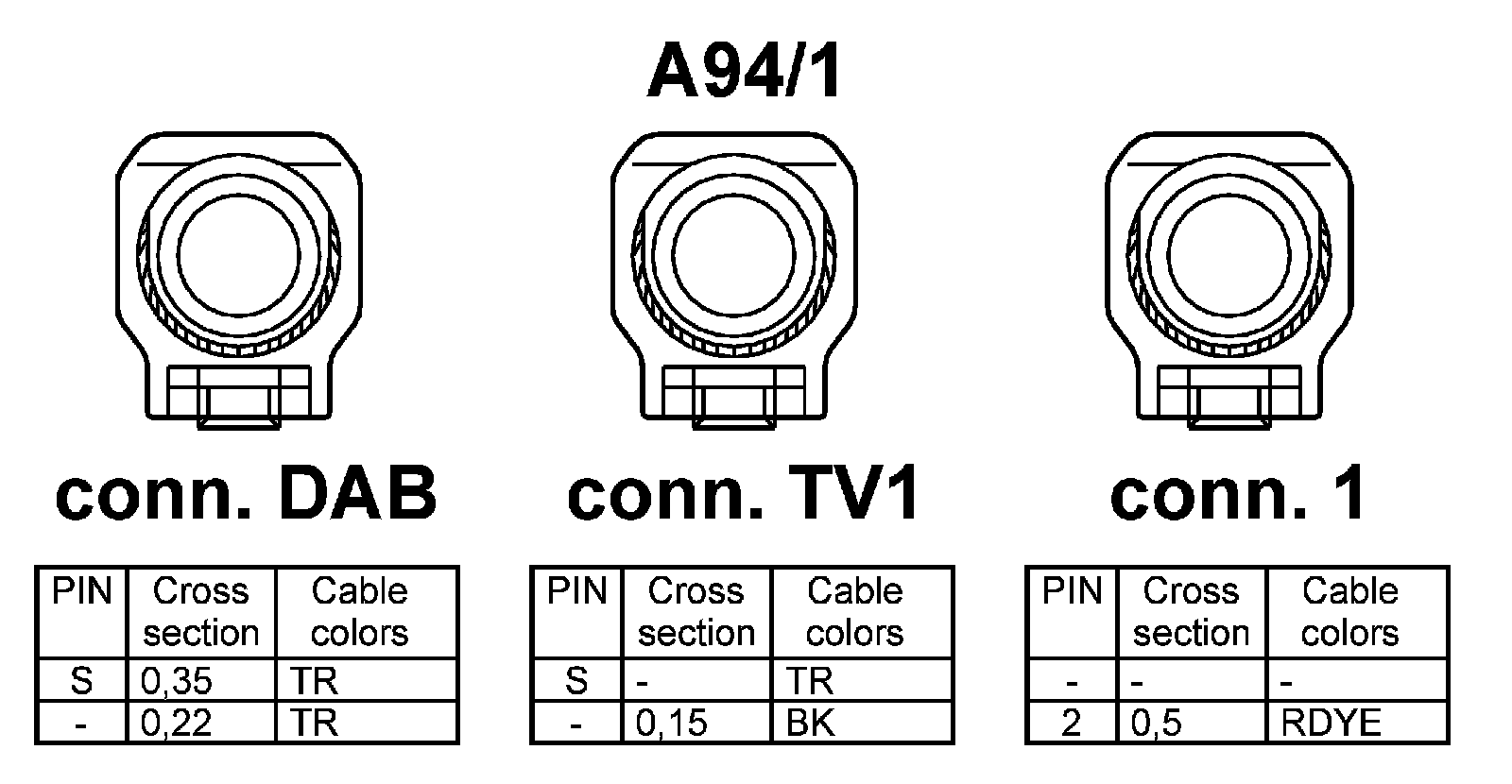

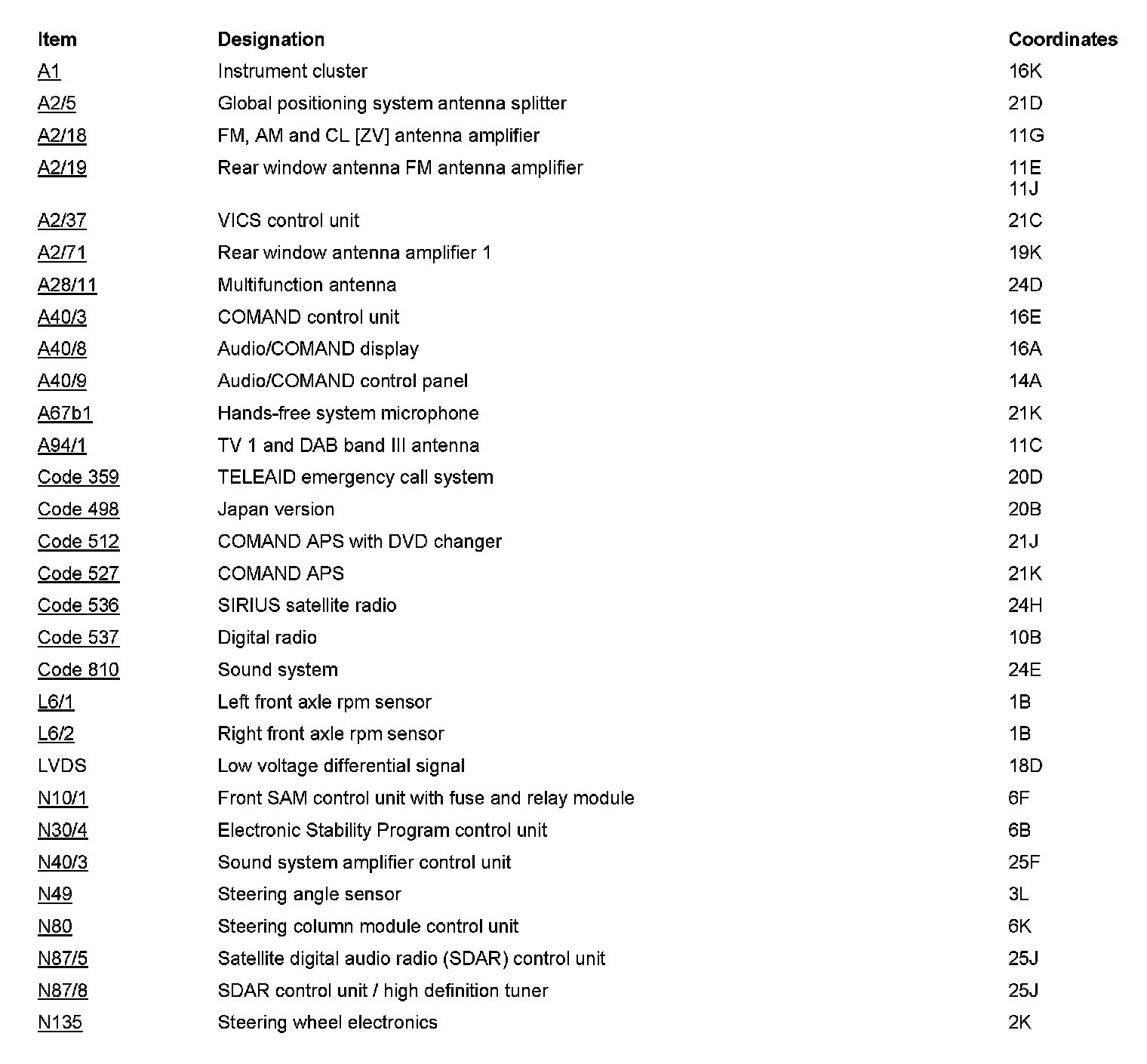

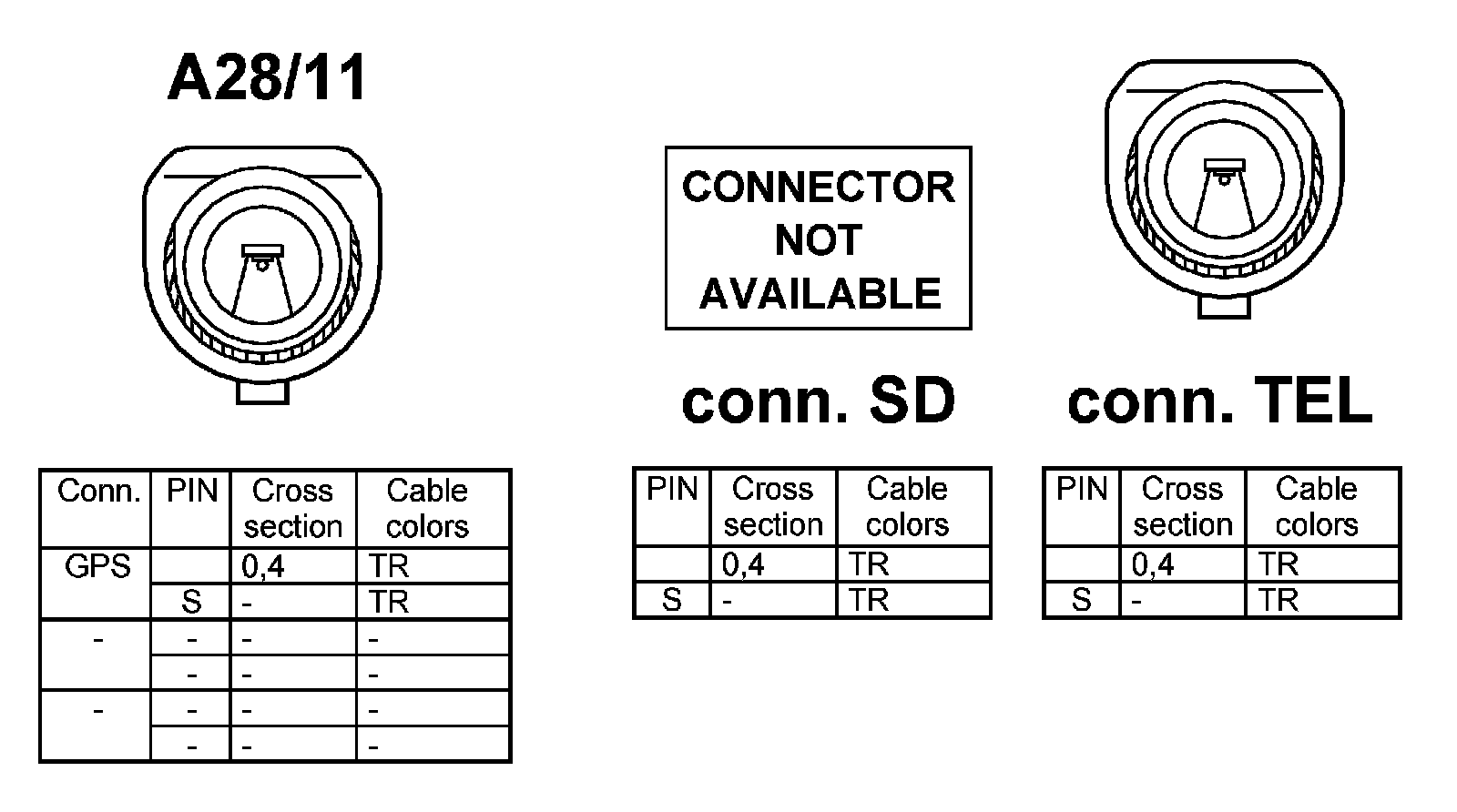

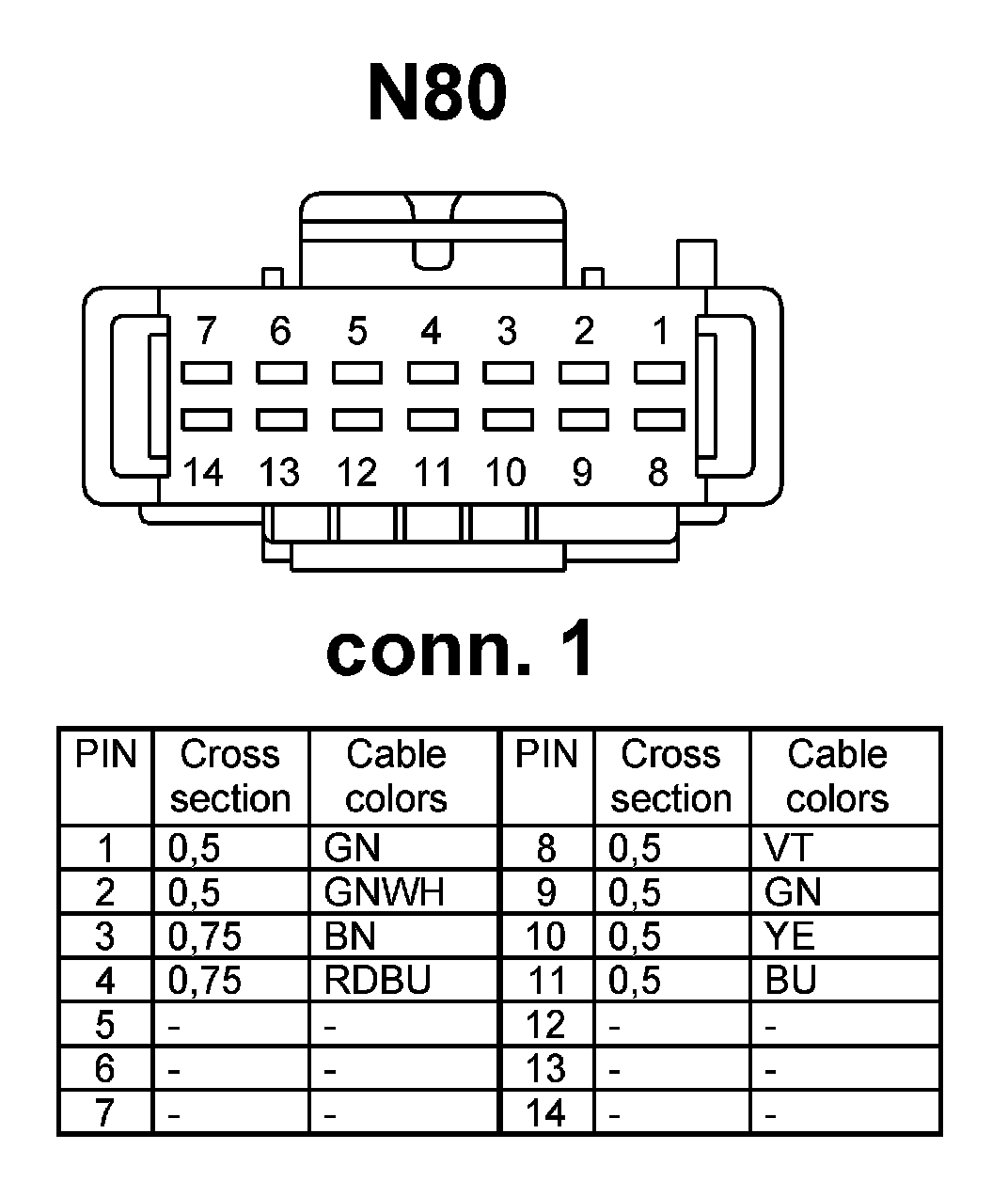

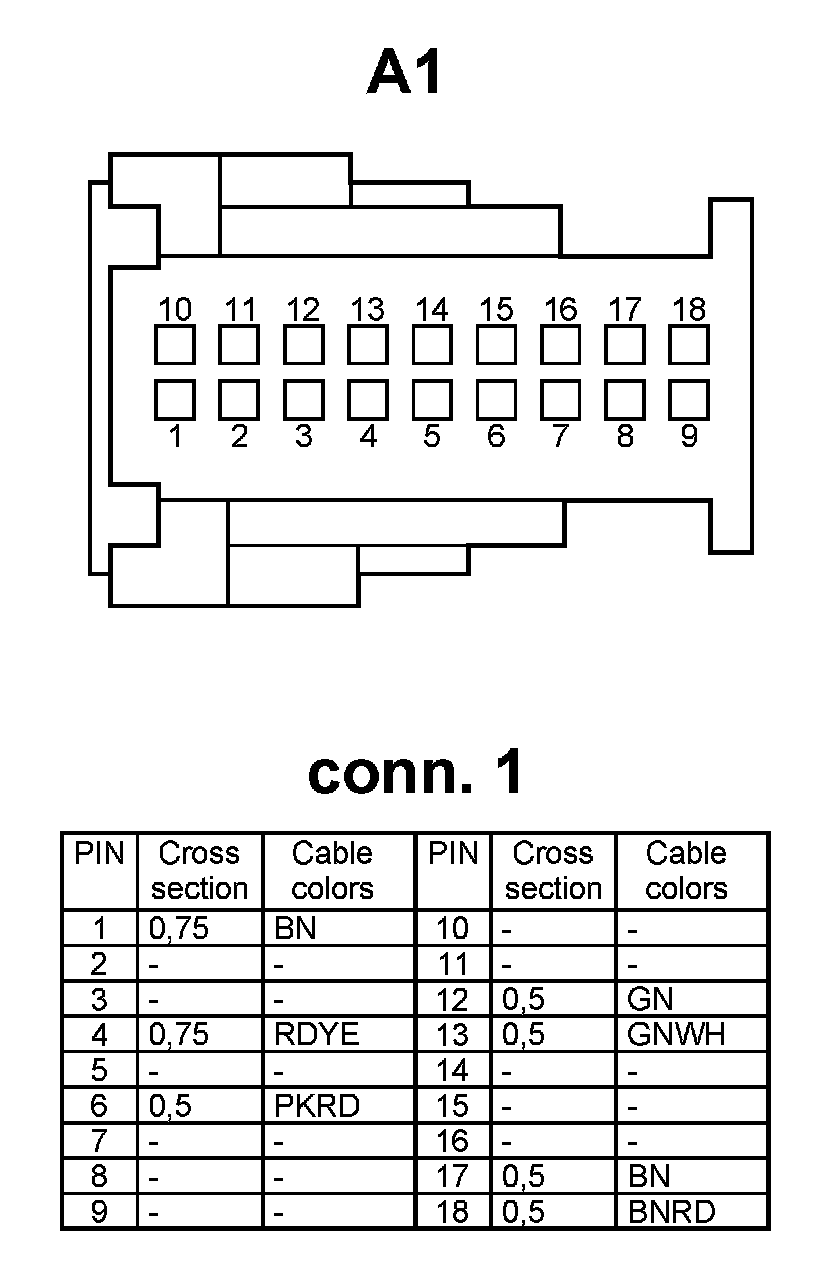

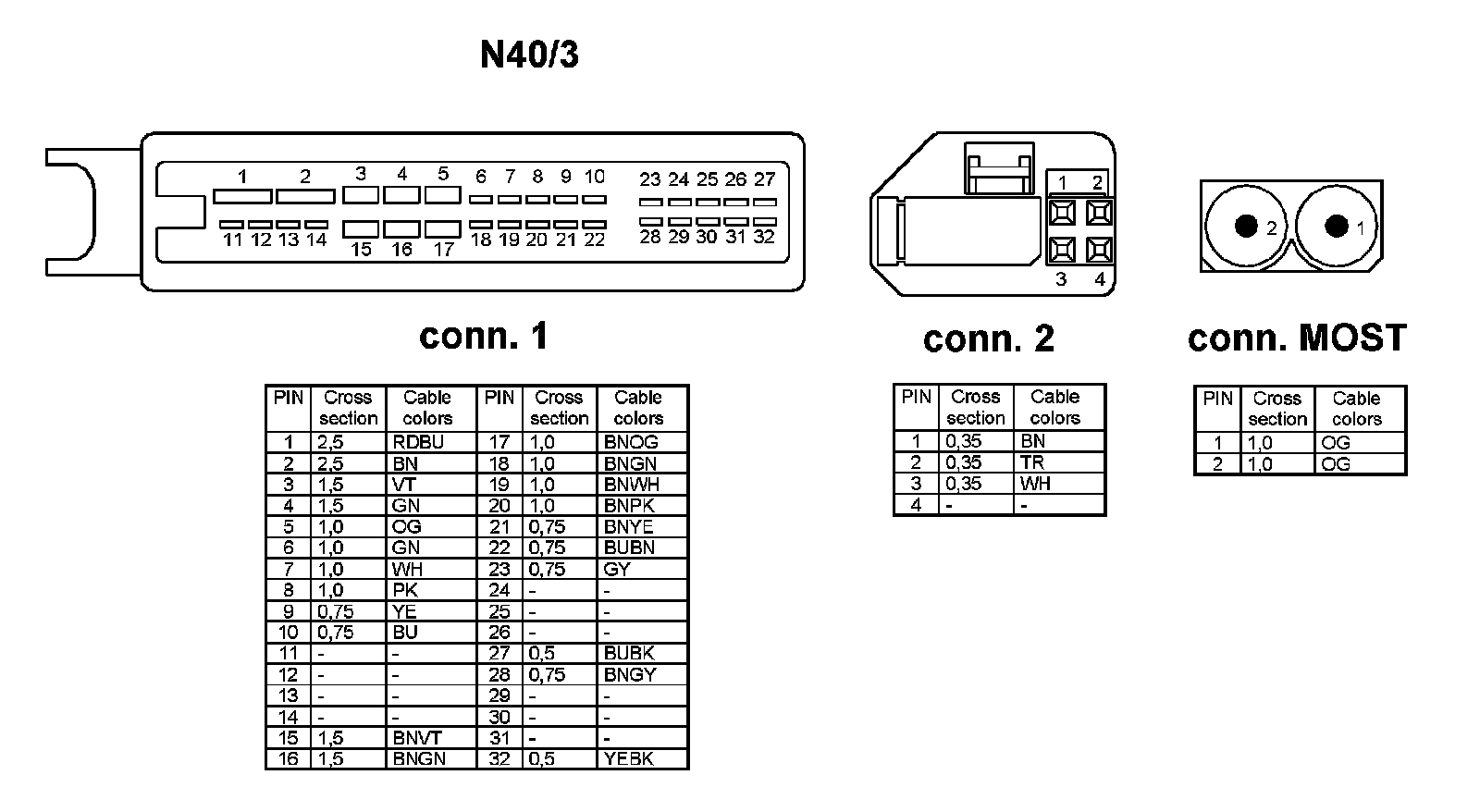

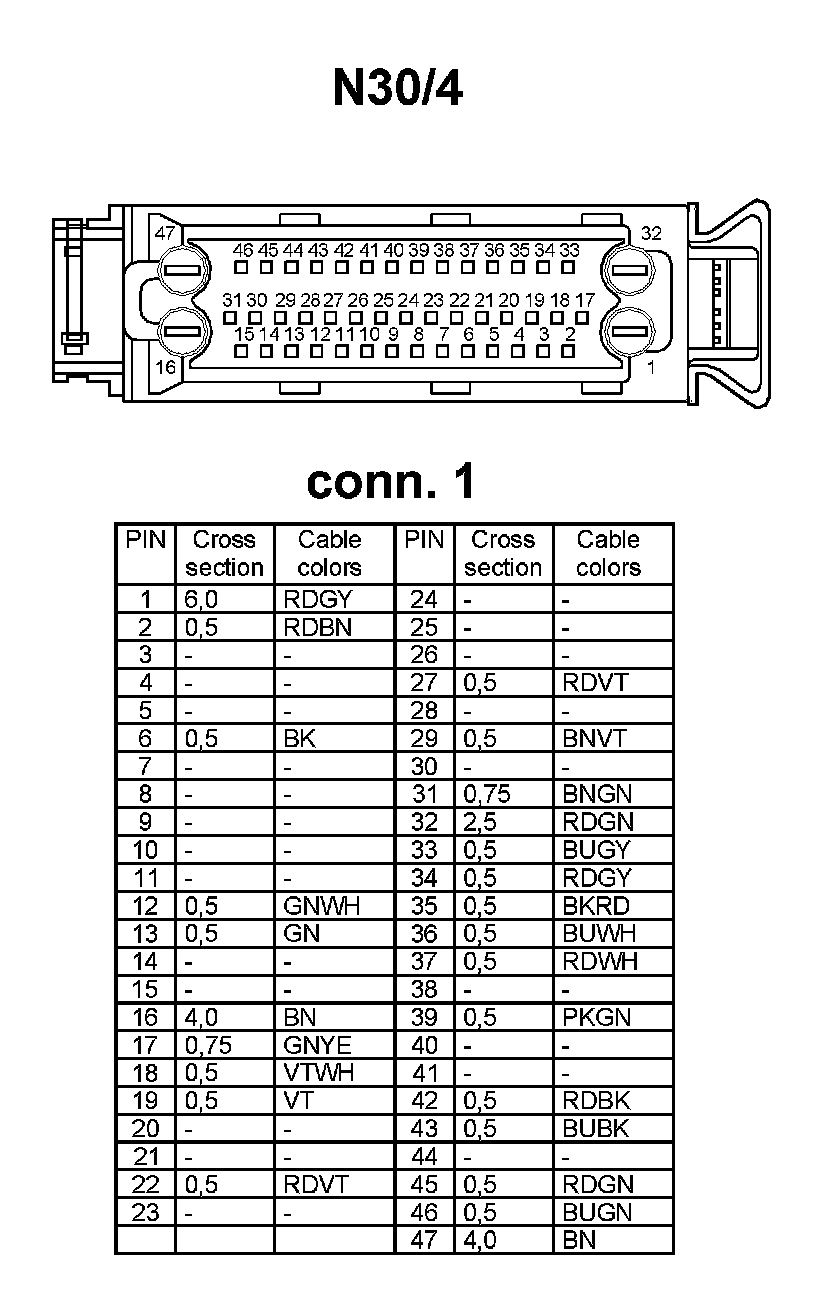

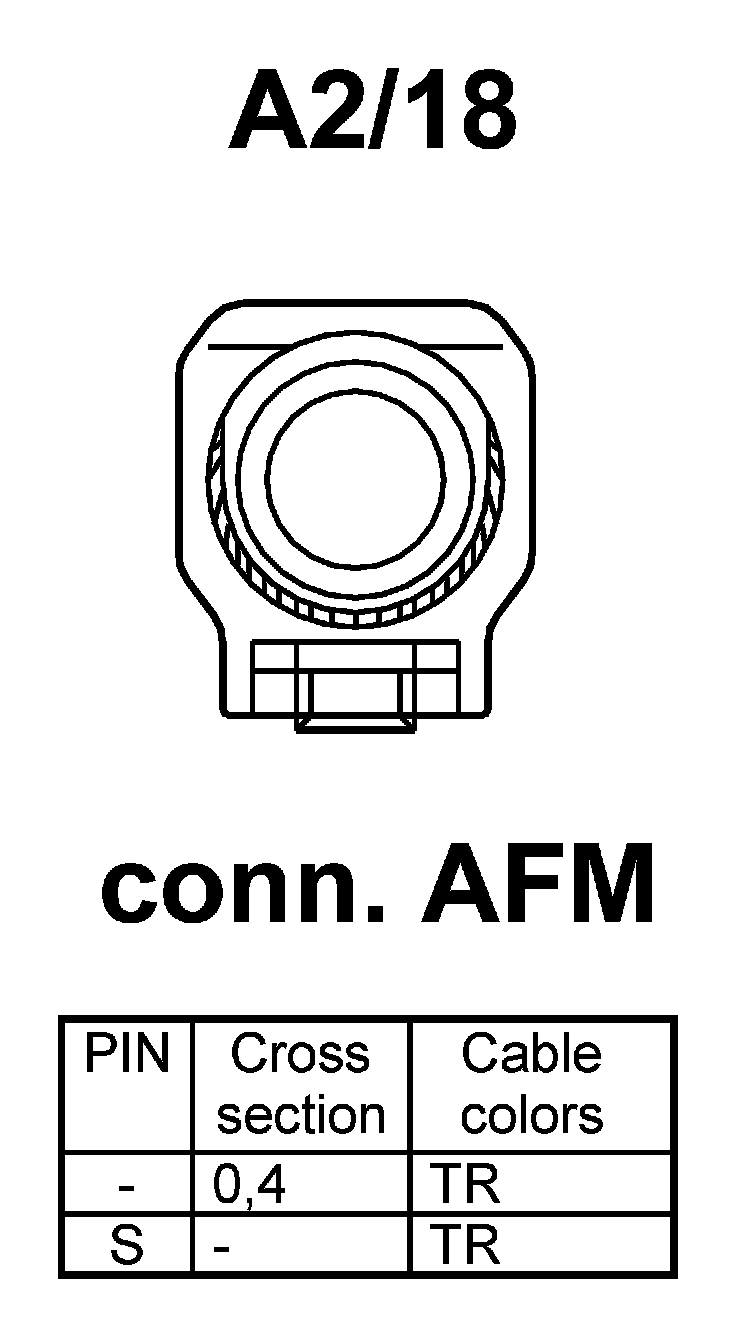

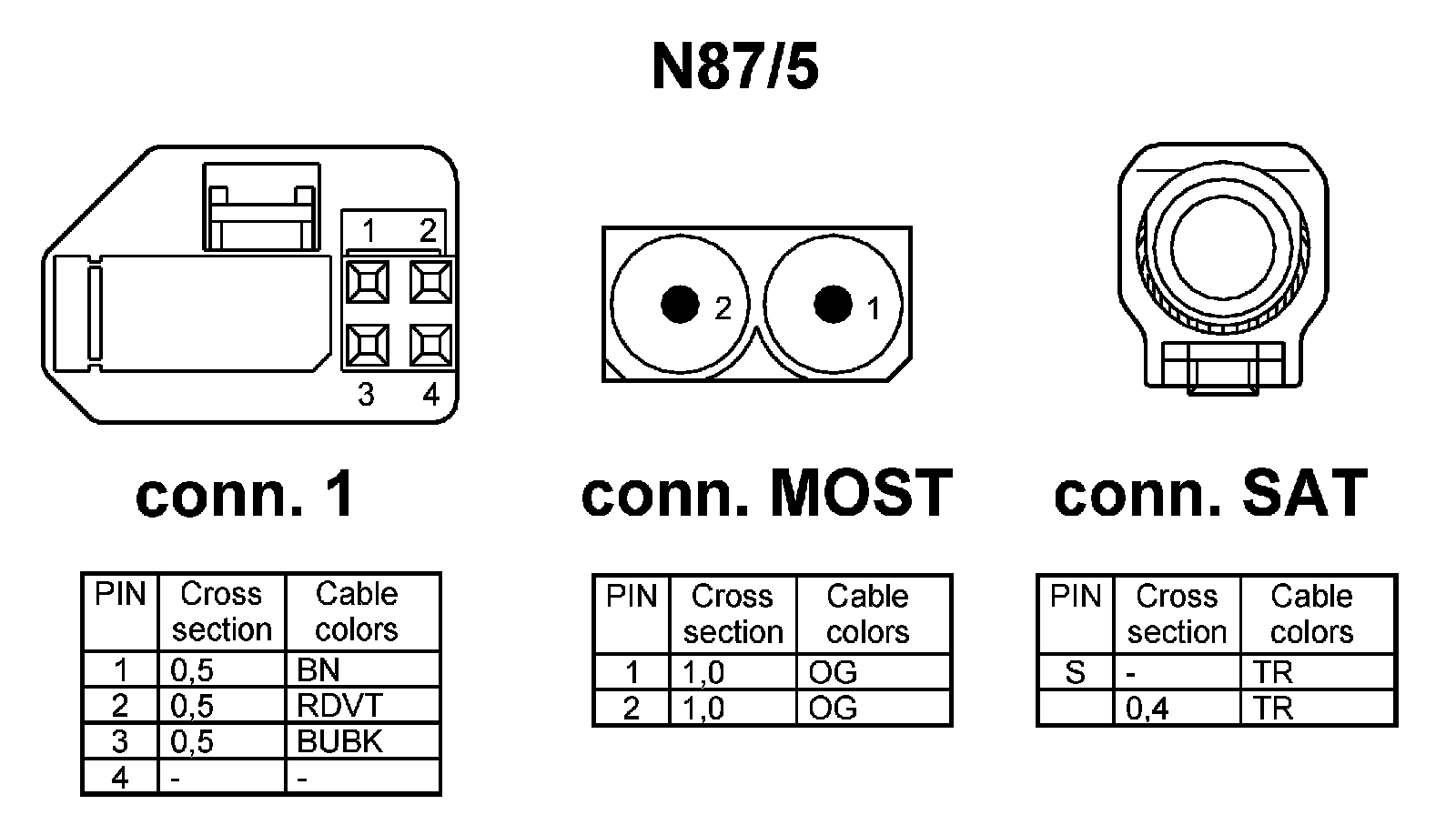

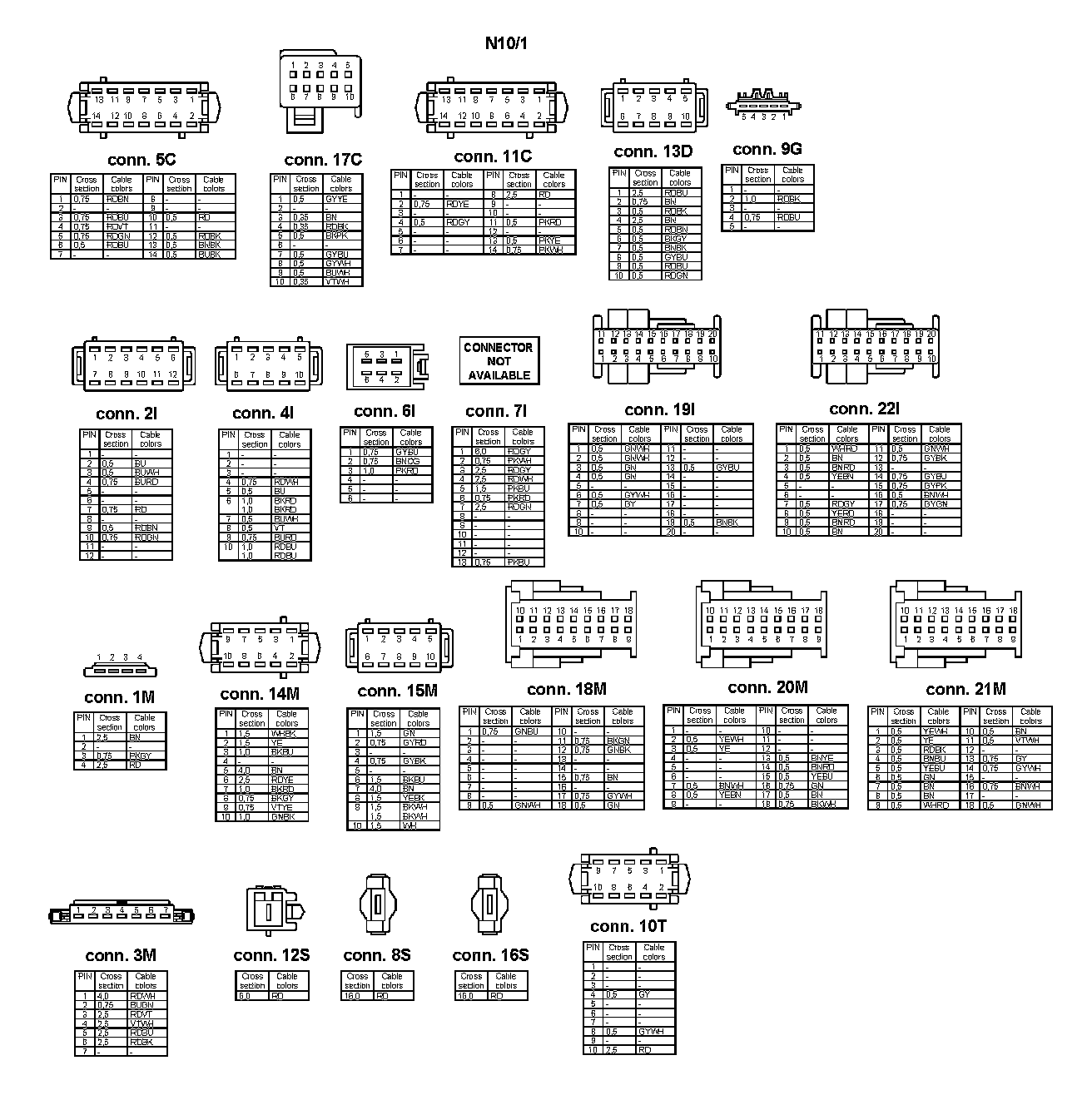

Component Locations: Component Location photographs can be found via their component names at the vehicle level. Component Locations
