AR42.10-P-0250CW Removing/Installing Brake Disk, Brake Caliper and Pads of Rear Wheel Brake

AR42.10-P-0250CW Removing/Installing Brake Disk, Brake Caliper and Pads of Rear Wheel Brake
MODEL 204 (except 204.077 /277 /377)

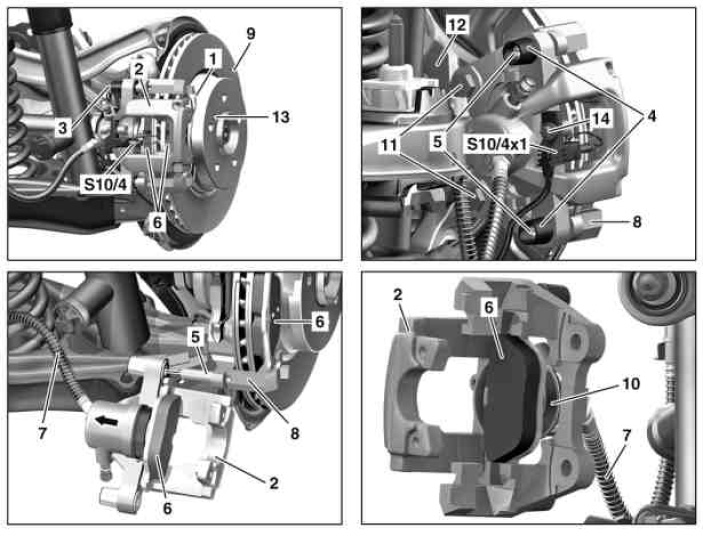

Illustrated on model 204.057

1 Spring
2 Brake caliper
3 Protective cap
4 Boot
5 Guide bolts
6 Brake pads
7 Brake hose
8 Caliper support
9 Brake disk
10 Dust boot
11 Bolts
12 Wheel carrier
13 Security bolt
14 Screw

S10/4 Right rear brake wear sensor
S10/4x1 Right rear brake wear sensor electrical connector

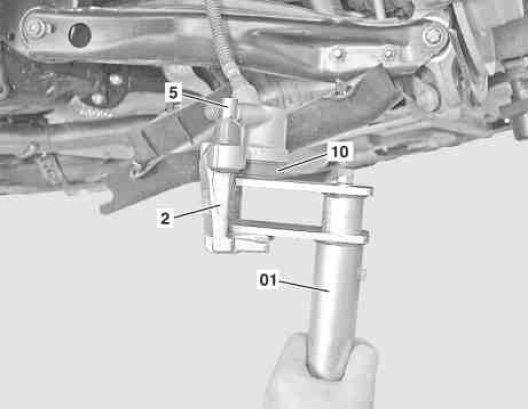

01 Pusher tool
2 Brake caliper
5 Guide bolts
10 Dust boot























000 589 52 43 00
Pusher tool





221 589 03 09 00
Wrench socket





129 589 00 91 00
Set of stop plugs
