AR42.10-P-0225CW Remove/Install Brake Disk, Brake Caliper and Brake Pads of The Front Wheel Brake

AR42.10-P-0225CW Remove/Install Brake Disk, Brake Caliper and Brake Pads of the Front Wheel Brake
MODEL 204.0 /2 /3 /9
With undivided brake caliper support

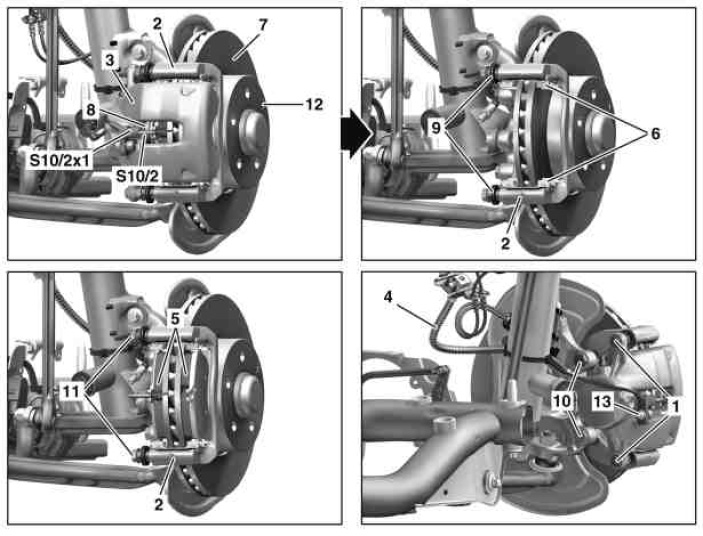

Illustrated on model 204.057

1 Bolts
2 Caliper support
3 Brake caliper
4 Brake hose
5 Brake pads
6 Spring steel sheets
7 Brake disk
8 Dust boot
9 Bellows
10 Bolts
11 Sliding bolt
12 Security bolt
13 Screw

S10/2 Right front brake wear sensor
S10/2x1 Right front brake wear sensor electrical connector

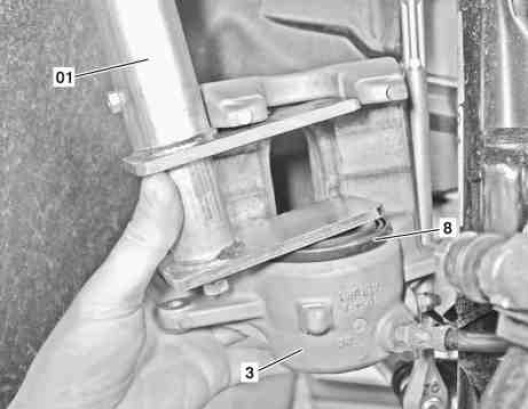

Shown on model 204.0

01 Pusher tool
3 Brake caliper
8 Dust boot




















000 589 52 43 00
Pusher tool
