Vacuum Pump: Service and Repair

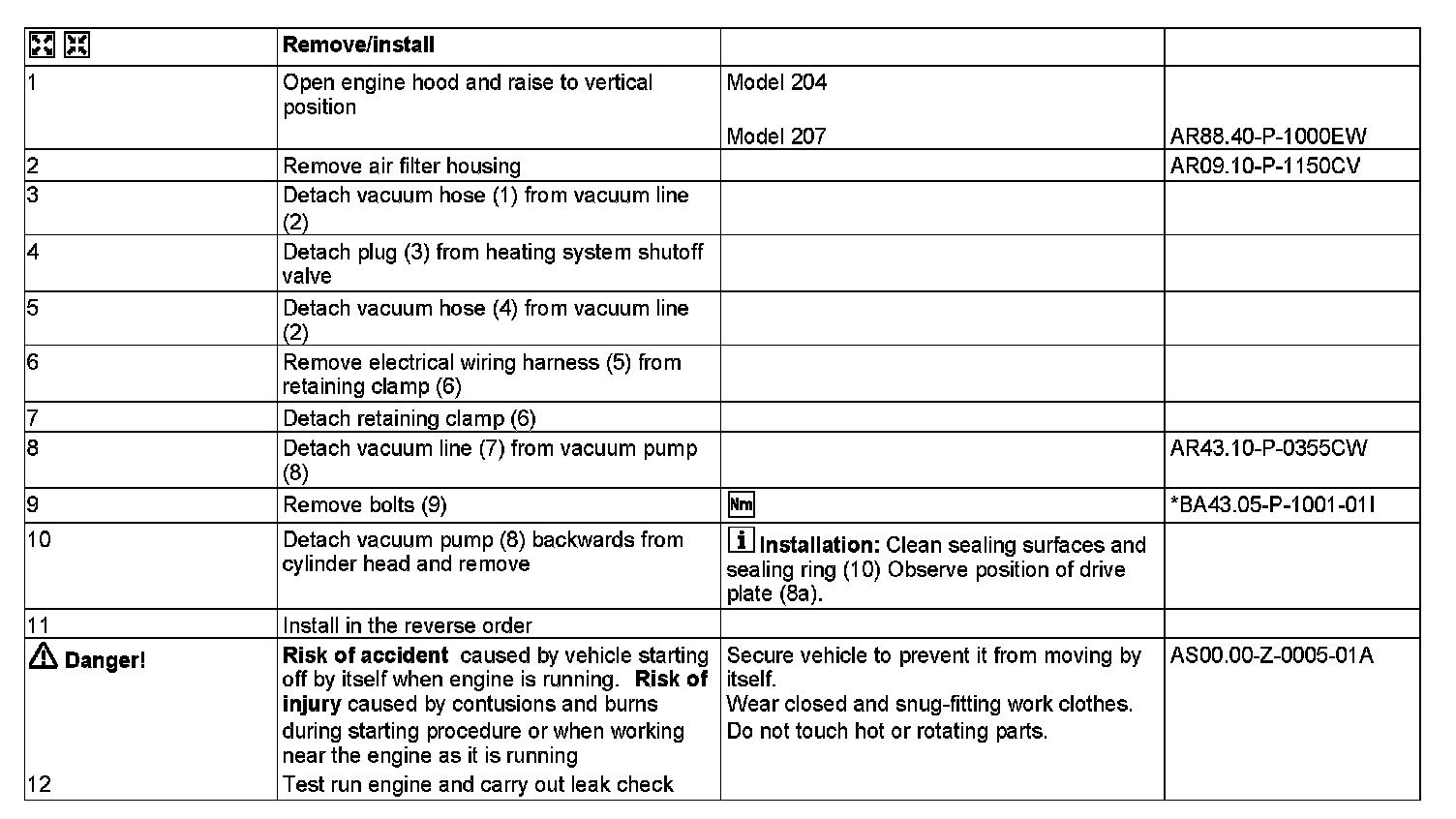

AR43.05-P-1320CV Remove/Install Vacuum Pump
MODEL 204.052 /054 /065 /081 /085 /252 /254 /981 with ENGINE 272
MODEL 207.357 /457 with ENGINE 272

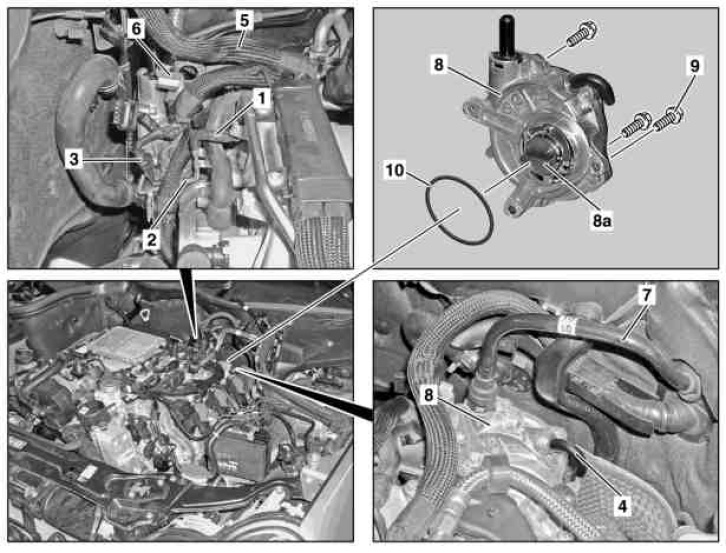

1 Vacuum hose
2 Vacuum line
3 Connector
4 Vacuum hose
5 Wiring harness
6 Retaining clamp
7 Brake booster vacuum line
8 Vacuum pump
8a Driver
9 Screw
10 Sealing ring
