Removal and Replacement



AR42.20-P-0530CW Remove/install brake shoes of parking brake

Component Identification:

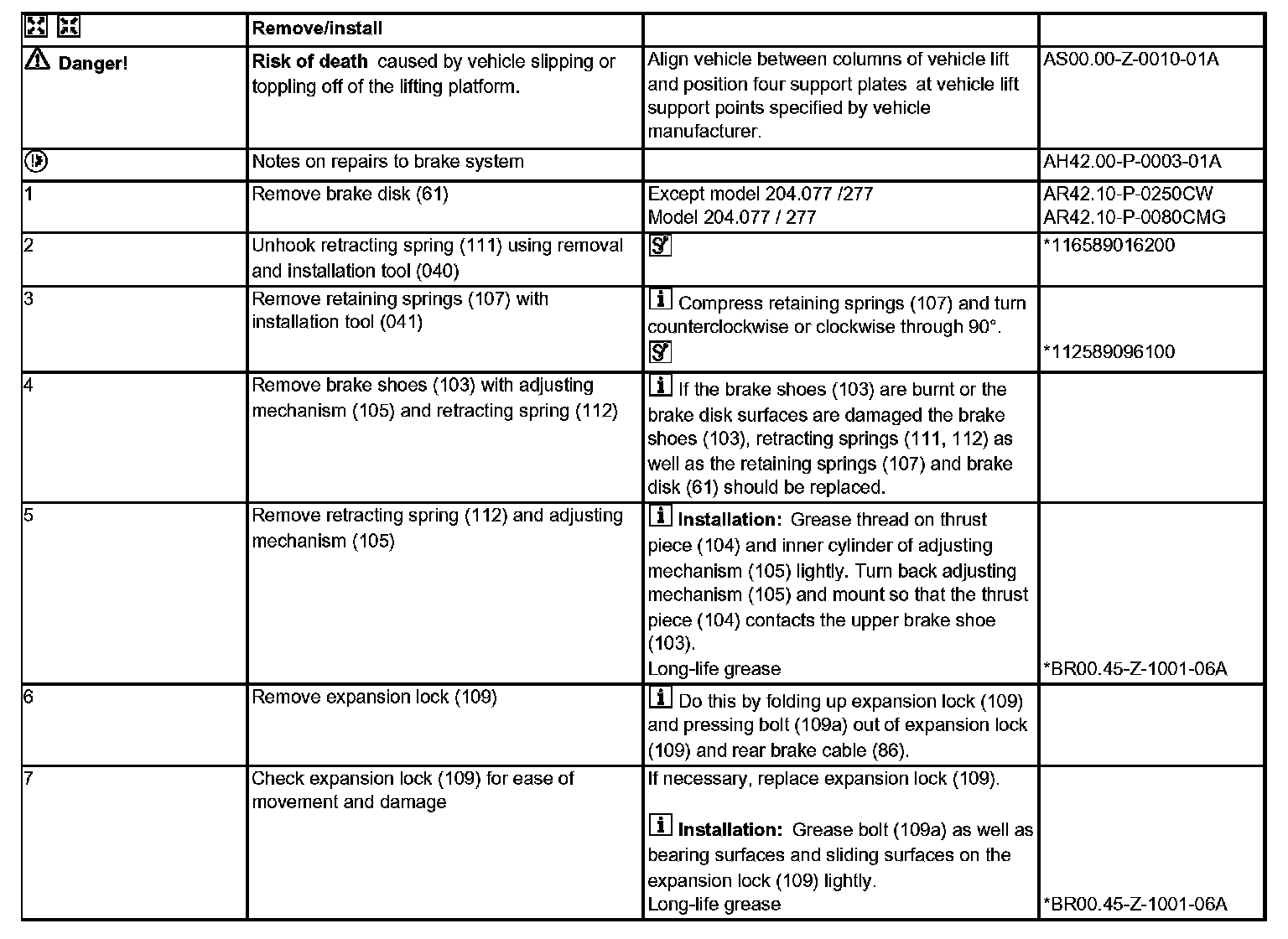

Remove/install Steps 1-7:

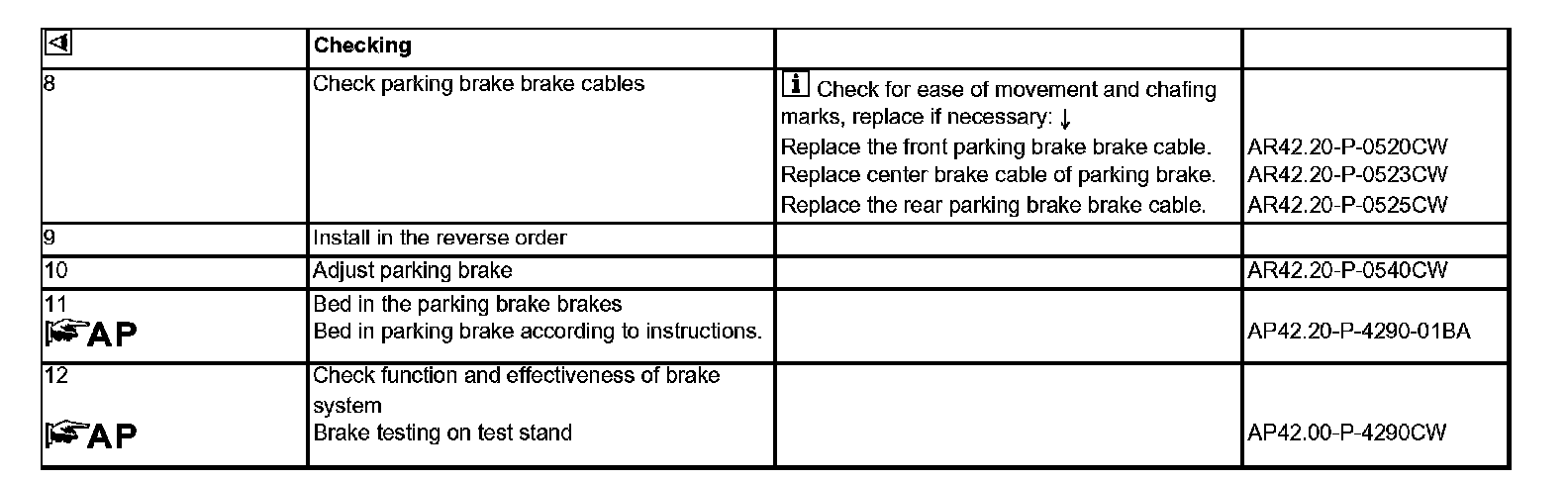

Remove/install Steps 8-12:

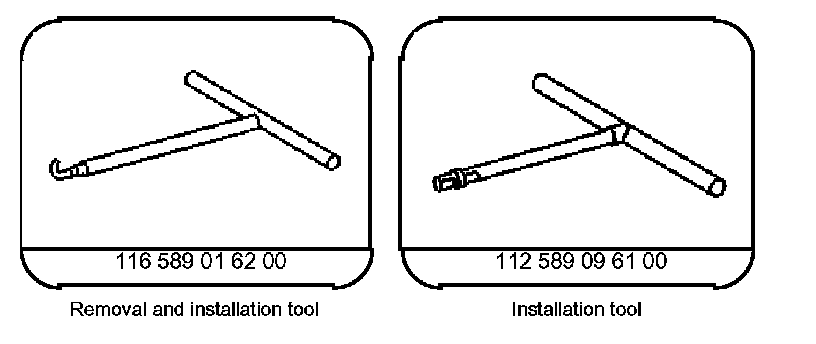

Special Tools:

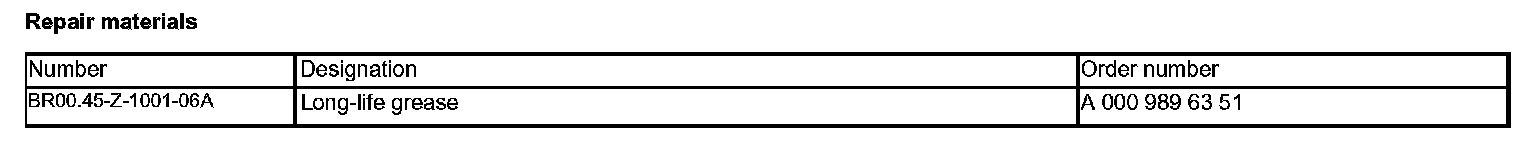

Repair materials:
