Parking Brake System: Adjustments
AR42.20-P-0540CW Adjust parking brake

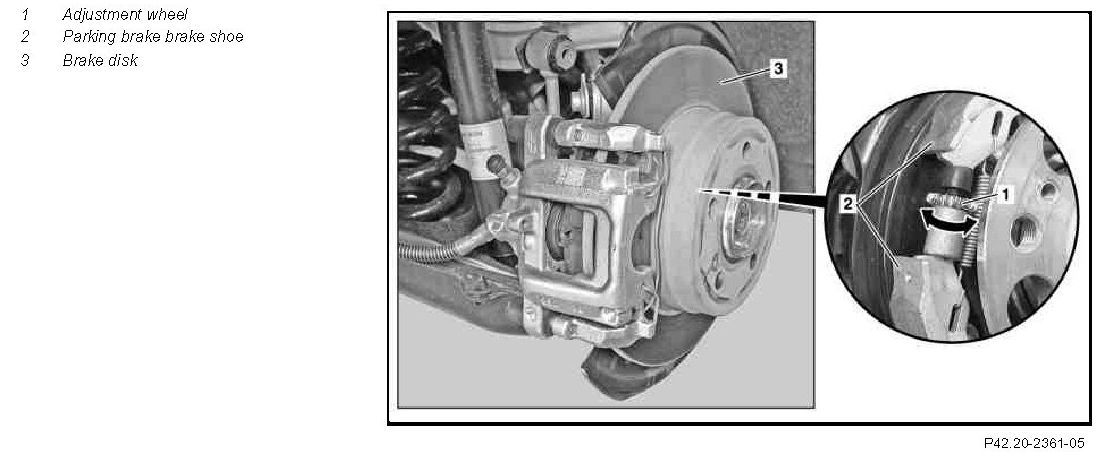

Component Identification:

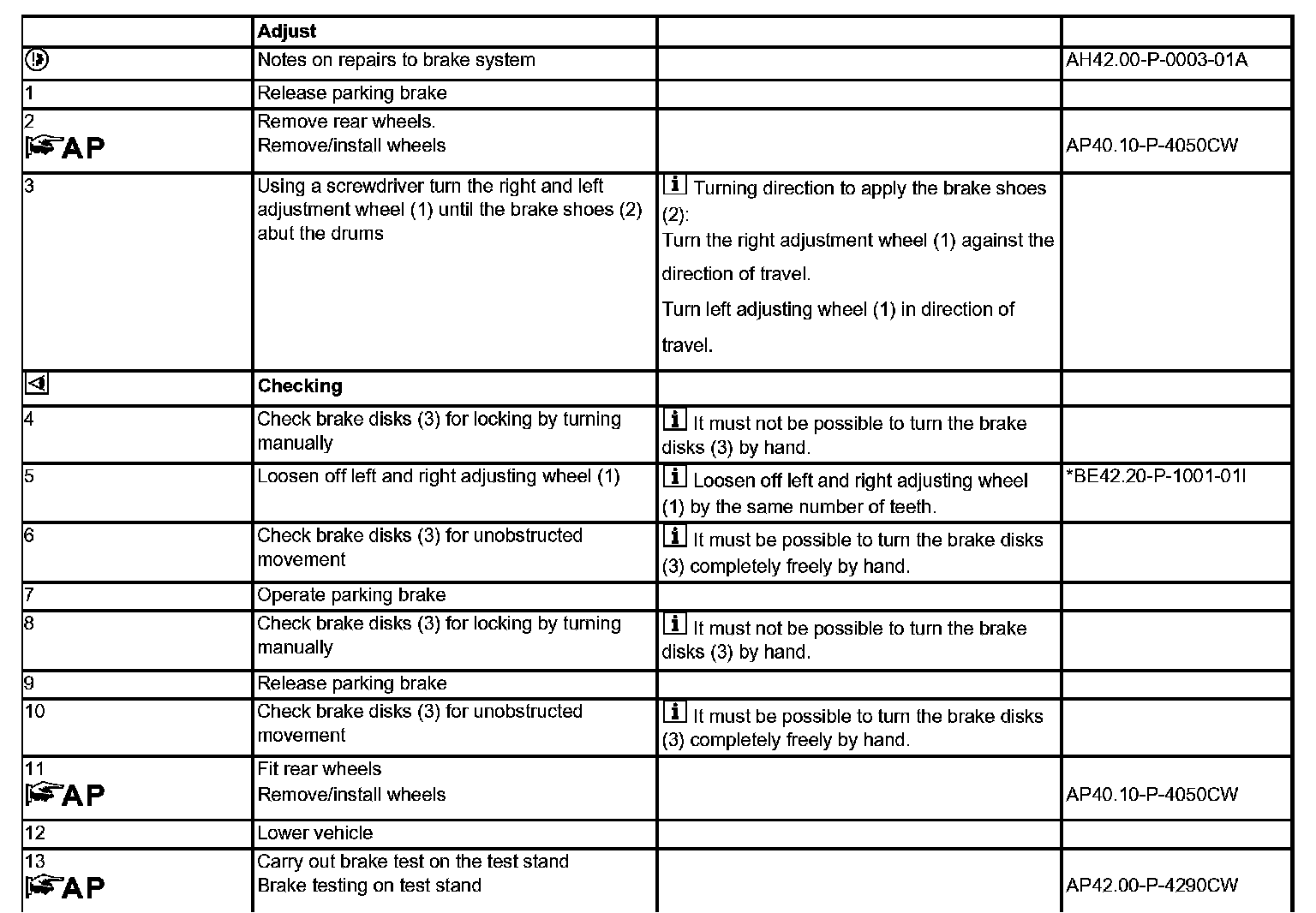

Steps 1-13:

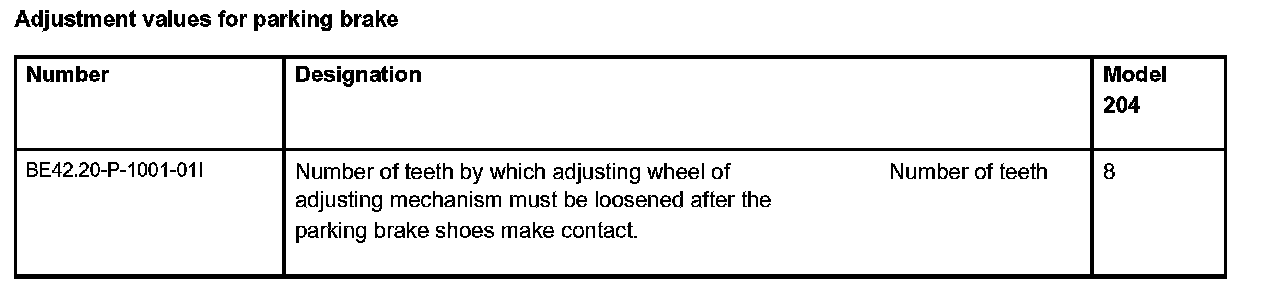

Adjustment values for parking brake:
