Electrical Diagrams

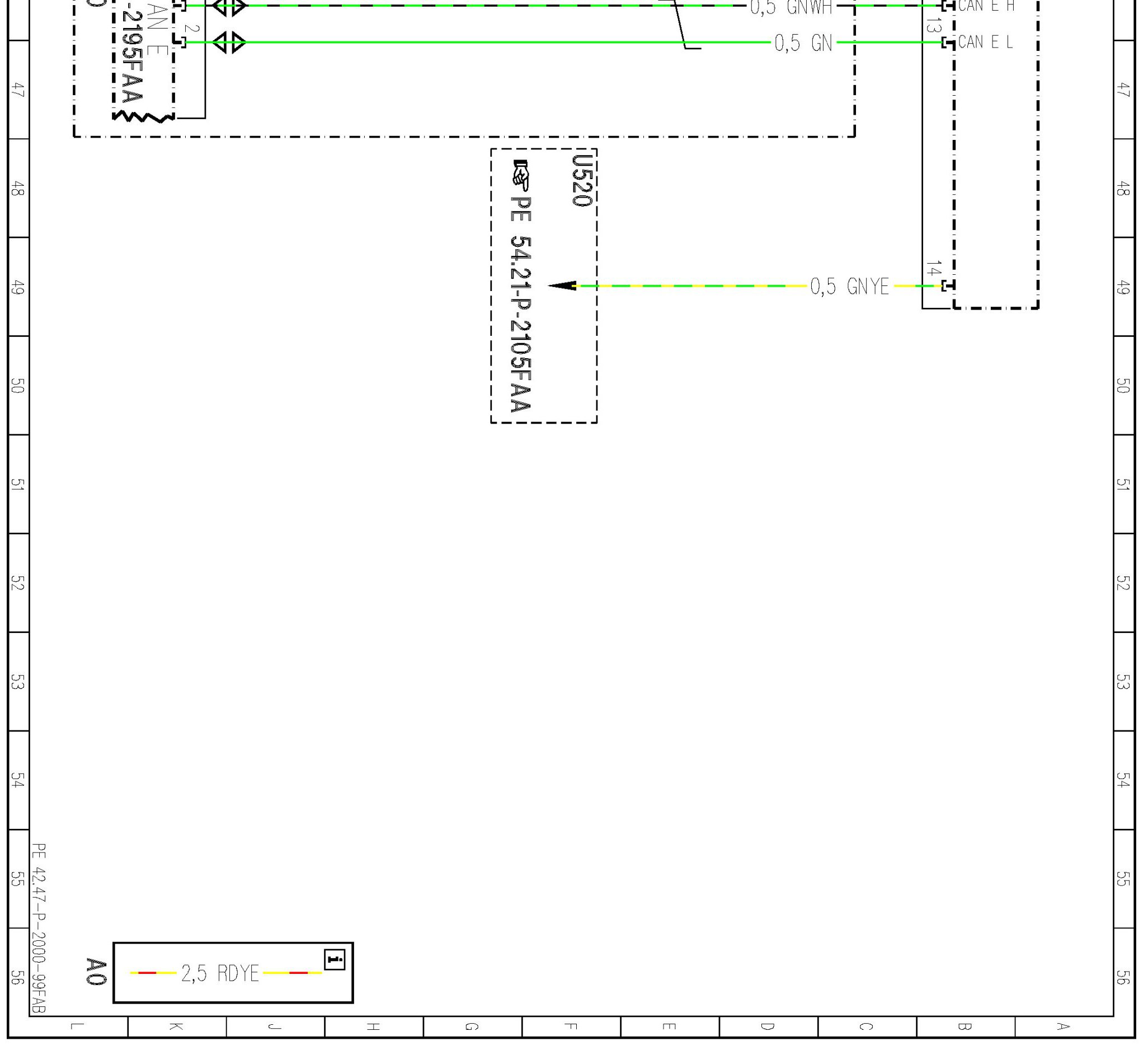

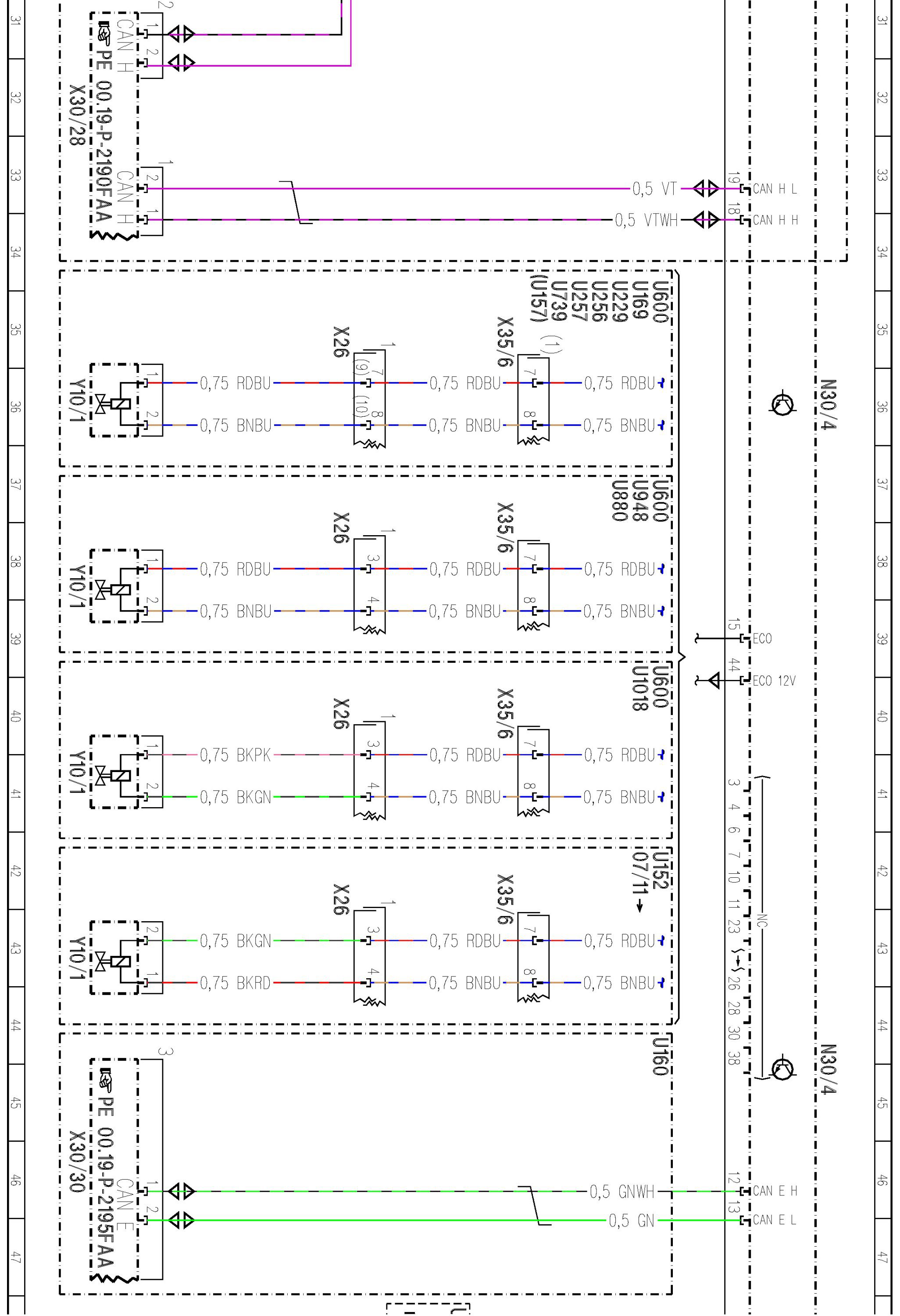

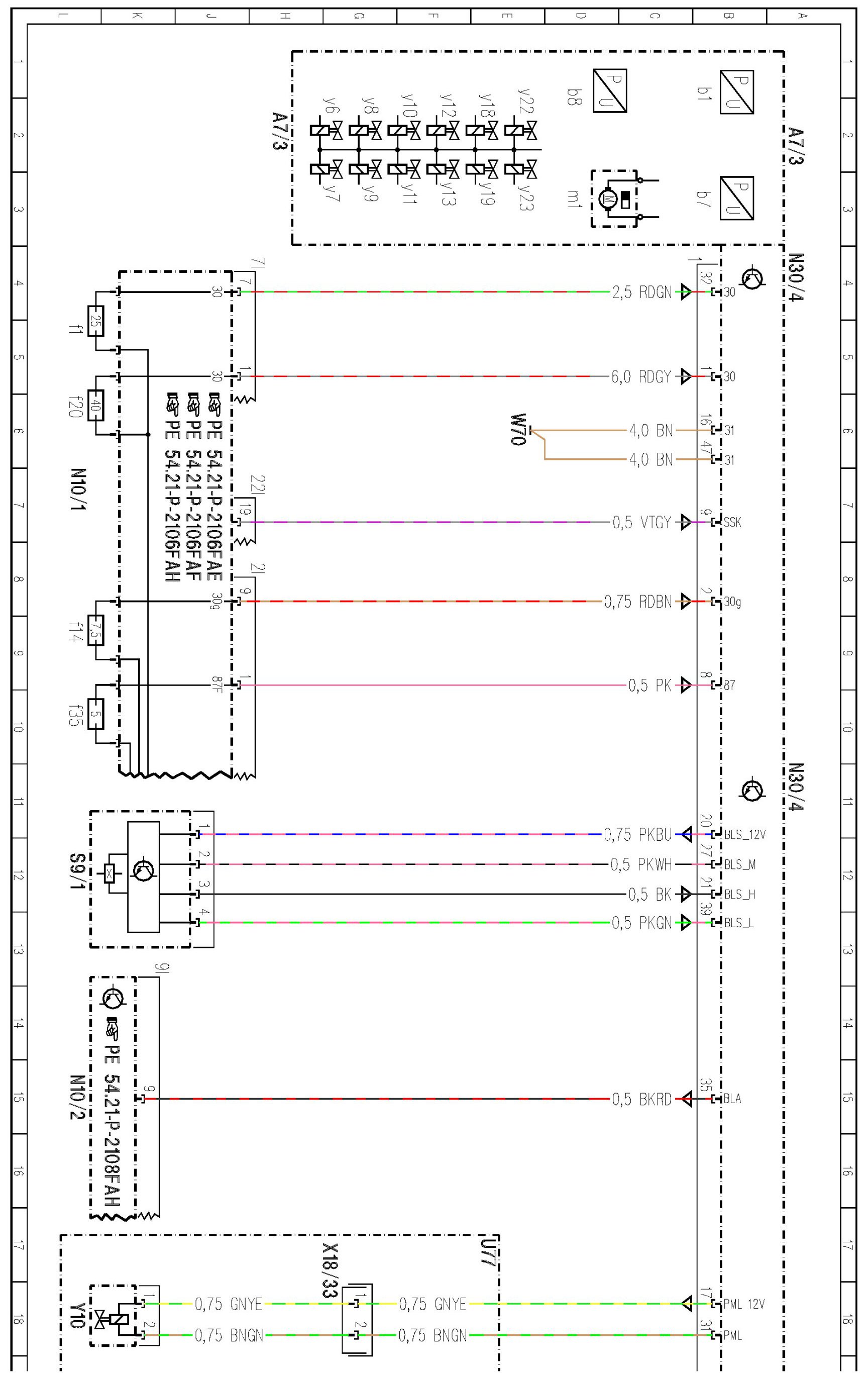

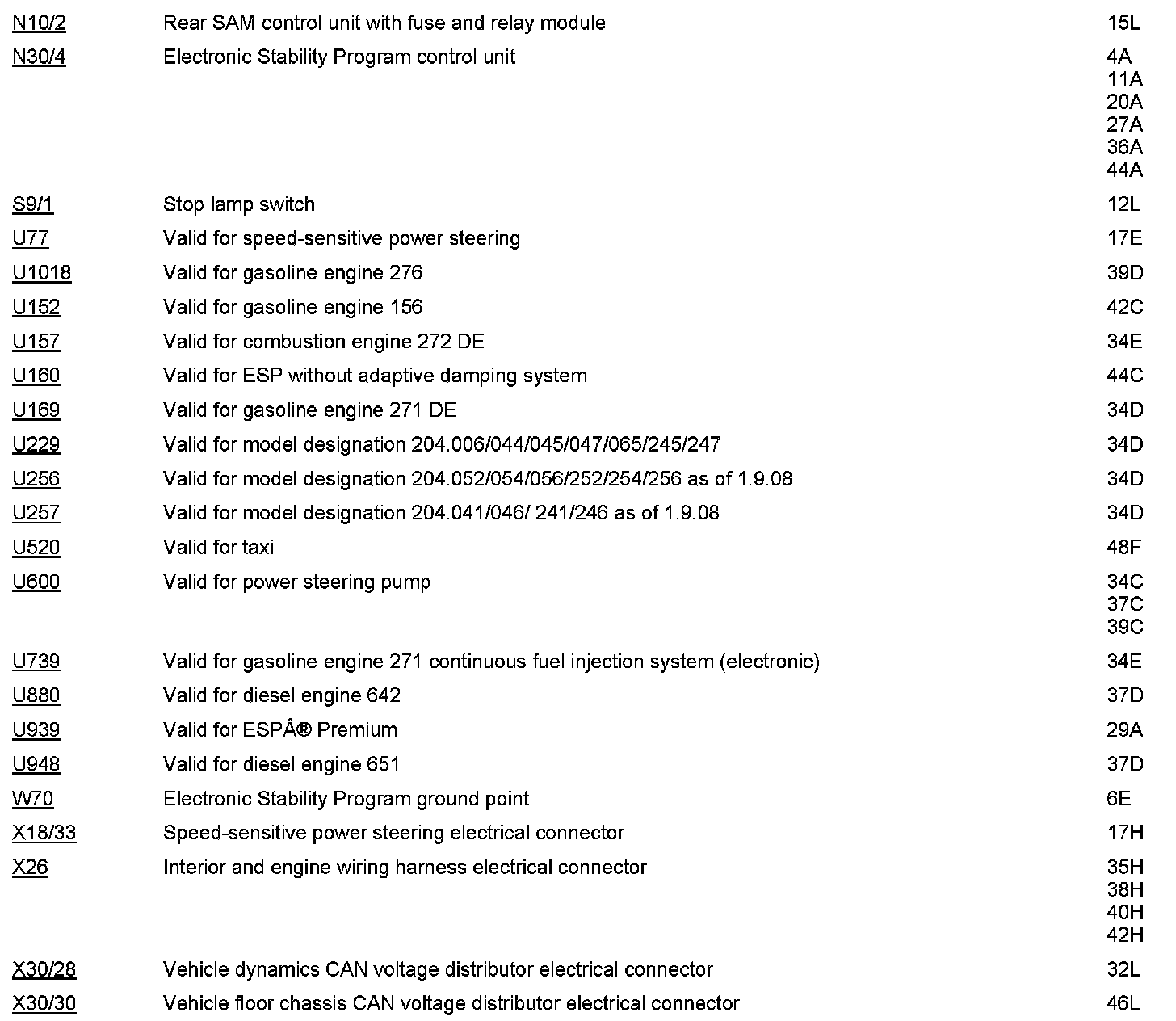

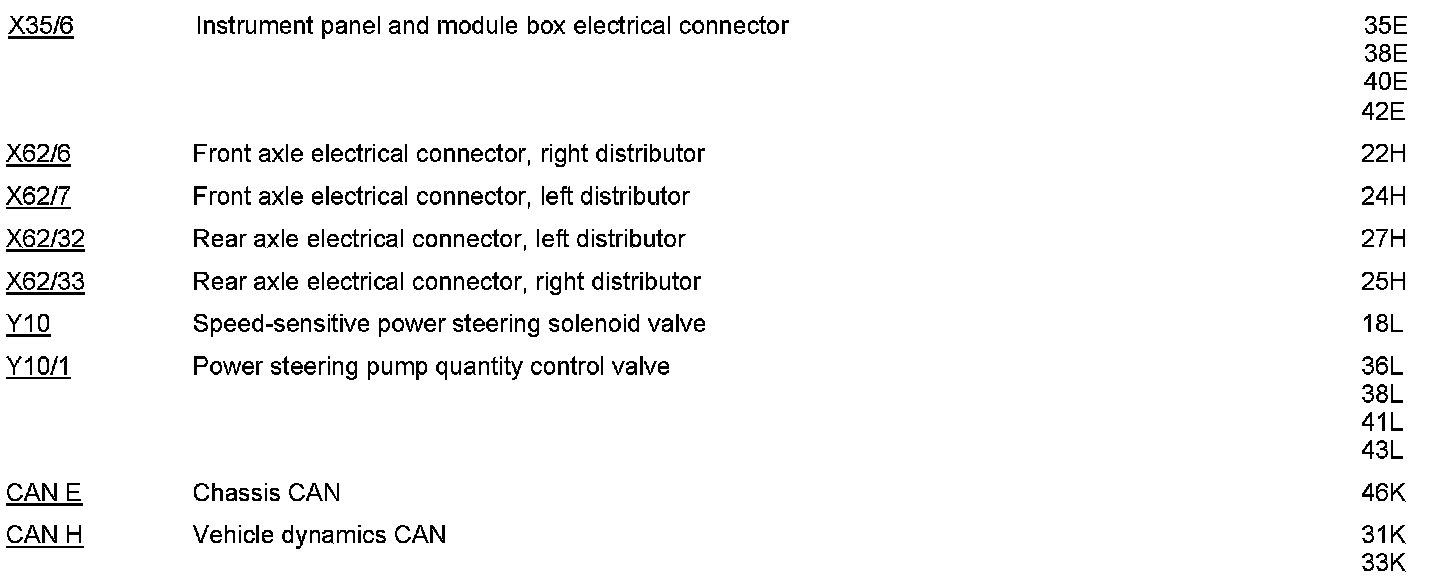

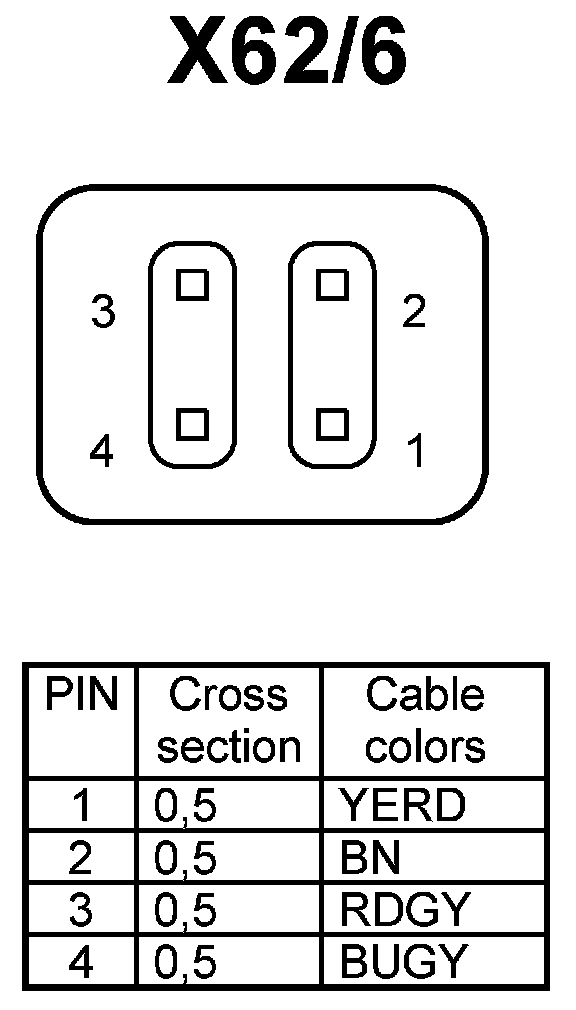

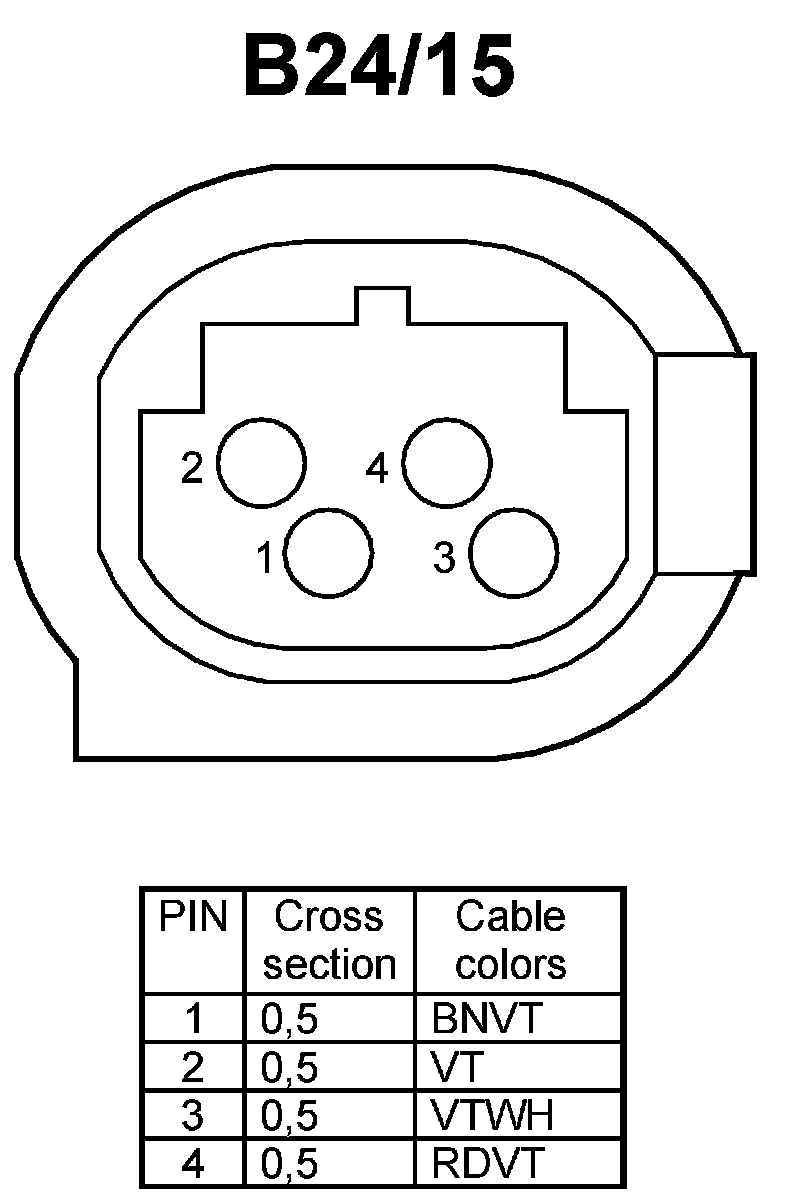

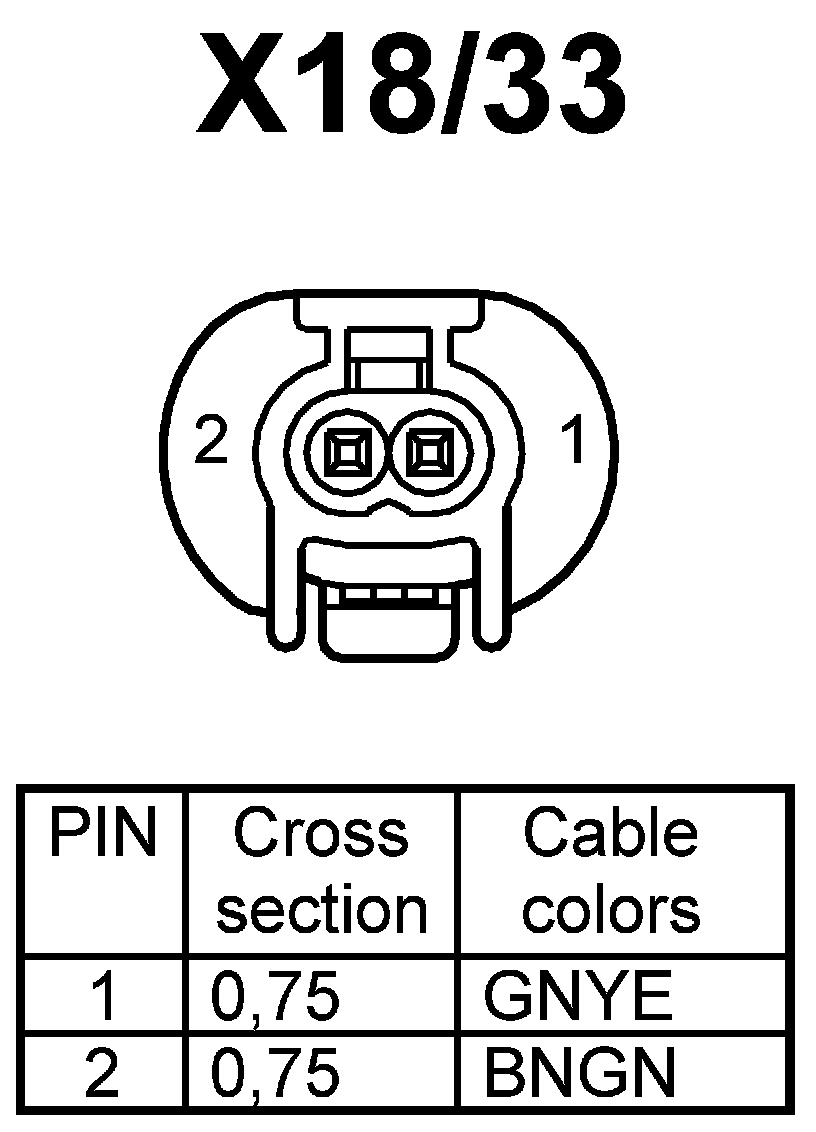

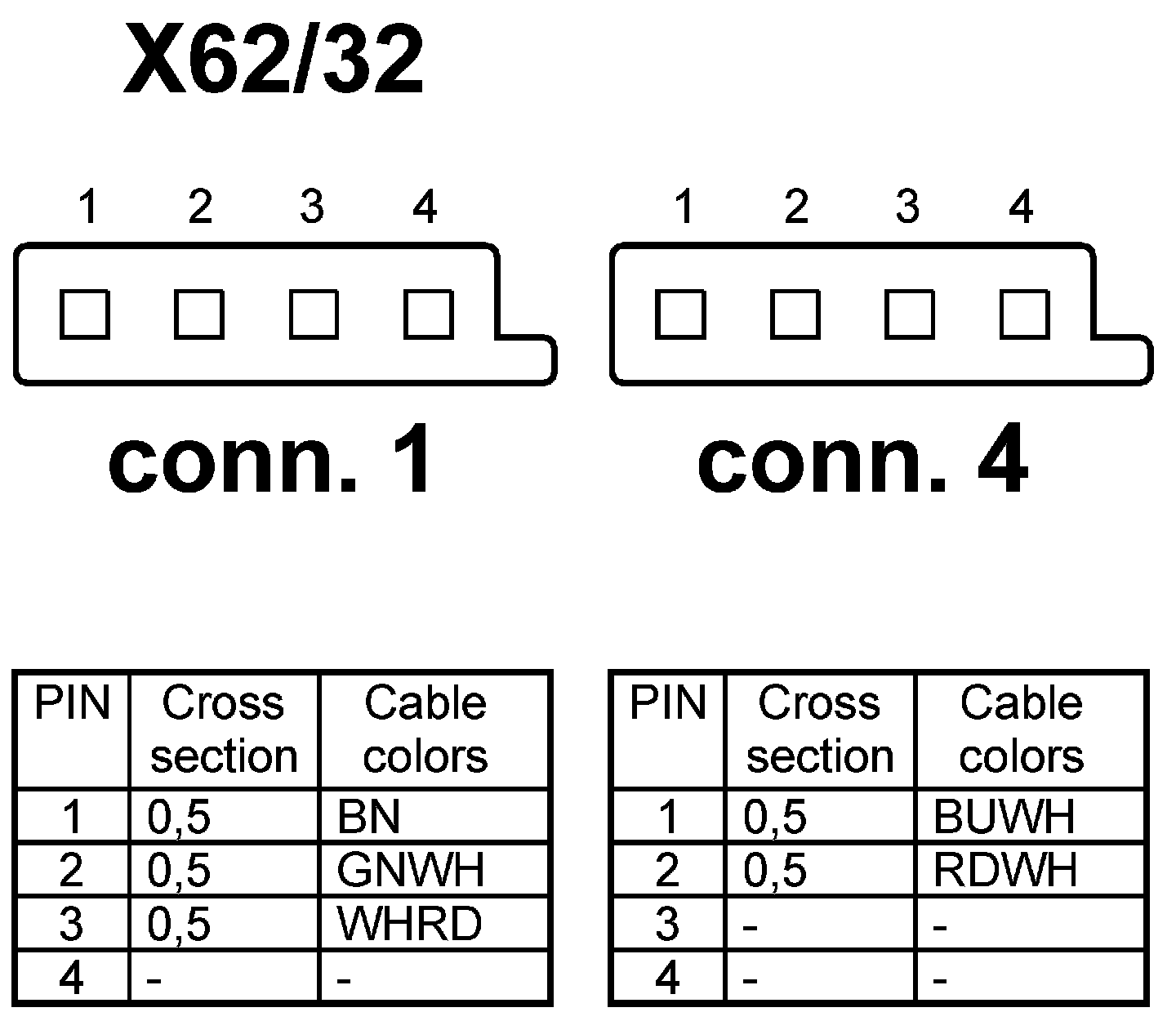

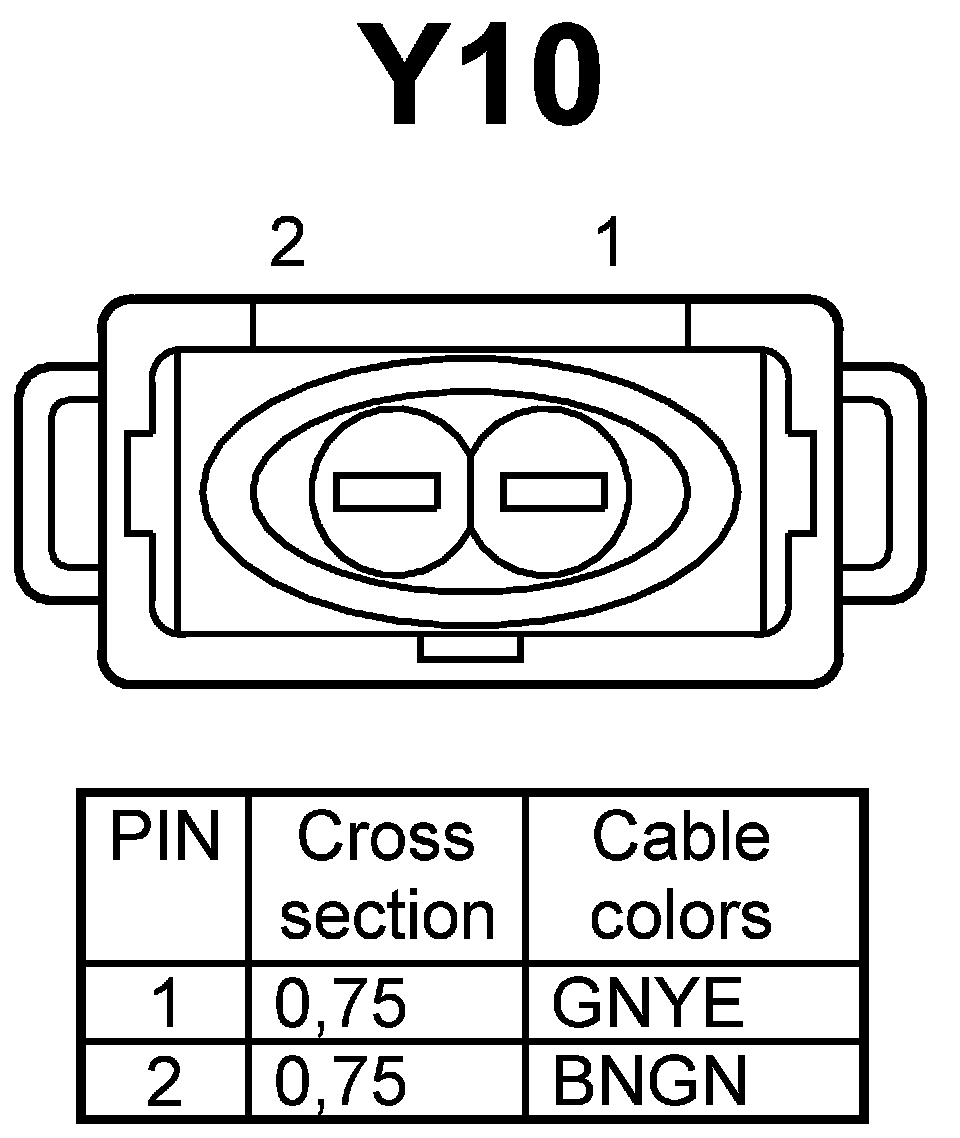

PE42.47-P-2000FAB Adaptive Brake (ABR)

MODEL 204.0 /2
- as of 03/01/11 Basis, Premium,

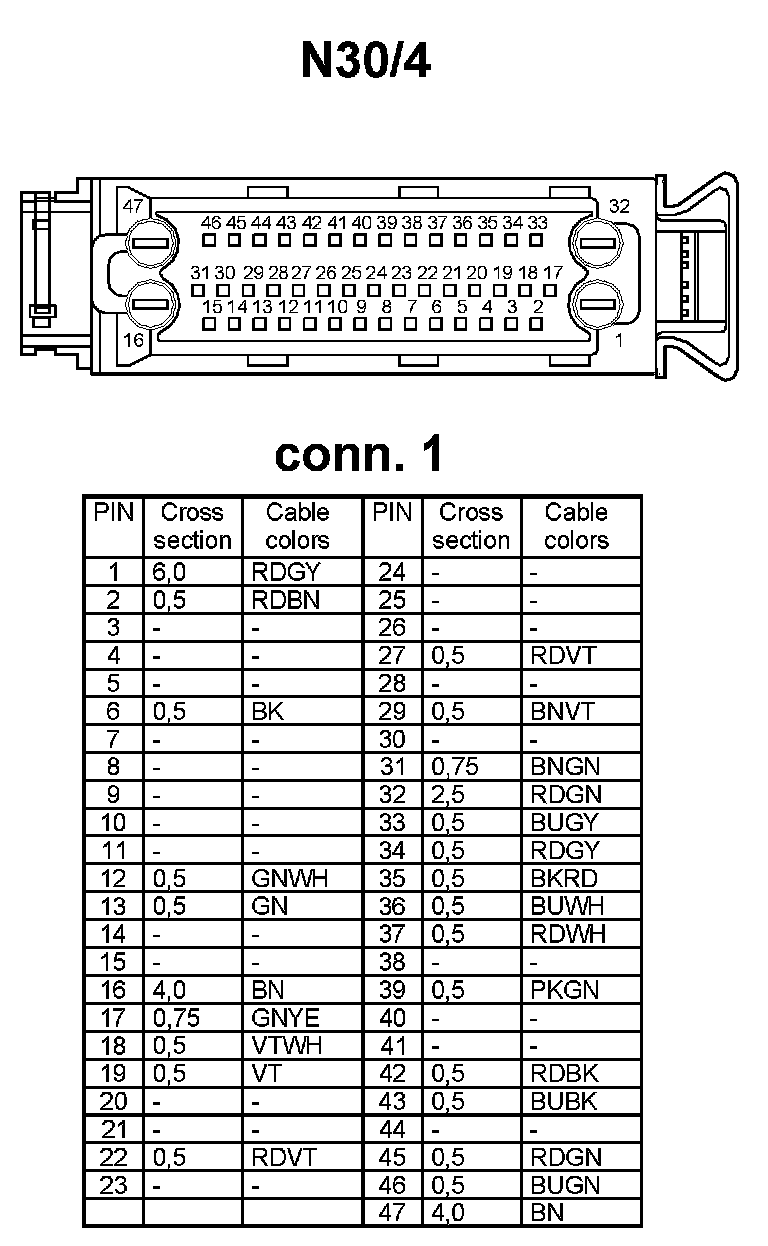

- control unit A7/3 and N30/4

MODEL 204.9
- as of 06/01/11 Basis,

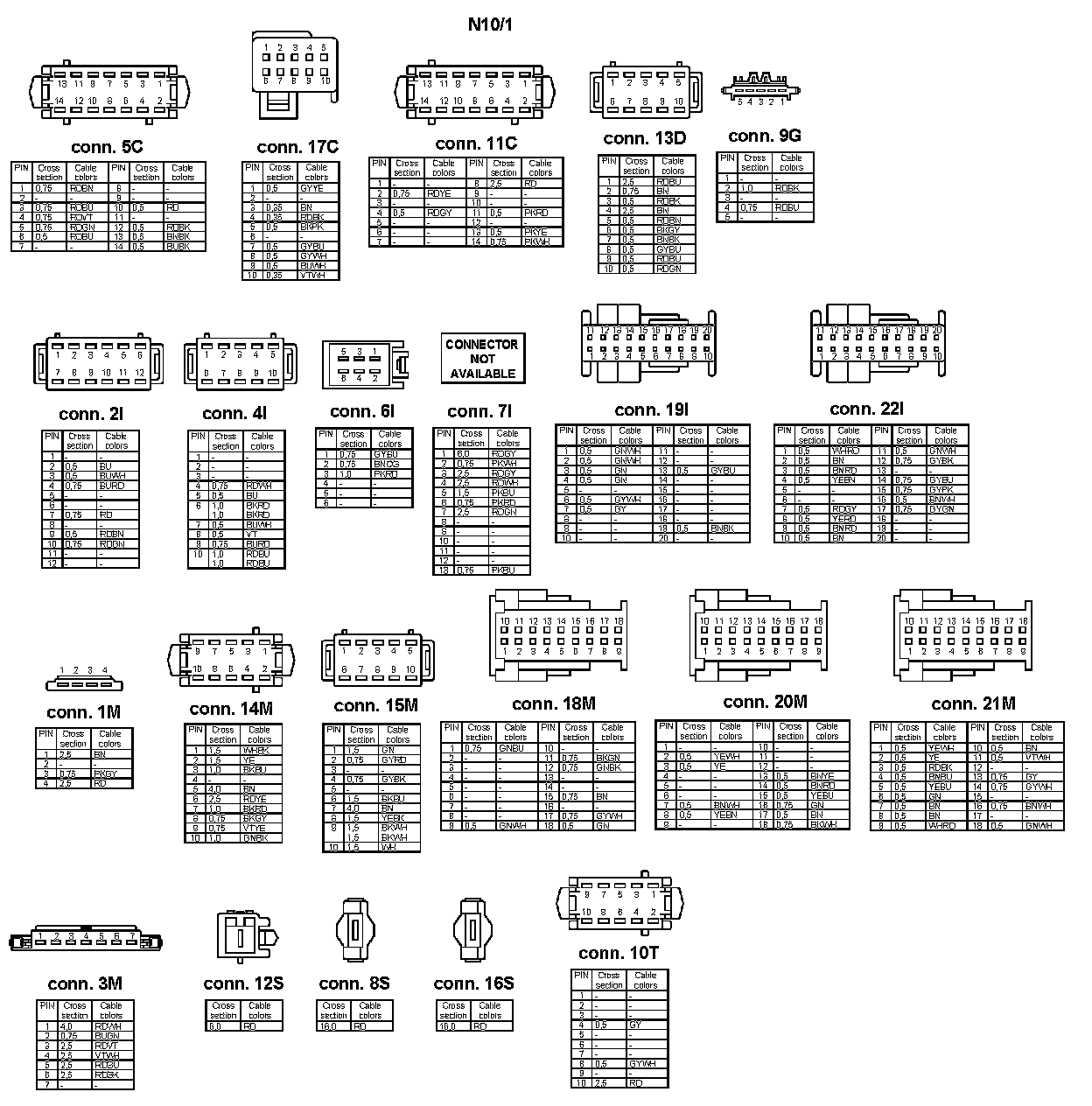

- control unit A7/3 and N30/4

MODEL 204.3 Basis, Premium,
- control unit A7/3 and N30/4

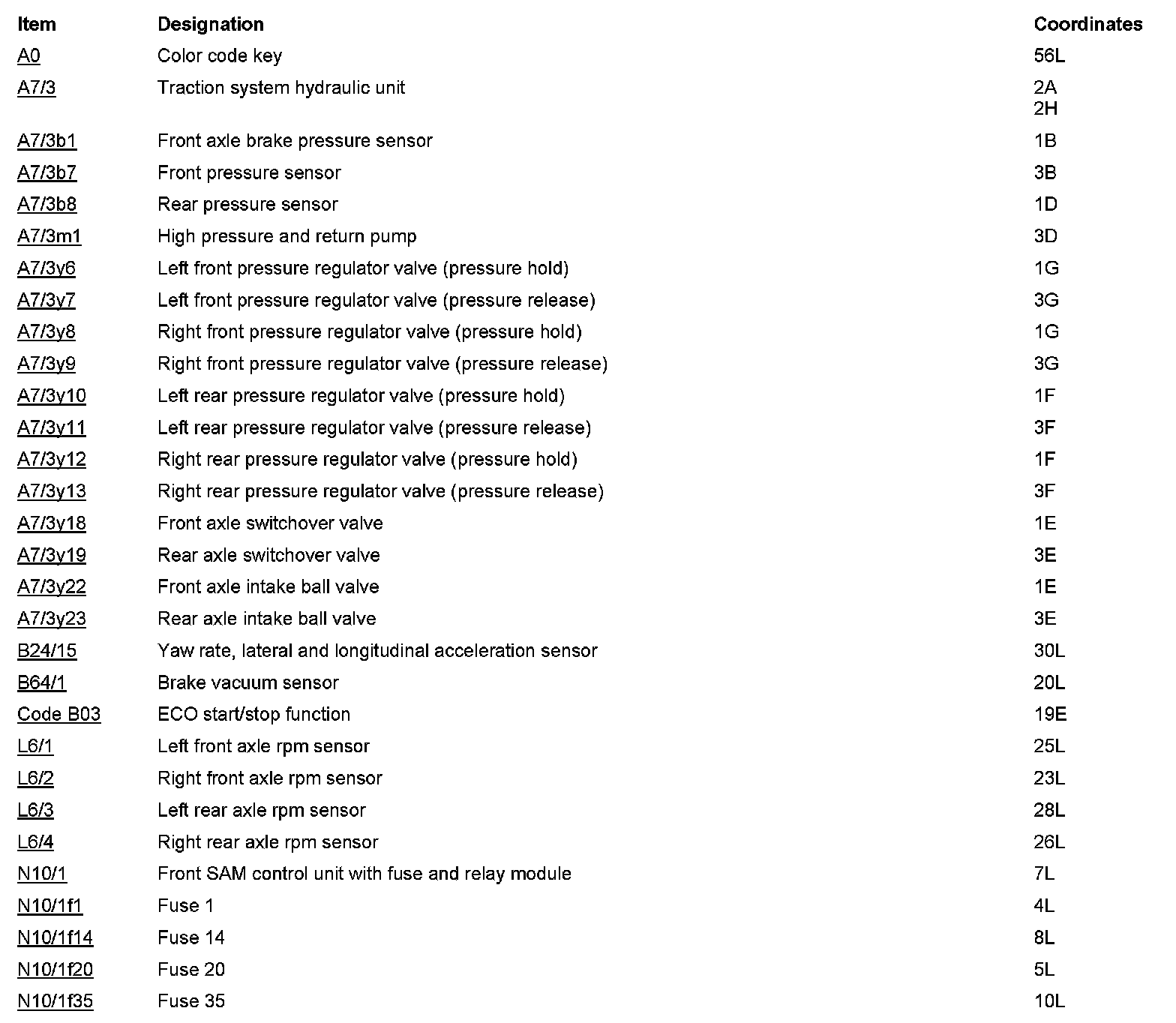

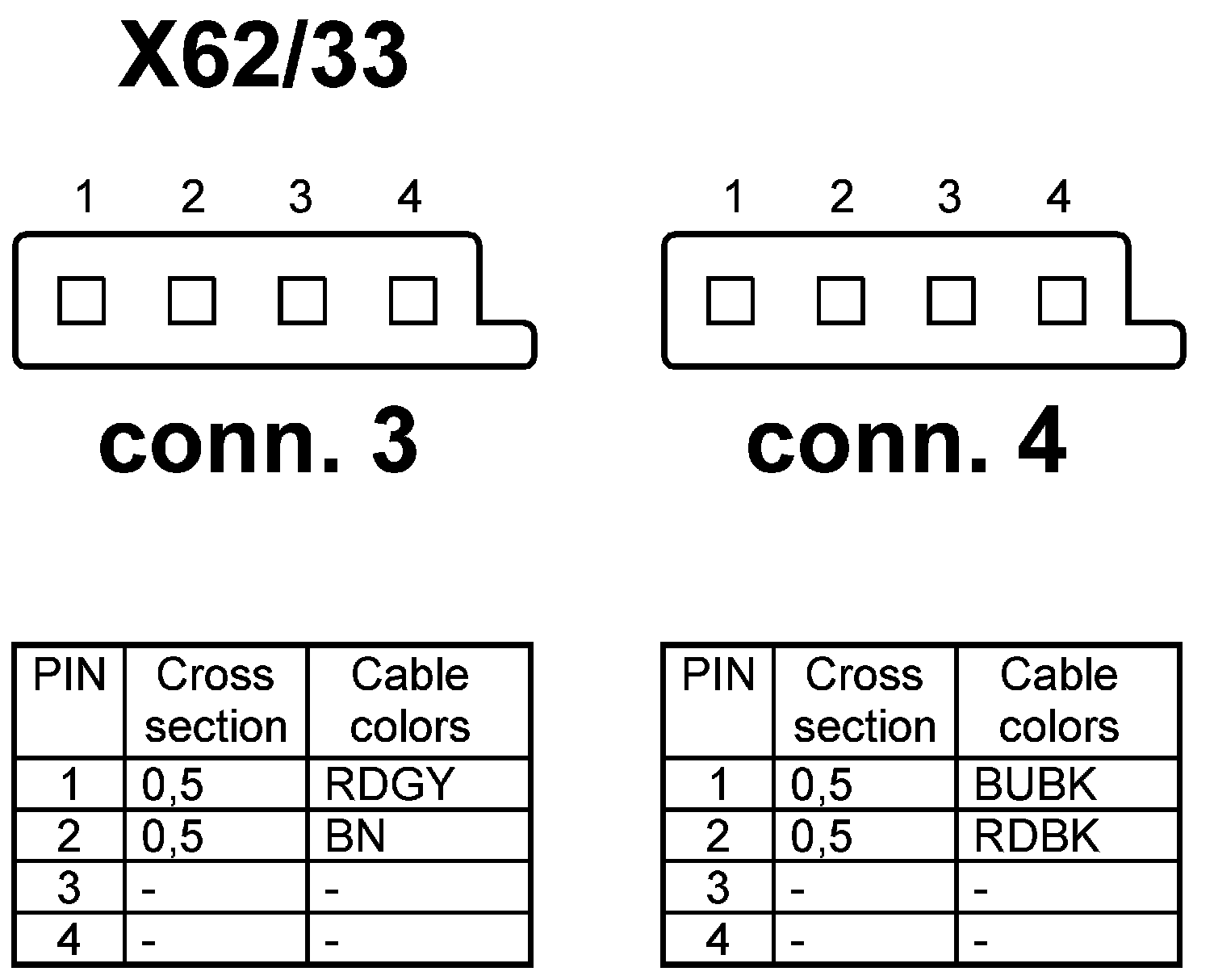

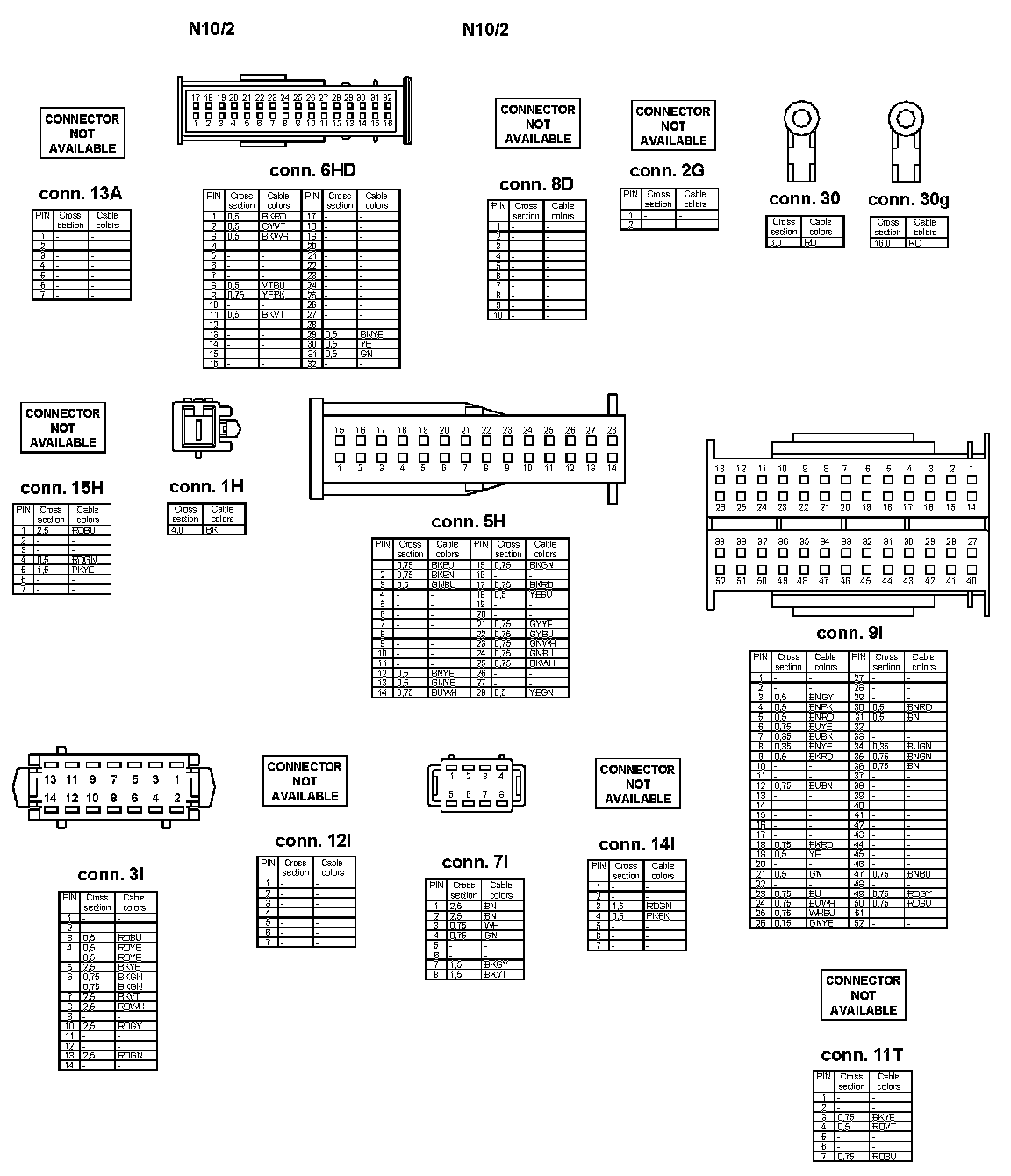

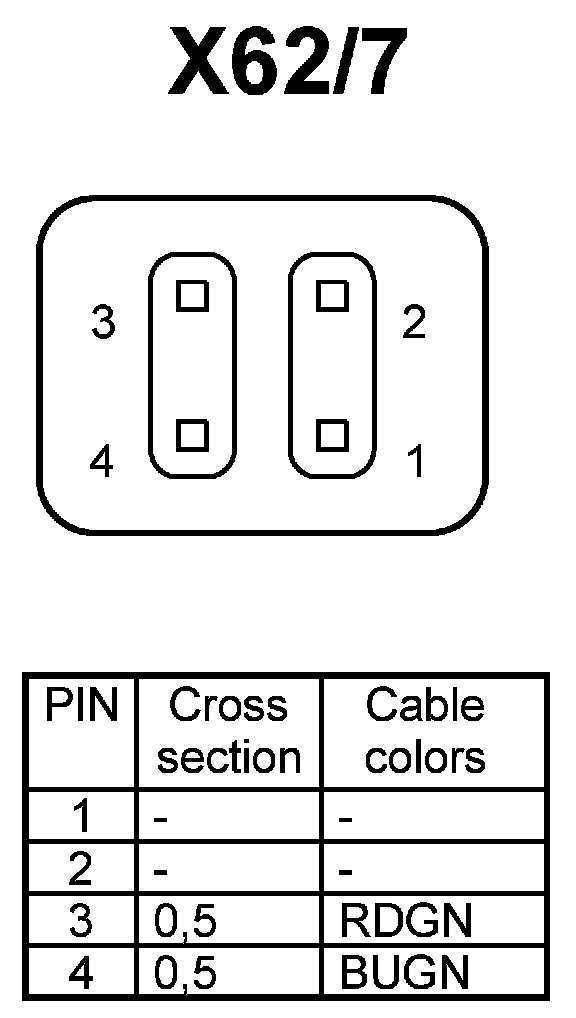

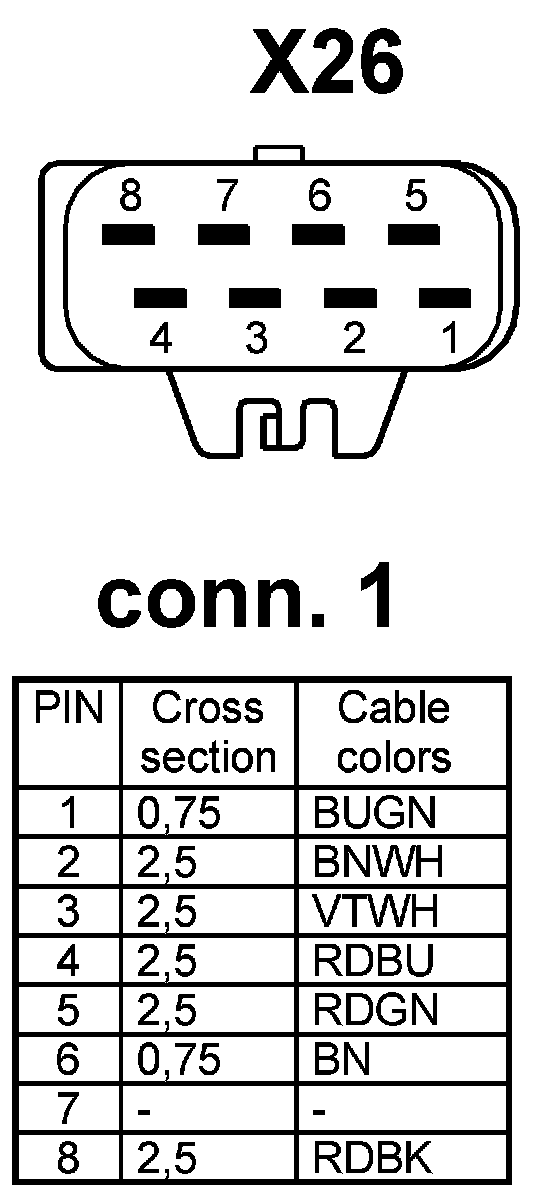

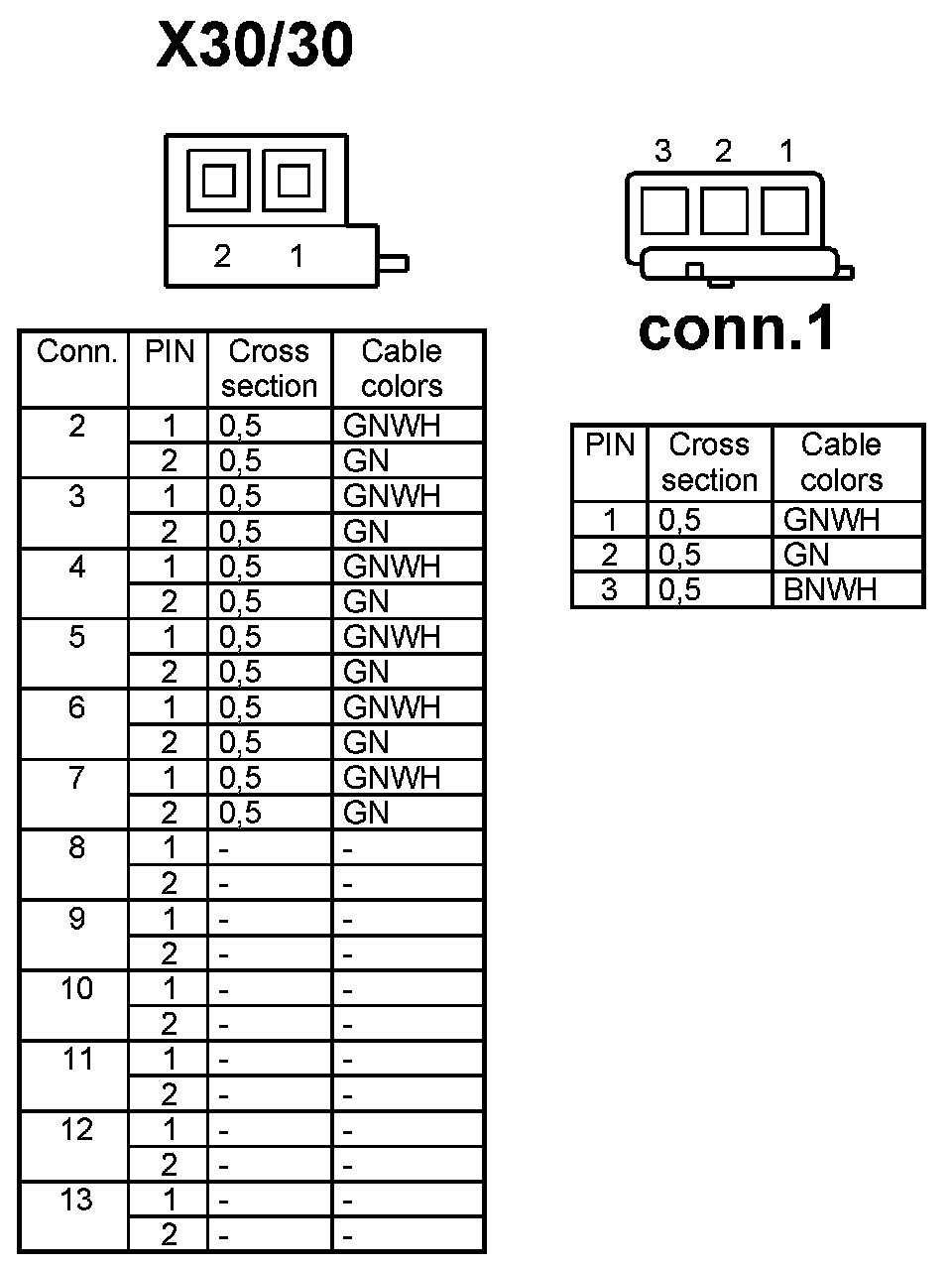

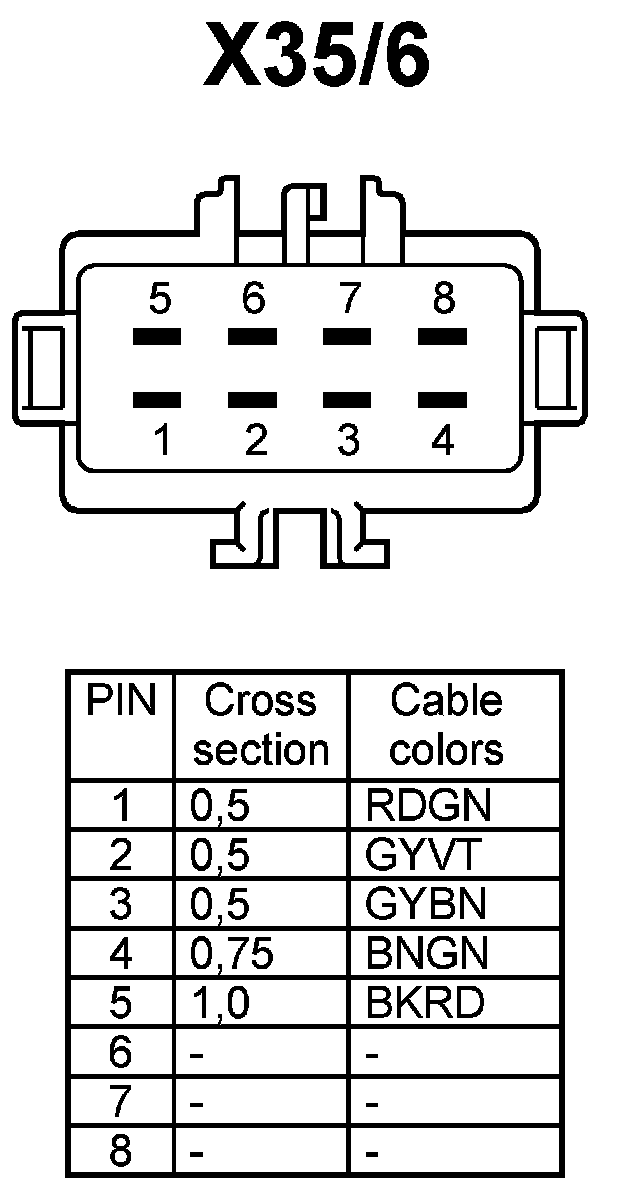

Component Locations: Component Location photographs can be found via their component names at the vehicle level. Component Locations
