Home >> Mercedes Benz >> 2012 >> C 300 4MATIC (204.081) V6-3.0L (272.948) >> Repair and Diagnosis >> Body and Frame >> Weatherstrip >> Rear Door Weatherstrip >> Service and Repair >> AR72.12-P-1015CW Remove/Install Door Frame Seal on Rear Door

AR72.12-P-1015CW Remove/Install Door Frame Seal on Rear Door

AR72.12-P-1015CW Remove/Install Door Frame Seal On Rear Door

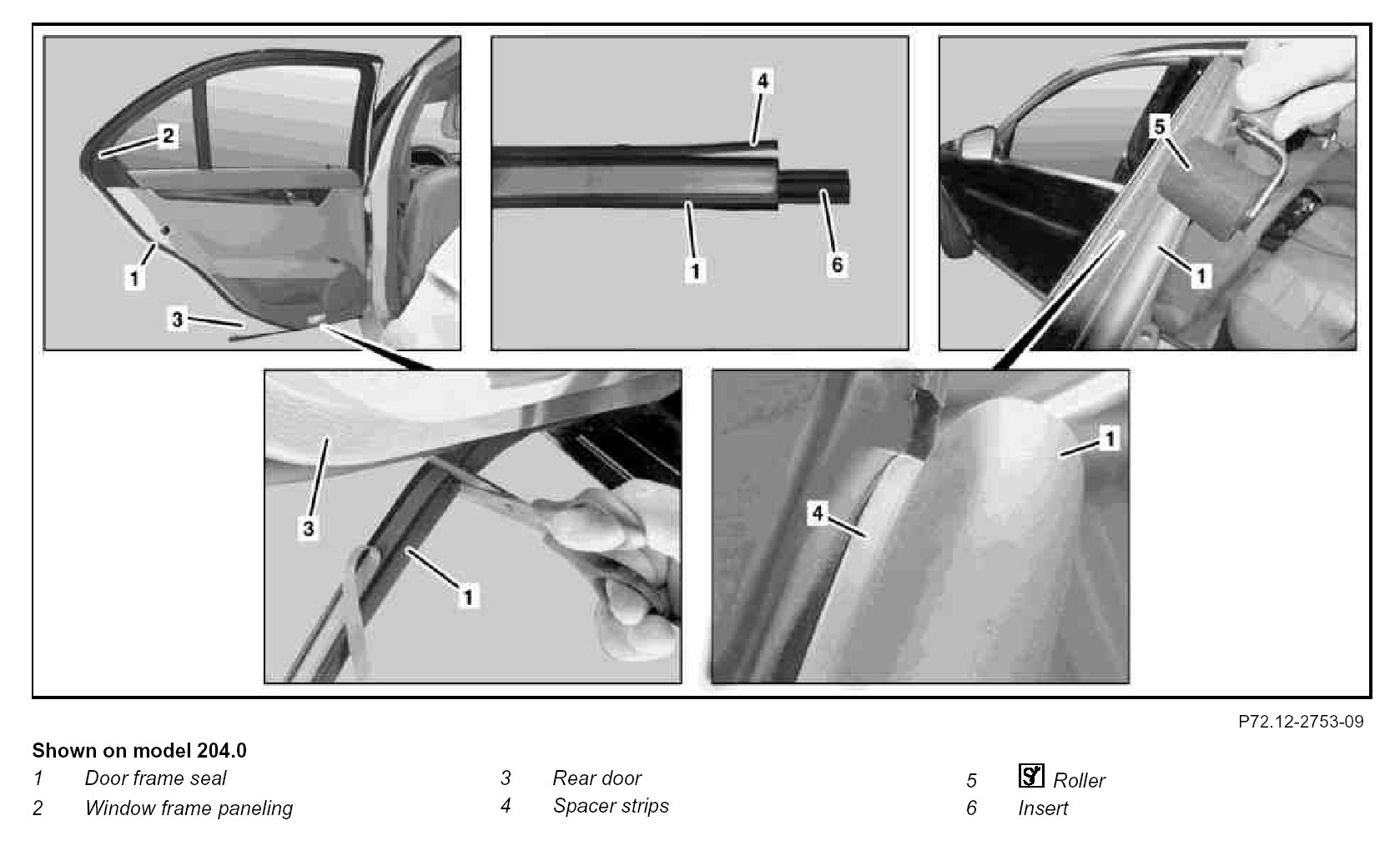

Component Identification:

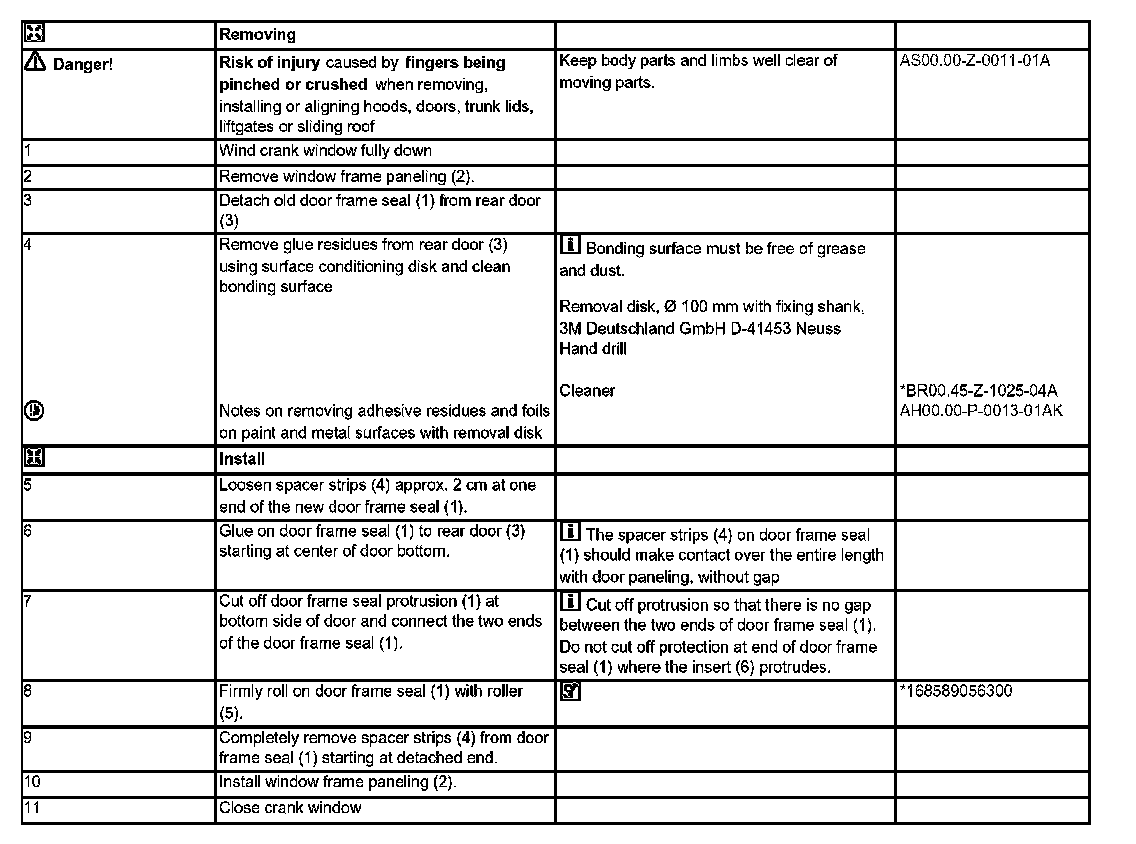

Steps 1 - 11:

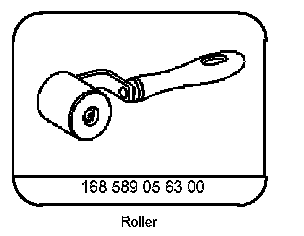

Special Tools:

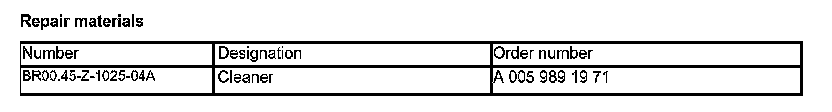

Repair Materials:
