AZ88.50-P-0005CW Retrofit Spoiler on Trunk Lid



AZ88.50-P-0005CW Retrofit Spoiler On Trunk Lid
- except vehicles with factory-installed spoiler on trunk

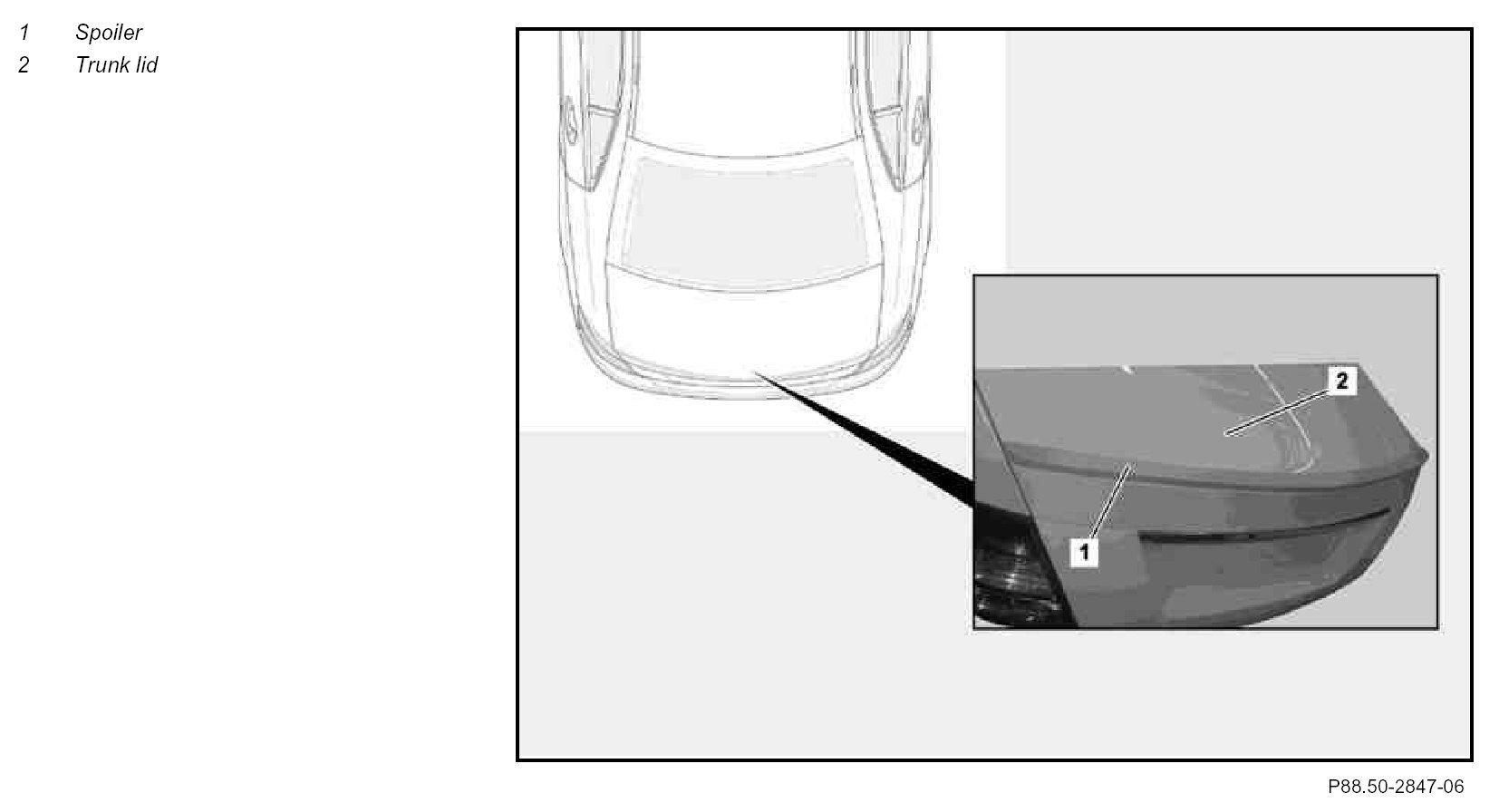

Component Identification:




Modification Notes:

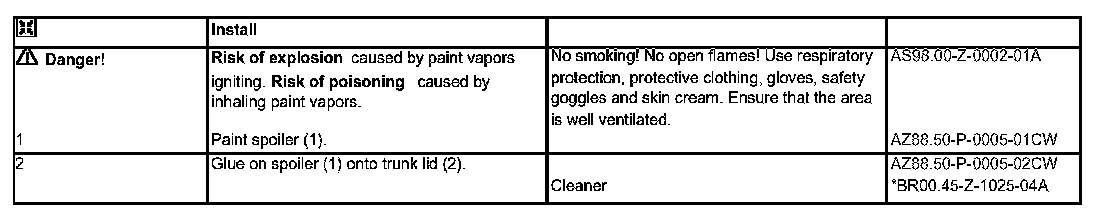

Steps 1 - 2:

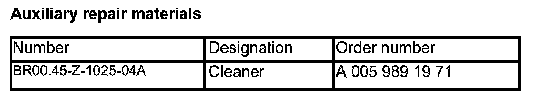

Auxiliary Repair Materials:

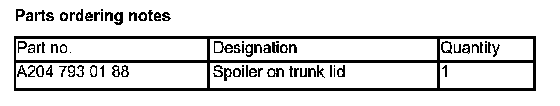

Parts Ordering Notes:
