AZ88.50-P-0005-02CW Install Spoiler on Trunk Lid

AZ88.50-P-0005-02CW Install Spoiler On Trunk Lid

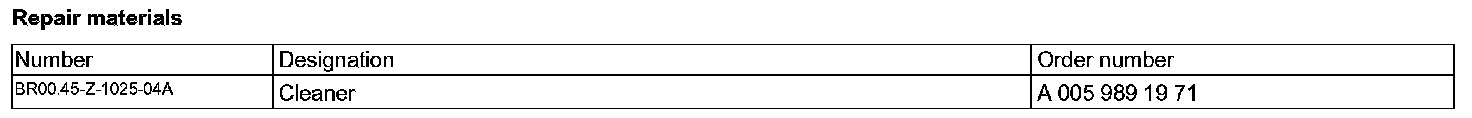

Repair Materials:

If the protective foils on the adhesive strips are not provided with gripping points, pull up a piece of the protective foil at the ends in question and bend toward the edge of the component at a 45° angle.

Wait until step 3 to remove protective foil.

1. Clean gluing surfaces with specified cleaning agent.

The sealing surfaces must be free of dust and grease.

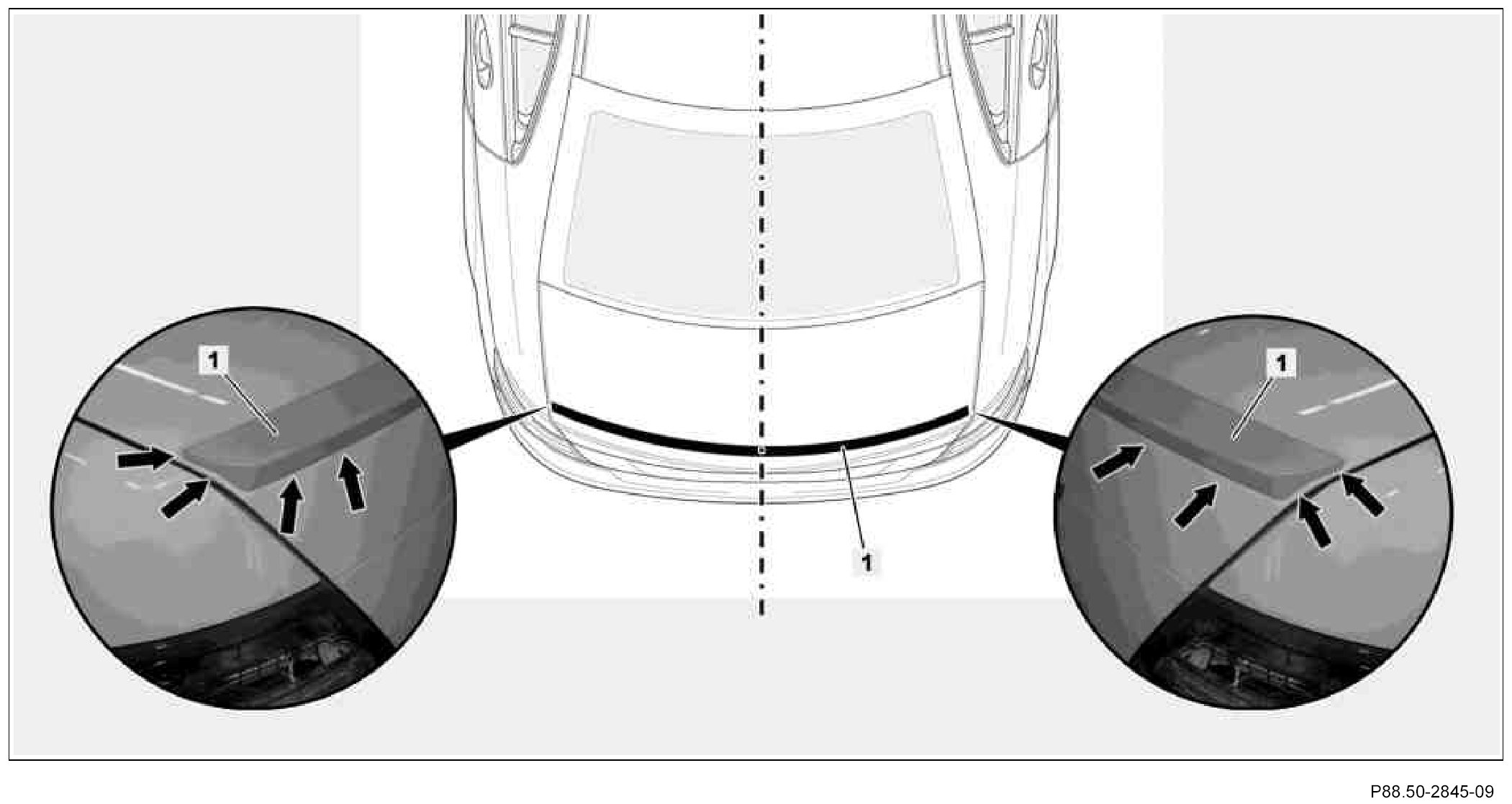

2. Hold spoiler (1) on trunk lid and align contour (arrows).

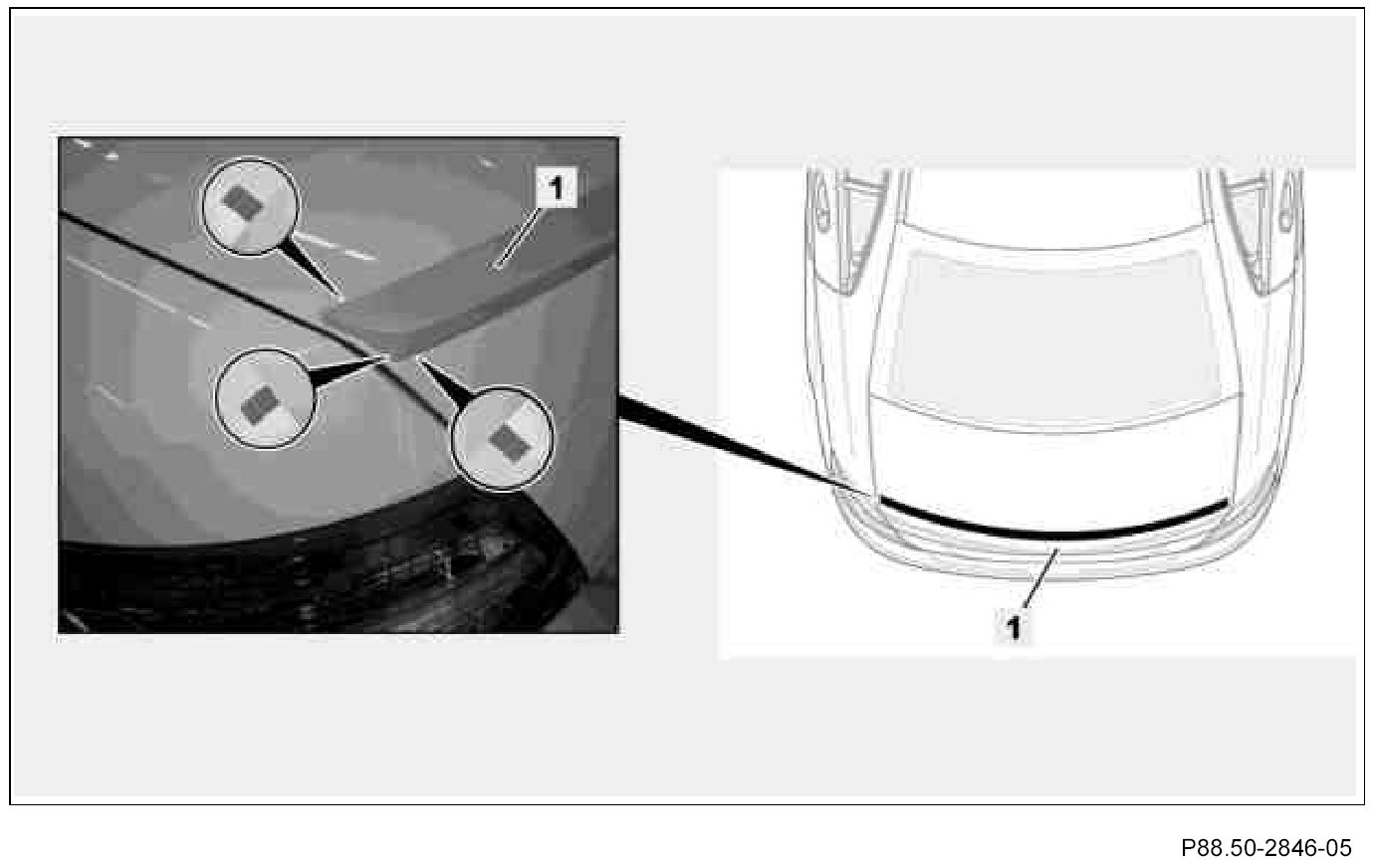

3. Remove protective foils on adhesive strips by pulling at gripping points (shown in magnified section).

Ensure that spoiler (1) remains in the installation position.

Uniformly pull off protective foil.
