AZ88.50-P-0005-01CW Paint Trunk Lid Spoiler

AZ88.50-P-0005-01CW Paint Trunk Lid Spoiler

DANGER: Risk of explosion caused by paint vapors igniting. Risk of poisoning caused by inhaling paint vapors.

No smoking! No open flames! Use respiratory protection, protective clothing, gloves, safety goggles and skin cream. Ensure that the area is well ventilated.

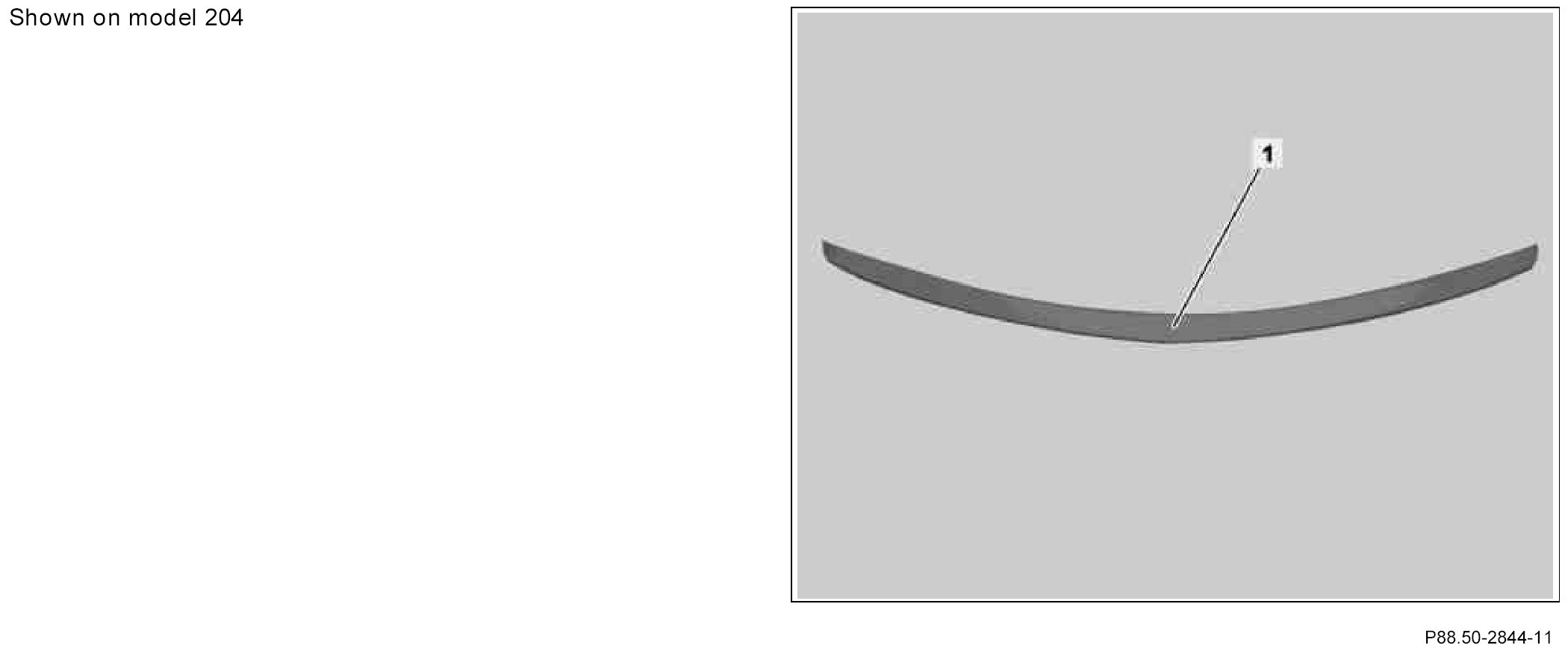

Component Identification:

Use only paint materials and paint systems approved by DC.

1. Mask insides of spoiler (1).

Ensure that no paint or paint fog reaches the insides of the spoiler (1).

2. Pretreat spoiler (1) according to DC painting guidelines and paint outside of spoiler (1) to match vehicle color.

The outsides of the new spoiler (1) are already primed light gray.

3. Remove masking material from spoiler (1) after the paint has cured.
