AZ88.30-P-0015-02CW Install Roof Spoiler on Rear Window

AZ88.30-P-0015-02CW Install Roof Spoiler On Rear Window

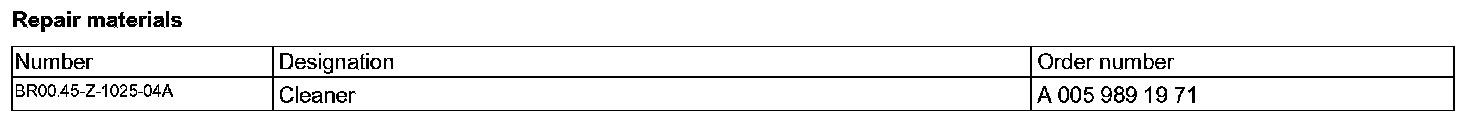

Repair Materials:

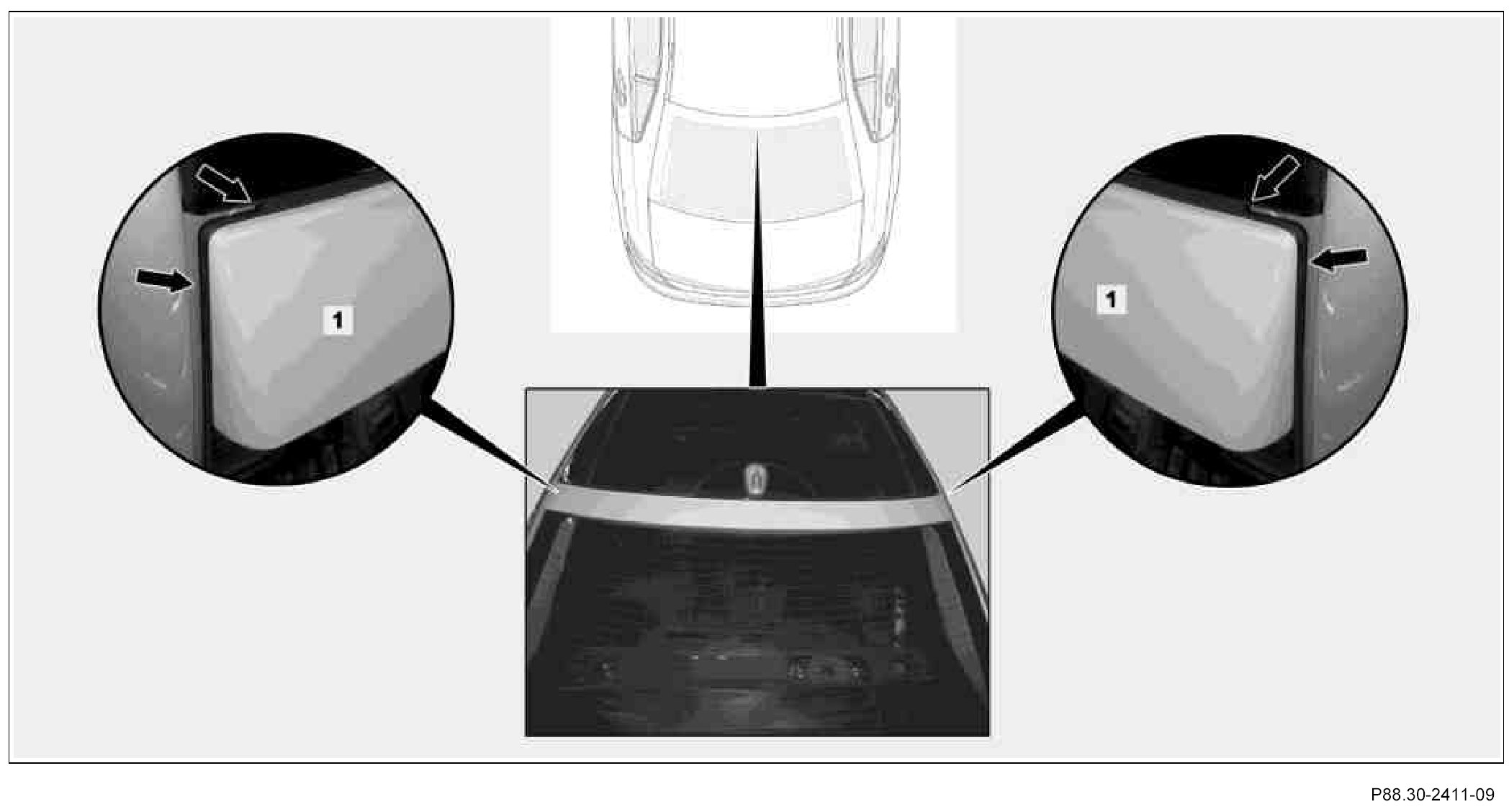

If the protective foils on the adhesive strips are not provided with gripping points, pull up a piece of the protective foil at the ends in question and bend toward the edge of the component at a 45° angle. Wait until step 3 to remove protective foil.

1. Clean gluing surfaces with specified cleaning agent.

The sealing surfaces must be free of dust and grease.

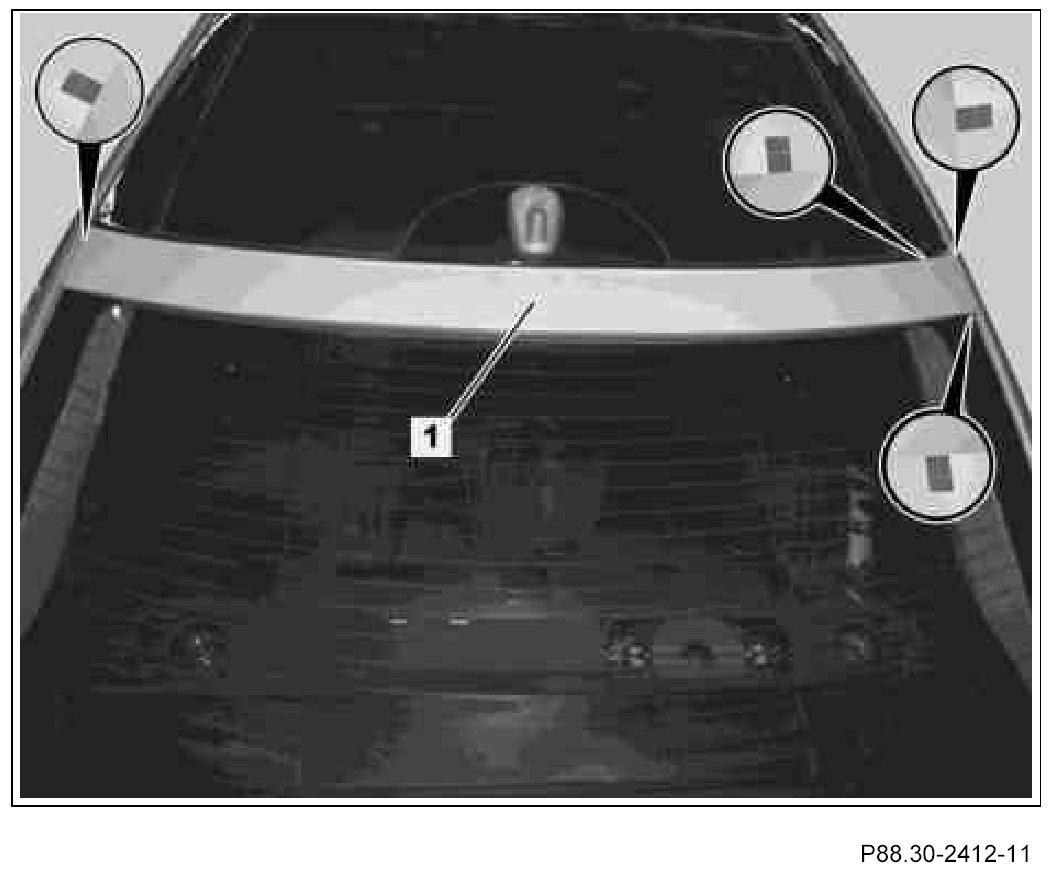

2. Lay roof spoiler (1) down on rear window and align at edge of rear window.







3. Remove protective foil on adhesive strips by pulling at gripping points.

Ensure that roof spoiler (1) remains in the installation position.Uniformly remove protective foil on adhesive strips.
