AZ88.30-P-0015-01CW Paint Roof Spoiler



AZ88.30-P-0015-01CW Paint Roof Spoiler

DANGER: Risk of explosion caused by paint vapors igniting. Risk of poisoning caused by inhaling paint vapors.

No smoking. No open flames. Use respiratory protection, protective clothing, gloves, safety goggles and skin cream. Ensure that the area is well ventilated.







Use only paint materials and paint systems approved by DC.

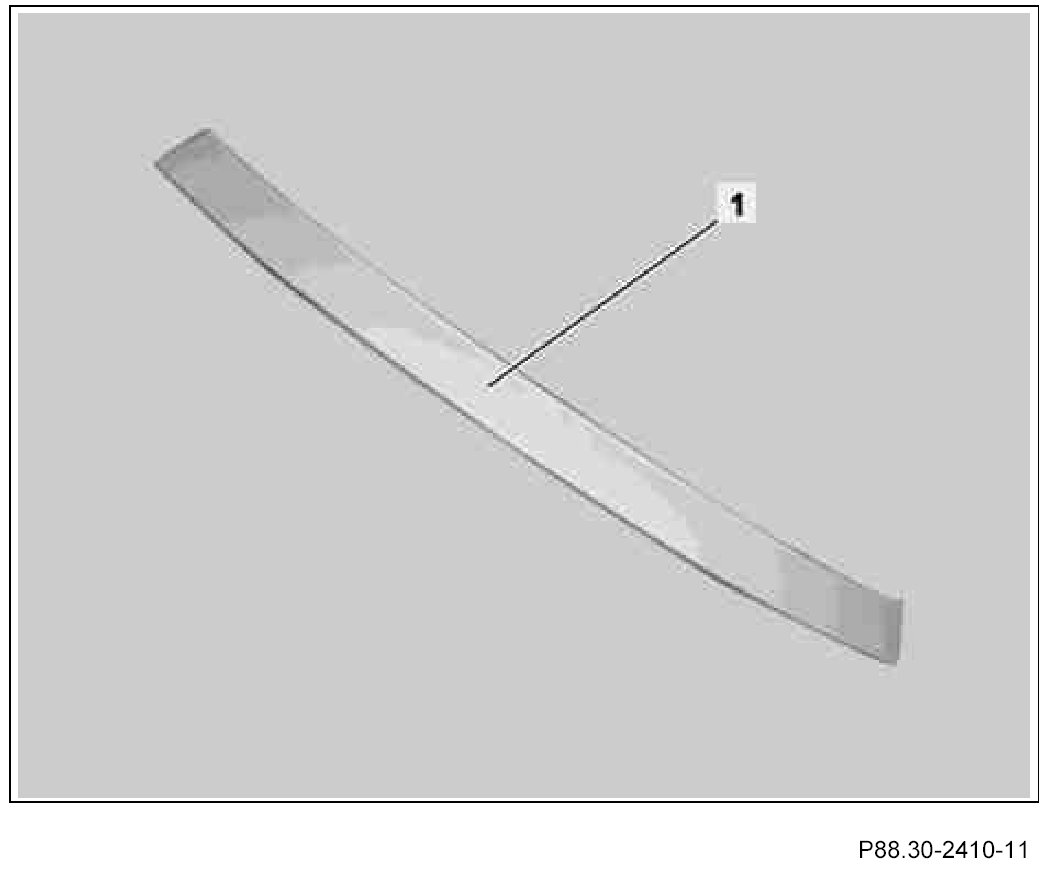

1. Mask insides of roof spoiler (1).

Ensure that no paint or paint fog reaches the insides of the roof spoiler (1).

2. Pretreat roof spoiler (1) according to DC painting guidelines and paint outside of roof spoiler (1) to match vehicle color.

The outsides of the new roof spoiler (1) are already primed light gray.

3. Remove masking material from roof spoiler (1) after the paint has cured.
