AZ88.20-P-0010-02CW Install Spoiler on Front Spoiler.

AZ88.20-P-0010-02CW Install Spoiler On Front Spoiler.
- except CODE (772) AMG styling package - front spoiler, side skirts, and rear apron
- except CODE (950) EVOLUTION AMG sport package

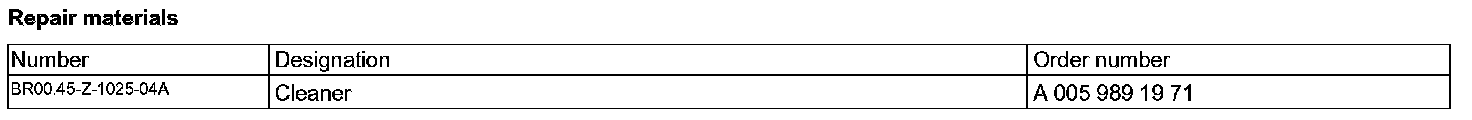

Repair Materials:

Shown on left attachment on front bumper (2)







If the protective foils on the adhesive strips are not provided with gripping points, pull up a piece of the protective foil at the ends in question and bend toward the edge of the component at a 45° angle.
Wait until step 8 to remove protective foil.

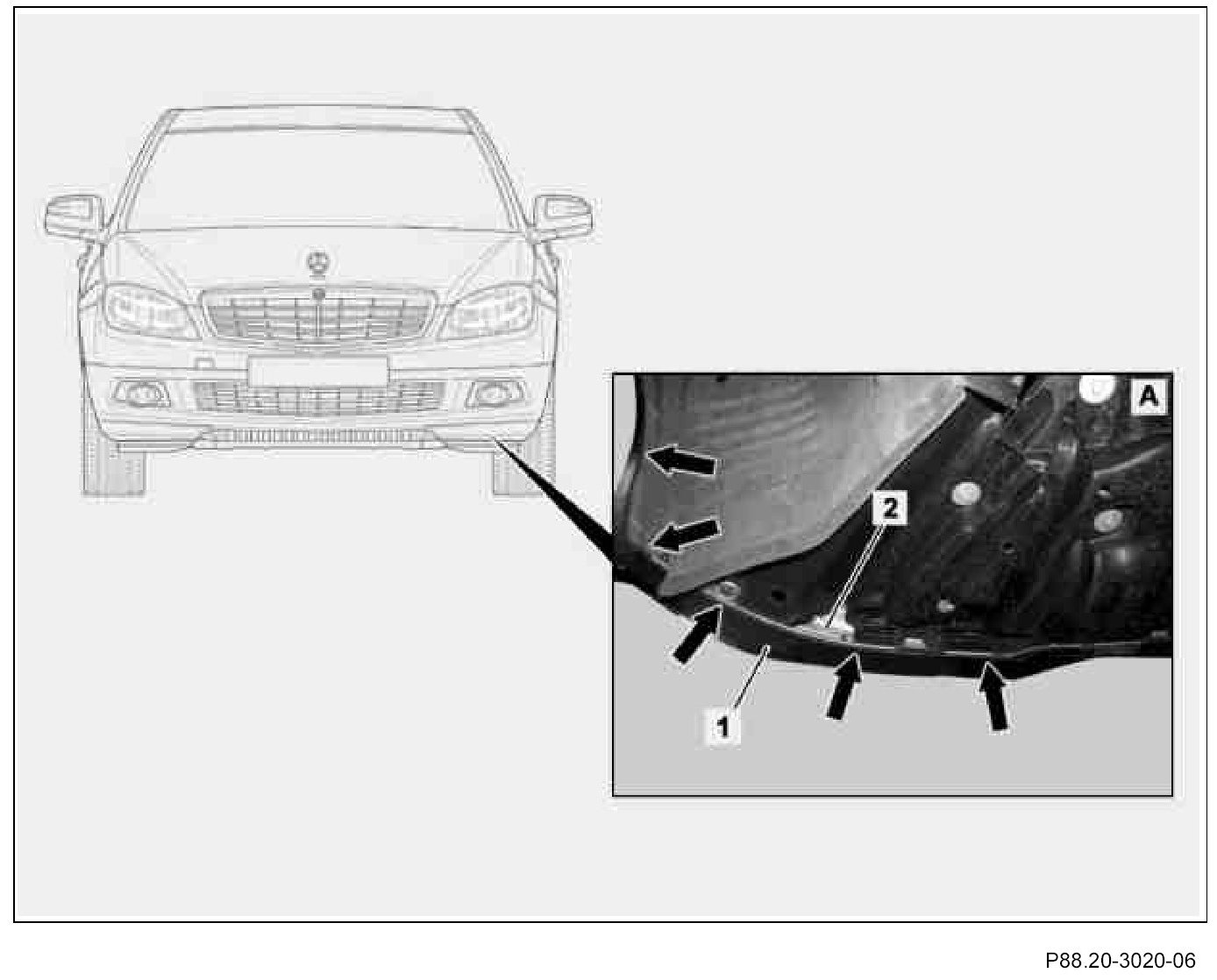

1. Hold front spoiler (1) against front bumper (2) and align contour (arrows).

See picture A.

Shown on left attachment on front bumper (2)







2. Mark hole center points (arrows) through specified holes in front spoiler (1) on front bumper (2).

See picture B.

3. Drill holes (arrows).

See picture B.

Ensure that no other components are damaged when drilling a hole with a diameter of 5 mm.

4. Clean bonding surfaces with specified cleaning agent.

The bonding surfaces must be free of dust and grease.

5. Insert plastic rivets (3).
6. Slide on metal clips (4).

See picture B.

Shown on left attachment on front bumper (2)

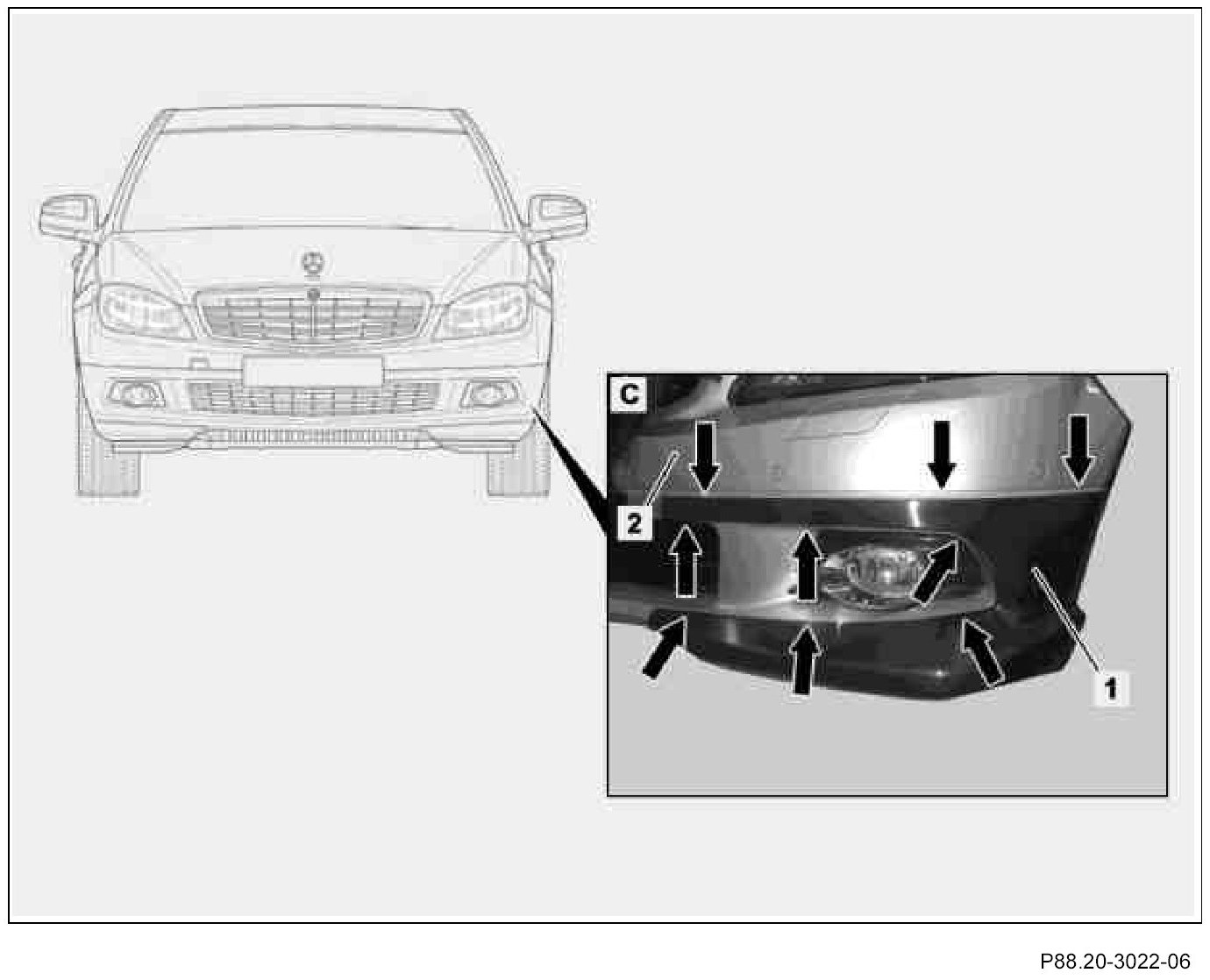

7. Align front spoiler (1) on front bumper (2) (arrows).

See picture C.

Shown on left attachment on front bumper (2)

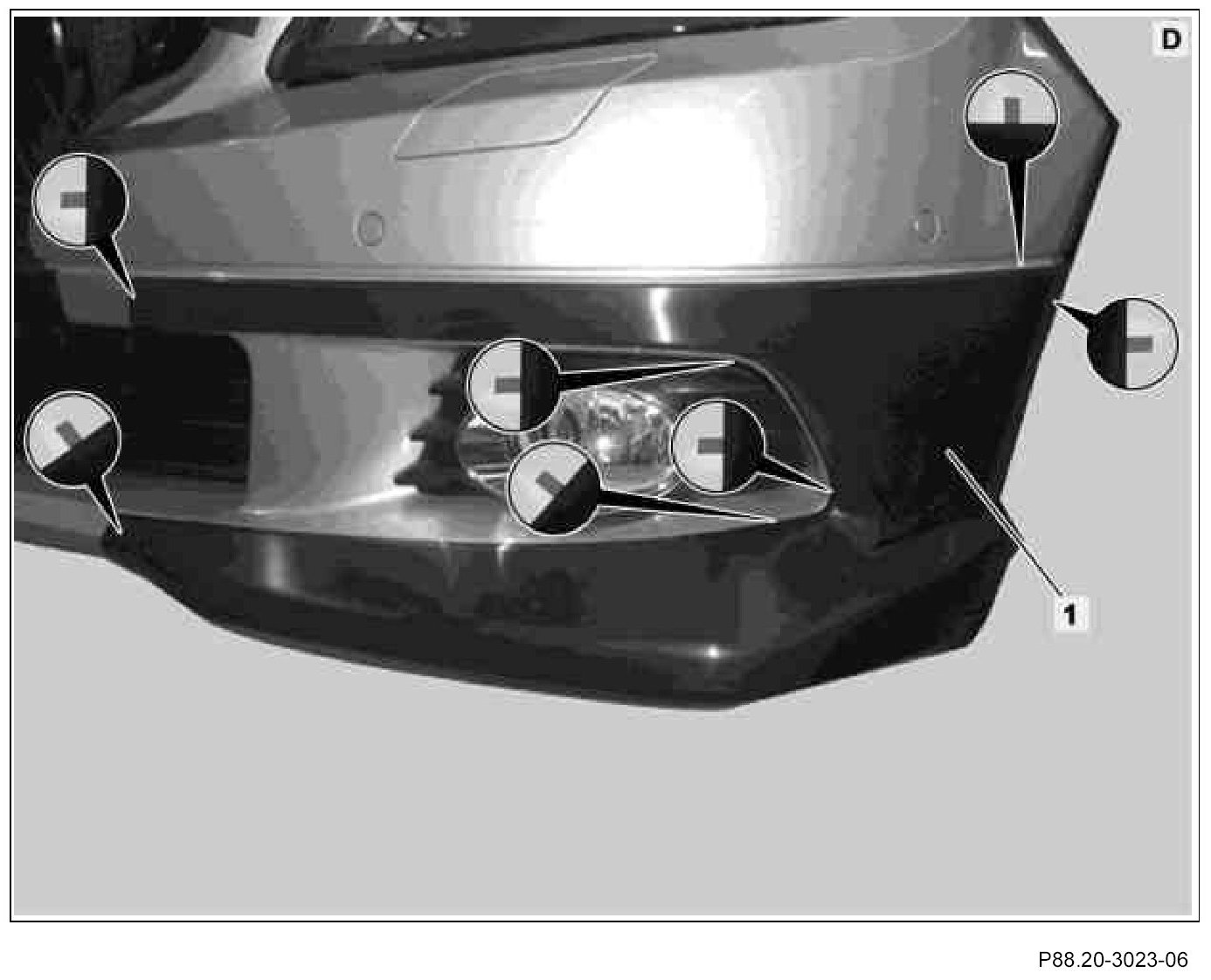

8. Remove protective foil on adhesive strips by pulling at gripping points (shown in magnified section).

See picture D.

Ensure that front spoiler (1) remains in installation position and makes contact with the contour of the front bumper (2).

Uniformly pull off protective foil.
