AZ88.20-P-0010-01CW Paint Front Spoiler

AZ88.20-P-0010-01CW Paint Front Spoiler
- except CODE (772) AMG styling package - front spoiler, side skirts, and rear apron
- except CODE (950) EVOLUTION AMG sport package


DANGER: Risk of explosion caused by paint vapors igniting. Risk of poisoning caused by inhaling paint vapors.

No smoking. No open flames. Use respiratory protection, protective clothing, gloves, safety goggles and skin cream. Ensure that the area is well ventilated.

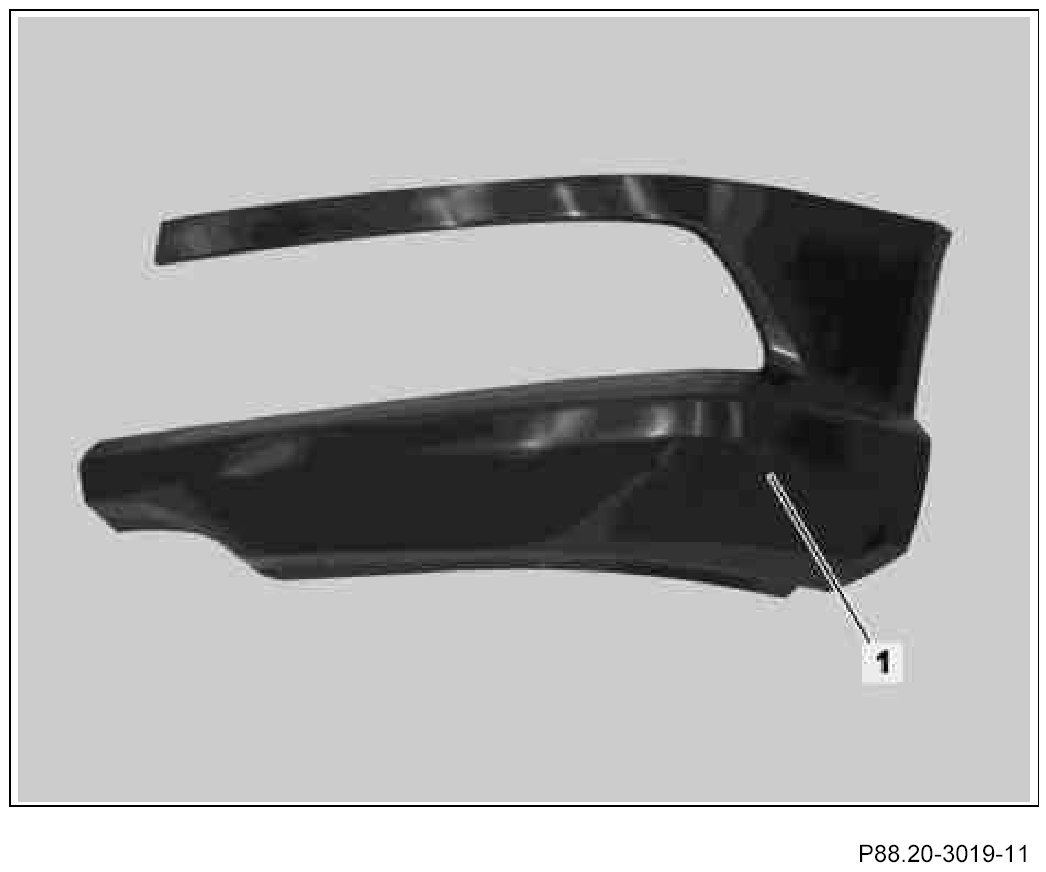

Illustrated on model 204

Use only paint materials and paint systems approved by DC.







1. Mask insides of front spoiler (1) on left and right.

Ensure that no paint or paint fog gets onto the insides of the front spoiler (1) on left and right.

2. Pretreat front spoiler (1) on left and right according to DC painting guidelines and paint outsides of front spoiler (1) on left and right to match color of car.

The outsides of the new front spoiler (1) on the left and right are already primed light gray.

3. Remove masking material from front spoiler (1) on the left and right after the paint has cured.
