AZ88.30-P-0020-01CW Paint Rear Diffuser

AZ88.30-P-0020-01CW Paint Rear Diffuser
- except CODE (494) USA version
- except CODE (550) Trailer hitch
- except CODE (772) AMG styling package - front spoiler, side skirts, and rear apron
- except CODE (950) AMG sport package


DANGER: Risk of explosion caused by paint vapors igniting. Risk of poisoning caused by inhaling paint vapors.

No smoking. No open flames. Use respiratory protection, protective clothing, gloves, safety goggles and skin cream. Ensure that the area is well ventilated.







Use only paint materials and paint systems approved by DC.

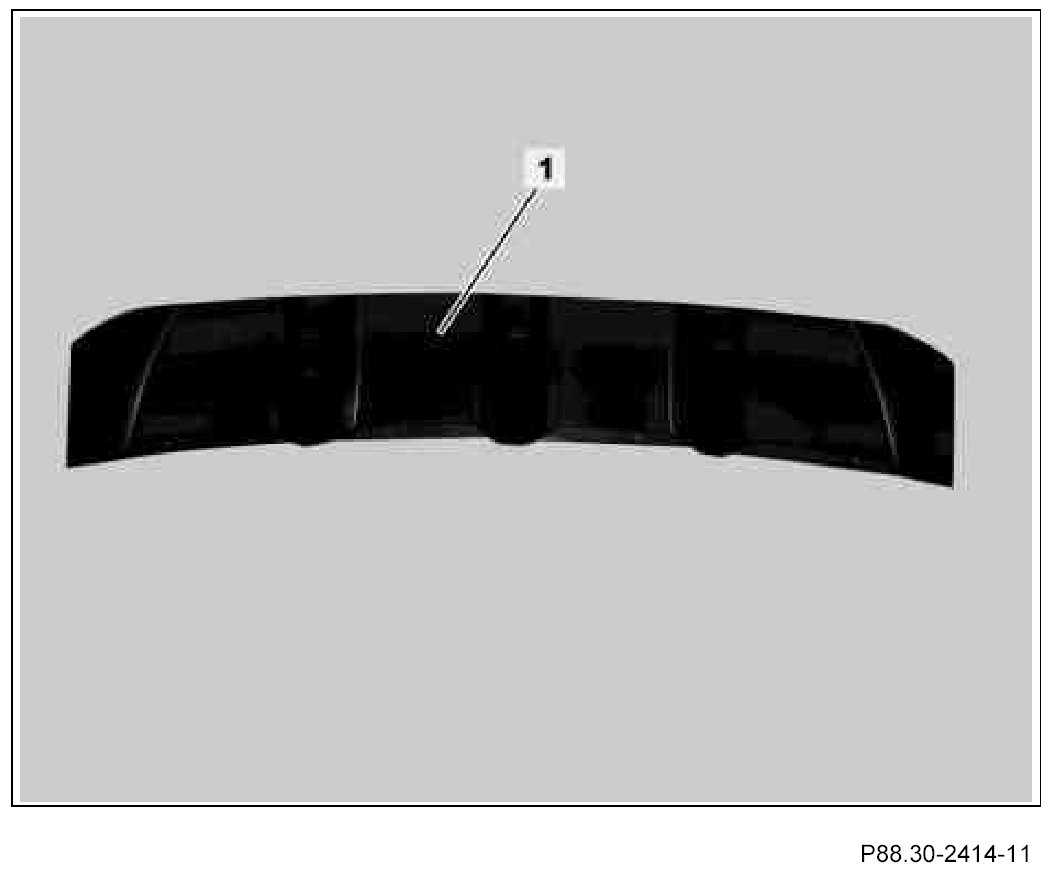

1. Mask insides of roof diffuser (1).

Ensure that no paint or paint fog reaches the insides of the roof diffuser (1).

2. Pretreat roof diffuser (1) according to DC painting guidelines and paint outside of roof diffuser (1) to match vehicle color.

The outsides of the new roof diffuser (1) are already primed light gray.

3. Remove masking material from roof diffuser (1) after the paint has cured.
