Home >> Mercedes Benz >> 2012 >> C 300 4MATIC (204.081) V6-3.0L (272.948) >> Repair and Diagnosis >> Body and Frame >> Seats >> Service and Repair >> Overhaul >> AR91.10-P-1200CY Remove/Install Front Seat Frame Trim Panels

AR91.10-P-1200CY Remove/Install Front Seat Frame Trim Panels



AR91.10-P-1200CY Remove/Install Front Seat Frame Trim Panels
- Outer cover

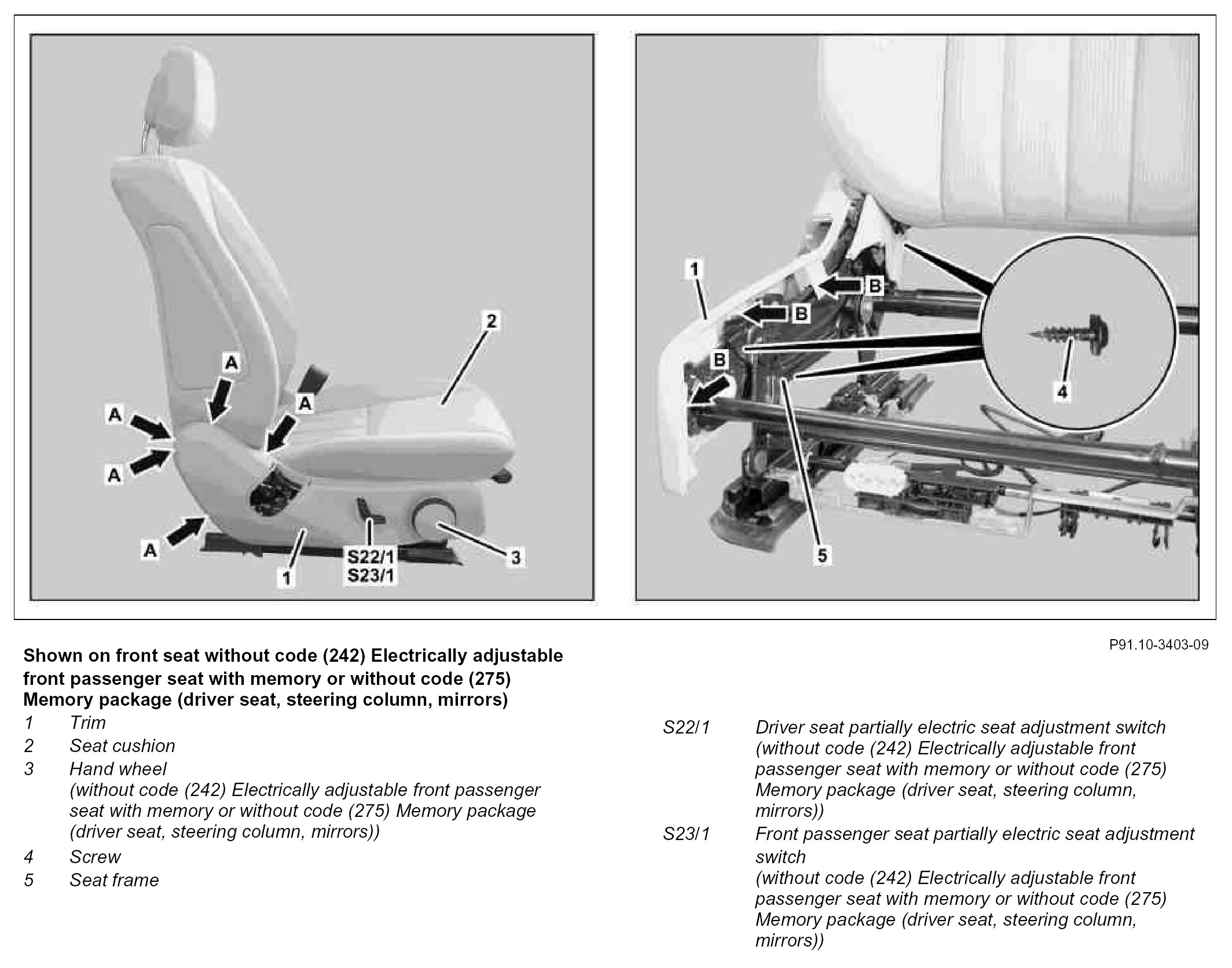

Component Identification:

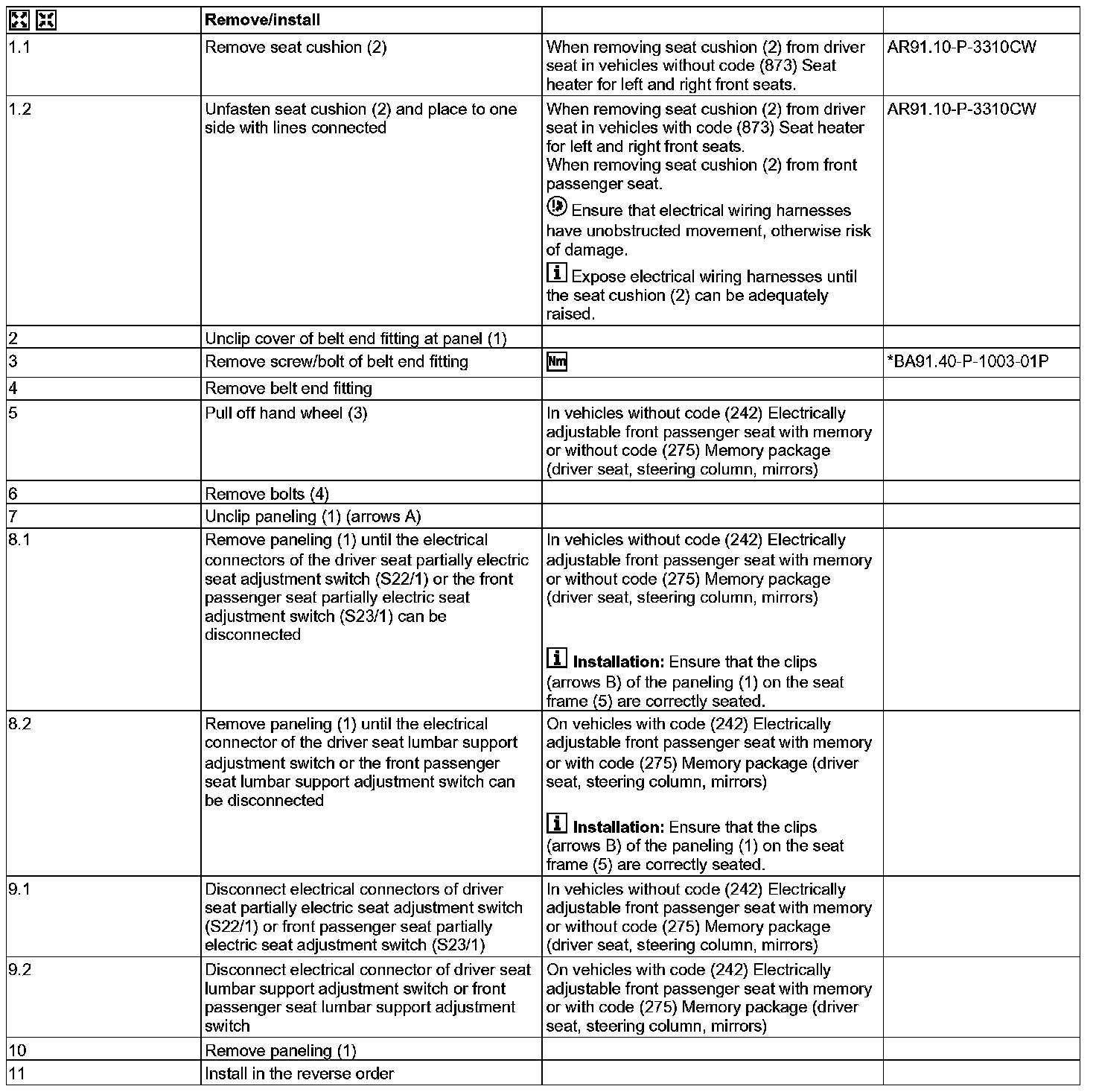

Steps 1.1 - 11:

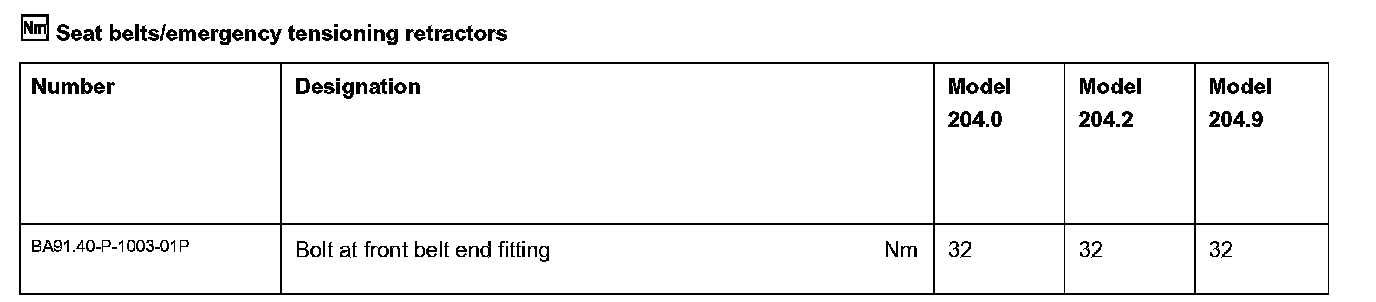

Seat Belts/Emergency Tensioning Retractors:
