Home >> Mercedes Benz >> 2012 >> C 300 4MATIC (204.081) V6-3.0L (272.948) >> Repair and Diagnosis >> Body and Frame >> Seats >> Seat Cover >> Service and Repair >> AR91.18-P-1850CW Remove/Install Cover on Rear Seat Cushion

AR91.18-P-1850CW Remove/Install Cover on Rear Seat Cushion



AR91.18-P-1850CW Remove And Install Cover On Rear Seat Cushion
- except CODE (248) Rear seat with integrated child seat

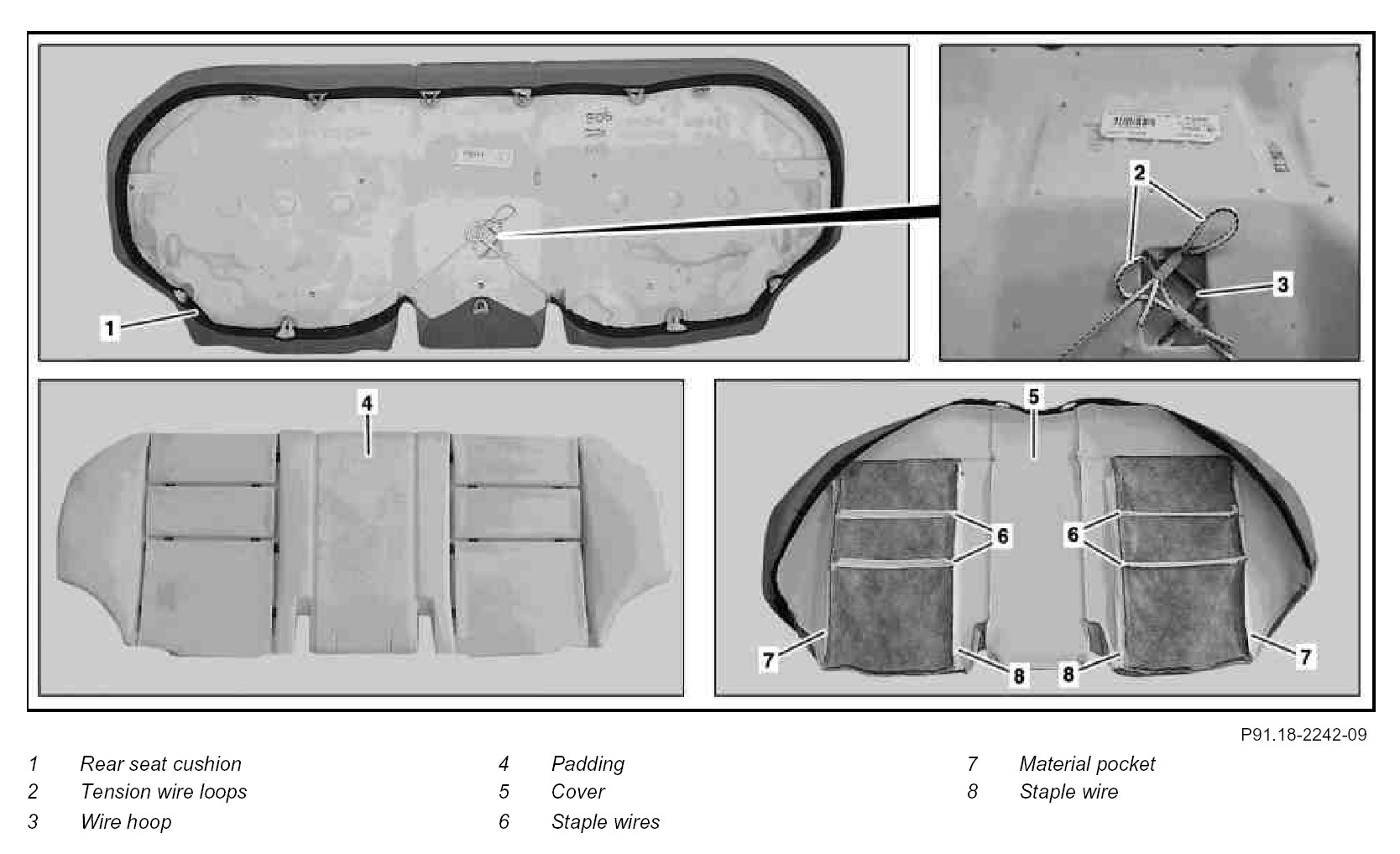

Component Identification:

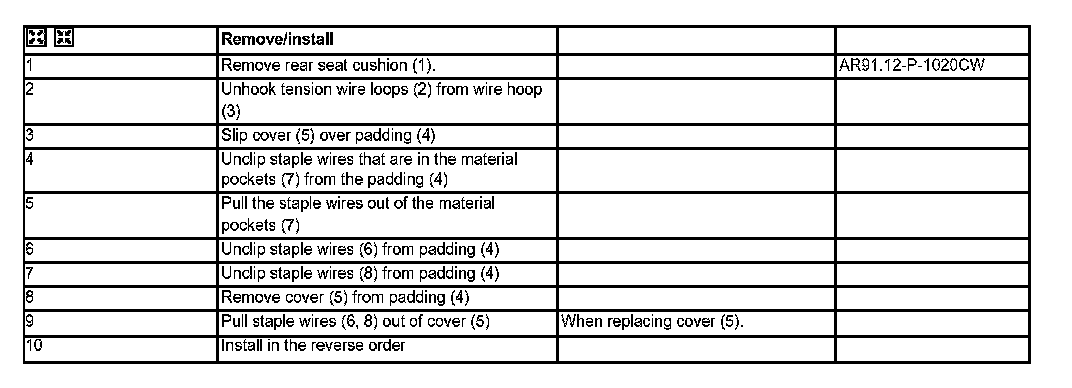

Steps 1 - 10:
