AR91.10-P-1910CW Remove/Install Front Seat Backrest Seat-Back Lining
AR91.10-P-1910CW Remove/Install Front Seat Backrest Seat-Back Lining
AR91.10-P-1910CW Remove/Install Front Seat Backrest Seat-back Lining

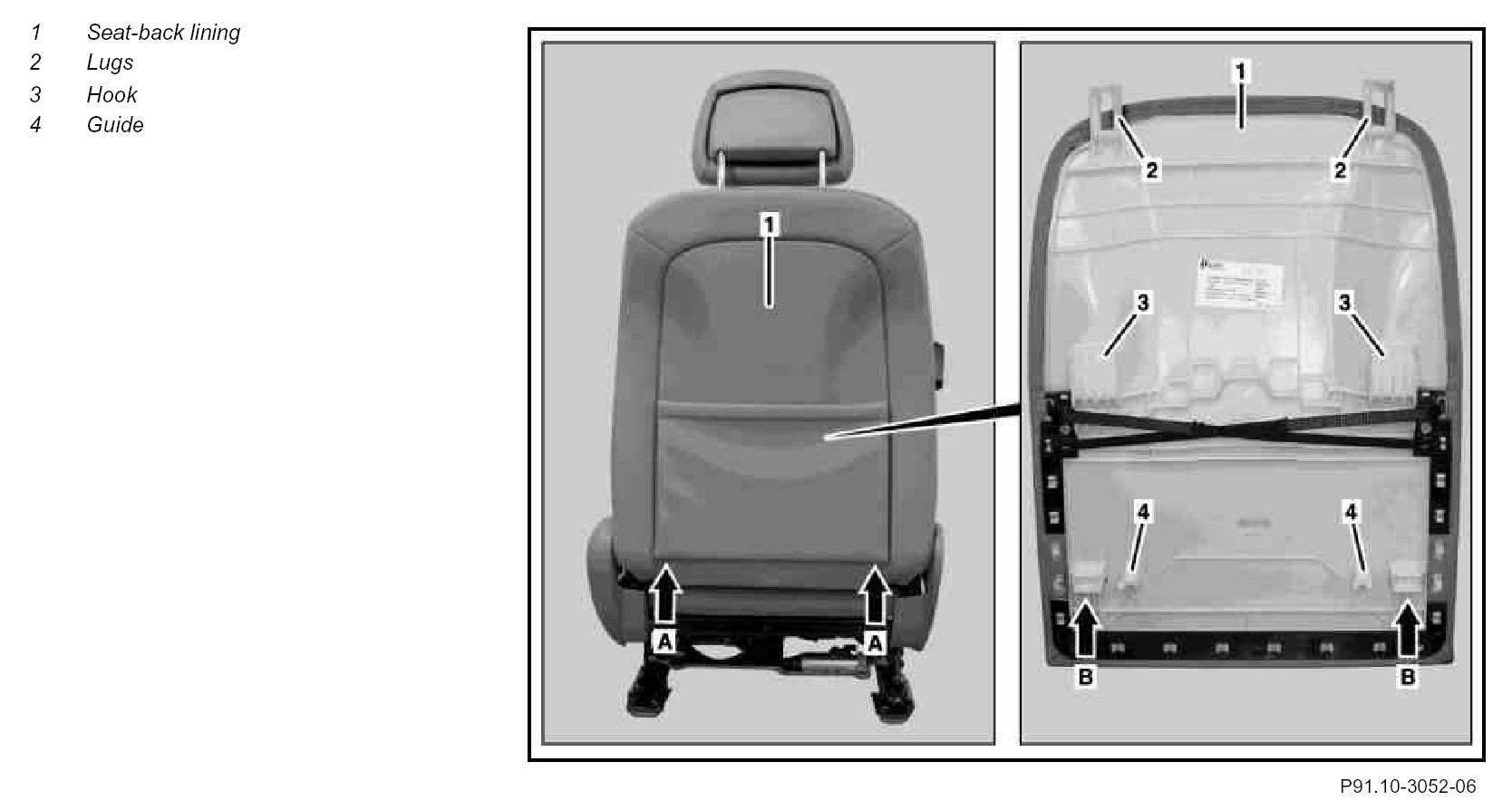

Component Identification:

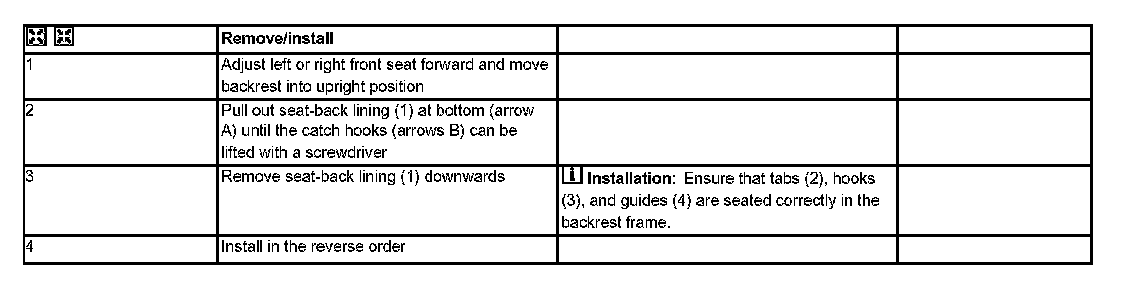

Steps 1 - 4:
