AR91.25-P-1770CW Remove/Install Multicontour Backrest Seat Cushion Air Cushion



AR91.25-P-1770CW Remove/Install Multicontour Backrest Seat Cushion Air Cushion
- with CODE (409) Left/right front multicontour seats

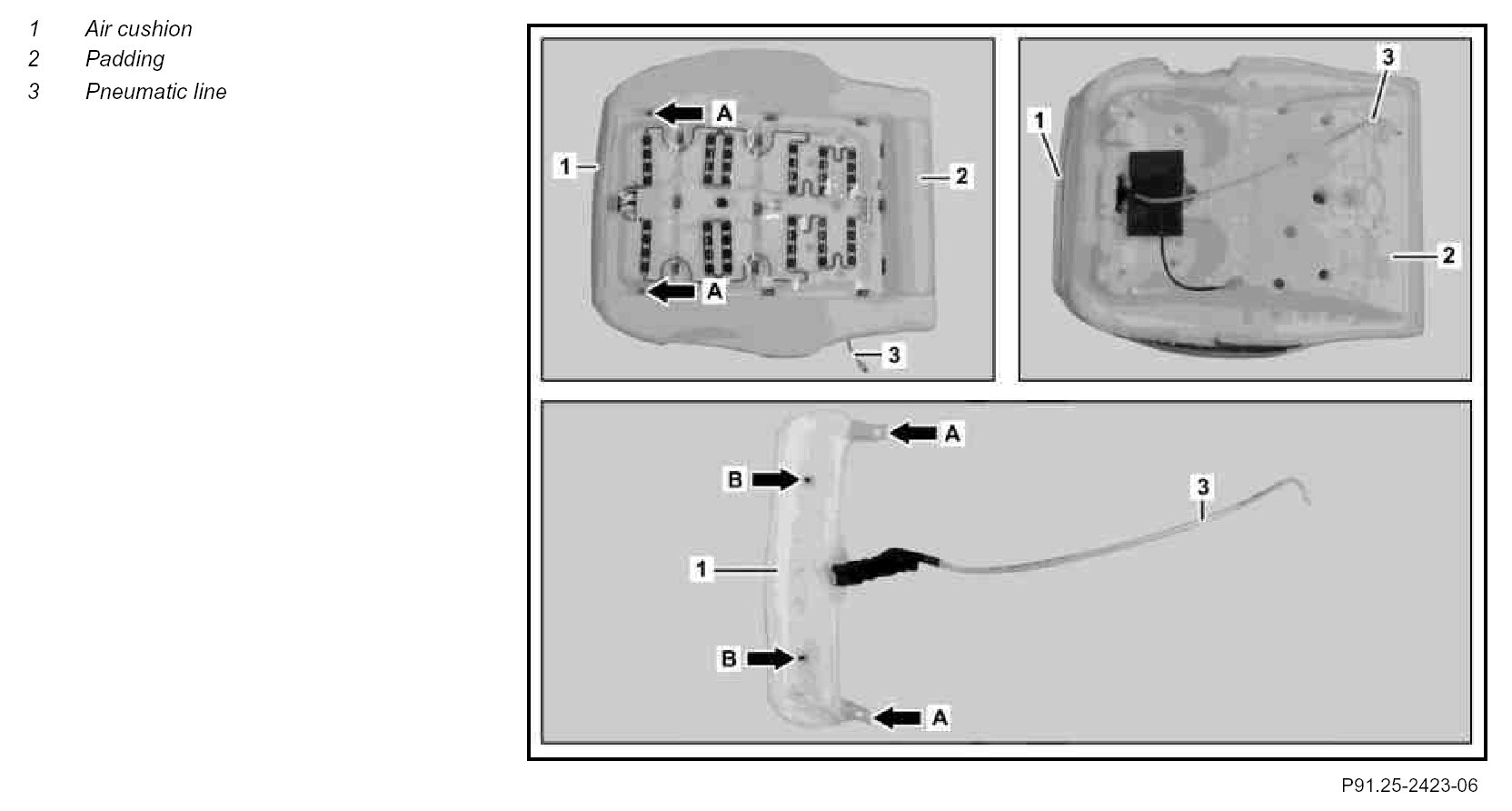

Component Identification:

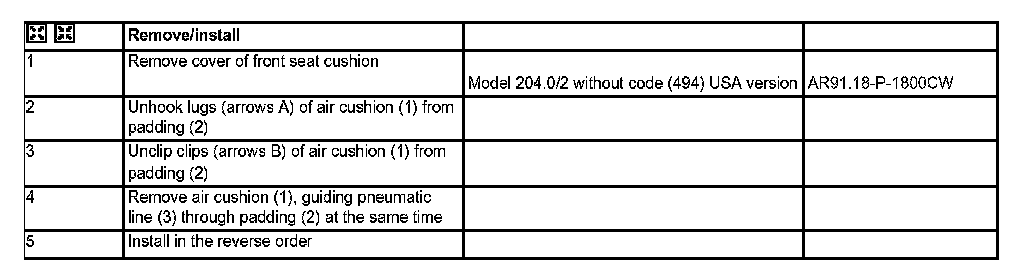

Steps 1 - 5:
