AR91.25-P-1680CW Remove/Install Driver and Passenger Side Multicontour Backrest Air Cushion



AR91.25-P-1680CW Remove/Install Driver And Passenger Side Multicontour Backrest Air Cushion
- with CODE (409) Left/right front multicontour seat
- Center air cushion

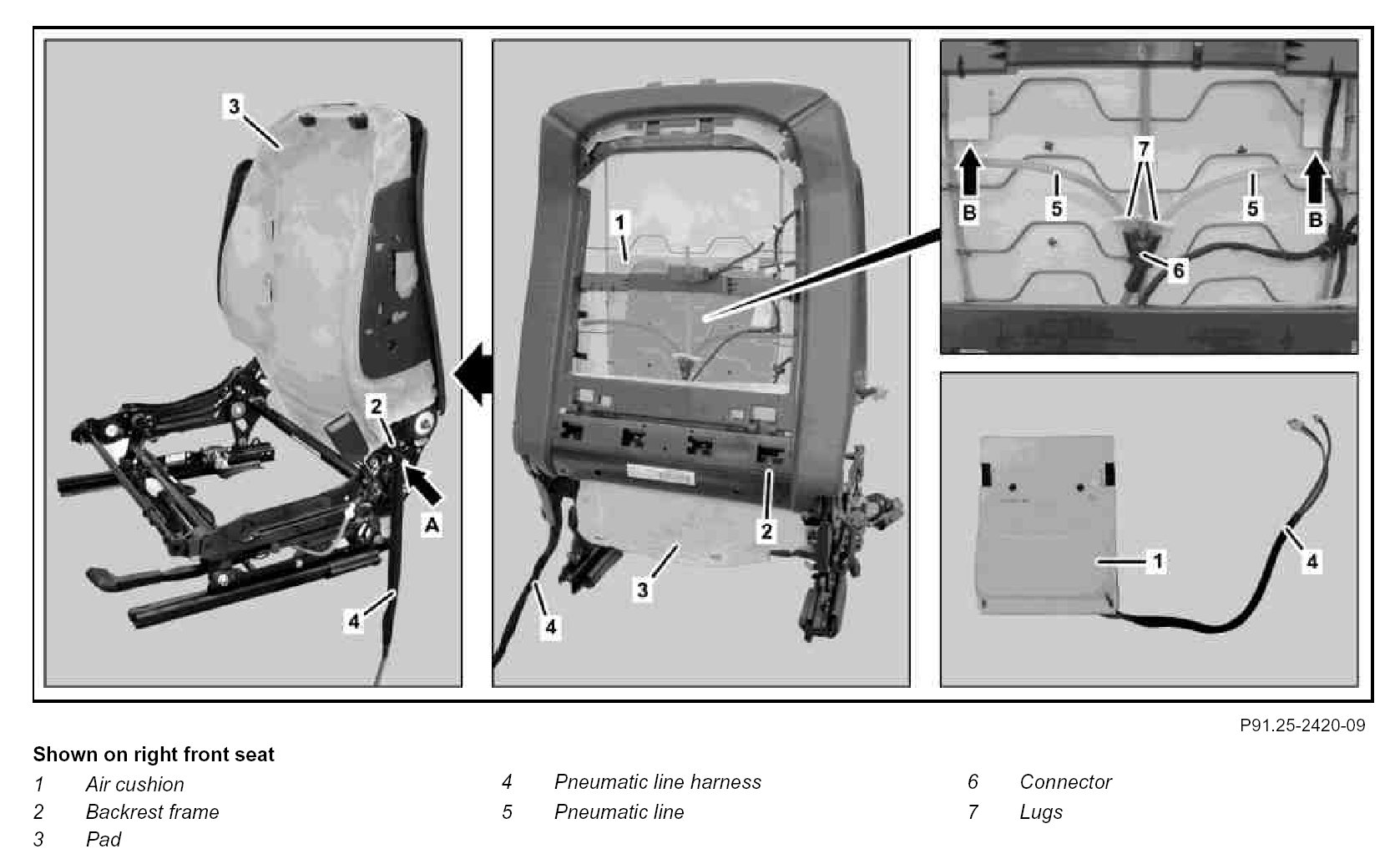

Component Identification:

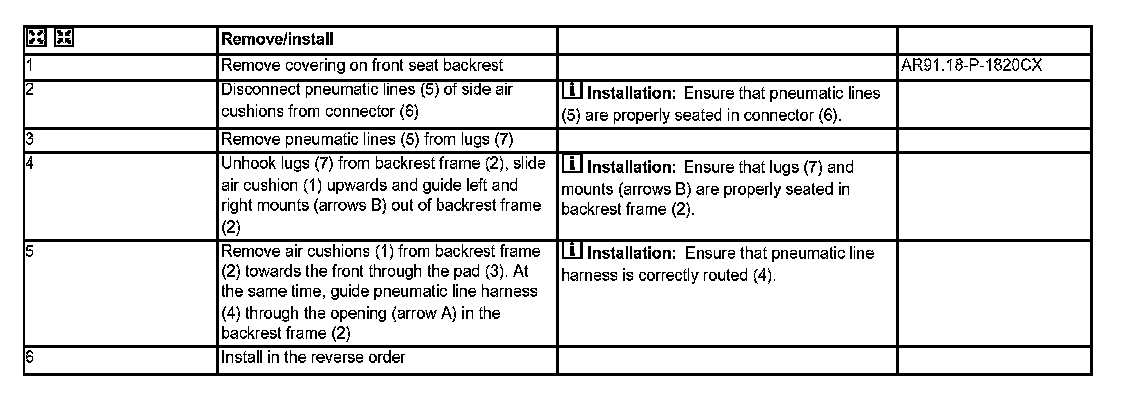

Steps 1 - 6:
