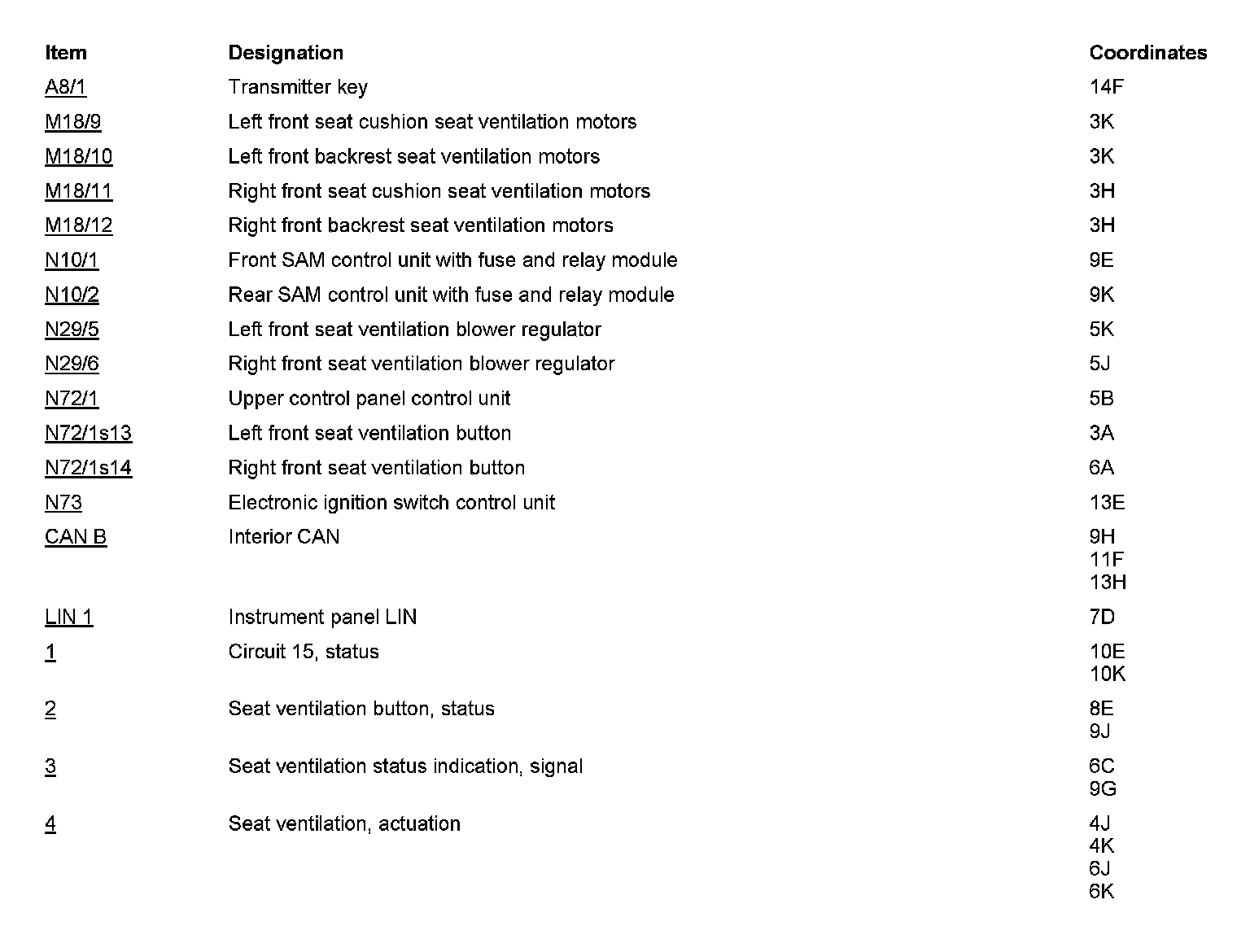

PE91.30-P-2053FAA Seat Ventilation Electrical Function Schematic

PE91.30-P-2053FAA Seat Ventilation Electrical Function Schematic

MODEL 204
- with CODE (401) Front comfort seats, incl. seat heating and seat ventilation

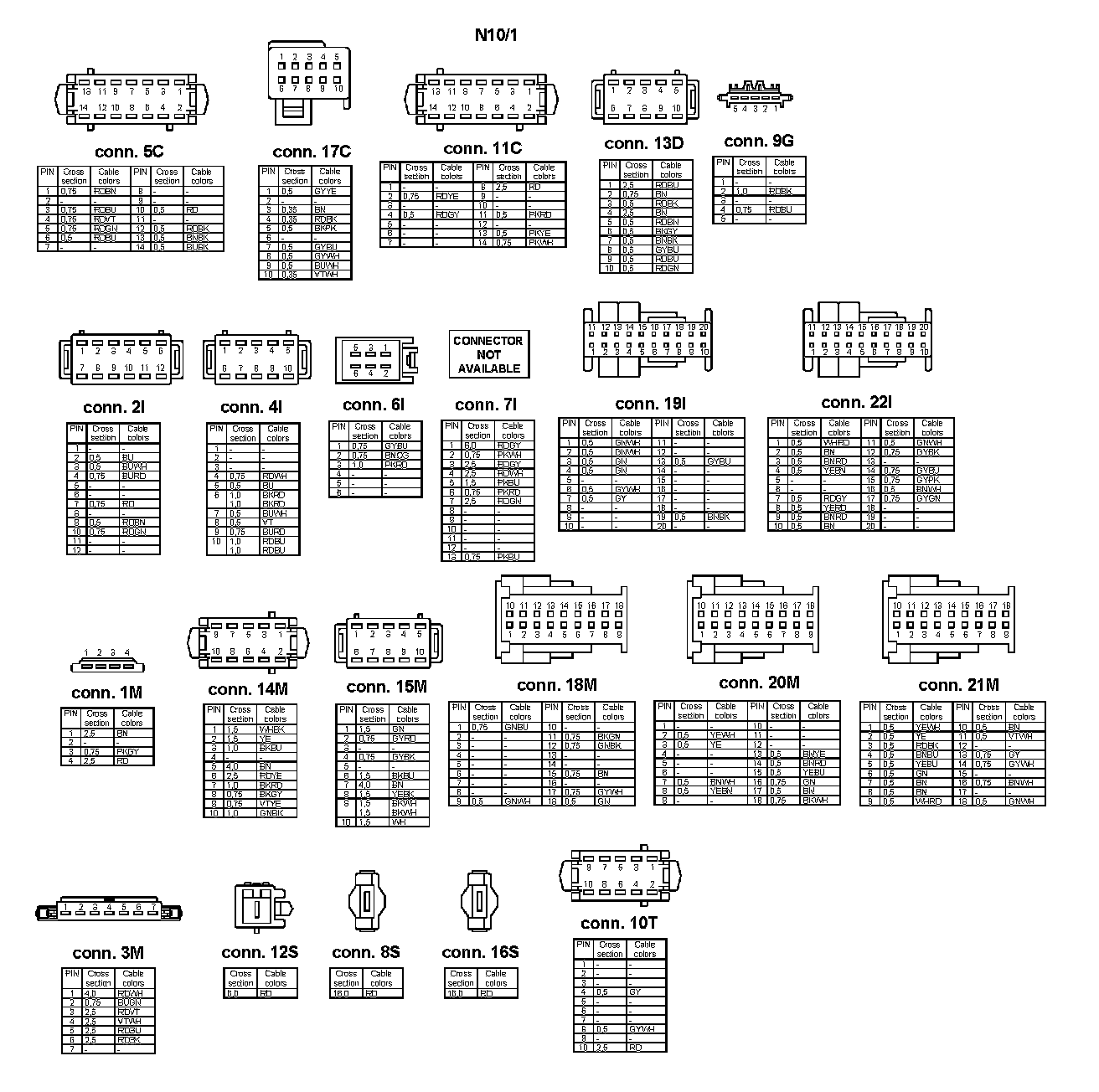

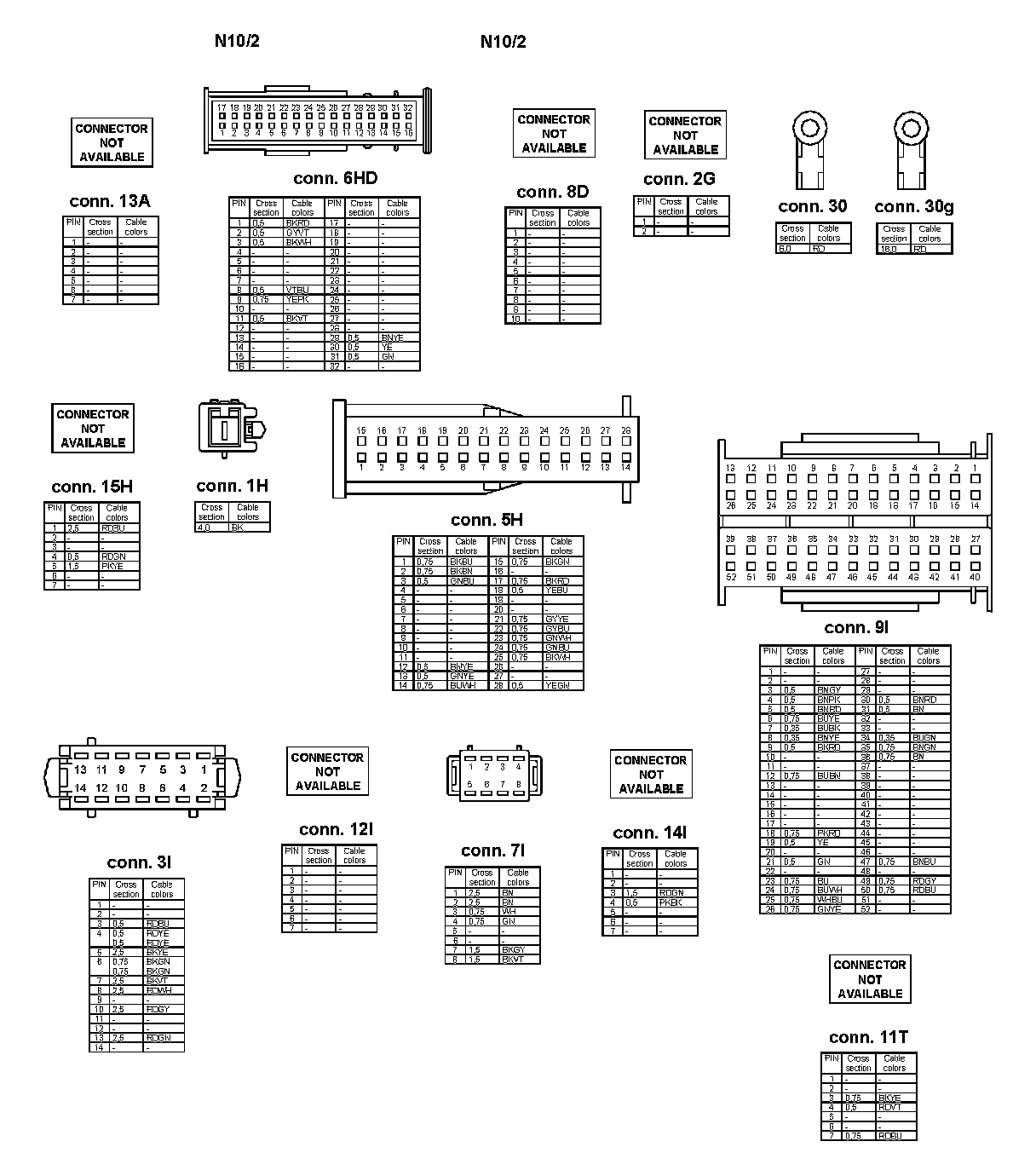

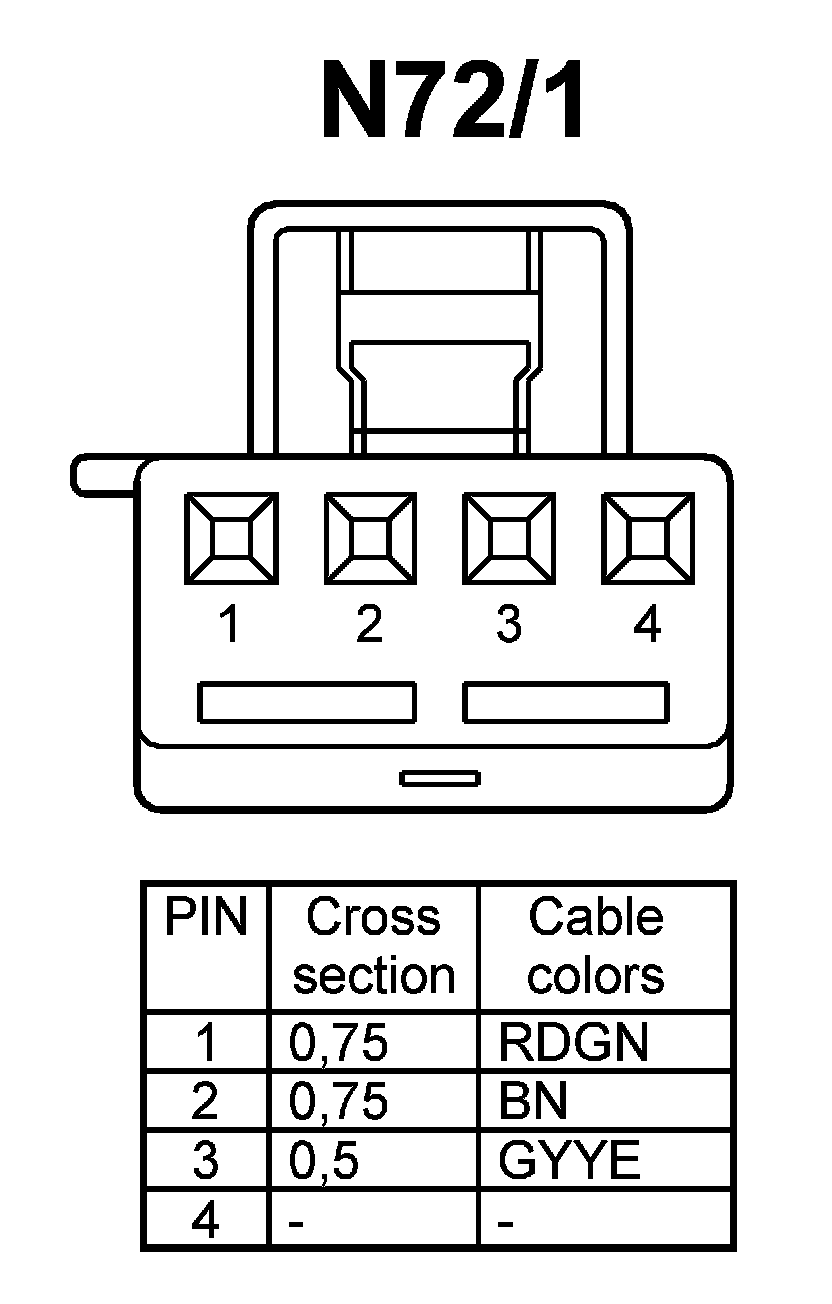

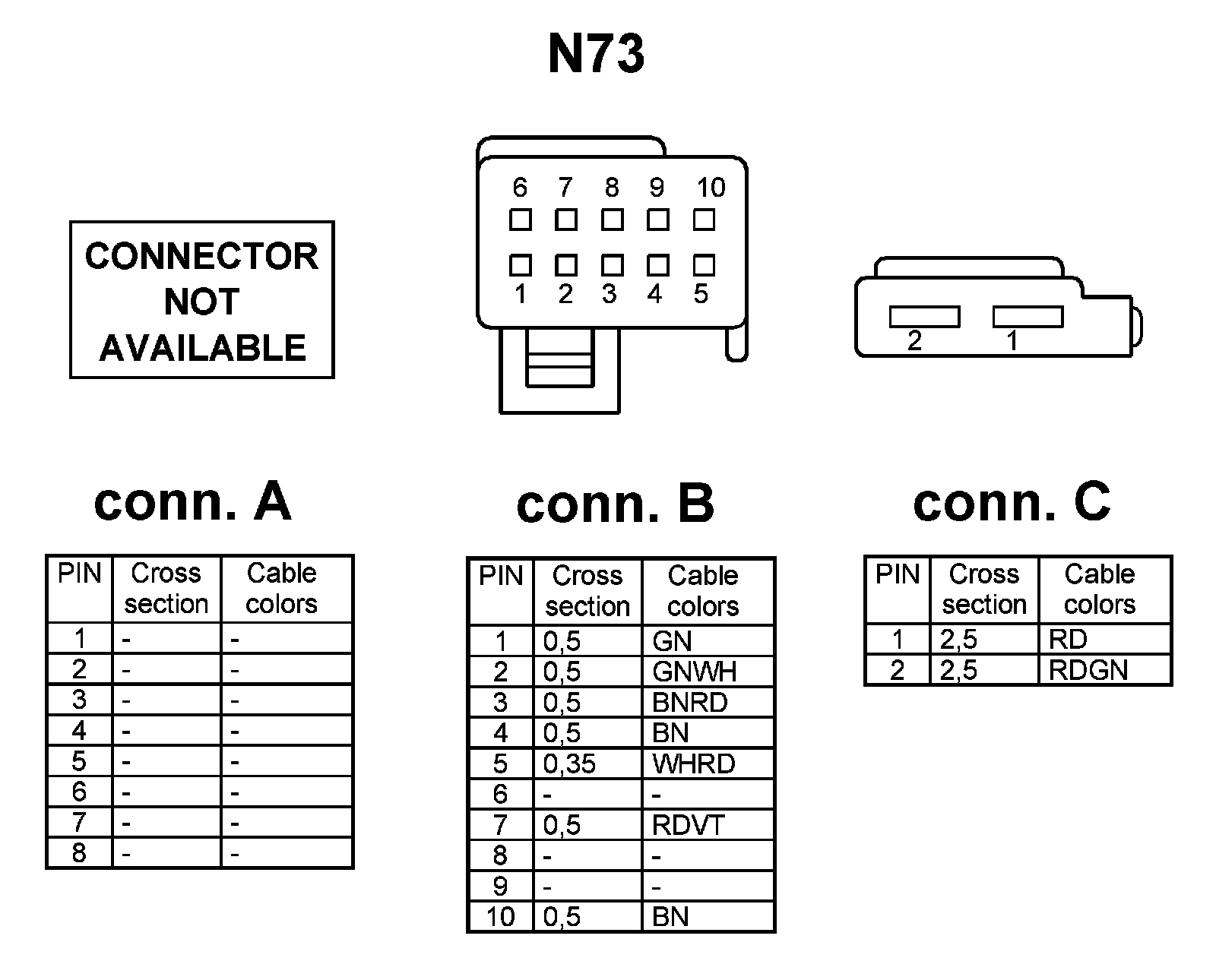

Component Locations: Component Location photographs can be found via their component names at the vehicle level. Component Locations
