GF91.29-P-0004-03CW Block Diagram of Electric Seat Adjustment (ESA (ESV))

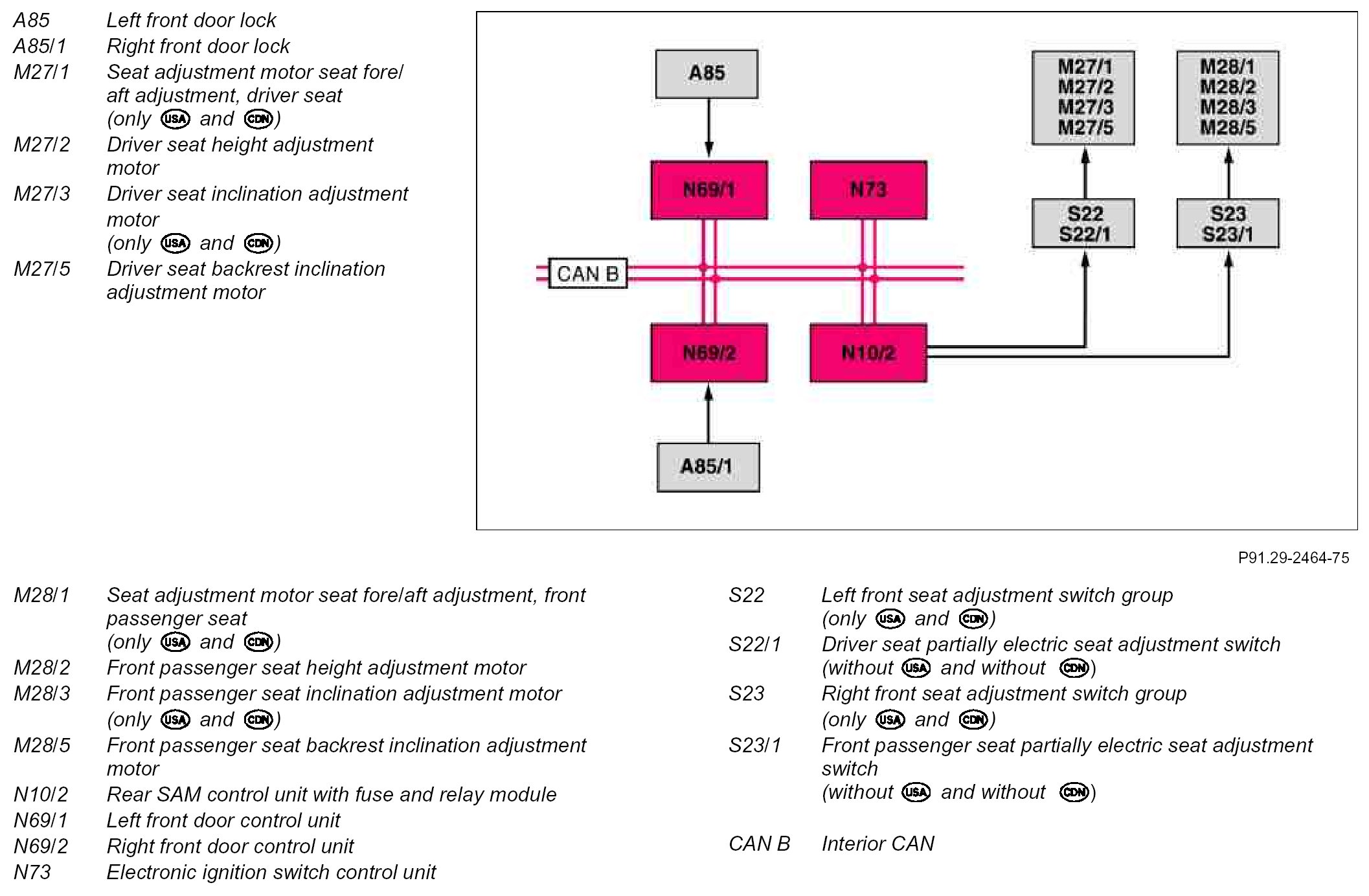

GF91.29-P-0004-03CW Block Diagram Of Electric Seat Adjustment (ESA [ESV])
- except CODE (275) Memory package (driver seat, steering column, mirrors)

Component Identification:
