Home >> Mercedes Benz >> 2012 >> C 300 4MATIC (204.081) V6-3.0L (272.948) >> Repair and Diagnosis >> Body and Frame >> Seats >> Description and Operation >> GF91.29-P-0004-01CW Electric Seat Adjustment (ESA (ESV)), Location of Components

GF91.29-P-0004-01CW Electric Seat Adjustment (ESA (ESV)), Location of Components



GF91.29-P-0004-01CW Electric Seat Adjustment (ESA [ESV]), Location Of Components
- except CODE (275) Memory package (driver seat, steering column, mirrors)

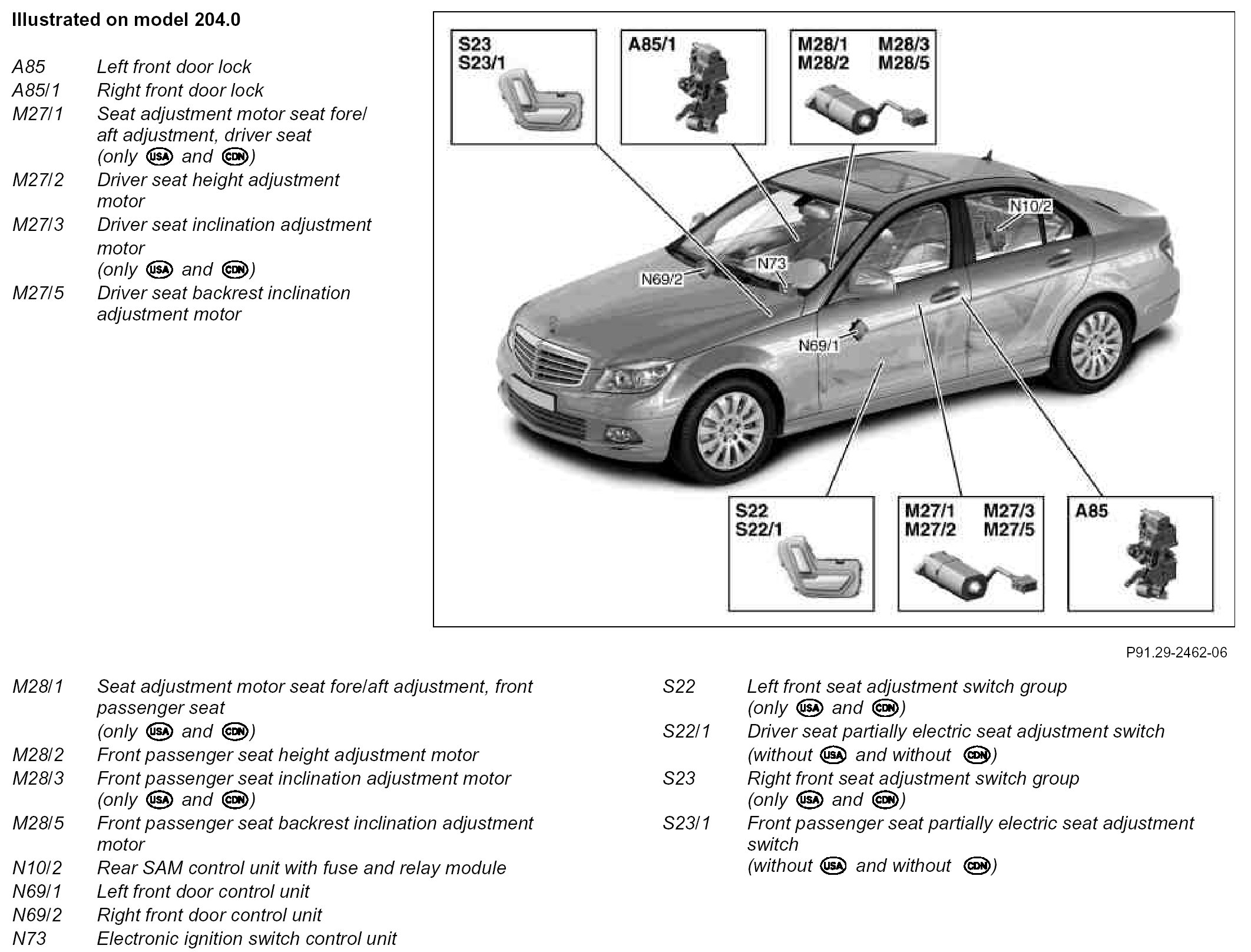

Component Identification:
