Home >> Mercedes Benz >> 2012 >> C 300 4MATIC (204.081) V6-3.0L (272.948) >> Repair and Diagnosis >> Body and Frame >> Roof and Associated Components >> Sunroof / Moonroof >> Sunroof / Moonroof Track >> Service and Repair >> Removal and Replacement >> AR77.21-P-0510CW Remove, Install Mechanical Front Glass Roof For Panoramic Sliding Roof

AR77.21-P-0510CW Remove, Install Mechanical Front Glass Roof For Panoramic Sliding Roof



AR77.21-P-0510CW Remove, Install Mechanical Front Glass Roof For Panoramic Sliding Roof
- with CODE (413) Panoramic sliding roof

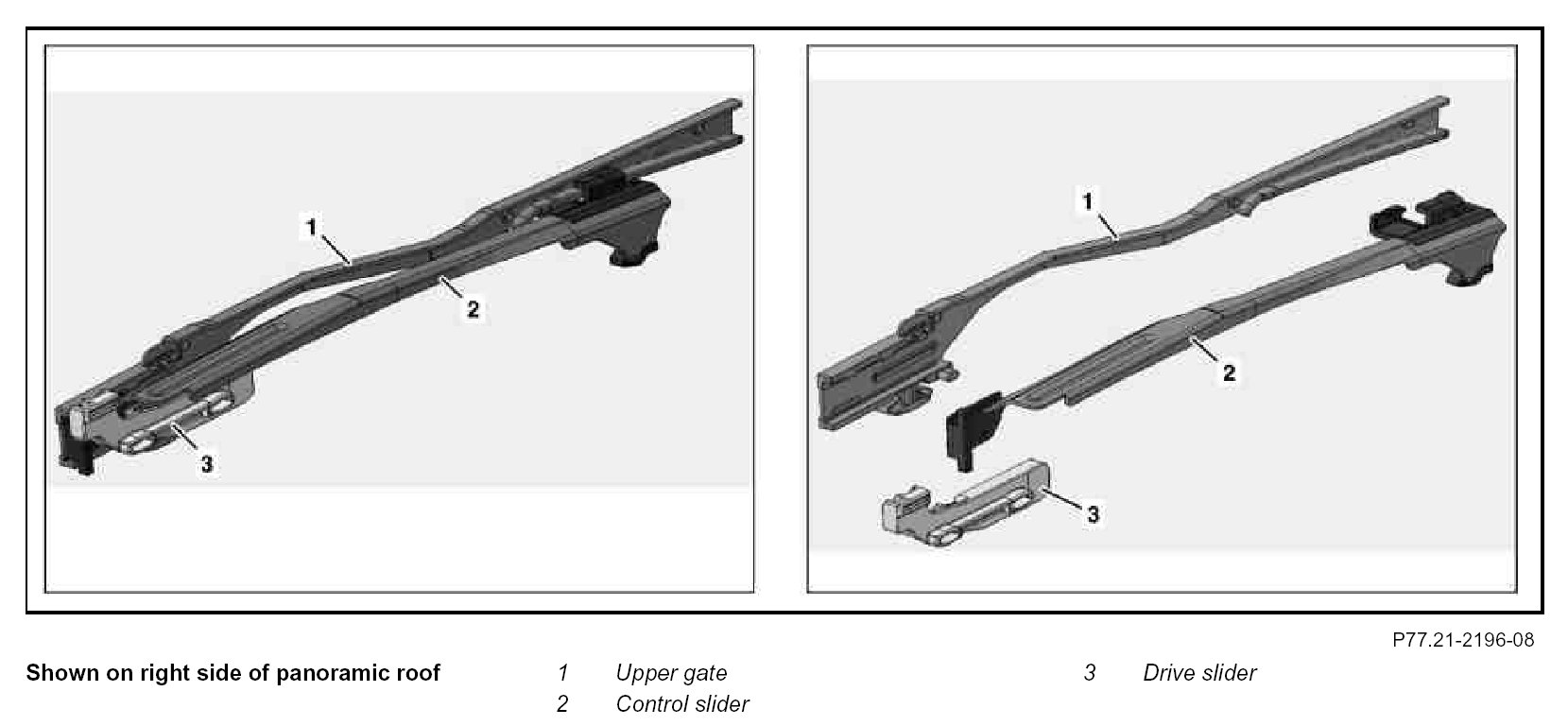

Component Identification:




Component Identification:

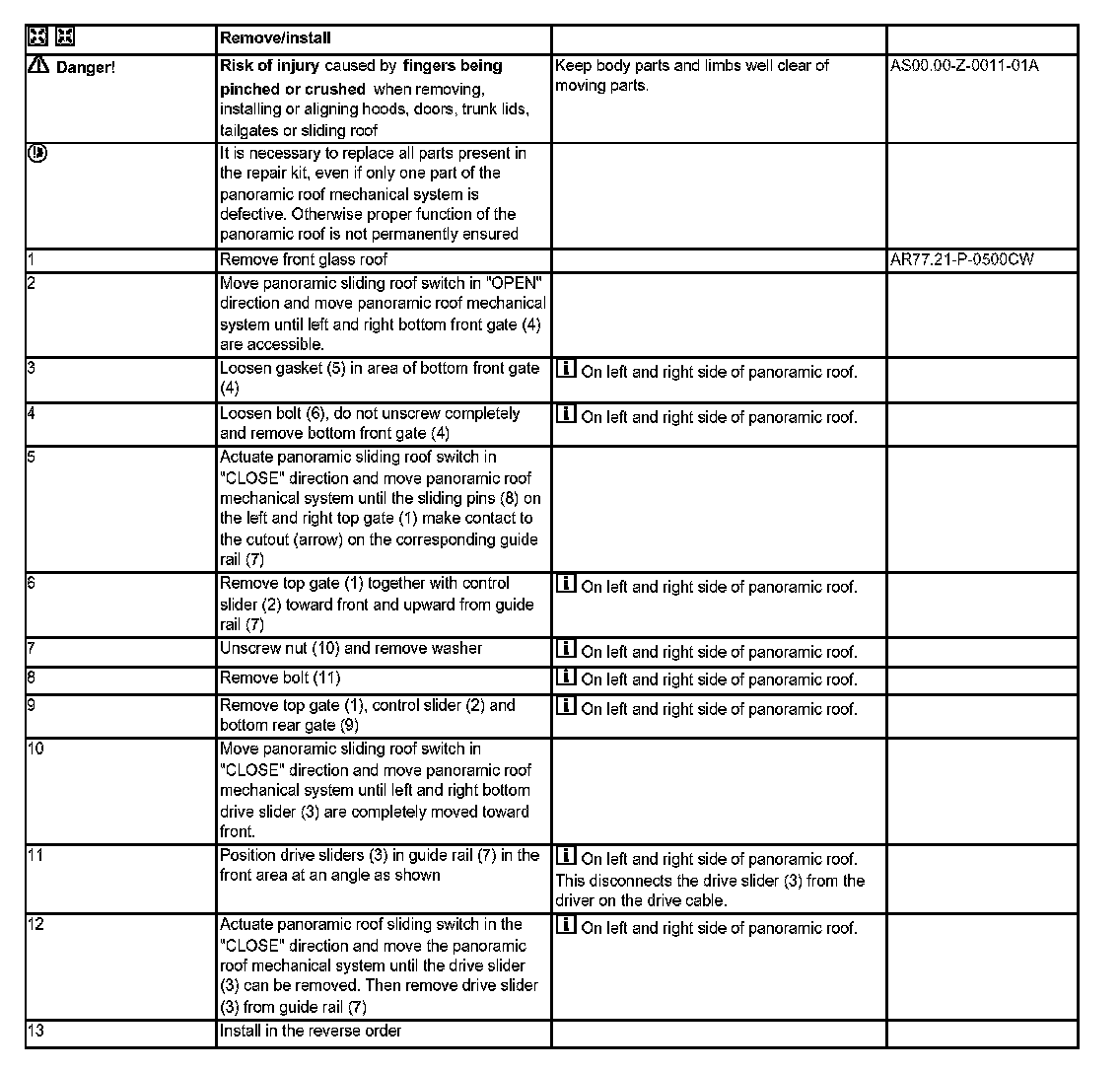

Steps 1 - 13:
