Procedures

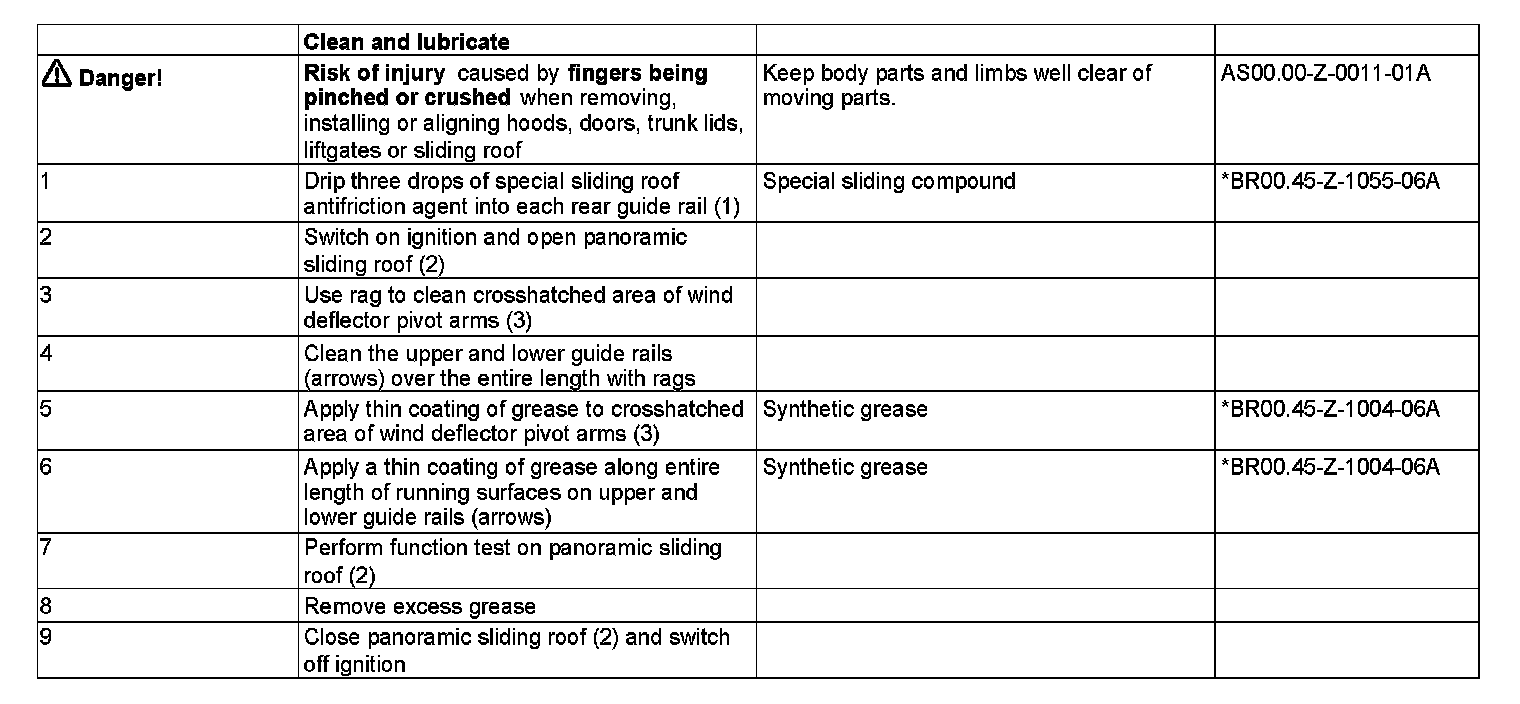

AP77.20-P-7732CW Panoramic Sliding Roof - Clean and Lubricate Guide Mechanism
MODEL 204, 246
- with CODE (413) Panoramic glass roof with top sliding roof

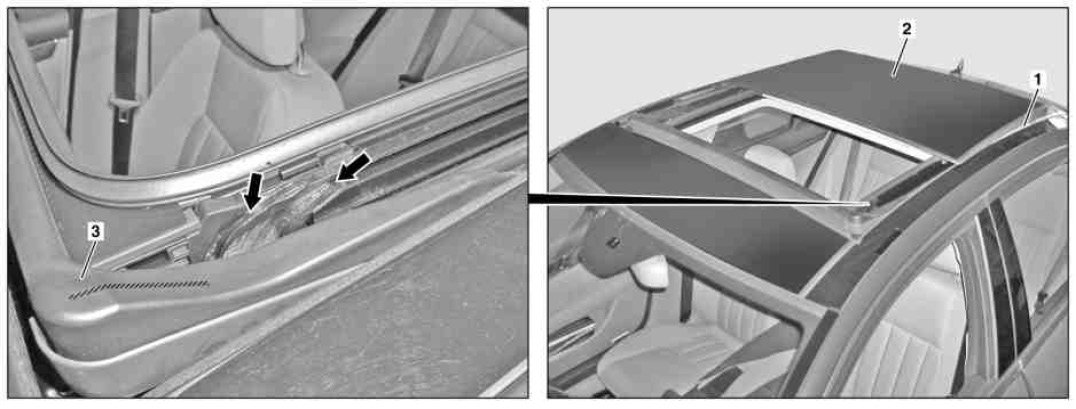

Shown on model 204.0

1 Rear guide rail
2 Panoramic sliding sunroof
3 Pivot arms
