AR77.21-P-7010CW Remove/Install Front Glass Cover



AR77.21-P-7010CW Remove/Install Front Glass Cover
- with CODE (413) Panoramic sliding roof

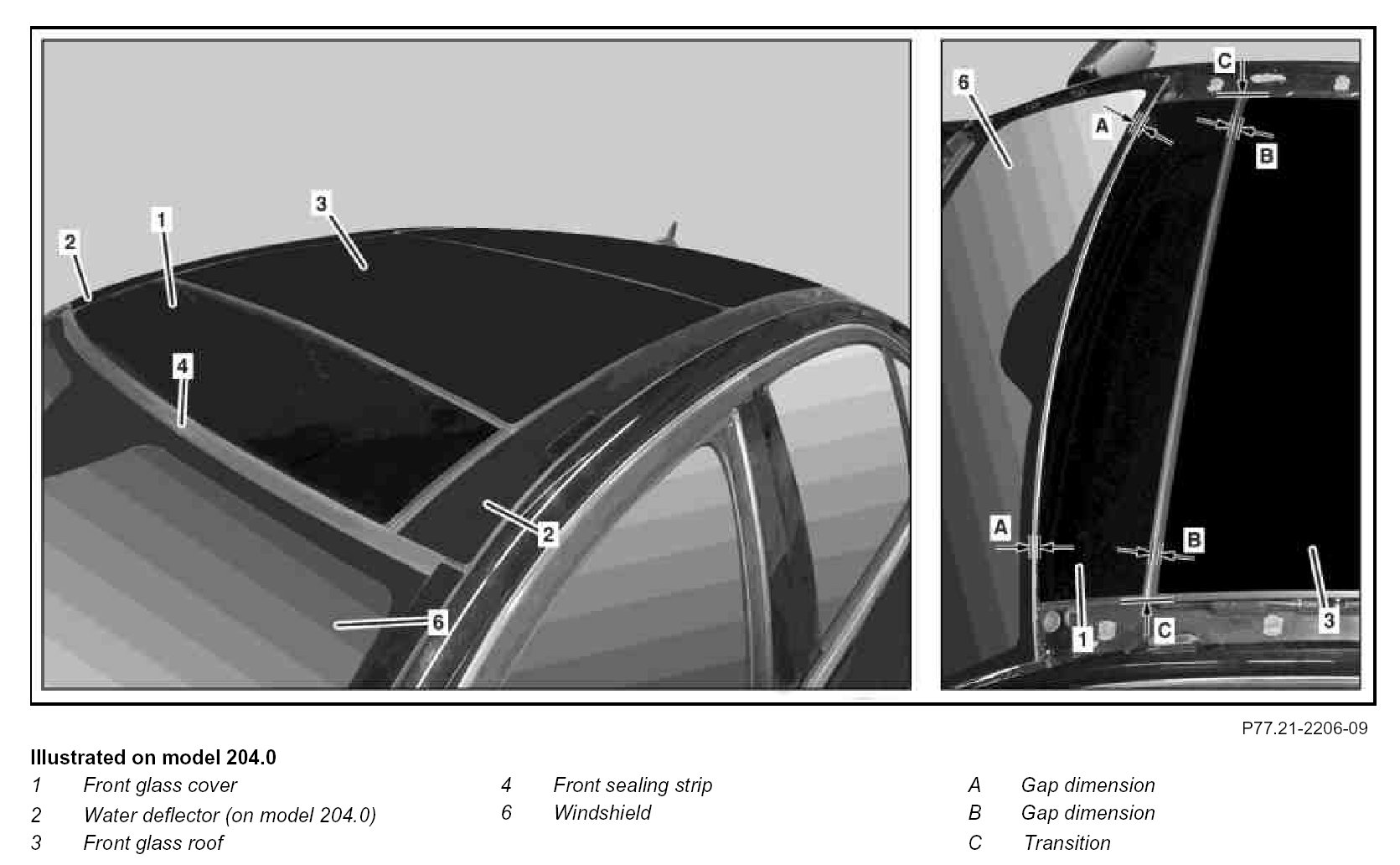

Component Identification:




Component Identification:




Modification Notes:

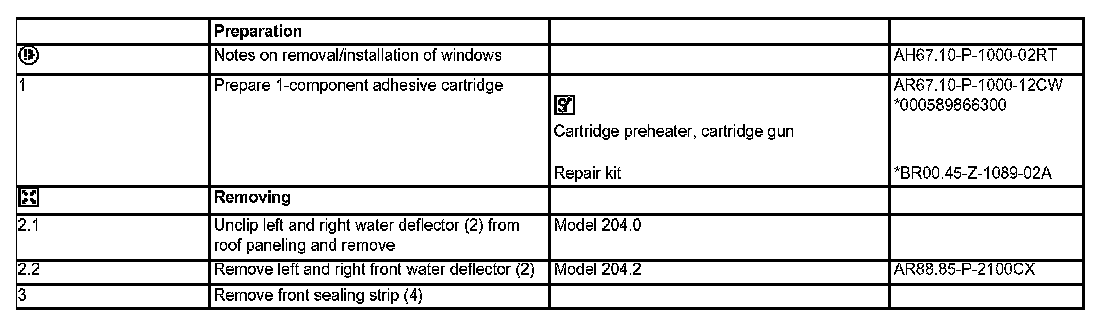

Steps 1 - 3:

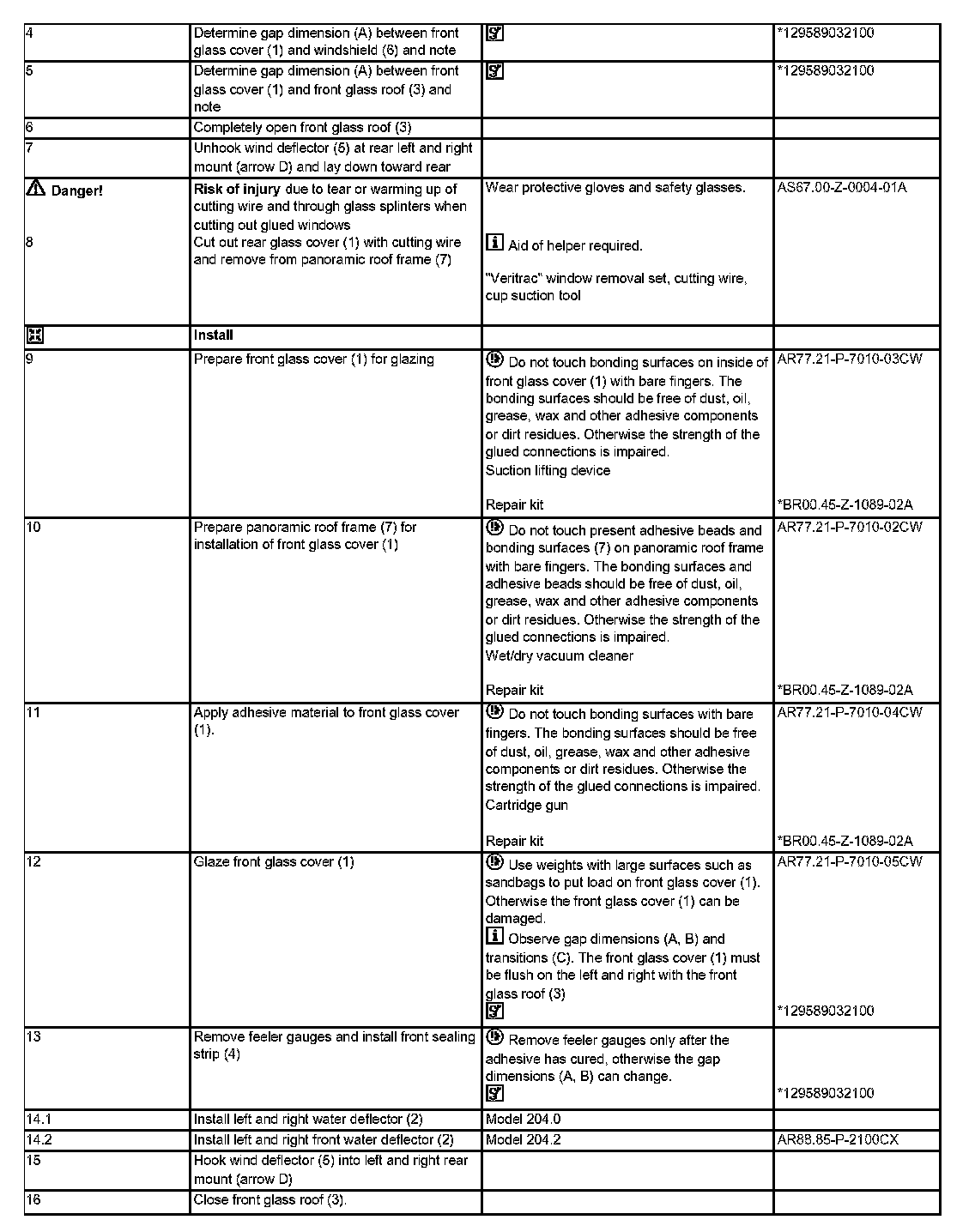

Steps 4 - 16:




Special Tools:




Special Tools:

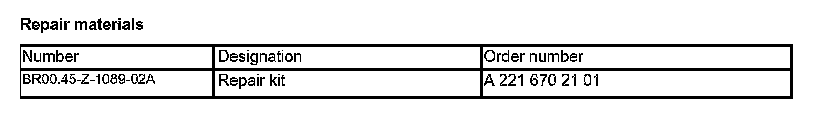

Repair Materials:
