AR77.21-P-0600CW Remove/Install Rear Panoramic Glass Roof

AR77.21-P-0600CW Remove/Install Rear Panoramic Glass Roof
MODEL 204
- with CODE (413) Panoramic sliding roof
MODEL 246
- with CODE (413) Panoramic glass roof with top sliding roof

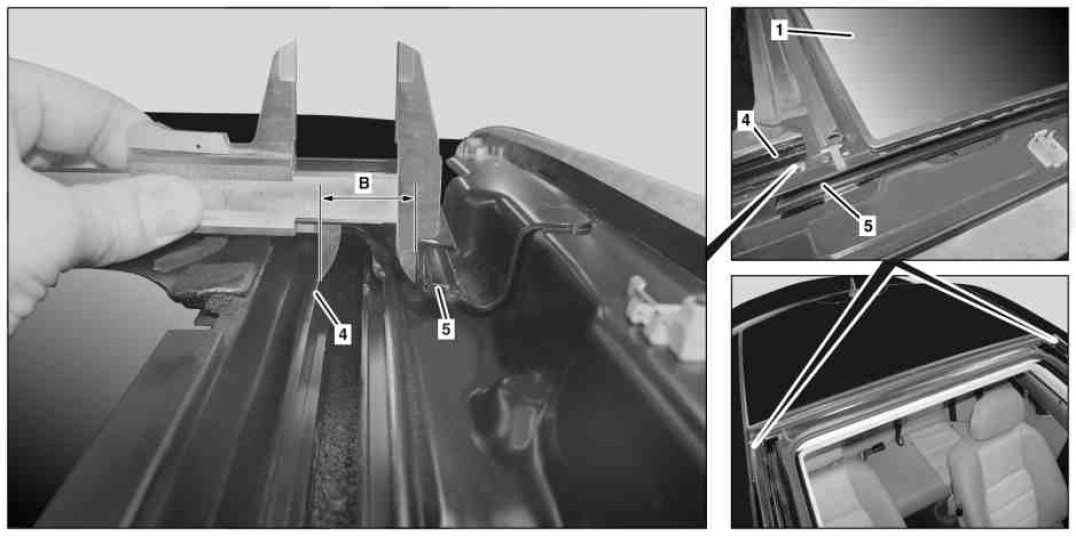

Shown on model 204.0

1 Rear glass cover
4 Guide rail
5 Guide strip

B Guide dimension

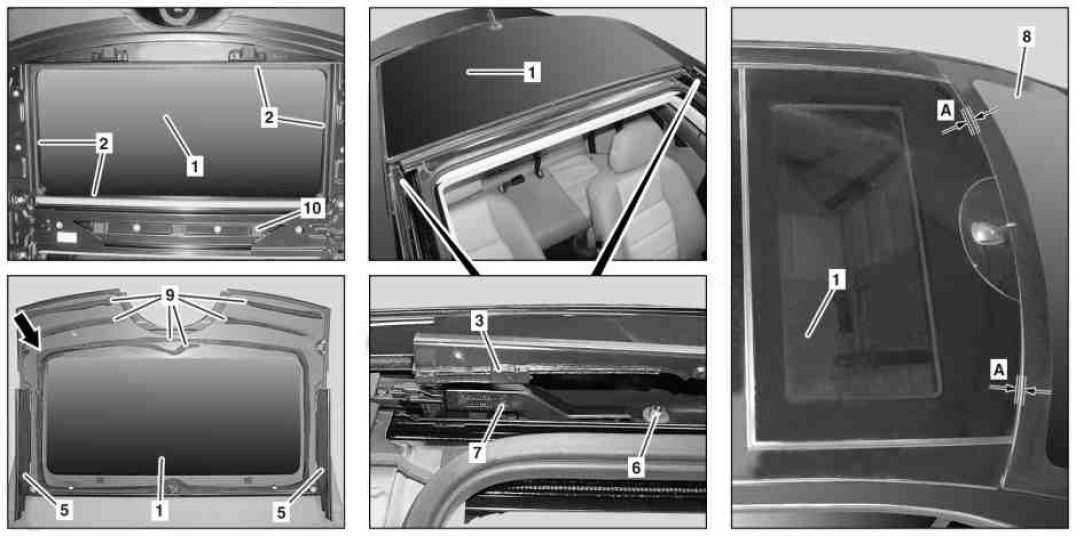

Shown on model 204.0

1 Rear glass cover
2 Surrounds
3 Control slider
5 Guide strip
6 Nut
7 Rear gate
8 Rear window
9 Adhesive beads
10 Panoramic roof frame

A Gap dimension

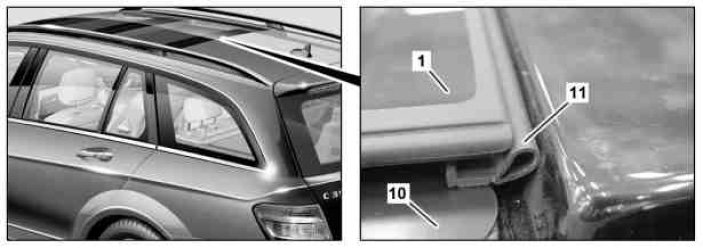

Shown on model 204.2

1 Rear glass cover
10 Panoramic roof frame
11 Seal (model 204.2/9, model 246)











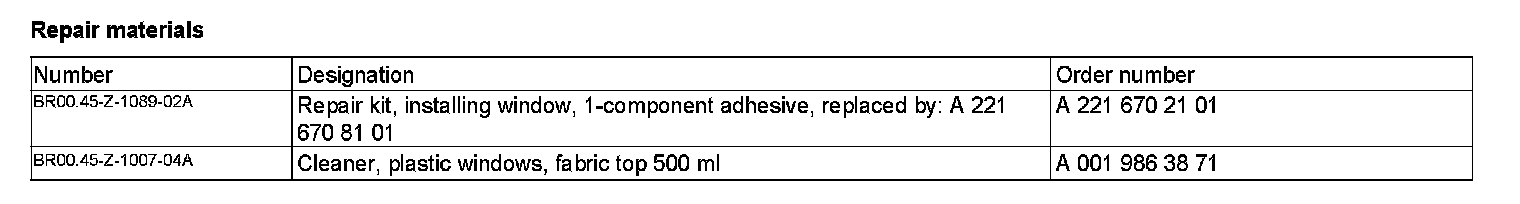

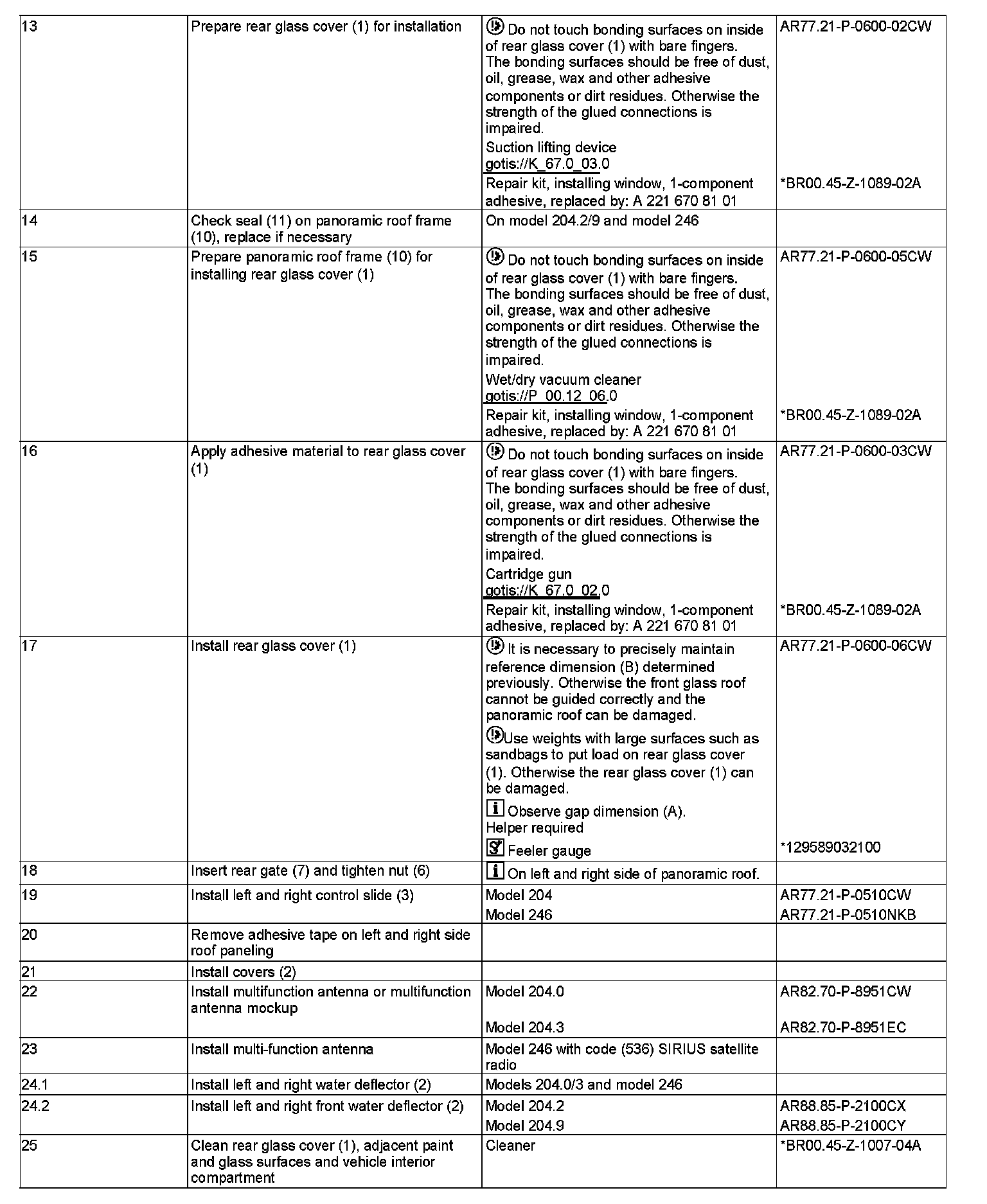

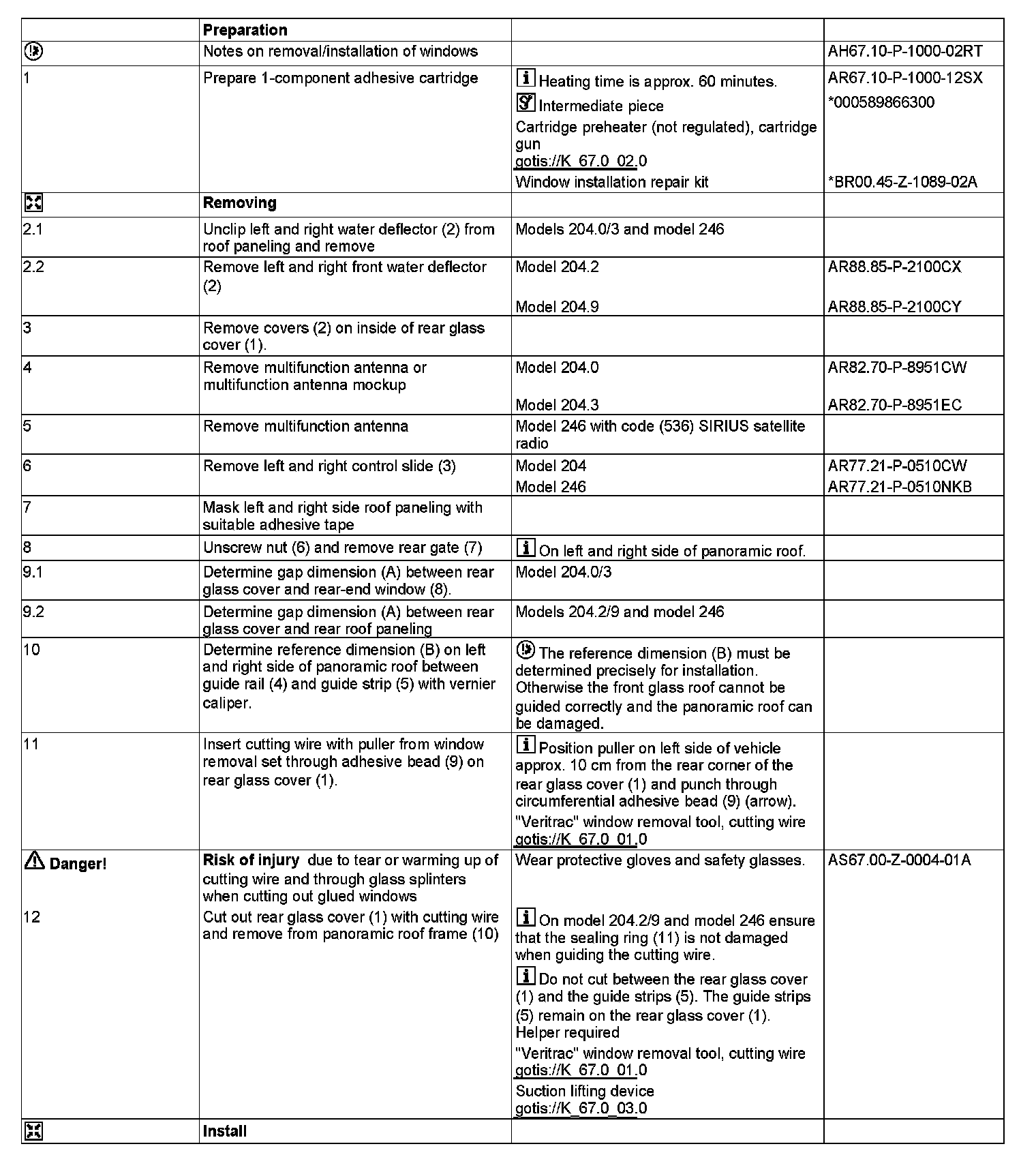

000 589 86 63 00
Intermediate piece





129 589 03 21 00
Feeler gauge
