AR77.21-P-0600-03CW Apply Adhesive Material For Rear Glass Roof

AR77.21-P-0600-03CW Apply Adhesive Material For Rear Glass Roof
- with CODE (413) Panoramic sliding roof

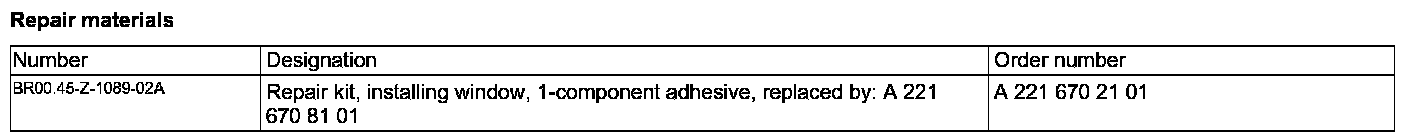

Repair Materials:

Illustrated on model 204.0

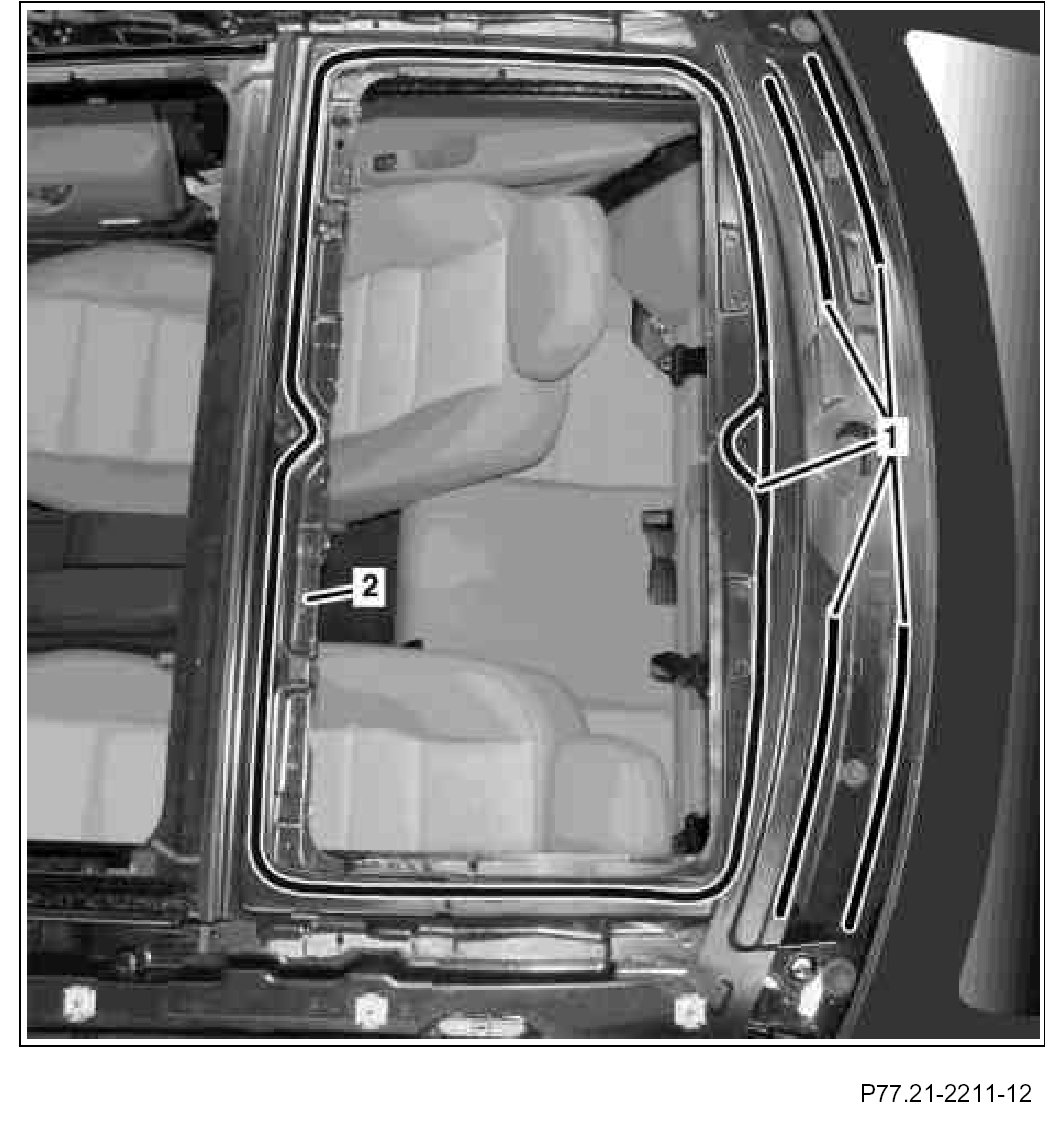

Do not touch bonding surfaces with bare fingers. The bonding surfaces (1) must be free of dust, oil, grease, wax, dirt residues and other adhesive components, otherwise the adhesive force of the glued connection is impaired.

1. Guide application nozzle on bonding surfaces (1) along panoramic roof frame (2). Simultaneously apply adhesive bead uniformly with a height of approx. 14 mm and a width of approx. 8 mm.

Cartridge gun

Immediately remote contamination caused by adhesive material.
