AR77.21-P-0501CW Adjust Front Panoramic Roof Glass Roof



AR77.21-P-0501CW Adjust Front Panoramic Roof Glass Roof
- with CODE (413) Panoramic sliding roof

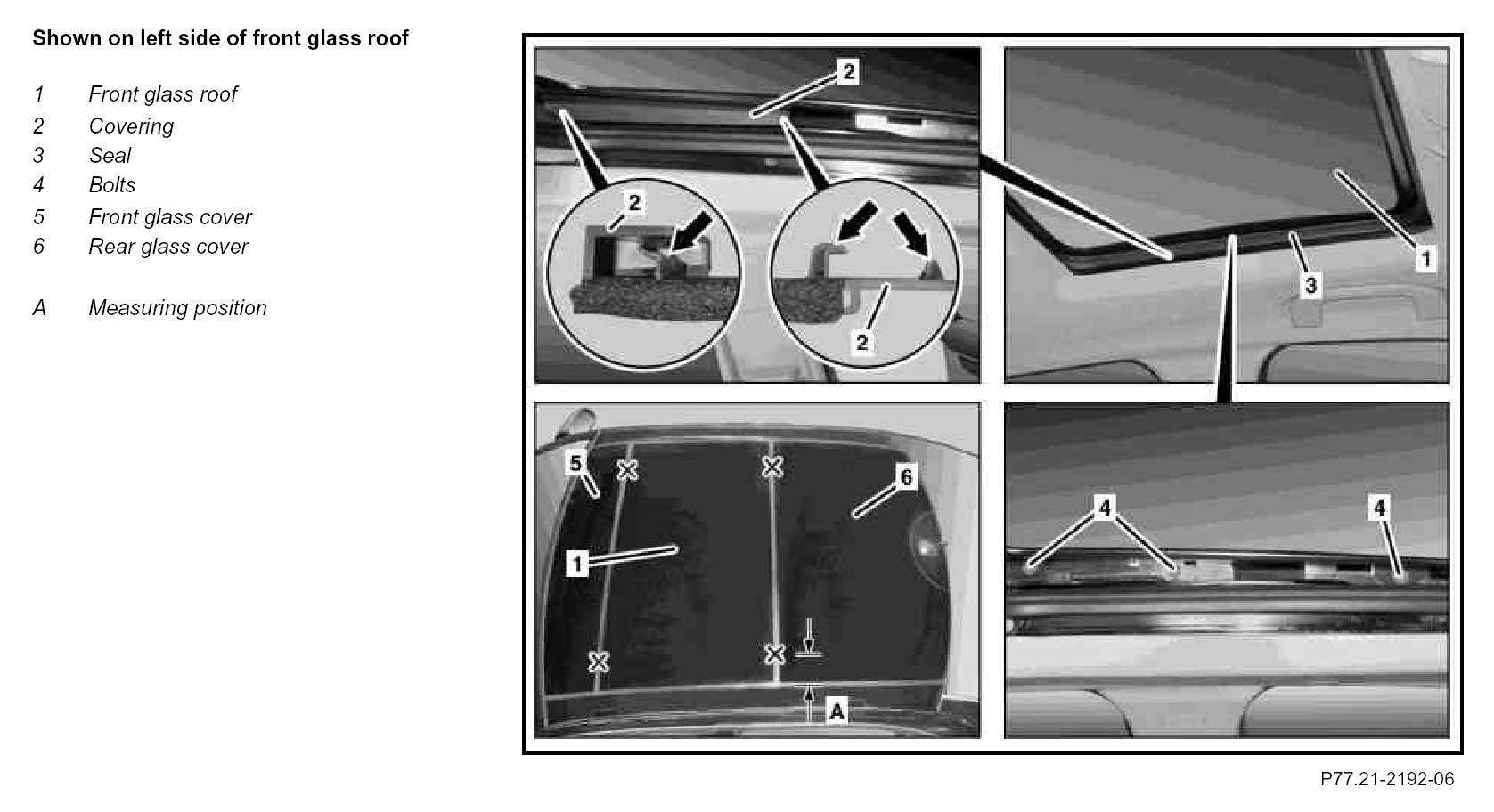

Component Identification:

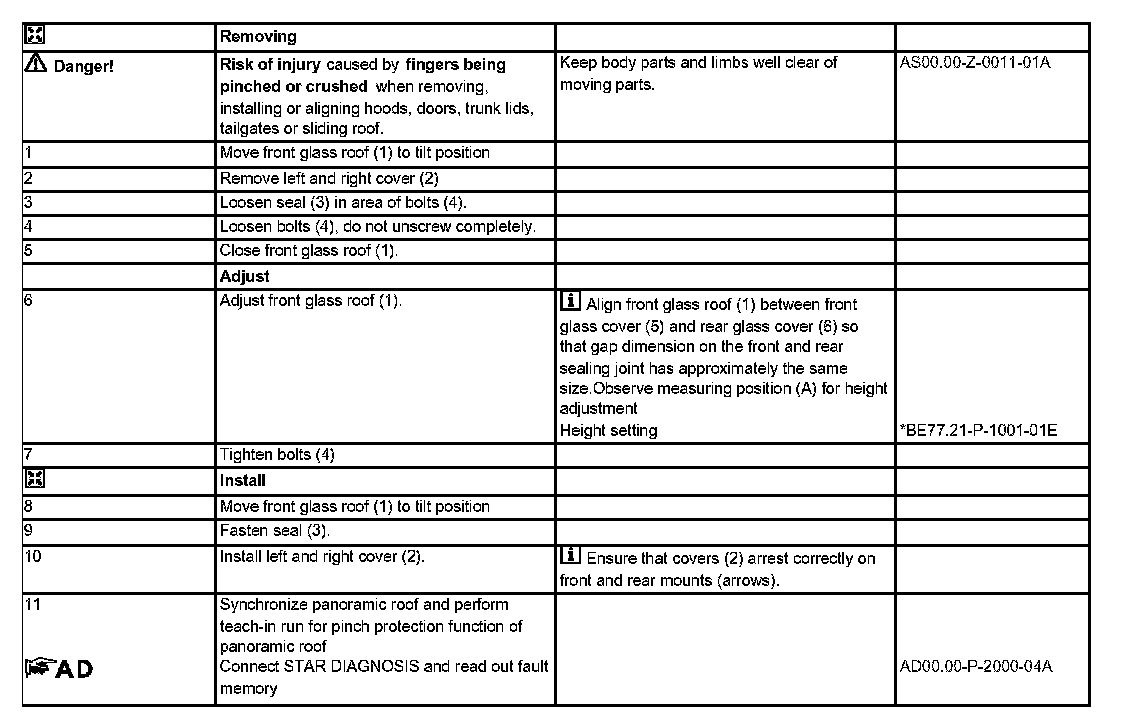

Steps 1 - 11:

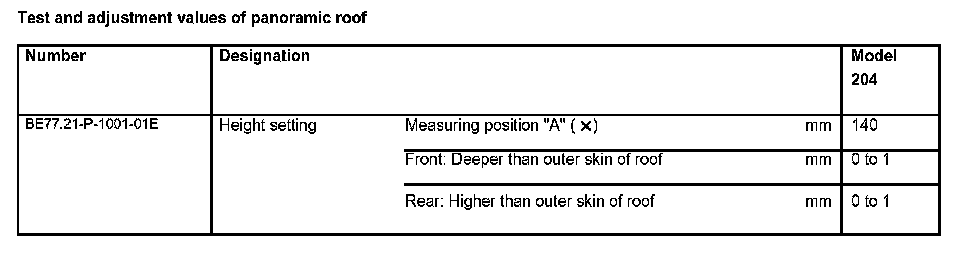

Test And Adjustment Values Of Panoramic Roof:
