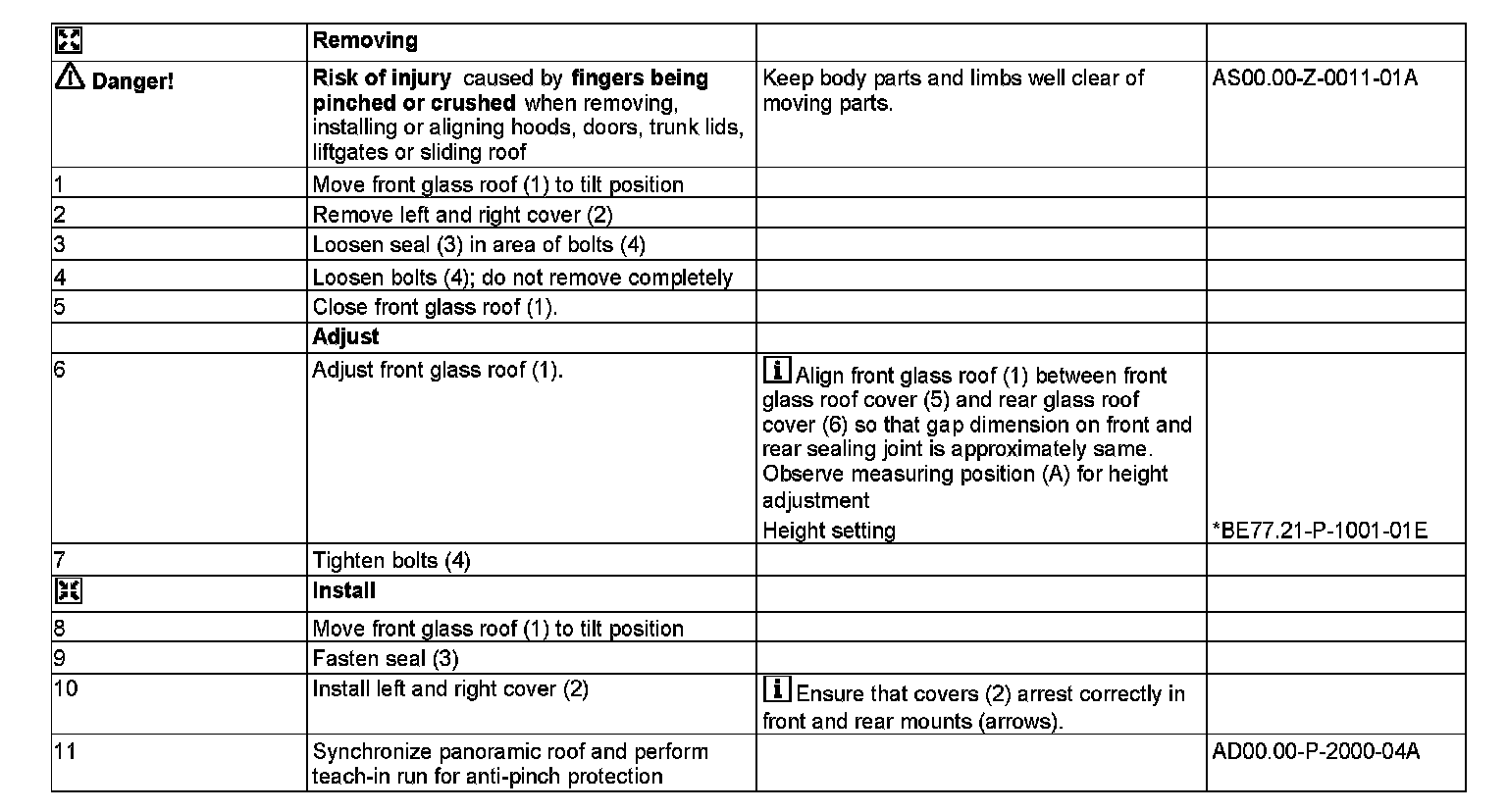

AR77.21-P-0501CW Adjust Front Panoramic Glass Roof

AR77.21-P-0501CW Adjust Front Panoramic Glass Roof
MODEL 204.0 /2 /9
- with CODE (413) Panoramic sliding roof
MODEL 246
- with CODE (413) Panoramic glass roof with top sliding roof

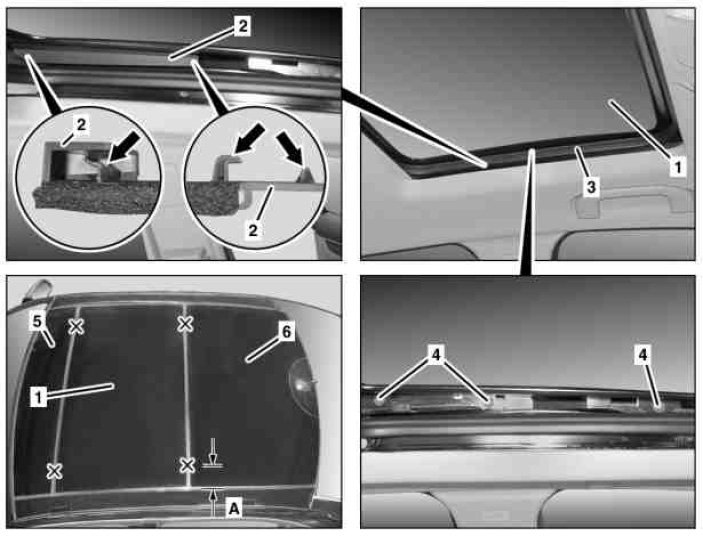

Shown on left side of front glass roof on model 204.0

1 Front glass roof
2 Cover
3 Seal
4 Bolts
5 Front glass cover
6 Rear glass cover

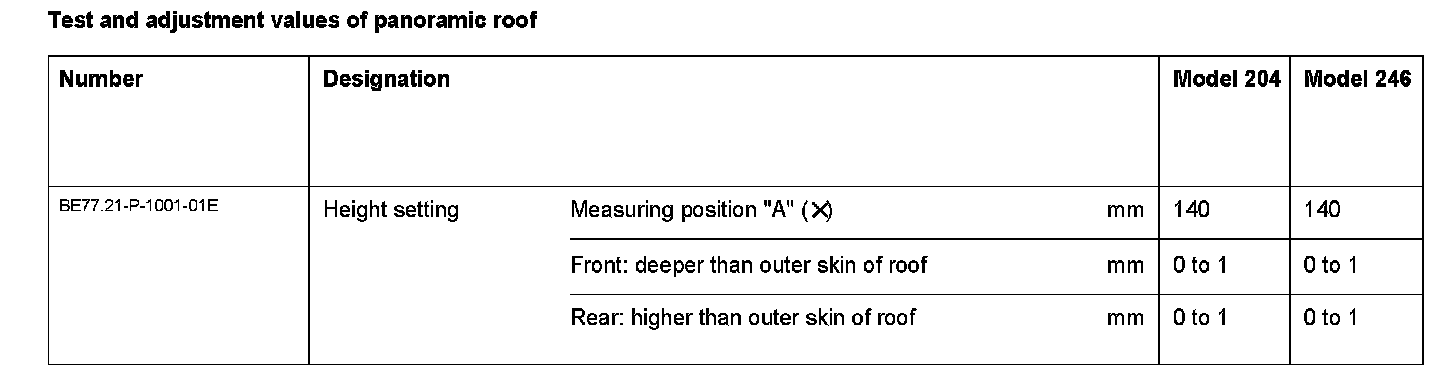

A Measuring position
