Home >> Mercedes Benz >> 2012 >> C 300 4MATIC (204.081) V6-3.0L (272.948) >> Repair and Diagnosis >> Body and Frame >> Roof and Associated Components >> Sunroof / Moonroof >> Sunroof / Moonroof Motor >> Service and Repair >> AR77.21-P-6995CW Remove/Install Panoramic Sliding Roof Motor

AR77.21-P-6995CW Remove/Install Panoramic Sliding Roof Motor



AR77.21-P-6995CW Remove/Install Panoramic Sliding Roof Motor
- with CODE (413) Panoramic sliding roof
- panoramic sliding roof roller sun blind drive unit, panoramic sliding roof control unit

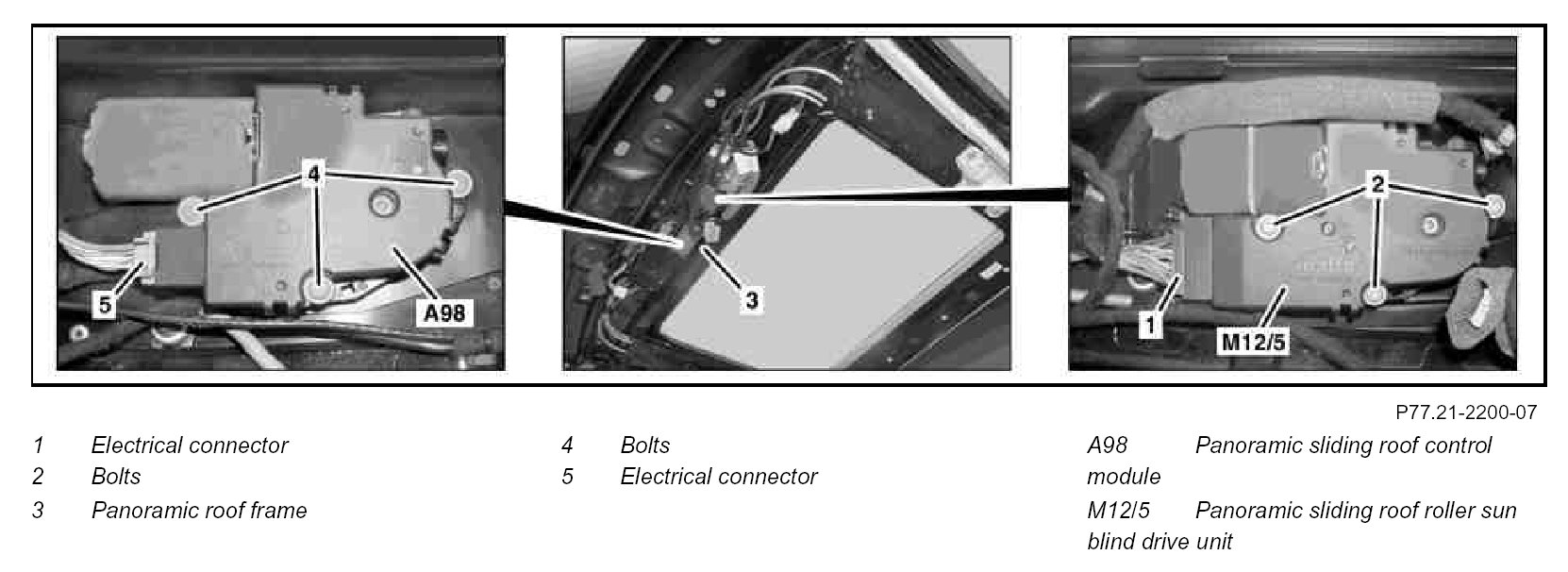

Component Identification:

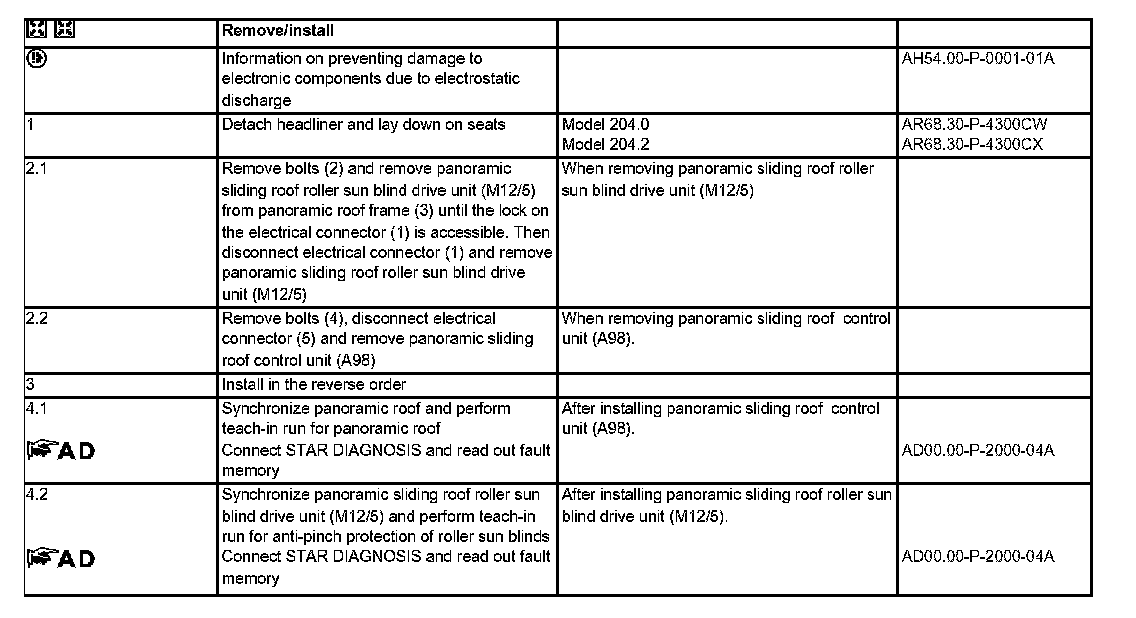

Steps 1 - 4.2:
