AR77.21-P-7010CW Remove/Install Front Glass Cover

AR77.21-P-7010CW Remove/Install Front Glass Cover
MODEL 204.0 /2 /3 /9
- with CODE (413) Panoramic sliding roof
MODEL 246
- with CODE (413) Panoramic glass roof with top sliding roof

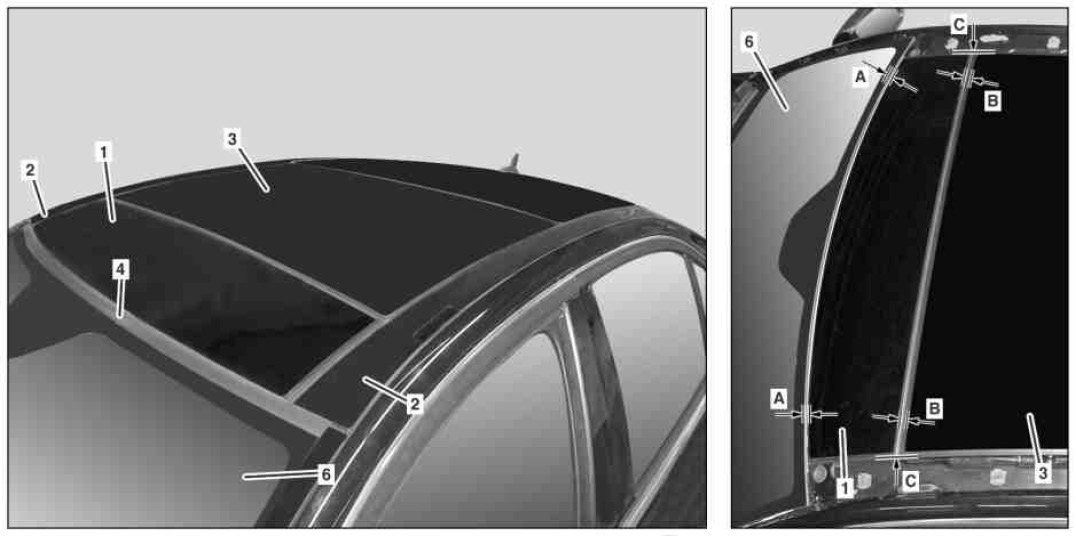

Shown on model 204.0

1 Front glass cover
2 Water deflector (on mode 204.0/3 and model 246)
3 Front glass roof
4 Front sealing strip
6 Windshield

A Gap dimension
B Gap dimension
C Transition

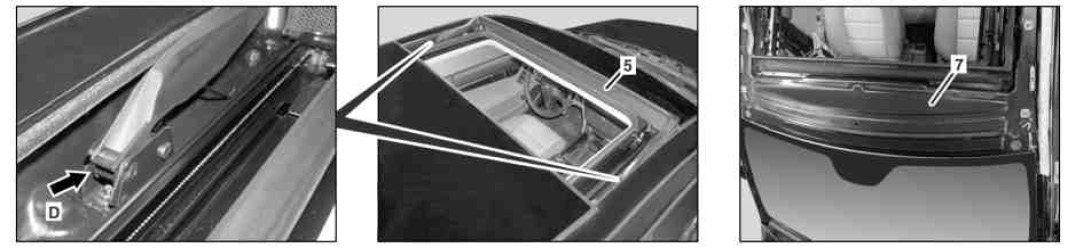

Shown on model 204.0

5 Wind deflector
7 Panoramic roof frame











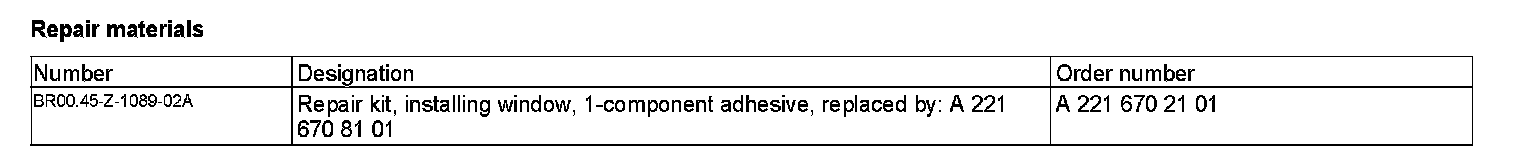

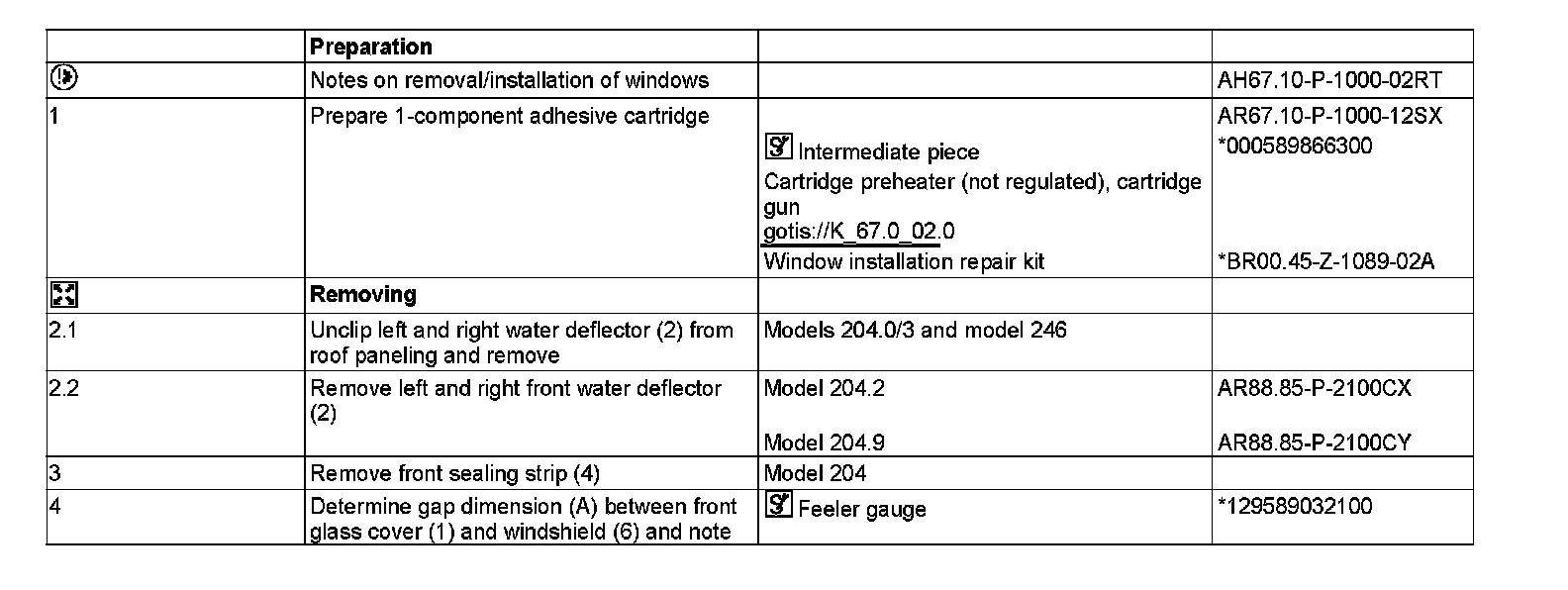

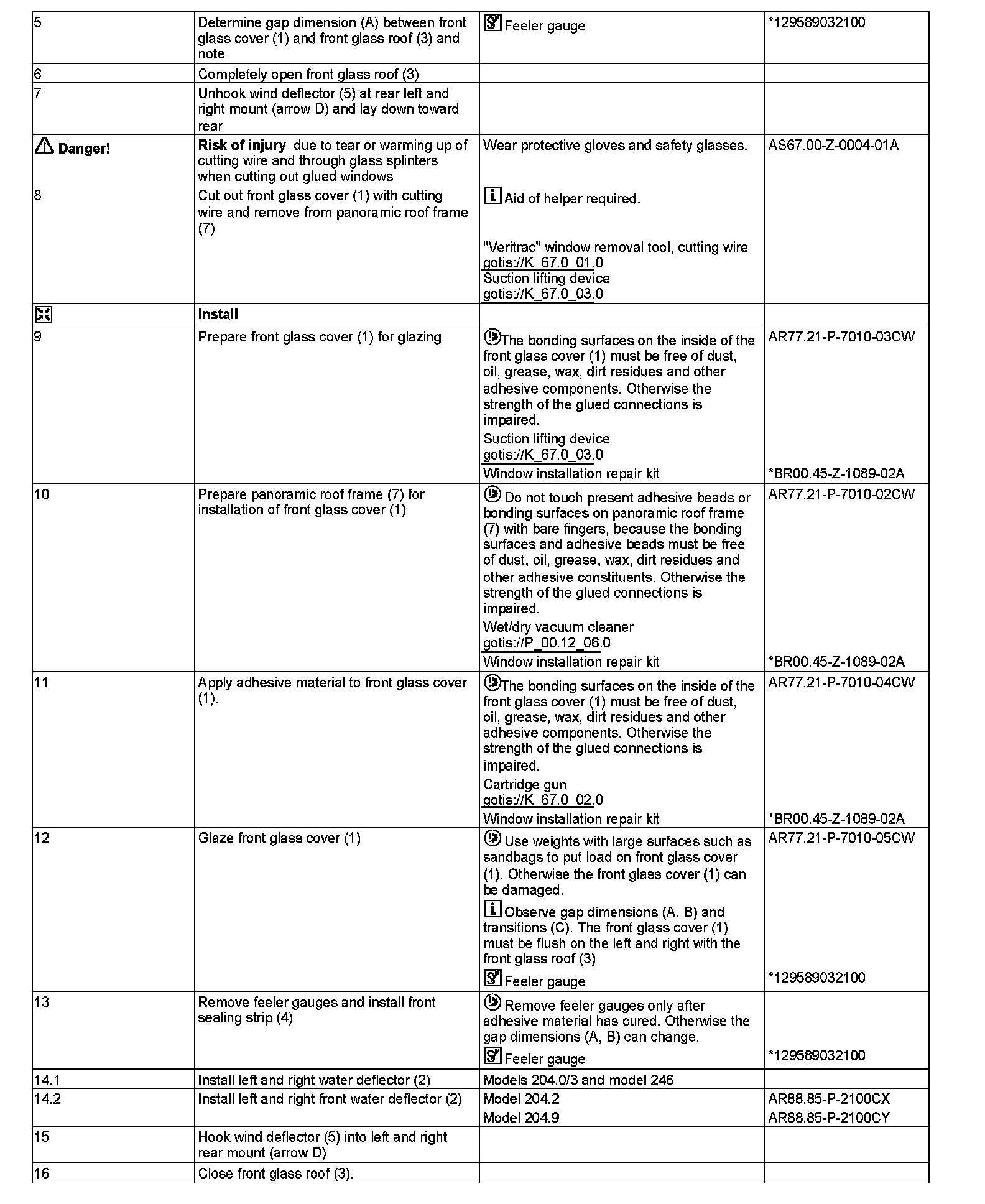

000 589 86 63 00
Intermediate piece





129 589 03 21 00
Feeler gauge
