AR77.21-P-7010-04CW Apply Adhesive Material to Front Glass Cover

AR77.21-P-7010-04CW Apply Adhesive Material To Front Glass Cover
- with CODE (413) Panoramic sliding roof

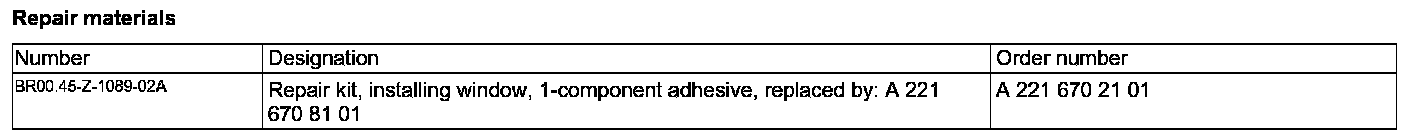

Repair Materials:

Do not touch bonding surface (1) with bare fingers. The bonding surfaces (1) and adhesive beads must be free of dust, oil, grease, wax, dirt residues and other adhesive components, otherwise the adhesive force of the glued connection is impaired.

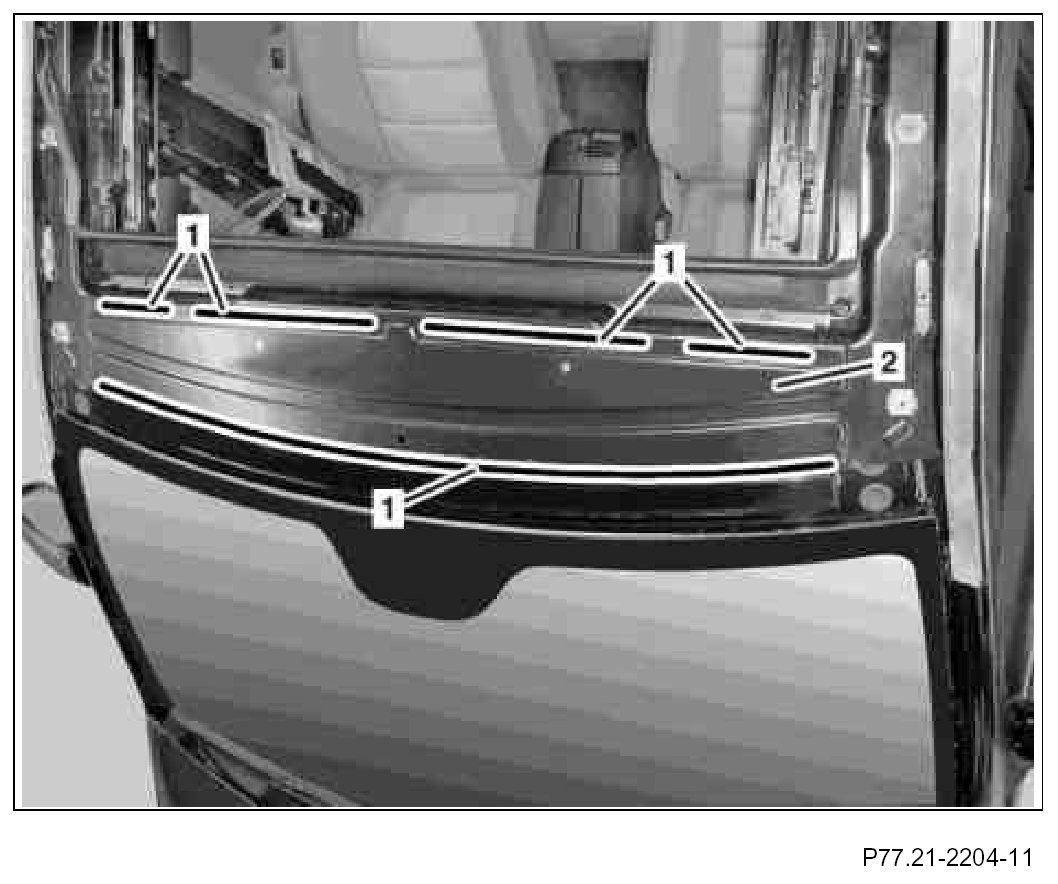

1. Guide application nozzle along bonding surfaces (1) on panoramic roof frame (2) and uniformly apply adhesive material in shape of a bead with a height (b) of approx. 14 mm and a width of approx. 8 mm.

Cartridge gun

Immediately remove contamination caused by adhesive material.
