AR77.21-P-0800CW Remove/Install Panoramic Roof Frame

AR77.21-P-0800CW Remove/Install Panoramic Roof Frame
MODEL 204.0 /2 /9
- with CODE (413) Panoramic sliding roof
MODEL 246
- with CODE (413) Panoramic glass roof with top sliding roof

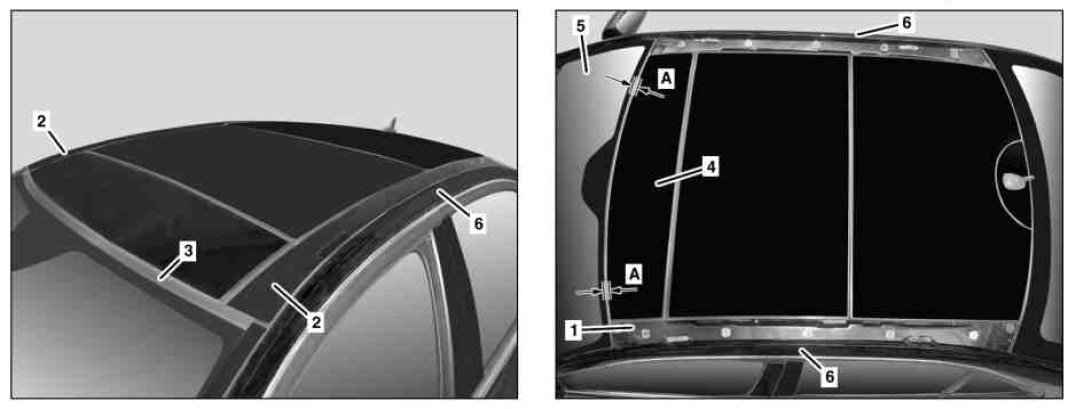

Shown on model 204.0

1 Panoramic roof frame
2 Water deflector (on model 204.0 and model 246)
3 Front sealing strip
4 Front glass cover
5 Windshield
6 Side roof paneling

A Gap dimension

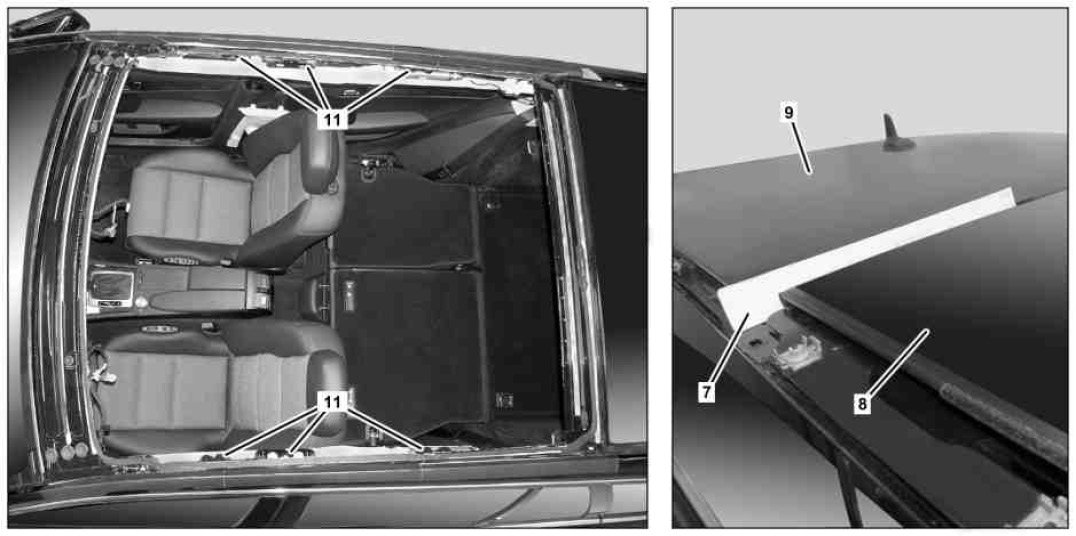

Shown on model 204.0

1 Panoramic roof frame
10 Pull-in device





Shown on model 204.2

7 Plastic strips (on model 204.2/9 and model 246)
8 Rear glass cover
9 Rear roof paneling (on model 204.2/9 and model 246)
11 Bearing brackets











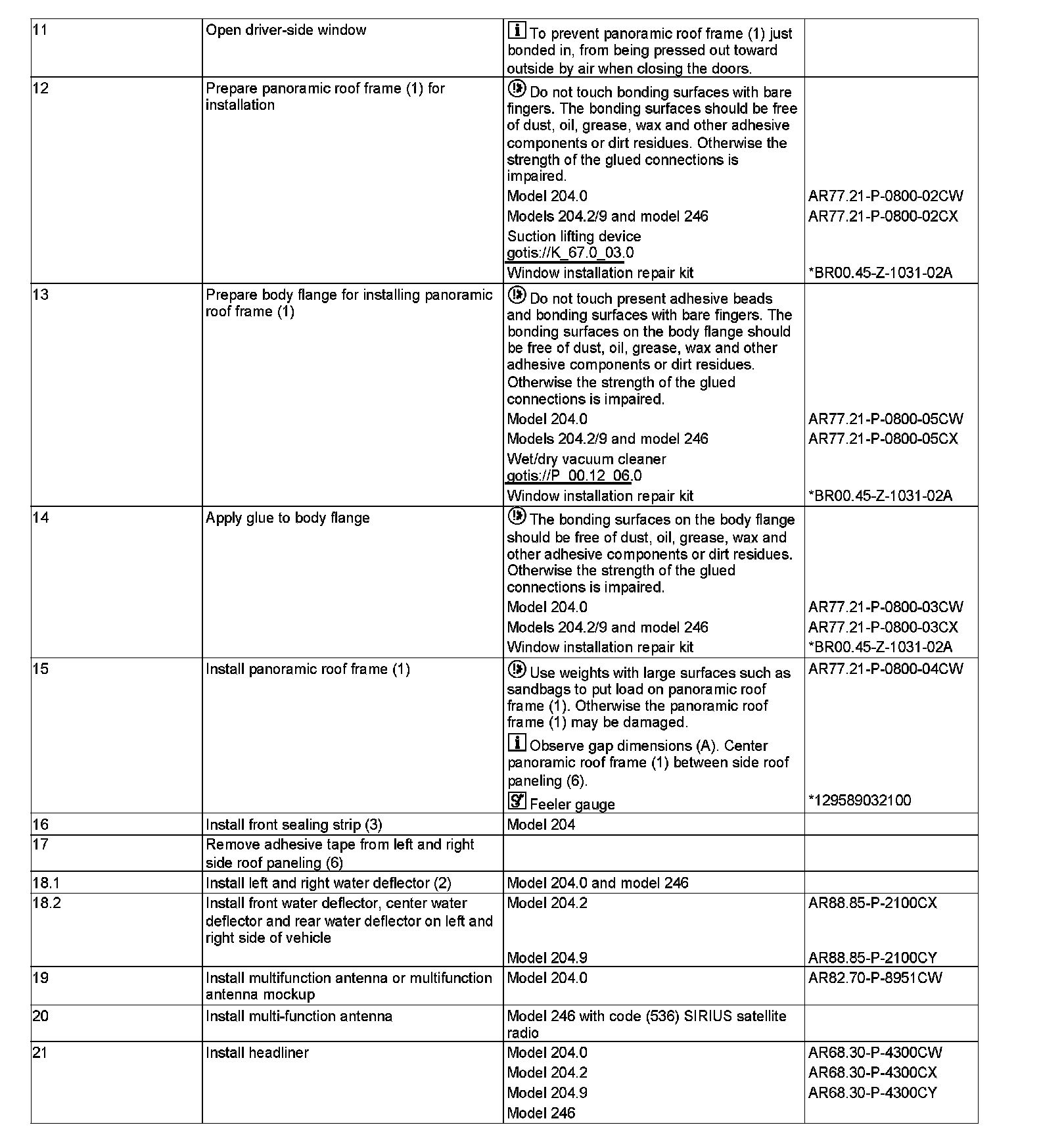

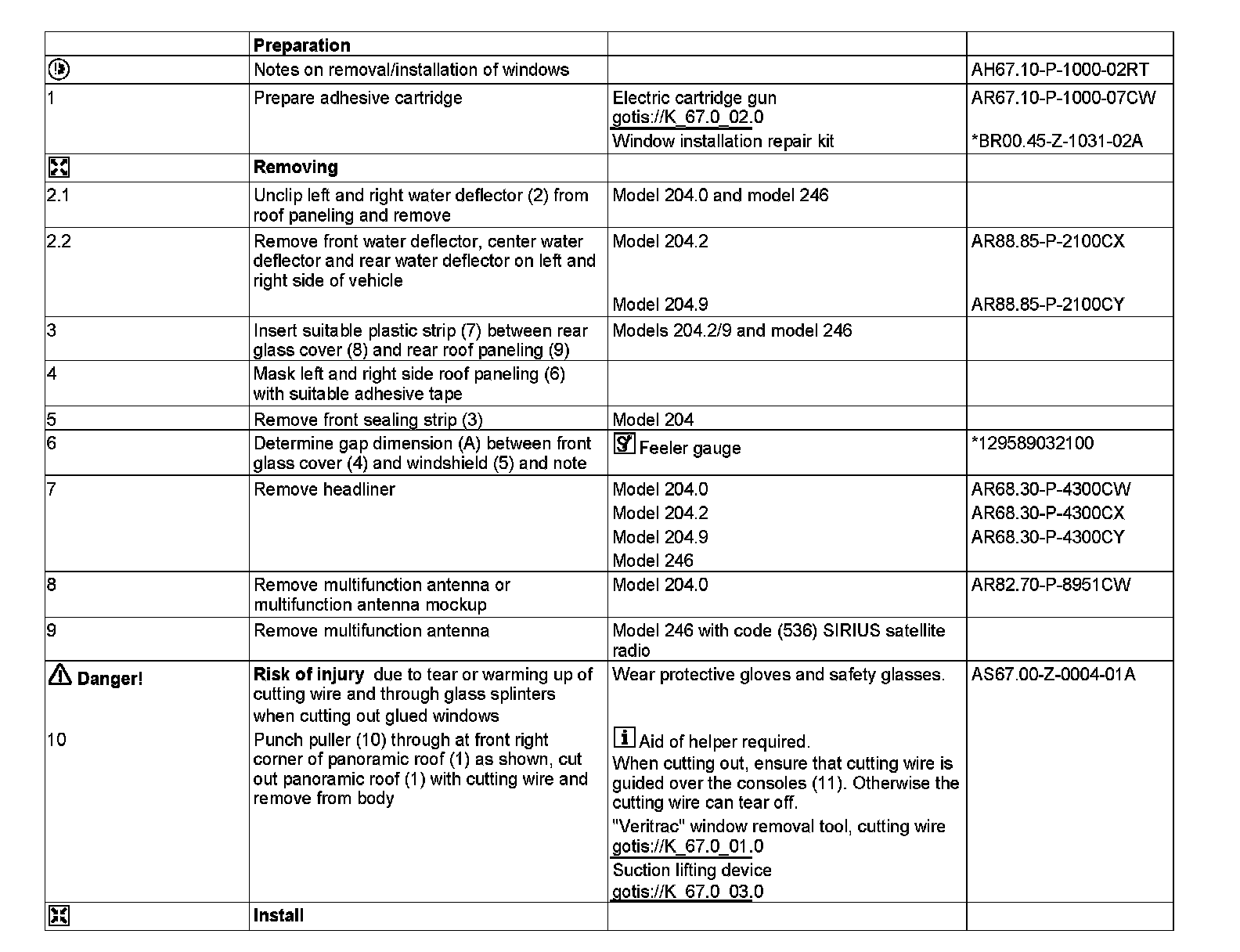

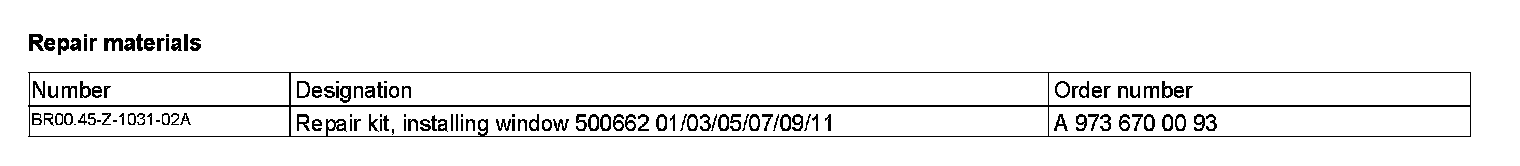

129 589 03 21 00
Feeler gauge
