AR77.21-P-0800-04CW Install Panoramic Roof Frame

AR77.21-P-0800-04CW Install Panoramic Roof Frame
- with CODE (413) Panoramic sliding roof

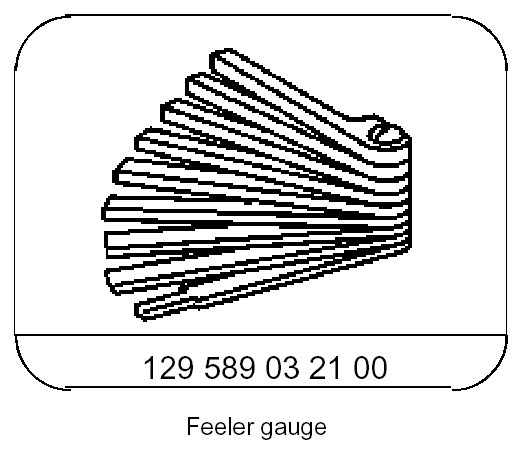

Special Tool:

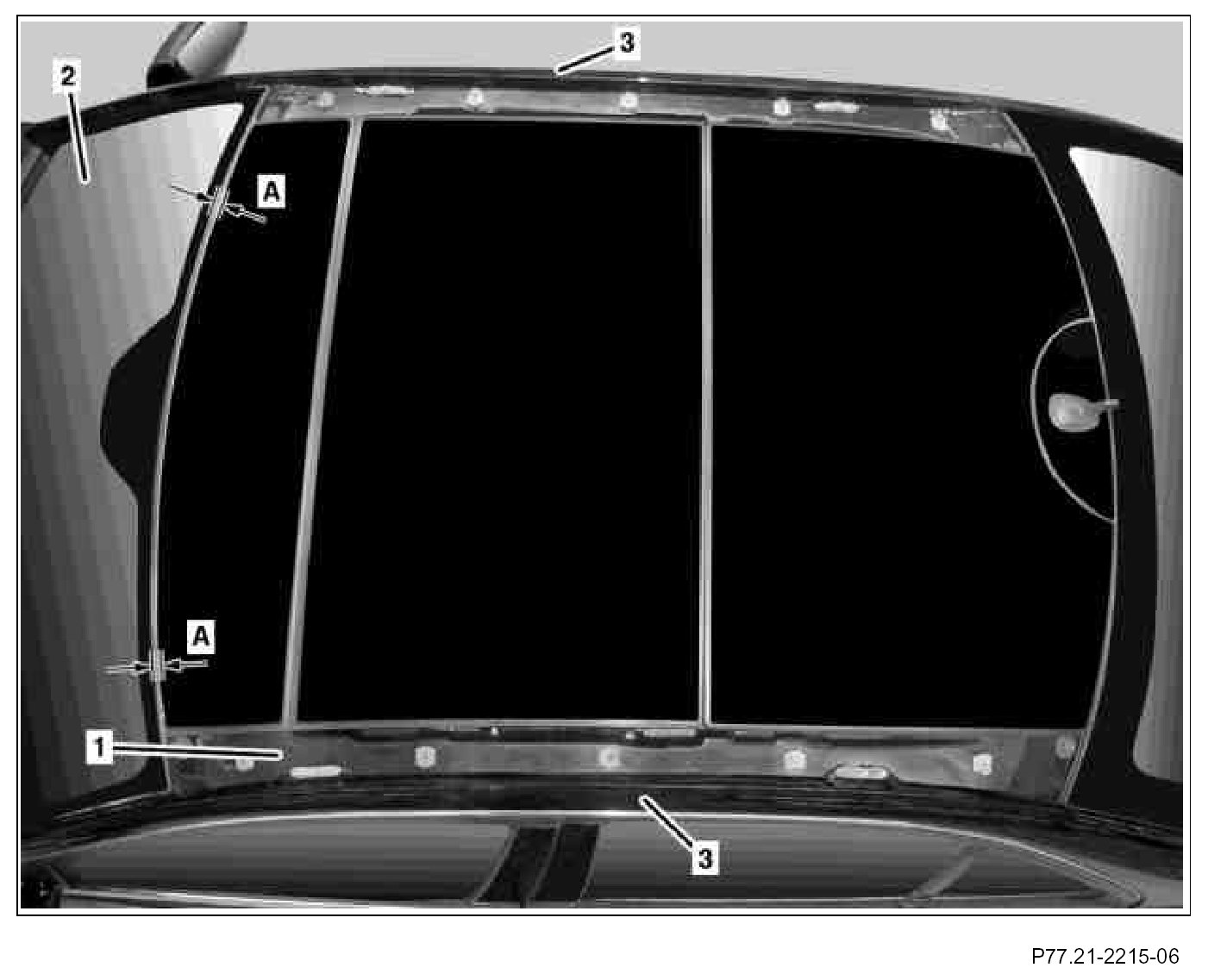

Illustrated on model 204.0

Install panoramic roof frame (1) within 5 minutes after applying glue to body and align before adhesive force of glue starts to decrease.

Immediately and carefully remove soiling caused by adhesive.

1. Position panoramic roof frame (1) above roof cutout with aid of three helpers, carefully lay onto adhesive bead and lightly press on.
2. Insert feeler gauges adjusted to gap dimension (A) determined before removal between panoramic roof frame (1) and windshield (2).
3. Align panoramic roof frame (1) in relation to windshield (2) and in center between side roof paneling (3).
4. Place suitable loads on panoramic roof frame (1) during curing time of adhesive.

Use weights with large surface, e.g. sandbags, otherwise the panoramic roof frame (1) can be damaged.

5. Carefully remove cup suction tool.
