AR77.21-P-0800-03CW Apply Glue For Panoramic Roof Frame

AR77.21-P-0800-03CW Apply Glue For Panoramic Roof Frame
- with CODE (413) Panoramic sliding roof

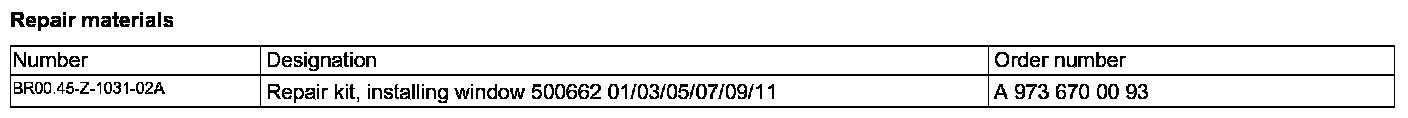

Repair Materials:

Do not touch bonding surfaces (1) with bare fingers. The bonding surfaces (1) must be free of dust, oil, grease, wax, dirt residues and other adhesive components. Otherwise the strength of the glued connection is not ensured.

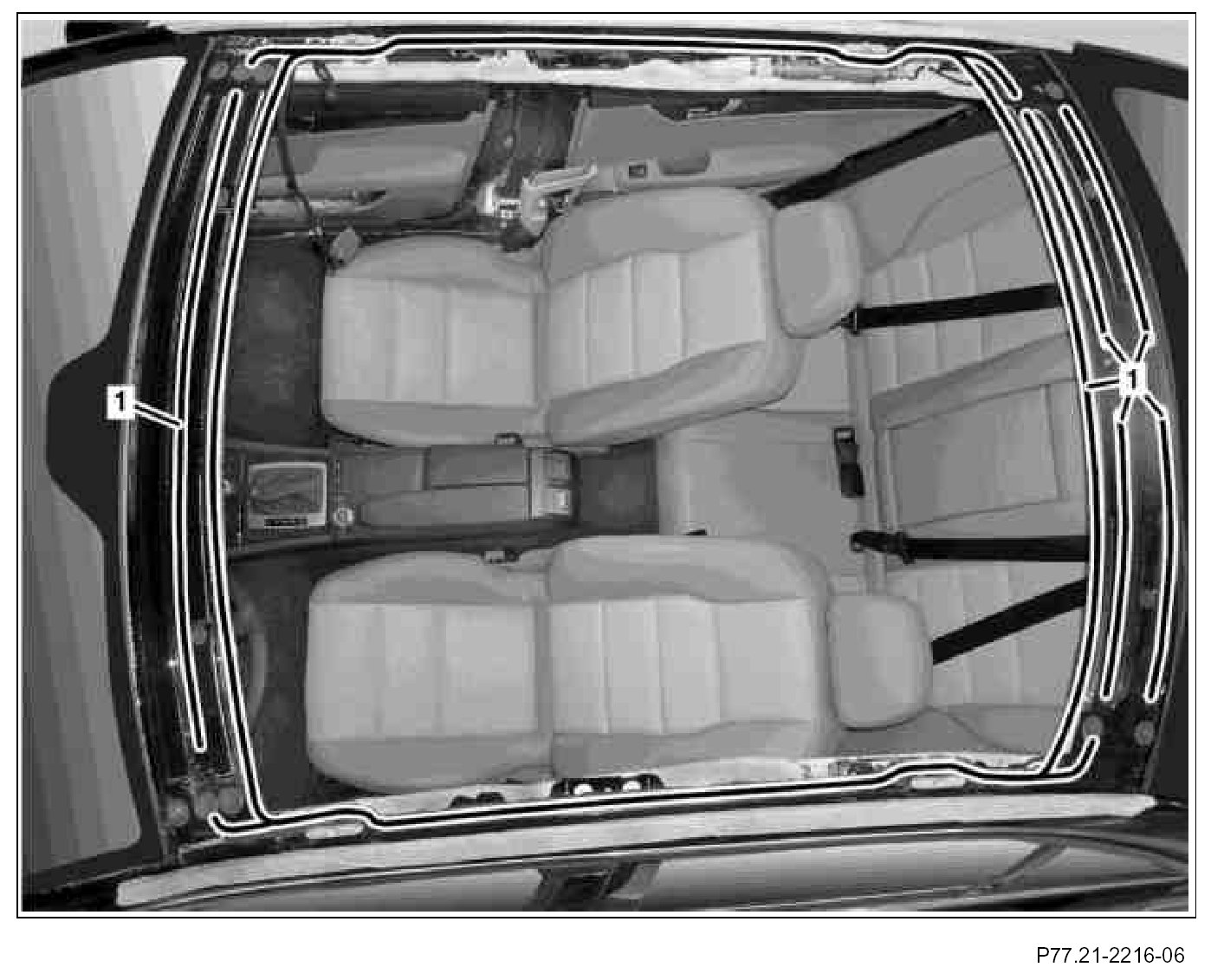

1. Guide application nozzle on bonding surfaces (1) along body flange.Uniformly apply glue in shape of an adhesive bead at a height of approx. 14 mm and width of approx. 8 cm.

Electric cartridge gun

http://gotis.aftersales.mercedes-benz.com

Immediately remove dirt from glue.
