AR77.21-P-0800-02CW Prepare Panoramic Roof Frame For Installation

AR77.21-P-0800-02CW Prepare Panoramic Roof Frame For Installation
- with CODE (413) Panoramic sliding roof

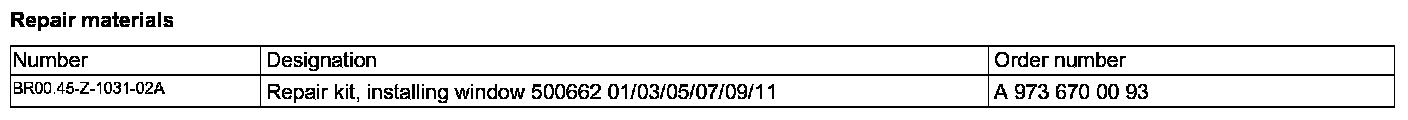

Repair Materials:

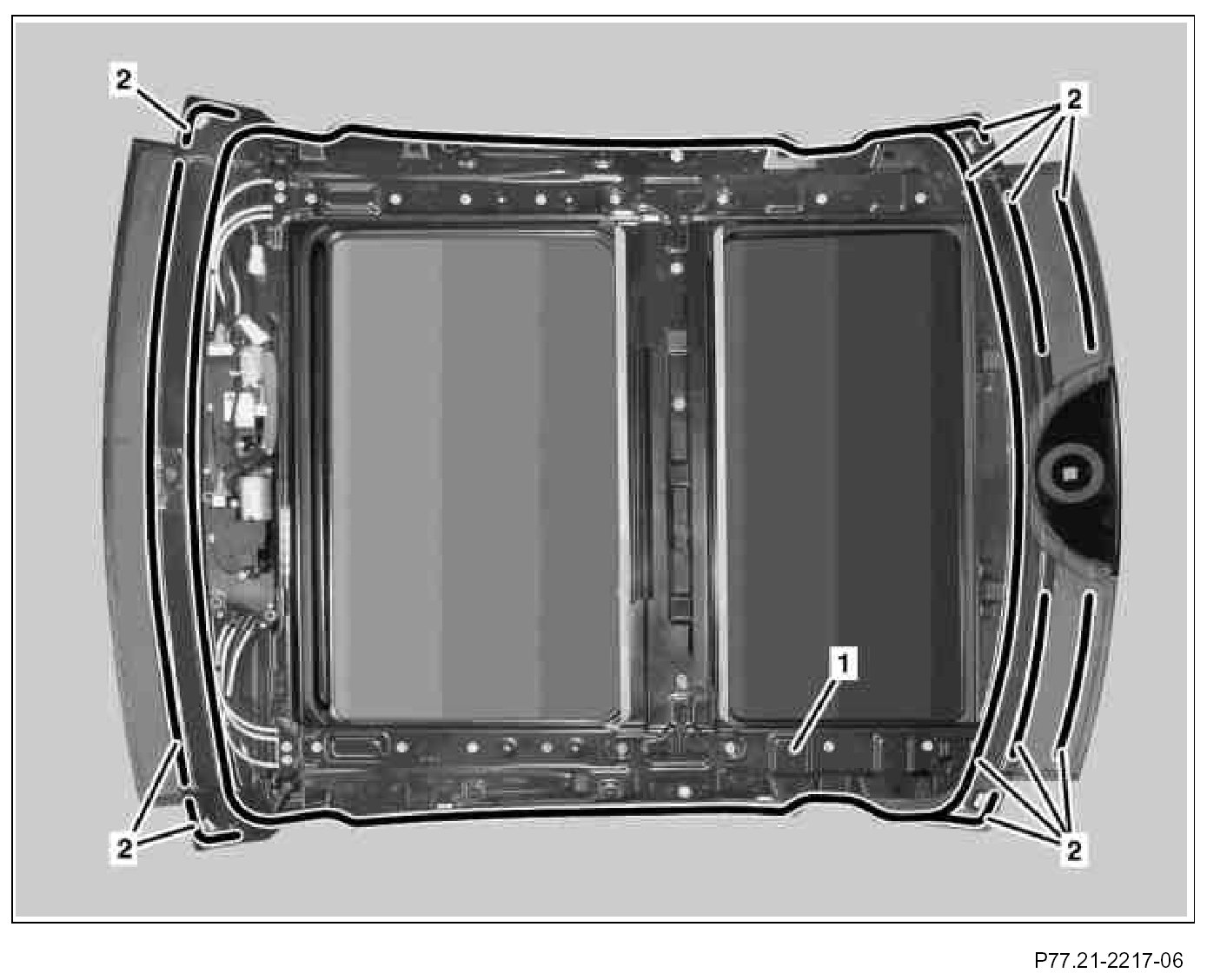

Do not touch bonding surfaces (2) with bare fingers.The bonding surfaces (2) must be free of dust, oil, grease, wax, dirt residues and other adhesive components.Otherwise the strength of the glued connection is not ensured.

1. Check panoramic roof frame (1) with all detachable body components for damage.
2. Install cup suction tool on outer side of panoramic roof frame (1) and lay panoramic roof frame (1) down to suitable subsurface with inside pointing upward.

Cup suction tool

http://gotis.aftersales.mercedes-benz.com

3. Apply cleaner with part of paper towel to bonding surfaces (2) on panoramic roof frame (1) and wipe with remaining paper towel.

Apply cleaner only to bonding surfaces (2).Allow cleaner to dry completely.
