GF72.29-P-6009CE Right Front Door Control Unit, Component Description

GF72.29-P-6009CE Right Front Door Control Unit, Component Description
- as of model year 09

Component Identification:

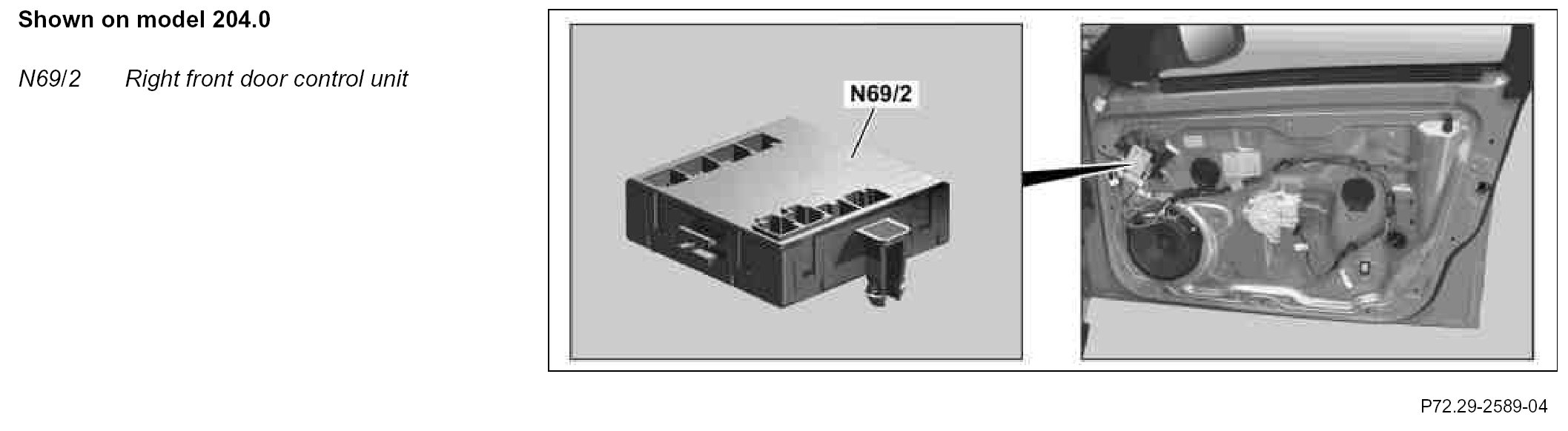

Location
The right front door control unit is located on the door module behind the door lining.

Task
The right front door control unit has the following tasks:
^ Reading in of sensors, pickups and signals
^ Evaluation of input factors
^ Actuation of components

Reading in of sensors, pickups and signals
The input factors are read in with the following connections:
^ Direct line
^ Right door LIN (LIN B6) (with code (242) Electrically adjustable passenger seat with memory function)
^ Interior CAN (CAN B)

Direct line
The signals from the following components are read via a direct line:
- Infrared remote control receiver, front door on passenger side (A26/2) (with code (498) Japanese version)
- Right front door rotary tumbler switch (A85/1s1)
- Hall sensor for right front door power window motor (M10/4)
- Passenger-side power window switch (S21/2)
- Right front door central locking inside door handle switch (S85/6) with following components:
- Open central locking switch (S85/6s1)
- Close central locking switch (S85/6s2)

Right door LIN
The signals for the following components are read in via the right door LIN:
- Right front seat adjustment switch group (S23)
- Right front head restraint adjustment switch (S23s1)
- Right front seat inclination adjustment switch (S23s2)
- Right front seat fore/aft adjustment switch (S23s3)
- Right front seat height adjustment switch (S23s4)
- Right front backrest adjustment switch (S23s5)
- Right front memory function switch (S23s6)
- Right front memory 1 switch (S23s7)
- Right front memory 2 switch (S23s8)
- Right front memory 3 switch (S23s9)

Interior CAN
The following requests are read in by the left front door control unit (N69/1) via the interior CAN:
- Adjustment request for power window
- Adjustment request from right outside mirror (M21/2)

Evaluation of input factors
The input factors that have been read in are evaluated by the integrated microprocessor and the relevant components are then actuated.

Actuation of components
Components are actuated with the following lines:
^ Direct line
^ Right door LIN

Direct line
The following components are actuated via a direct line:
- Right front door central locking motor (A85/1m1)
- Right front door additional door lock actuator motor (A85/1m4) (on model 204.0/2 without code (833) Great Britain version)
- In addition with code (954) Avantgarde or code (955) Elegance:
- Right front door exit and warning lamp (E17/4)
- Right front door handle illumination (E17/12)
- Right outside mirror turn signal lamp (E6/6)
- Right front door power window motor
- Right outside mirror with following components:
- Automatic mirror dimming (M21/2h1) (with code (249) Automatically dimming inside rearview mirror and outside mirror (driver))
- Vertical inclination adjustment actuator motor (M21/2m1)
- Horizontal inclination adjustment actuator motor (M21/2m2)
- Electric outside mirror fold-in/out motor (M21/2m3) (with code (249) Automatically dimming inside rearview mirror and outside mirror (driver)
- Mirror heater (M21/2r1)

Right door LIN
The right front door control unit supplies the connected control elements with c. 58d (symbol illumination) via right door LIN:
