AR68.30-P-4600CW Remove Paneling In Trunk



AR68.30-P-4600CW Remove Paneling In Trunk

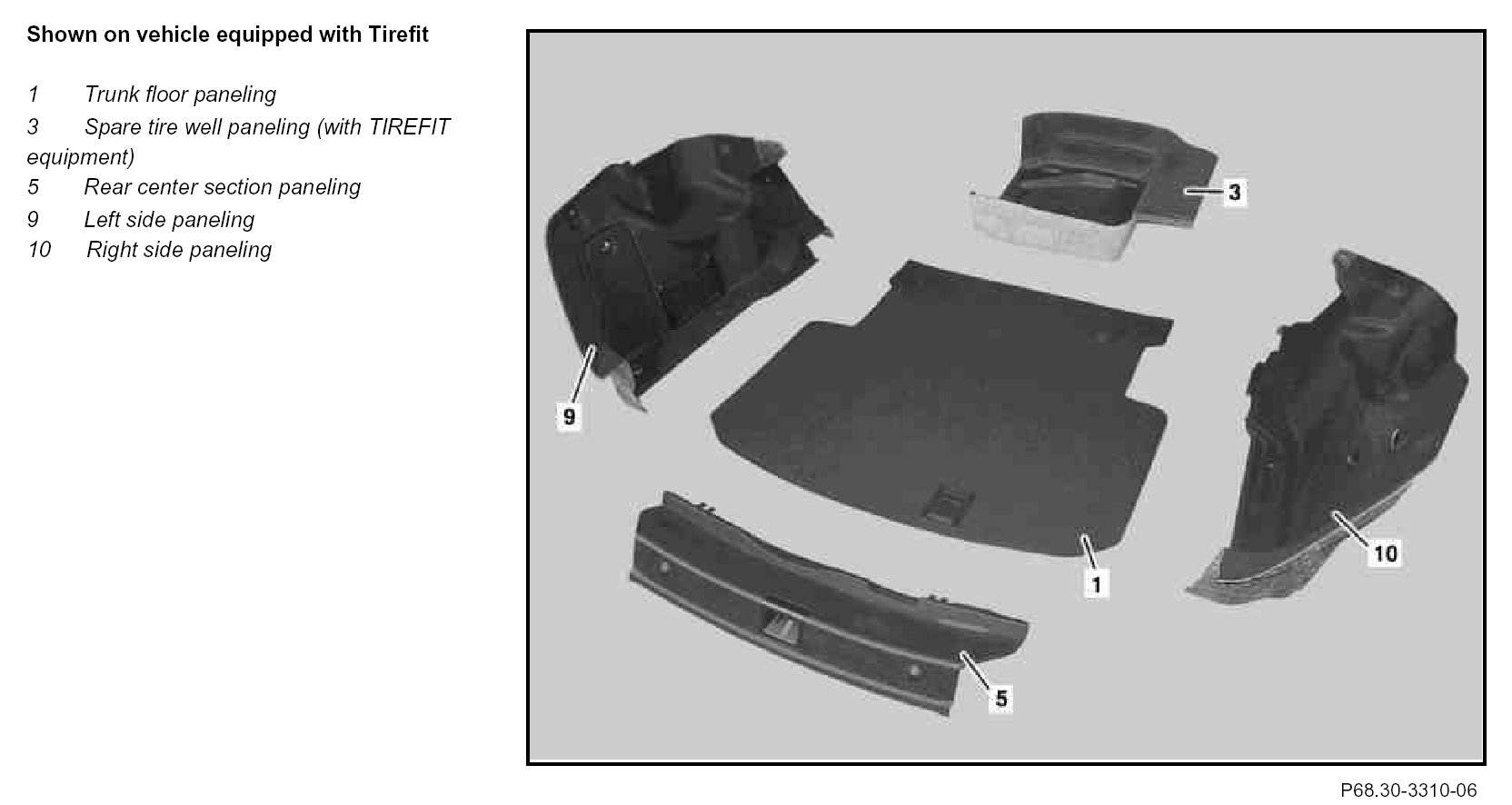

Component Identification:




Component Identification:




Component Identification:

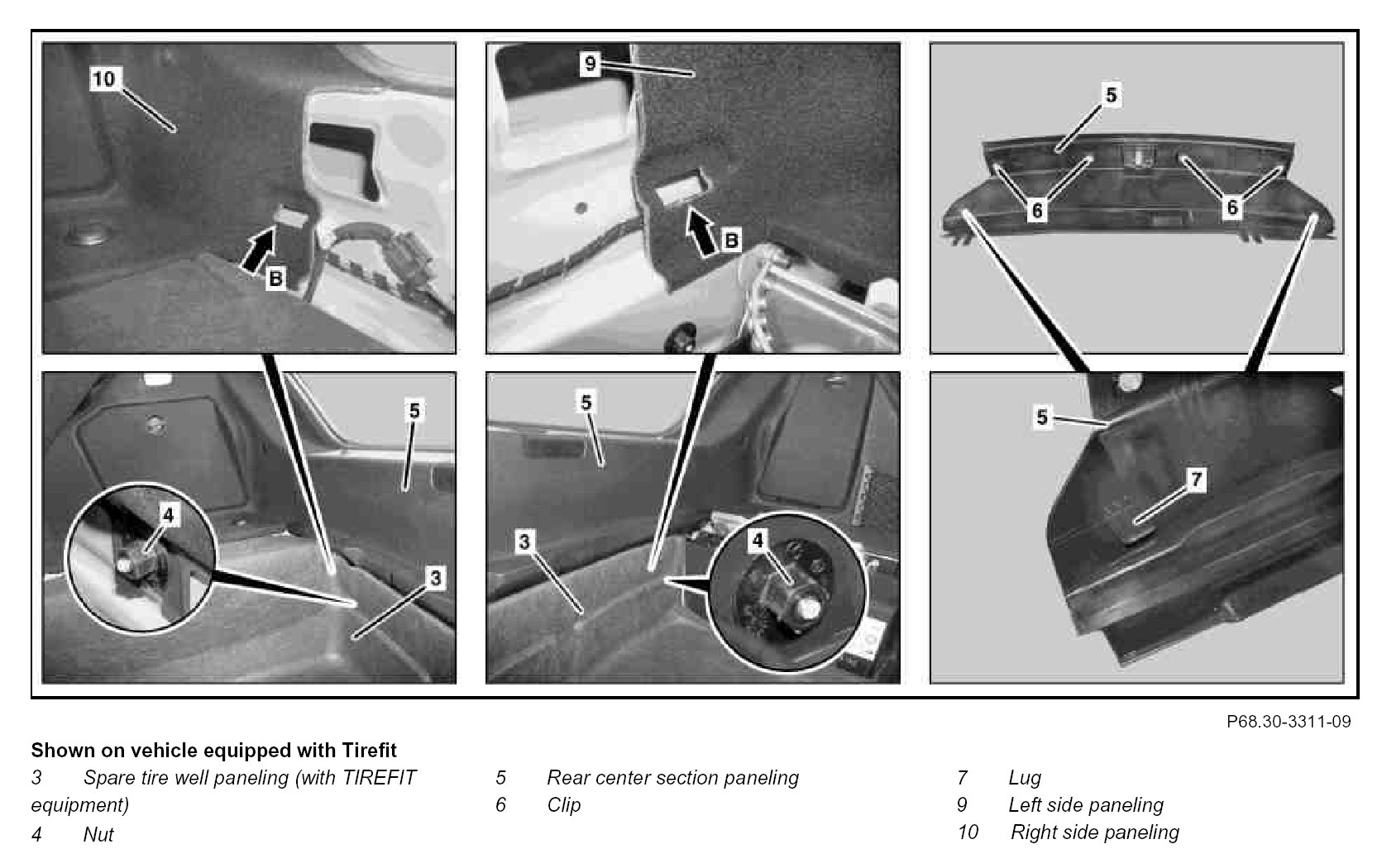

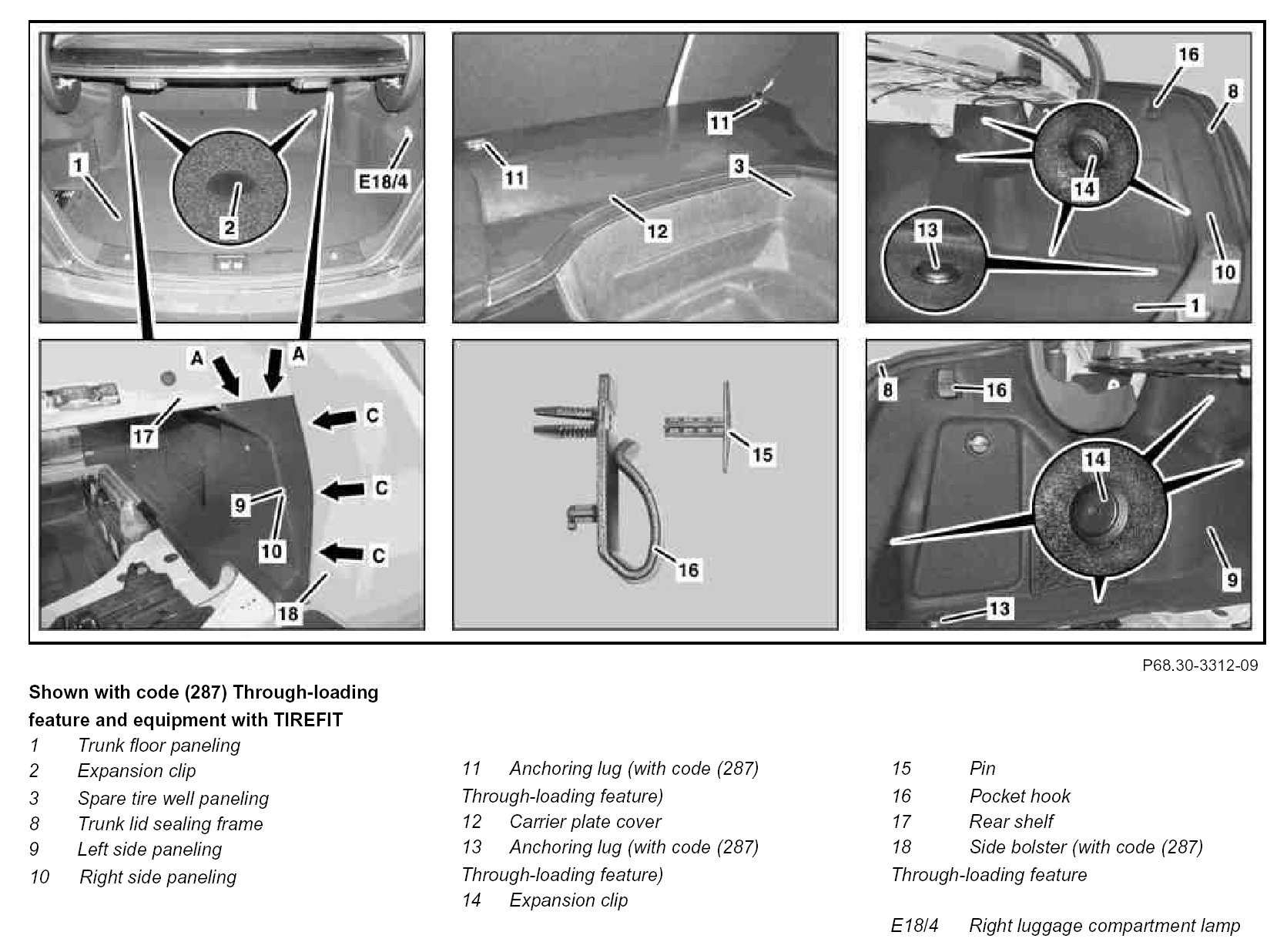

Steps 1.1 - 12:

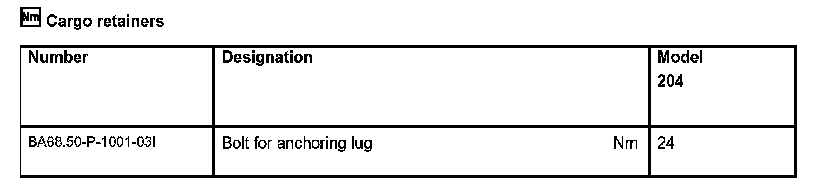

Cargo Retainers:




Special Tools:
