AR68.30-P-4490CW Remove/Install Trim At C-Pillar
AR68.30-P-4490CW Remove/Install Trim At C-Pillar
AR68.30-P-4490CW Remove/install Trim At C-pillar

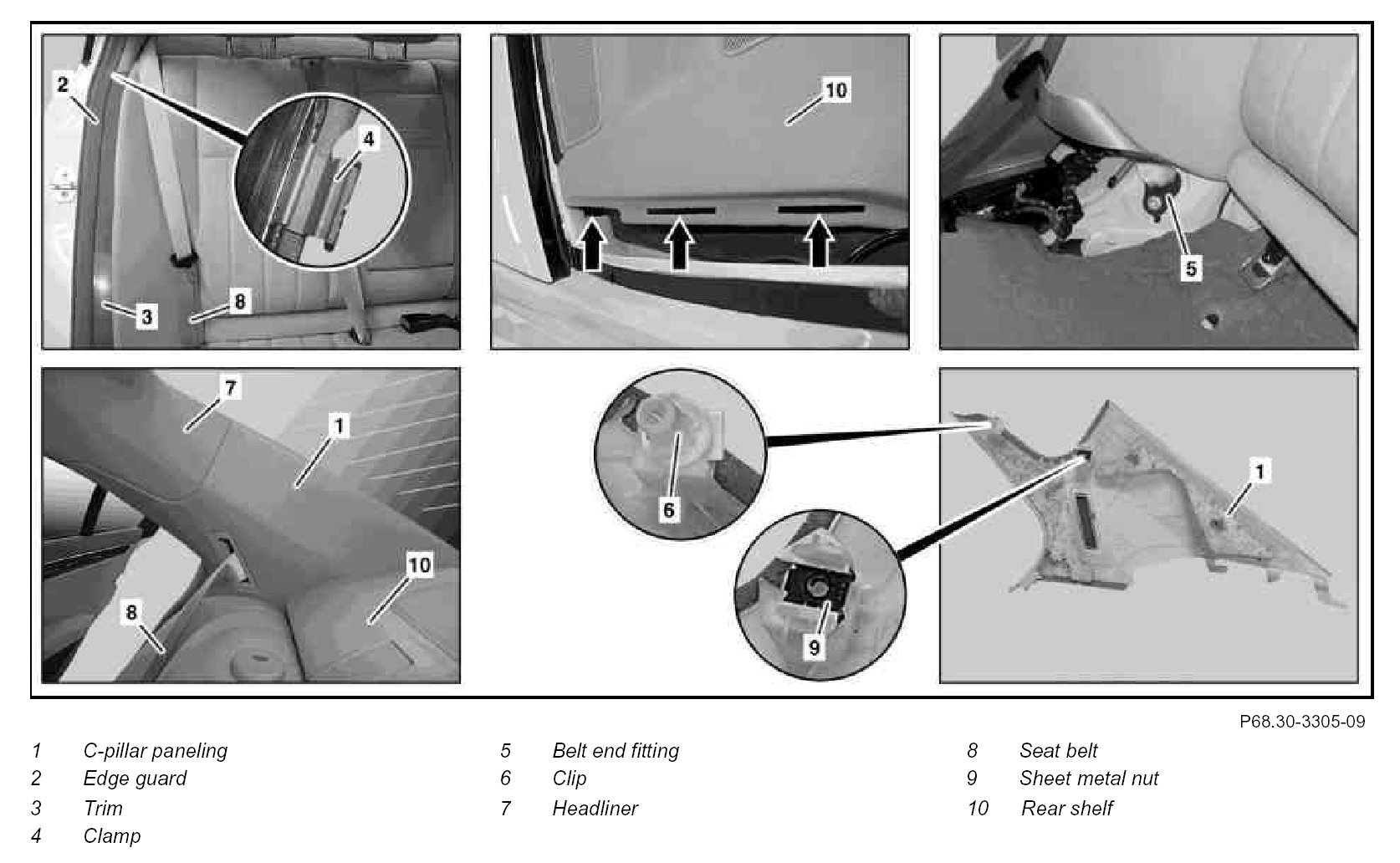

Component Identification:

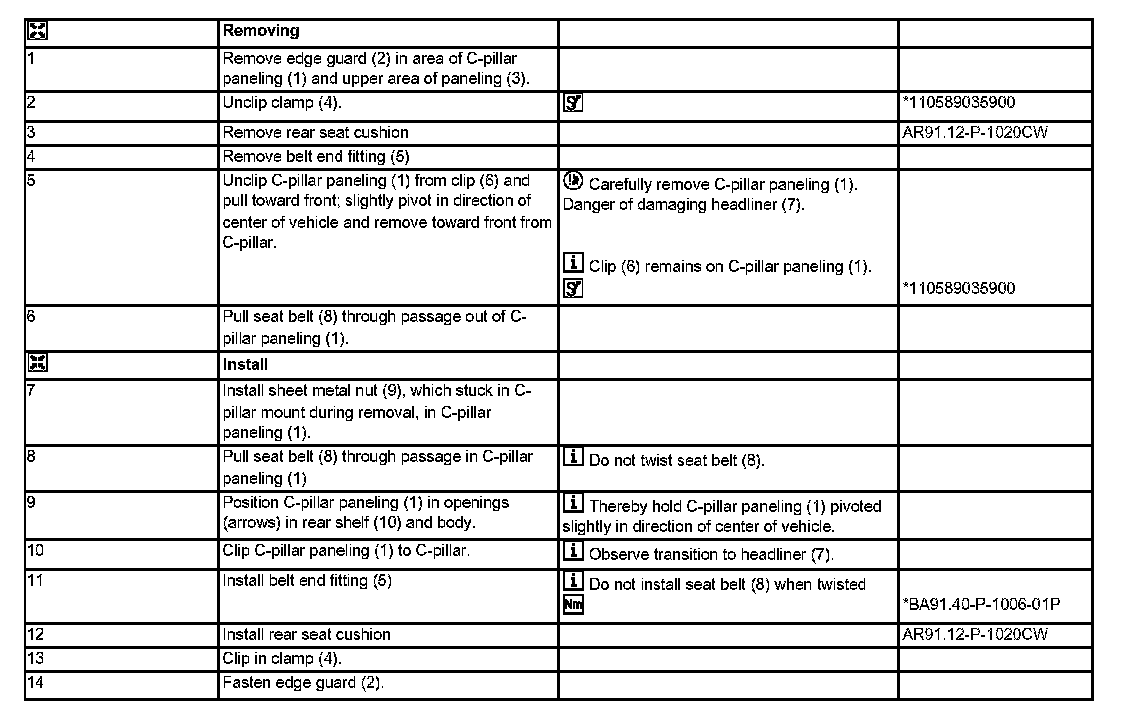

Steps 1 - 14:

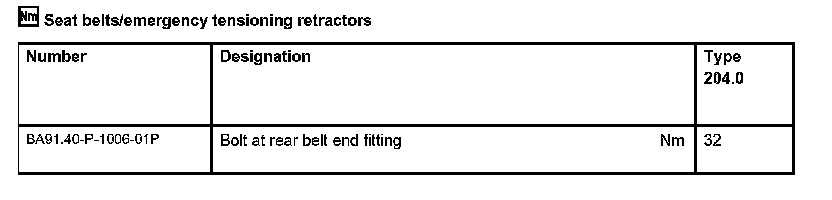

Seat Belts/emergency Tensioning Retractors:
Special Tools:
