AR68.30-P-1451CW Remove/Install Paneling Next to Rear Seat
AR68.30-P-1451CW Remove/Install Paneling Next to Rear Seat
AR68.30-P-1451CW Remove/Install Paneling Next to Rear Seat

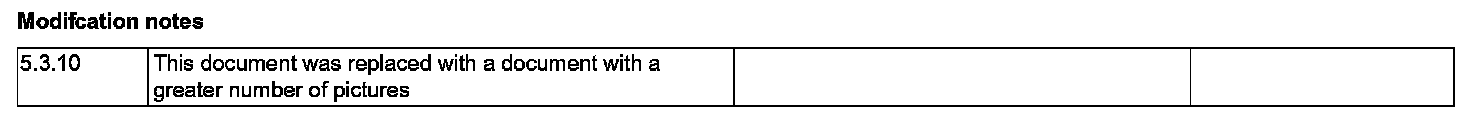

Modification Notes:

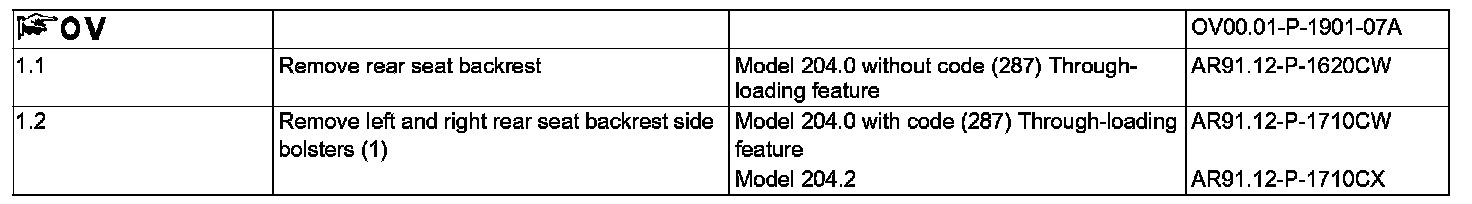

Steps 1.1 - 1.2:
