Removal and Replacement

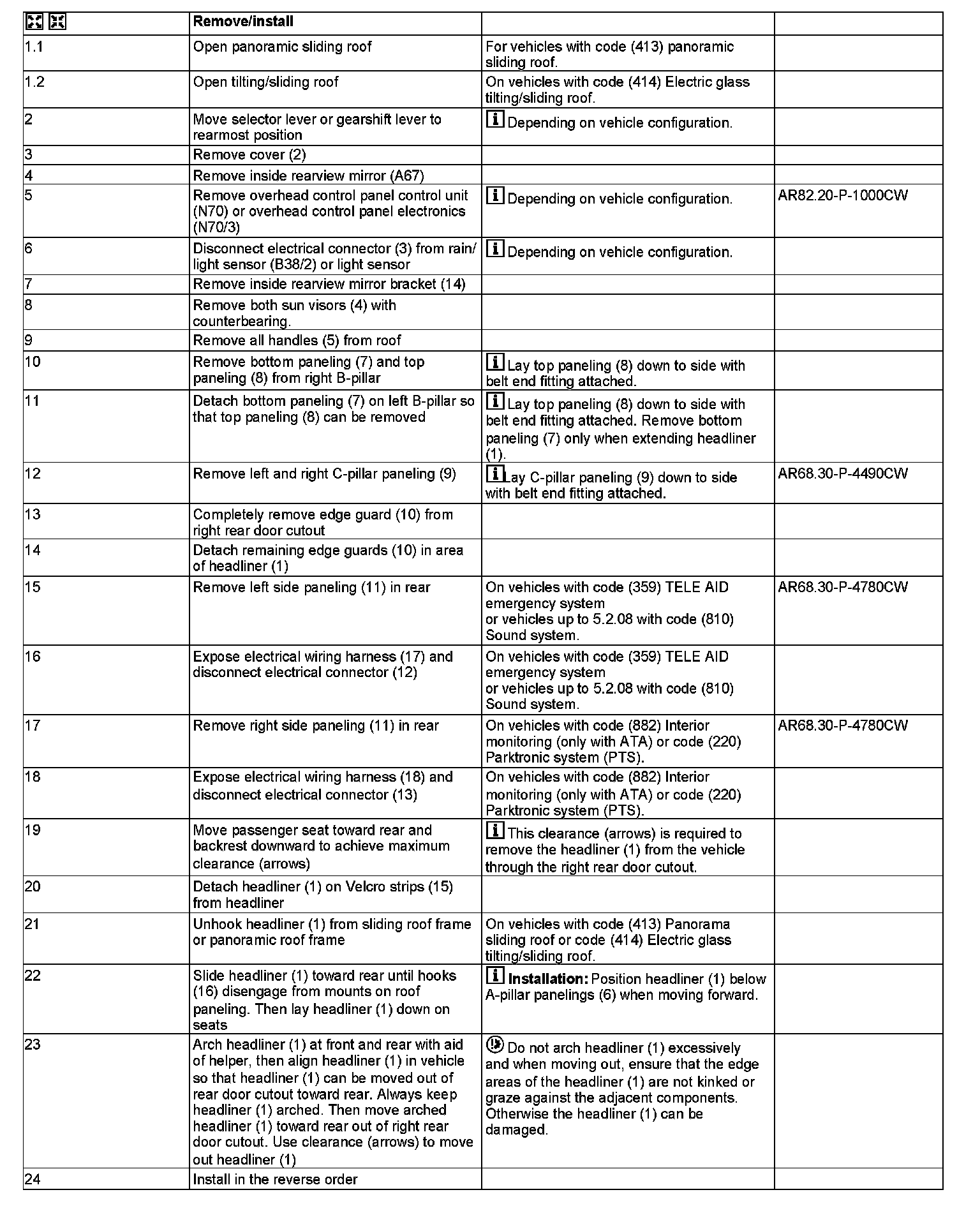

AR68.30-P-4300CW Remove/Install Headliner
MODEL 204.0

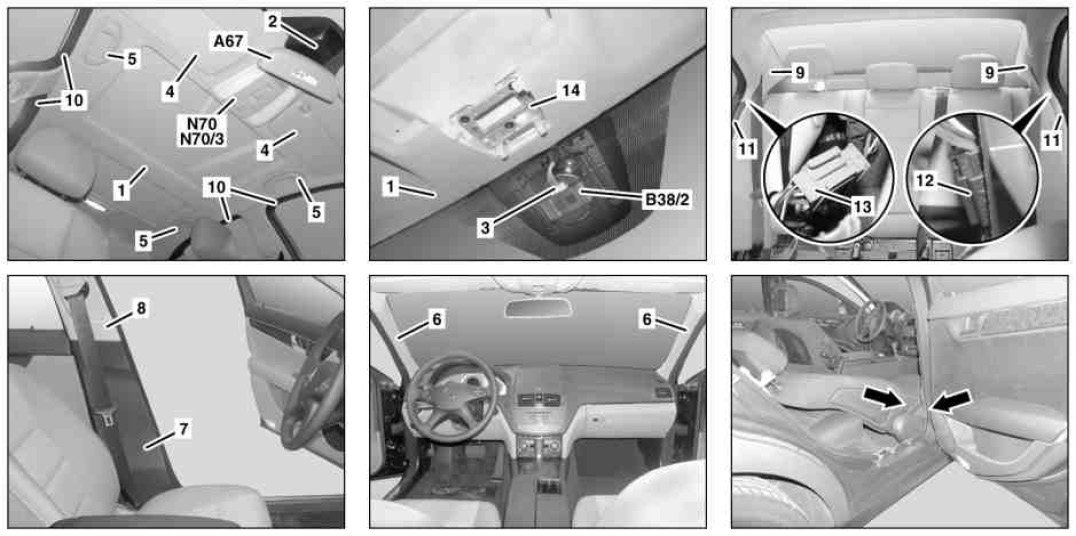

Shown with code (413) Panorama sliding roof and code (345) Rain sensor

1 Headliner
2 Cover
3 Electrical connector
4 Sun visor
5 Grab handle
6 A-pillar paneling
7 Lower trim panel
8 Upper trim panel
9 C-pillar paneling
10 Edge guards
11 Side paneling
12 Electrical connector (with code (810) Sound system or code (359) TELE AID emergency call system)
13 Electrical connector (with code (882) Interior monitoring (only with ATA) or code (220) Parktronic system (PTS))
14 Inside rearview mirror bracket

A67 Inside rearview mirror
B38/2 Rain/light sensor (with code (345) Rain sensor)
N70 Overhead control panel control unit (with code (414) Power glass tilting/sliding sunroof)
N70/3 Overhead control panel electronics (without code (414) Power glass tilting/sliding sunroof)

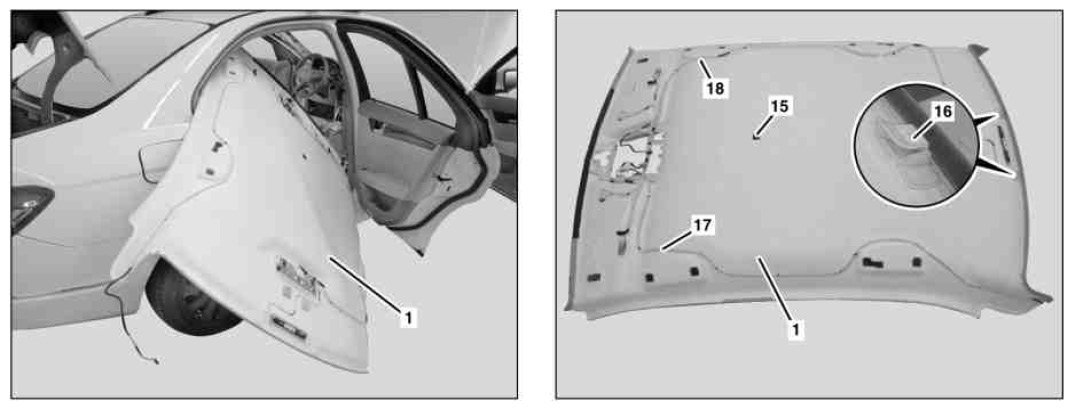

Shown with code (810) Sound system and code (882) Interior monitoring (only with ATA)

1 Headliner
15 Velcro strip
16 Hook
17 Electric wiring harness (with code (810) Sound system or code (359) TELE AID emergency call system )
18 Electric wiring harness (with code (882) Interior monitoring (only with ATA) or code (220) Parktronic system (PTS))

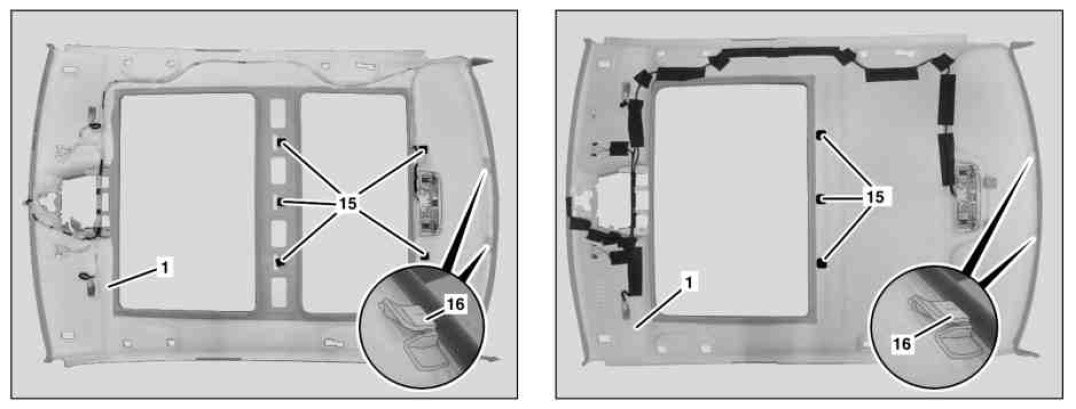

Left picture with code (413) Panorama sliding roof, right picture with code (414) Electric glass tilting/sliding roof

1 Headliner
15 Velcro strips
16 Hook
